Sun Earth SKT545M10-144D4
Sun Earth Brand review

SKT545M10-144D4

545 Wp TOPCon Bifacial
ComparePV verdict

Middle of its segment, heavy for its output

Rank 6,792 of 14,005
Compare panels Datasheet PDF
Power (Wp)
545
Strong · top 2%
Efficiency (%)
21.10
Weak · bottom 6%
Density (Wp/m²)
211.0
Weak · bottom 6%
Temp (%/°C)
-0.290
Typical · median -0.290
Weight (kg)
32.0
Weak · 5.0 kg above median
Warranty (yrs)
30
Typical · median 30 yrs

The Sun Earth SKT545~580M10-144D4 series is a premium module range designed for projects where maximizing energy yield per square meter is paramount. This series utilizes TOPCon monocrystalline cells in a half-cut configuration, which translates to improved performance at high temperatures, reduced internal losses, and more stable energy generation in varying weather conditions. The double-glass construction enhances resistance to microcracks and aging, while also facilitating long-term high efficiency.

This series is also bifacial, meaning it can utilize reflected light from the ground, making it particularly well-suited for roofs with light-colored membranes, ground-mounted installations, and industrial settings where the environment can be designed for optimal energy gain. A key advantage over many competing modules is the long power warranty, which simplifies investment planning and financing.

Ranking

432 panels in the segment TOPCon 500-550 W
Metric This panel Median Position in segment Overall rank
Module efficiency 21.10% 22.73% Weak · bottom 6% 9,297
Power density 211.0 227.4 Weak · bottom 6% 9,312
Temperature coefficient -0.290 -0.290 Typical 2,165
Weight per kWp 58.7 52.4 Weak · bottom 5% 11,844
Performance warranty 30 yrs 30 yrs Typical 21
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

0 positive · 3 caution
Best for

Commercial, utility-scale, shaded-installations and hot-climate.

Not ideal for

Weight-limited structures, tight roof space and roofs where every square metre has to count.

Watch-outs
58.7 kg per kWp

Bottom 5% of the TOPCon 500-550 W segment, against a median of 52.4. Ranked 11,844th in the whole database.

21.10% module efficiency

Bottom 6% of the TOPCon 500-550 W segment, against a median of 22.73%. Ranked 9,297th in the whole database.

211.0 watts per square metre

Bottom 6% of the TOPCon 500-550 W segment, against a median of 227.4. Ranked 9,312th in the whole database.

Notes from the database
  • Module efficiency of 21.1% is 1.6pp below average for TOPCon 500-550W panels (median: 22.7%)
  • Power density of 211.0 W/m² is 16.4 W/m² below TOPCon 500-550W median (227.4 W/m²) - needs more roof space
  • At -0.29%/°C, hot weather performance is typical for TOPCon 500-550W panels
  • Weight of 32.0 kg is 5.0 kg above TOPCon 500-550W median (27.0 kg) - verify structural support
  • Ranked #9297 out of 14005 panels for efficiency in the database

Specifications

Open datasheet PDF
Nominal power (Pmax) 545 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 21.10 % Weak Segment median 22.73%
Vmpp · Impp 41.32 V · 13.19 A Operating point at max power
Voc · Isc 50.04 V · 13.90 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 2278×1134×35 mm · 2.58 m² of roof
Weight 32.0 kg Weak Weak · 5.0 kg above median
Cells 144 · TOPCon Monocrystalline
Coefficient Pmax -0.290 %/°C Typical median -0.290 of its segment
Coefficient Voc · Isc -0.250 · 0.045 %/°C
NOCT 45 °C At 800 W/m², 20 °C ambient
Product warranty 15 years Hardware defects only
Performance warranty 30 years Typical median 30 yrs · median 30 yrs
End-of-warranty output 87.4 % Equals 476 W guaranteed

Datasheet charts

Open datasheet PDF

Measured curves published by Sun Earth in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 545 Wp appear here. The rest cover the whole series.

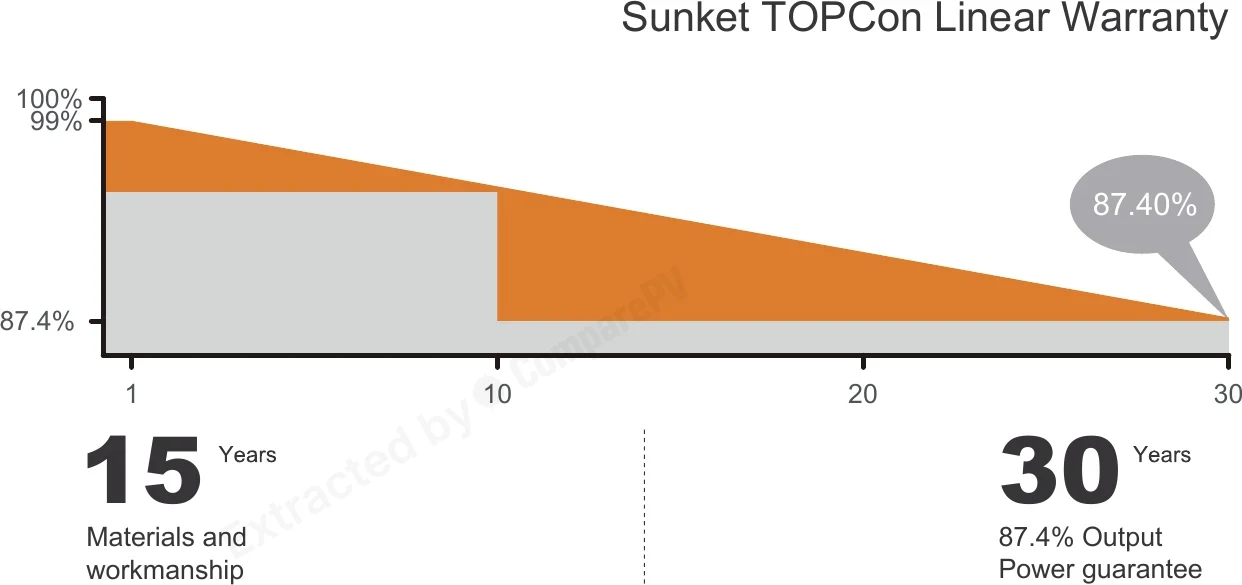

Sunket TOPCon Linear Warranty Sunket TOPCon Linear Warranty Whole series

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.290 %/°C against a segment median of -0.290
-
Filter these
Size
Panel Power Eff. Temp. Weight Difference
Sun Earth SKT545M10-144D4 545 W 21.10% -0.290 32.0 kg You are here
LR7-54HJD-510M 510 W 25.00% -0.240 23.5 kg Cooler, lighter, +3.9 pp
AIKO-A495-MCE54Mw 495 W 24.80% -0.260 21.0 kg -50 W, lighter, +3.7 pp
LR7-60HVH-560M 560 W 24.80% -0.260 25.0 kg Cooler, lighter, +3.7 pp
LR7-54HJD-505M 505 W 24.70% -0.240 23.5 kg Cooler, lighter, +3.6 pp
LR7-60HVH-555M 555 W 24.60% -0.260 25.0 kg Cooler, lighter, +3.5 pp
LR7-54HJD-500M 500 W 24.50% -0.240 23.5 kg Cooler, lighter, +3.4 pp
DXM8-72H/BF 535W 535 W 20.70% -0.350 28.0 kg Hotter, lighter, -0.4 pp
DXM8-72H/BF 540W 540 W 20.90% -0.350 28.0 kg Hotter, lighter, -0.2 pp
SKT550M10-144D4 550 W 21.29% -0.290 32.0 kg Very close match
SKT555M10-144D4 555 W 21.48% -0.290 32.0 kg +10 W, +0.4 pp
SKT560M10-144D4 560 W 21.68% -0.290 32.0 kg +15 W, +0.6 pp
AIKO-A650-MAE72Mw 650 W 25.20% -0.260 27.0 kg +105 W, lighter, +4.1 pp
AIKO-A645-MAE72Mw 645 W 25.00% -0.260 27.0 kg +100 W, lighter, +3.9 pp
AIKO-A640-MAE72Mw 640 W 24.80% -0.260 27.0 kg +95 W, lighter, +3.7 pp
AIKO-A635-MAE72Mw 635 W 24.60% -0.260 27.0 kg +90 W, lighter, +3.5 pp
AIKO-A630-MAH72Dw 630 W 24.40% -0.260 32.5 kg +85 W, cooler, +3.3 pp

Found 2326 panels of the same or similar size to this one, within ±10 mm. See them here Found 2368 panels of the same or similar size to this one, within ±25 mm. See them here Found 2382 panels of the same or similar size to this one, within ±50 mm. See them here Found 2547 panels of the same or similar size to this one, within ±100 mm. See them here

Common questions

6 answered
Is the Sun Earth SKT545~580M10-144D4 series still available for purchase?
The SKT545~580M10-144D4 series has been discontinued by the manufacturer. New direct shipments from Sun Earth are no longer available. Limited stock may still exist with some distributors, but anyone planning a larger installation should verify availability before placing an order or consider sourcing a current equivalent with comparable specifications.
What product and power output warranties come with the Sun Earth SKT545~580M10-144D4 modules?
Sun Earth covers the SKT545~580M10-144D4 with a 15-year product warranty against manufacturing and material defects, plus a 30-year linear power output warranty. A 30-year power guarantee is a premium-tier benchmark that simplifies long-term yield modeling and supports project financing requirements for commercial and industrial installations.
What does bifacial mean on the SKT545~580M10-144D4 and is the extra cost justified?
Bifacial means the module generates power from both sides — the rear glass captures albedo light reflected off the ground or roof surface. The gain is most significant on bright membranes, white gravel, or snow-covered surfaces, and can add several to over ten percent in annual yield. For ground-mount and industrial systems where the surrounding environment can be designed intentionally, bifacial is a proven strategy for reducing LCOE.
Are the Sun Earth SKT545~580M10-144D4 modules suitable for large ground-mount and industrial projects?
Yes, the 144-cell format rated up to 580 Wp is aimed primarily at commercial and utility-scale applications. The double glass construction improves mechanical strength and long-term weather resistance, while bifacial operation allows site designers to optimize ground reflectivity for additional yield. The high per-module wattage also reduces total module count and balance-of-system (BoS) costs per megawatt.
How does TOPCon cell technology in the SKT545~580M10-144D4 compare to standard PERC modules?
TOPCon (Tunnel Oxide Passivated Contact) is the generation of cell technology that follows PERC. A thin tunnel oxide layer reduces carrier recombination, resulting in higher conversion efficiency and a better temperature coefficient — the module loses proportionally less power on hot days. In real-world conditions, this translates into higher annual energy yield per square meter compared to conventional PERC panels.
How do Sun Earth SKT545~580M10-144D4 panels handle partial shading?
The half-cut cell layout splits each cell in half, which lowers resistive losses and limits the impact of partial shading on overall module output. When a shadow falls on only part of the panel, the unshaded half continues to operate effectively. This is a meaningful advantage in installations where obstructions — chimneys, antennas, or adjacent rows in large rooftop arrays — cannot be fully avoided.
