Middle of its segment, heavy for its output
The Solarspace SSA-48HD 430-455N (Lumina II) series is designed for high energy production with limited mounting space. In practice, it combines TOPCon type N cell technology with bifacial construction, allowing for better utilization of reflected and diffused light - particularly on light roofs, membranes, and ground-mounted systems with appropriate ground cover. This solution helps reduce energy losses in less ideal conditions and increases the predictability of the system's performance.
Modules from this series offer stable performance over time thanks to a long power warranty, which is important for investors who calculate LCOE and return on investment. The use of a protected IP68 connection box and industrial-grade components supports resistance to moisture and more demanding operating conditions.
Lumina II is suitable for homes, small businesses, and commercial projects where maximizing energy yield per square meter of roof and long-term reliability are key.
Ranking
Signals from the data
Residential and commercial.
Weight-limited structures.
Bottom 25% of the N-type 450-500 W segment, against a median of 50.3.
- At 22.8% efficiency, this panel is on par with typical N-type 450-500W modules
- At 227.7 W/m² power density, roof space requirements are typical for N-type 450-500W panels
- Temperature coefficient of -0.29%/°C matches the N-type 450-500W median
- Bifaciality factor of 80% can add 4-12% extra yield with reflective mounting surface
- In the top 23% for efficiency among all N-type panels
Specifications
Datasheet charts
Measured curves published by Solarspace in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 455 Wp appear here. The rest cover the whole series.
Simulations

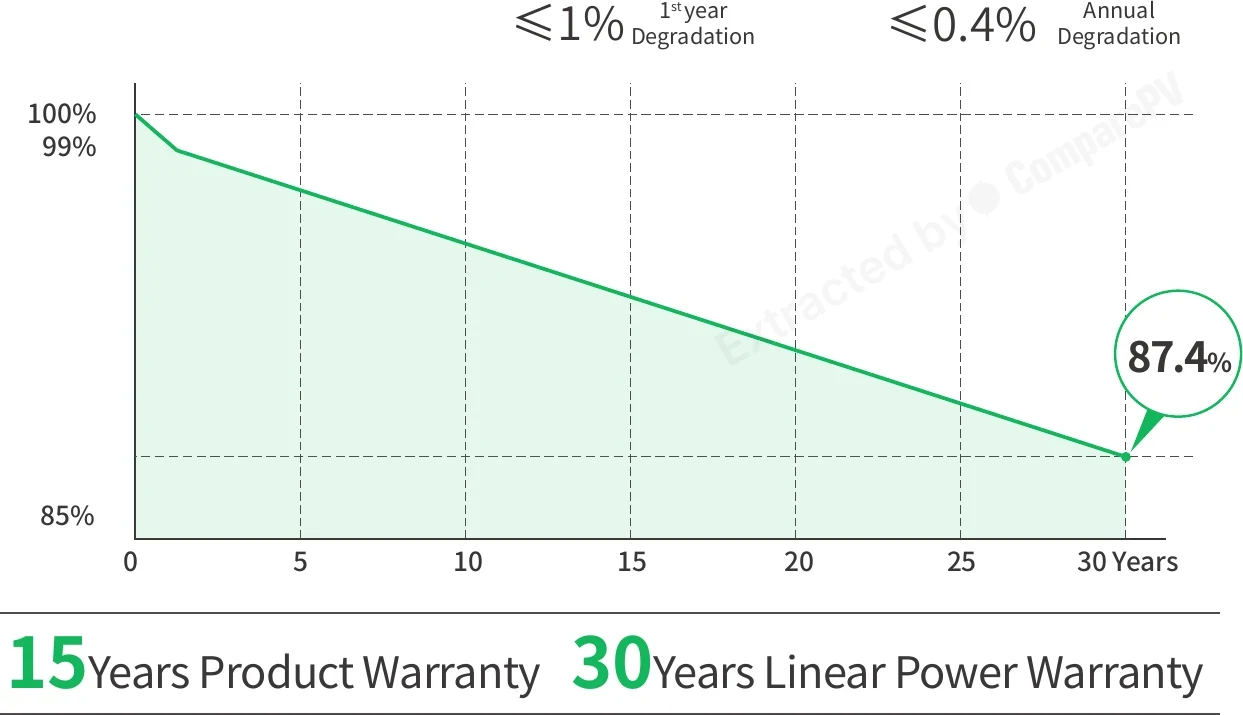

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.
Model: bifaciality × albedo × 0.6 view factor. A first-order estimate, not a yield simulation.
Found 1444 panels of the same or similar size to this one, within ±10 mm. See them here Found 1474 panels of the same or similar size to this one, within ±25 mm. See them here Found 3758 panels of the same or similar size to this one, within ±50 mm. See them here Found 4117 panels of the same or similar size to this one, within ±100 mm. See them here
About the SSA-48HD 430-455N (Lumina II) series
These answers cover the whole series. Where a figure differs, the specification above is this module's own.
