Solarspace Brand review

SSA-48HD-445N

445 Wp N-type Bifacial 80%
ComparePV verdict

Space saver, no clear weak spot

Rank 8,970 of 14,005
Compare panels Datasheet PDF
Power (Wp)
445
Strong · top 7%
Efficiency (%)
22.27
Typical · median 21.91%
Density (Wp/m²)
222.7
Strong · top 25%
Temp (%/°C)
-0.290
Typical · median -0.290
Weight (kg)
24.5
Typical · median 22.0 kg
Warranty (yrs)
30
Typical · median 30 yrs

The Solarspace SSA-48HD 430-455N (Lumina II) series is designed for high energy production with limited mounting space. In practice, it combines TOPCon type N cell technology with bifacial construction, allowing for better utilization of reflected and diffused light - particularly on light roofs, membranes, and ground-mounted systems with appropriate ground cover. This solution helps reduce energy losses in less ideal conditions and increases the predictability of the system's performance.

Modules from this series offer stable performance over time thanks to a long power warranty, which is important for investors who calculate LCOE and return on investment. The use of a protected IP68 connection box and industrial-grade components supports resistance to moisture and more demanding operating conditions.

Lumina II is suitable for homes, small businesses, and commercial projects where maximizing energy yield per square meter of roof and long-term reliability are key.

Ranking

321 panels in the segment N-type 400-450 W
Metric This panel Median Position in segment Overall rank
Module efficiency 22.27% 21.91% Typical 5,481
Power density 222.7 218.3 Strong · top 25% 5,302
Temperature coefficient -0.290 -0.290 Typical 2,165
Weight per kWp 55.1 51.2 Typical 9,435
Performance warranty 30 yrs 30 yrs Typical 21
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

1 positive · 0 caution
Best for

Residential and commercial.

Strengths
222.7 watts per square metre

Top 25% of the N-type 400-450 W segment, against a median of 218.3.

Notes from the database
  • Efficiency of 22.3% matches the N-type 400-450W median
  • 222.7 W/m² power density - 4.4 W/m² more than N-type 400-450W median (218.3 W/m²), more power per roof area
  • Temperature coefficient of -0.29%/°C matches the N-type 400-450W median
  • At 24.5 kg, this panel is 2.5 kg heavier than the N-type 400-450W median (22.0 kg) - more demanding for installation crews
  • Bifaciality factor of 80% can add 4-12% extra yield with reflective mounting surface

Specifications

Open datasheet PDF
Nominal power (Pmax) 445 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 22.27 % Typical Segment median 21.91%
Vmpp · Impp 29.91 V · 14.89 A Operating point at max power
Voc · Isc 35.02 V · 15.99 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 1762×1134×30 mm · 2.00 m² of roof
Weight 24.5 kg Typical Typical · median 22.0 kg
Cells 96 · N-type Monocrystalline
Bifaciality 80 % Rear output as a share of front
Coefficient Pmax -0.290 %/°C Typical median -0.290 of its segment
Coefficient Voc · Isc -0.260 · 0.045 %/°C
NOCT 45 °C At 800 W/m², 20 °C ambient
Product warranty 15 years Hardware defects only
Performance warranty 30 years Typical median 30 yrs · median 30 yrs
End-of-warranty output 87.4 % Equals 389 W guaranteed
Degradation 1.00 → 0.40 % First year, then annual

Datasheet charts

Open datasheet PDF

Measured curves published by Solarspace in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 445 Wp appear here. The rest cover the whole series.

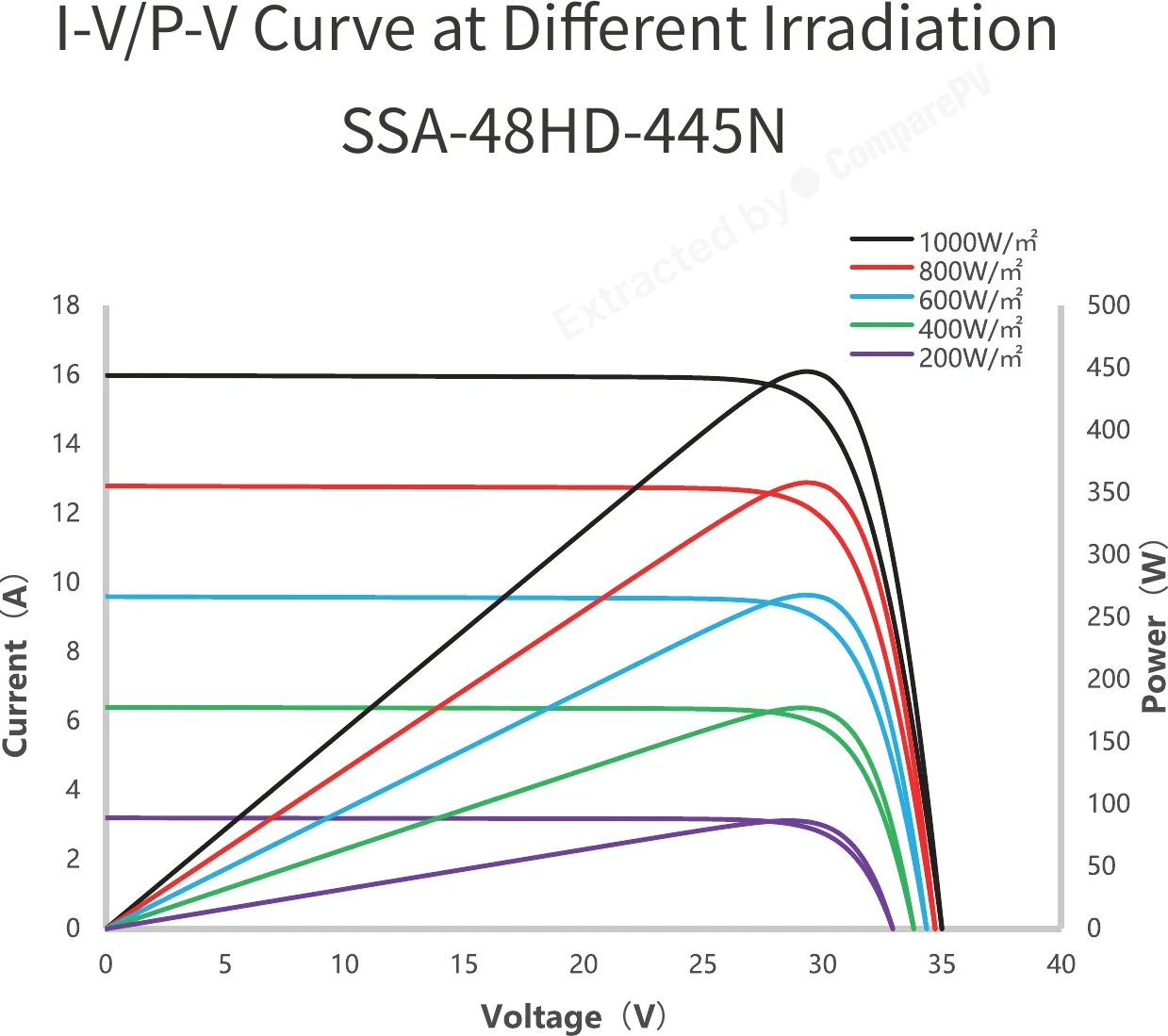

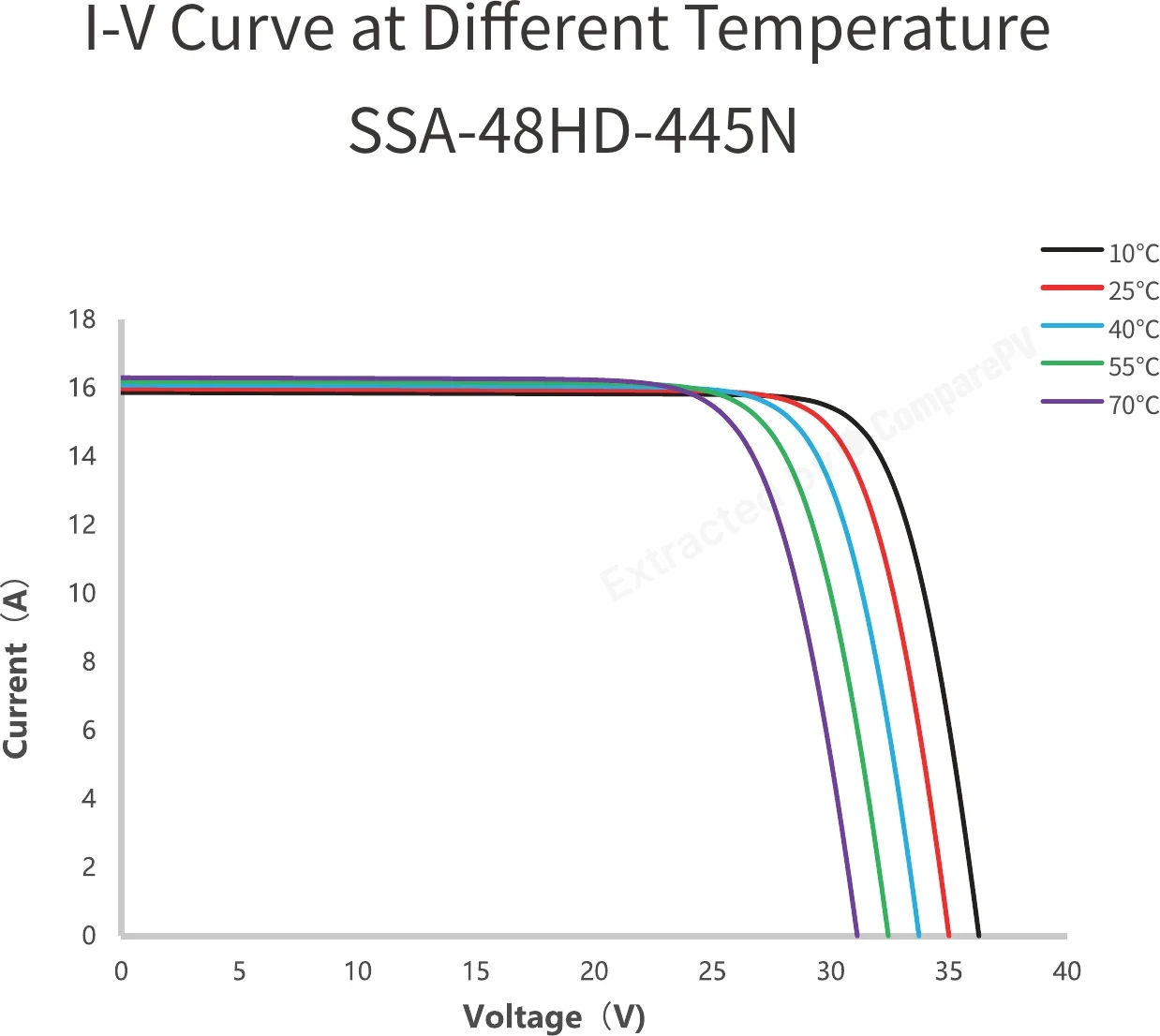

30-Year Linear Power Warranty 30-Year Linear Power Warranty Whole series I-V/P-V Curve at Different Irradiation (SSA-48HD-445N) I-V/P-V Curve at Different Irradiation (SSA-48HD-445N) 445 W I-V Curve at Different Temperature (SSA-48HD-445N) I-V Curve at Different Temperature (SSA-48HD-445N) 445 W

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-
With bifacial gain
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.290 %/°C against a segment median of -0.290
-
Bifacial gain
Rear gain over light concrete: -
-

Model: bifaciality × albedo × 0.6 view factor. A first-order estimate, not a yield simulation.

Filter these
Size
Panel Power Eff. Temp. Weight Difference
Solarspace SSA-48HD-445N 445 W 22.27% -0.290 24.5 kg You are here
AIKO-A495-MCE54Mw 495 W 24.80% -0.260 21.0 kg +50 W, lighter, +2.5 pp
AIKO-A490-MCE54Mw 490 W 24.50% -0.260 21.0 kg +45 W, lighter, +2.2 pp
STP-NT11/48QGSF-490 490 W 24.50% -0.260 21.5 kg +45 W, lighter, +2.2 pp
JAT54S40-485/LR 485 W 24.30% -0.260 19.3 kg +40 W, lighter, +2.0 pp
AIKO-A485-MCE54Mw 485 W 24.30% -0.260 21.0 kg +40 W, lighter, +2.0 pp
LR7-54HJD-495M 495 W 24.30% -0.240 23.5 kg +50 W, cooler, +2.0 pp
AIKO-A485-MAH54Mw 485 W 24.30% -0.260 21.5 kg +40 W, lighter, +2.0 pp
SSA-48HDB-430N 430 W 21.52% -0.290 24.5 kg -15 W, -0.8 pp
SSA-48HD-435N 435 W 21.77% -0.290 24.5 kg -10 W, -0.5 pp
SSA-48HD-440N 440 W 22.02% -0.290 24.5 kg -0.2 pp
SSA-48HD-450N 450 W 22.52% -0.290 24.5 kg +0.2 pp
LR7-54HJD-510M 510 W 25.00% -0.240 23.5 kg +65 W, cooler, +2.7 pp
LR7-54HJD-505M 505 W 24.70% -0.240 23.5 kg +60 W, cooler, +2.4 pp
LR7-54HJD-500M 500 W 24.50% -0.240 23.5 kg +55 W, cooler, +2.2 pp
CIPRO-TN9C54M-500W 500 W 24.50% -0.260 21.4 kg +55 W, lighter, +2.2 pp

Found 1395 panels of the same or similar size to this one, within ±10 mm. See them here Found 1425 panels of the same or similar size to this one, within ±25 mm. See them here Found 3614 panels of the same or similar size to this one, within ±50 mm. See them here Found 3962 panels of the same or similar size to this one, within ±100 mm. See them here

Common questions

6 answered
What is N-type TOPCon cell technology and why does the Solarspace Lumina II series use it?
TOPCon (Tunnel Oxide Passivated Contact) is an N-type silicon cell technology offering higher efficiency than conventional PERC. In the SSA-48HD 430-455N modules, it delivers up to 22.77% panel efficiency and a low temperature coefficient of Pmax at -0.29%/°C, meaning less power loss on hot days. N-type cells are also highly resistant to LID (light-induced degradation), resulting in more stable energy output throughout the 30-year operating cycle.
Is the Solarspace SSA-48HD 455W panel suitable for a standard pitched roof?
Yes. The module measures 1762×1134×30 mm and weighs 24.5 kg. Because the glass-glass construction is heavier than panels with a traditional backsheet, the roof's load-bearing capacity should be verified beforehand. On pitched roofs with light-colored tiles or a white membrane, the module's bifacial design captures additional reflected light, boosting energy yield. IEC 61215 and IEC 61730 certifications confirm its suitability for standard residential and commercial rooftop installations.
What warranty comes with the Solarspace SSA-48HD 430-455N Lumina II modules?
The manufacturer provides a 15-year product warranty covering physical and material defects, plus a 30-year linear power warranty. First-year degradation is guaranteed at less than 1%, and after 30 years the module retains at least 87.4% of its rated power. These figures are solid when calculating LCOE and estimating return on investment for both residential and commercial solar projects.
Does the Lumina II SSA-48HD series perform better than PERC panels on cloudy days and in winter?
Yes. N-type TOPCon cells have a superior low-light response compared to PERC technology, translating to higher energy yield in autumn, winter, and overcast conditions. The low temperature coefficient (-0.29%/°C) minimizes power loss on hot summer days, while the bifacial design captures additional diffuse light from the rear surface. Both effects together improve the predictability of annual energy production.
What practical benefits does the bifacial design of the SSA-48HD modules offer in ground-mounted or flat-roof installations?
The bifacial SSA-48HD modules harvest energy from both the front and rear surfaces thanks to their glass-glass construction. In ground-mounted systems with a reflective surface such as gravel, concrete, or a light-colored geomembrane, or when combined with tracking systems, this can increase yield by 5–15% compared to an equivalent monofacial module. On flat roofs with white EPDM or PVC membranes, the bifacial gain is also noticeable, especially in summer when the albedo of the substrate is at its highest.
Are the Solarspace SSA-48HD Lumina II modules resistant to moisture and harsh weather conditions?
Yes. The SSA-48HD 430-455N series features an IP68-rated junction box, providing full protection against continuous water immersion. The glass-glass construction additionally shields the cells from moisture ingress, mechanical micro-cracks, and UV degradation more effectively than conventional backsheet panels. This makes the series particularly well-suited for ground-mounted systems, flat roofs, and environments with elevated humidity or frequent precipitation.
