Warranty pick, no clear weak spot
The DeepBlue 3.0 Pro series is an advanced solution based on M10 silicon wafers, which set a new standard for efficiency in modern photovoltaic installations. The use of Half-Cut cell technology in combination with multi-busbar architecture significantly reduces resistive losses and improves the resistance of modules to micro-cracks. As a result, these panels perform excellently even in demanding lighting conditions, which directly translates into higher energy yields from every square meter of surface area. What distinguishes this series from the competition is the precise optimization of dimensions for logistics and installation, which effectively lowers balance-of-system (BOS) costs and shortens investment implementation time. High module efficiency goes hand in hand with excellent mechanical stability, making this series an ideal choice for both residential rooftop micro-installations and large-scale solar farms. DeepBlue 3.0 Pro effectively solves the problem of limited installation space, offering investors maximization of unit power while maintaining cell longevity. By choosing these panels, users gain the certainty of stable operation for decades, as confirmed by rigorous endurance tests and a low power degradation coefficient over time. This is a reliable foundation for modern prosumer and commercial energy sectors.
Ranking
Signals from the data
Residential, commercial, utility-scale and shaded-installations.
Top 25% of the PERC 550-600 W segment, against a median of 27 yrs.
The bifacial variant (JAM72D30) achieves ~70% (±10%) bifaciality, delivering an additional 3-5% annual energy yield compared to monofacial equivalents under typical ground albedo of 0.2-0.3. Half-cut cells combined with Multi-Busbar (MBB) design significantly reduce resistive losses and minimize microcracks.
The upper efficiency of 21.9% matches Longi Hi-MO 5m (G2) and Suntech Ultra V (both at 21.9%), exceeding GCL M10/72H (21.87%), placing DeepBlue 3.0 Pro at the top of its direct peer-comparable group. The 540-565 Wp power range offers flexibility for both residential prosumer installations and utility-scale solar farms.

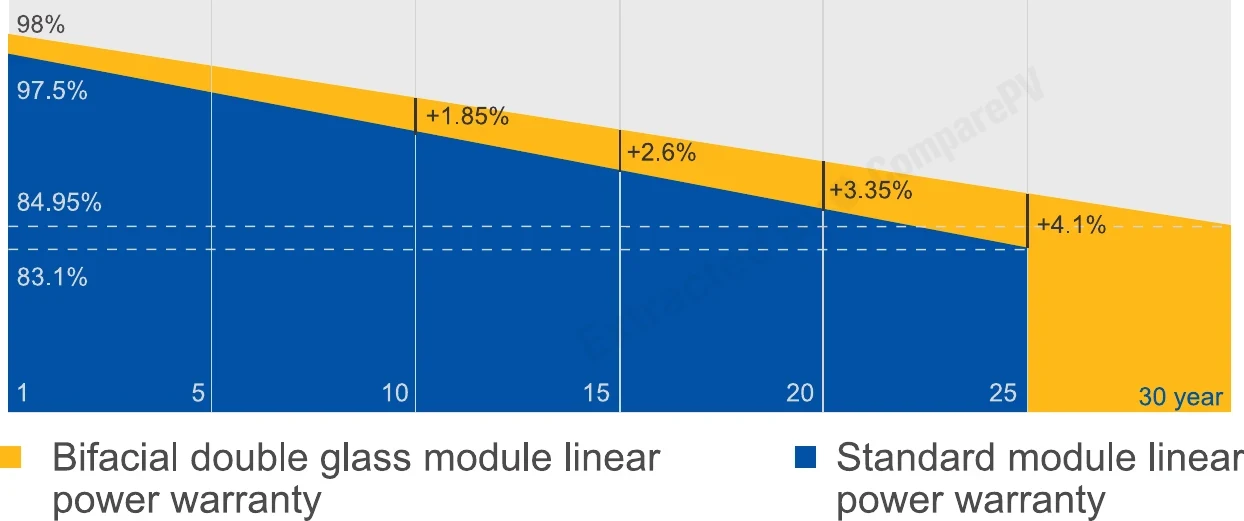

JA Solar guarantees a linear performance curve over 30 years - 5 years longer than the 25-year standard prevailing in the PERC segment (e.g., Trina Vertex S+, Canadian Solar HiKu6). The extended warranty directly lowers LCOE for investments with a horizon beyond 25 years and facilitates project financing.
JA Solar has maintained continuous BNEF Tier-1 status and reached ~100 GW/year production capacity in 2025 (3rd globally behind LONGi and Jinko Solar). Tier-1 status confirms module acceptance by at least six independent banks in non-recourse financed projects - a critical criterion for commercial project financing.
M10 silicon wafers doped with gallium eliminate the boron-oxygen light-induced degradation (LID) inherent in standard boron-based P-type cells. First-year degradation is ~2% and subsequent annual degradation ~0.5%/yr - significantly lower than non-doped P-type cells and consistent with the manufacturer's datasheet claims.
The Pmax temperature coefficient is -0.35%/°C, compared to ~-0.30%/°C for modern N-type TOPCon modules (JA DeepBlue 4.0 Pro, Longi Hi-MO 6). A 0.05%/°C difference at 35°C above STC (typical summer conditions in Central Europe) yields ~1.75% lower instantaneous output. Annual PERC degradation of ~0.45-0.55%/yr vs. TOPCon <0.40%/yr accumulates to 1.5-4.5 percentage points of residual power difference over 30 years.
The DeepBlue 3.0 Pro series (launched June 2021, SNEC) is technically superseded by the same manufacturer's DeepBlue 4.0 Pro (N-type TOPCon, efficiency up to 23.3% vs. max 21.9% for the 3.0 Pro). For new projects planned beyond 2025, selecting the newer N-type architecture may be economically more justified despite a higher upfront cost per Wp.
- At 21.3% efficiency, this panel is on par with typical PERC 550-600W modules
- At 212.9 W/m² power density, roof space requirements are typical for PERC 550-600W panels
- Temperature coefficient of -0.35%/°C matches the PERC 550-600W median
- At 31.8 kg, weight matches the PERC 550-600W median
- 70% bifaciality enables rear-side power generation, boosting yield by 4-10% on reflective surfaces
Specifications
Datasheet charts
Measured curves published by JA Solar in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 550 Wp appear here. The rest cover the whole series.
Simulations
Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.
Model: bifaciality × albedo × 0.6 view factor. A first-order estimate, not a yield simulation.
Found 2327 panels of the same or similar size to this one, within ±10 mm. See them here Found 2369 panels of the same or similar size to this one, within ±25 mm. See them here Found 2383 panels of the same or similar size to this one, within ±50 mm. See them here Found 2548 panels of the same or similar size to this one, within ±100 mm. See them here
About the DeepBlue 3.0 Pro series
These answers cover the whole series. Where a figure differs, the specification above is this module's own.
