Runergy Brand review

HY-WH96N11-460

460 Wp N-type
ComparePV verdict

Light for its output, short guarantee

Rank 9,064 of 14,005
Compare panels Datasheet PDF
Power (Wp)
460
Typical for its class
Efficiency (%)
23.00
Typical · median 22.52%
Density (Wp/m²)
230.2
Typical · median 225.2
Temp (%/°C)
-0.290
Typical · median -0.290
Weight (kg)
21.2
Strong · 2.5 kg below median
Warranty (yrs)
25
Weak · bottom 7%

The HY-WH96N11 series consists of single-glass monofacial modules built on N-Type cells using 210R technology, designed for installers and investors looking for a balance between lightweight construction and mechanical durability. The half-cut cell layout combined with a single front glass sheet reduces module weight by 15% compared to dual-glass designs, which genuinely simplifies transport, installation on sloped roofs, and lowers demands on mounting structures. This makes it a strong fit for residential installations where fast, safe mounting matters without sacrificing durability. The panels stand out for their low susceptibility to LID, LeTID, and PID degradation, while a high-barrier backsheet effectively limits moisture ingress, translating into stable energy output over decades. In addition, the thickened tempered front glass delivers resistance to 55 mm hail impacting at nearly 34 m/s, so the series performs well in regions with variable weather conditions. A low power temperature coefficient means smaller output losses on hot days, and the extended linear power warranty gives investors predictable returns. This series is built for anyone who wants to combine low weight with high structural resilience.

Ranking

301 panels in the segment N-type 450-500 W
Metric This panel Median Position in segment Overall rank
Module efficiency 23.00% 22.52% Typical 1,919
Power density 230.2 225.2 Typical 1,876
Temperature coefficient -0.290 -0.290 Typical 2,165
Weight per kWp 46.1 49.5 Strong · top 22% 997
Performance warranty 25 yrs 30 yrs Weak · bottom 7% 9,798
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

1 positive · 1 caution
Best for

Residential, commercial and shaded-installations.

Not ideal for

Owners who want a long output guarantee.

Strengths
46.1 kg per kWp

Top 22% of the N-type 450-500 W segment, against a median of 49.5.

Watch-outs
25 year performance warranty

Bottom 7% of the N-type 450-500 W segment, against a median of 30 yrs. Ranked 9,798th in the whole database.

Notes from the database
  • At 23.0% efficiency, this panel is on par with typical N-type 450-500W modules
  • 230.2 W/m² power density - 5.0 W/m² more than N-type 450-500W median (225.2 W/m²), more power per roof area
  • Temperature coefficient of -0.29%/°C matches the N-type 450-500W median
  • At 21.2 kg, this panel is 2.5 kg lighter than N-type 450-500W median (23.7 kg) - easier handling during installation
  • In the top 14% for efficiency among all N-type panels

Specifications

Open datasheet PDF
Nominal power (Pmax) 460 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 23.00 % Typical Segment median 22.52%
Vmpp · Impp 29.70 V · 15.49 A Operating point at max power
Voc · Isc 35.52 V · 16.23 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 1762×1134×30 mm · 2.00 m² of roof
Weight 21.2 kg Strong Strong · 2.5 kg below median
Cells 96 · N-type Monocrystalline
Coefficient Pmax -0.290 %/°C Typical median -0.290 of its segment
Coefficient Voc · Isc -0.250 · 0.045 %/°C
NOCT 45 °C At 800 W/m², 20 °C ambient
Product warranty 12 years Hardware defects only
Performance warranty 25 years Weak bottom 7% · median 30 yrs
End-of-warranty output 89.4 % Equals 402 W guaranteed
Degradation 1.00 → 0.40 % First year, then annual

Datasheet charts

Open datasheet PDF

Measured curves published by Runergy in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 460 Wp appear here. The rest cover the whole series.

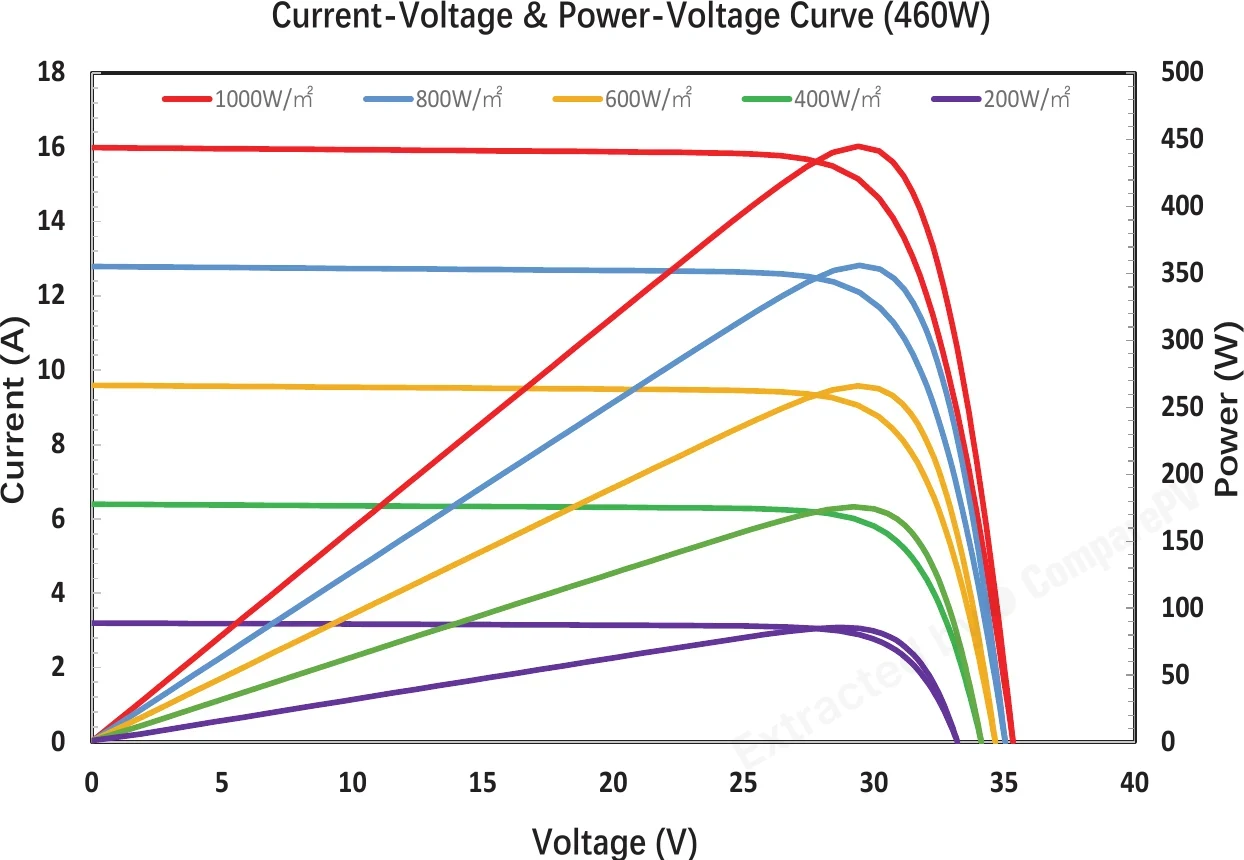

Current-Voltage & Power-Voltage Curve (460W) Current-Voltage & Power-Voltage Curve (460W) 460 W

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.290 %/°C against a segment median of -0.290
-
Filter these
Size
Panel Power Eff. Temp. Weight Difference
Runergy HY-WH96N11-460 460 W 23.00% -0.290 21.2 kg You are here
LR7-54HJD-510M 510 W 25.00% -0.240 23.5 kg +50 W, +2.0 pp, +5 yr warranty
AIKO-A495-MCE54Mw 495 W 24.80% -0.260 21.0 kg +35 W, +1.8 pp, +5 yr warranty
LR7-54HJD-505M 505 W 24.70% -0.240 23.5 kg Cooler, +1.7 pp, +5 yr warranty
AIKO-A490-MCE54Mw 490 W 24.50% -0.260 21.0 kg +30 W, +1.5 pp, +5 yr warranty
LR7-54HJD-500M 500 W 24.50% -0.240 23.5 kg Cooler, +1.5 pp, +5 yr warranty
CIPRO-TN9C54M-500W 500 W 24.50% -0.260 21.4 kg +40 W, +1.5 pp, +5 yr warranty
HY-DH96N11B-435 435 W 22.00% -0.290 25.0 kg Heavier, -1.0 pp, +5 yr warranty
HY-DH96N11B-440 440 W 22.00% -0.290 25.0 kg Heavier, -1.0 pp, +5 yr warranty
HY-DH96N11-445 445 W 22.30% -0.290 25.0 kg Heavier, -0.7 pp, +5 yr warranty
HY-DH96N11B-450 450 W 22.50% -0.290 25.0 kg Heavier, -0.5 pp, +5 yr warranty

Found 1395 panels of the same or similar size to this one, within ±10 mm. See them here Found 1425 panels of the same or similar size to this one, within ±25 mm. See them here Found 3614 panels of the same or similar size to this one, within ±50 mm. See them here Found 3962 panels of the same or similar size to this one, within ±100 mm. See them here

Common questions

6 answered
Are Runergy HY-WH96N11 panels suitable for pitched roof installations?
Yes, the HY-WH96N11 series is particularly recommended for residential installations on pitched roofs. The single-glass monofacial design with half-cut cells weighs 15% less than double-glass equivalents, making rooftop transport and mounting easier while reducing load requirements on the support structure. This results in faster, safer installation compared to heavier bifacial modules.
What warranty comes with Runergy HY-WH96N11 panels?
The manufacturer provides a 12-year product warranty and a 25-year linear power warranty. This means the panel should retain a substantial share of its rated output after 25 years of operation, giving investors predictable long-term returns on their solar installation.
How does N-type 210R cell technology differ from standard PERC cells?
The N-type 210R cells used in the HY-WH96N11 series show lower susceptibility to LID, LeTID, and PID degradation compared to conventional P-type PERC cells. This translates into more stable long-term energy output and reduced power losses during the panel's early years of operation.
What is the maximum power output of the Runergy HY-WH96N11 panel?
Panels in the HY-WH96N11 series reach a maximum power output of up to 470 Wp. This is a typical figure for single-glass monofacial modules with N-type cells, sufficient for building efficient residential systems on limited roof space.
Are Runergy HY-WH96N11 panels hail-resistant?
Yes, the thicker tempered front glass allows the panels to withstand hail impacts up to 55 mm in diameter at speeds close to 34 m/s. This makes the series well-suited for regions with variable and severe weather conditions.
Is Runergy a reliable solar panel manufacturer?
Runergy is a Tier 1 manufacturer headquartered in China, indicating strong financial stability and a proven track record of large-scale module supply. Tier 1 status confirms the company is regularly assessed by financial institutions as a bankable PV supplier, which simplifies securing project financing.
