Runergy HY-DH96N11B-460

Runergy HY-DH96N11B-460

460 Wp N-type
ComparePV verdict

Middle of its segment, heavy for its output

Rank 8,417 of 14,354
Compare panels Datasheet PDF
Power (Wp)
460
Typical for its class
Efficiency (%)
23.00
Typical · median 22.61%
Density (Wp/m²)
230.2
Typical · median 226.2
Temp (%/°C)
-0.290
Typical · median -0.290
Weight (kg)
25.0
Weak · 1.3 kg above median
Warranty (yrs)
30
Typical · median 30 yrs

The Turbo Monofacial HY-DH96N11B series is Runergy's answer to rooftop installations where performance, aesthetics, and long-term predictability all matter equally. The panel is built on N-Type cells based on the 210R technology platform, arranged in a half-cut cell layout that reduces shading-related power loss and lowers internal resistance. The monofacial dual-glass construction delivers strong mechanical rigidity and weather resistance while keeping module weight lower than conventional glass-glass designs. A key advantage is its resistance to LID, LeTID, and PID degradation, allowing the module to maintain stable electrical output even after years in the field, which translates into lower LCOE for investors. The fully black, all-black aesthetic design blends seamlessly with residential rooftops without compromising on a premium look. Runergy also highlights a low power temperature coefficient, improving energy yield on hot days and under low-light conditions. The series is backed by a 30-year linear power warranty, making it a solid choice for both residential prosumer installations and larger commercial projects that prioritize long-term reliability.

Ranking

332 panels in the segment N-type 450-500 W
Metric This panel Median Position in segment Overall rank
Module efficiency 23.00% 22.61% Typical 2,049
Power density 230.2 226.2 Typical 2,011
Temperature coefficient -0.290 -0.290 Typical 2,288
Weight per kWp 54.3 50.3 Weak · bottom 22% 8,833
Performance warranty 30 yrs 30 yrs Typical 31
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

5 positive · 4 caution
Best for

Residential, commercial and shaded-installations.

Not ideal for

Weight-limited structures.

Watch-outs
54.3 kg per kWp

Bottom 22% of the N-type 450-500 W segment, against a median of 50.3.

What owners get
High N-type efficiency

The 22.3-23.3% efficiency range clearly outperforms comparable peers at the same 465 Wp max power, Jinko Solar JS182MHC120 (21.48%) and Vikram Solar SOMERA (21.51%). The 1.8-1.9 percentage point advantage translates into a smaller installation footprint for the same power output.

Resistance to LID, LeTID and PID

N-type 210R cell technology limits light-induced degradation (LID), thermally induced degradation (LeTID) and potential-induced degradation (PID), delivering a more stable power curve over time than older PERC cells and translating into lower real-world LCOE for investors.

30-year linear power warranty

The power warranty spans 30 years on a linear basis, matching the current premium standard in the segment and offered by leading tier-1 manufacturers, securing predictable energy output over a long investment horizon.

Lightweight monofacial dual-glass design

The single-sided dual-glass construction provides mechanical rigidity and weather resistance at a lower module weight compared to classic bifacial glass-glass designs, easing installation on roof structures with limited load capacity.

All-black aesthetics and tier-1 bankability

The fully black styling blends well with residential roofs, while Runergy's tier-1 bankable status (founded in 2013) facilitates project financing by banks and leasing institutions.

Trade-offs
Short product warranty - 12 years

The product warranty is only 12 years, below the current tier-1 segment trend where many manufacturers already offer 20-25 years of product warranty alongside the same 30-year linear power warranty.

No bifacial gain - lost yield potential

Unlike competing bifacial glass-glass designs such as Luxor Solar ECO LINE TOPCon Glass-Glass Bifacial (23.6% efficiency), the monofacial version does not capture additional rear-side generation, which may reduce total energy output on light ground or high-albedo installations.

Efficiency below the top peer in the segment

Maximum efficiency of 23.3% is slightly below Luxor Solar ECO LINE TOPCon Glass-Glass Bifacial (23.6%). Although the gap is small (0.3 percentage points), it may matter for area-constrained installations.

Notes from the database
  • At 23.0% efficiency, this panel is on par with typical N-type 450-500W modules
  • At 230.2 W/m² power density, this panel generates 4.0 W/m² more per unit area than N-type 450-500W median (226.2 W/m²)
  • At -0.29%/°C, hot weather performance is typical for N-type 450-500W panels
  • Weight of 25.0 kg is 1.3 kg above N-type 450-500W median (23.7 kg) - verify structural support
  • #2049 for efficiency, #2288 for temperature performance out of 14354 panels

Specifications

Open datasheet PDF
Nominal power (Pmax) 460 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 23.00 % Typical Segment median 22.61%
Vmpp · Impp 29.70 V · 15.49 A Operating point at max power
Voc · Isc 35.52 V · 16.23 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 1762×1134×30 mm · 2.00 m² of roof
Weight 25.0 kg Weak Weak · 1.3 kg above median
Cells 96 · N-type Monocrystalline
Bifaciality 80 % Rear output as a share of front
Coefficient Pmax -0.290 %/°C Typical median -0.290 of its segment
Coefficient Voc · Isc -0.250 · 0.045 %/°C
NOCT 45 °C At 800 W/m², 20 °C ambient
Product warranty 12 years Hardware defects only
Performance warranty 30 years Typical median 30 yrs · median 30 yrs
End-of-warranty output 87.4 % Equals 402 W guaranteed
Degradation 1.00 → 0.40 % First year, then annual

Datasheet charts

Open datasheet PDF

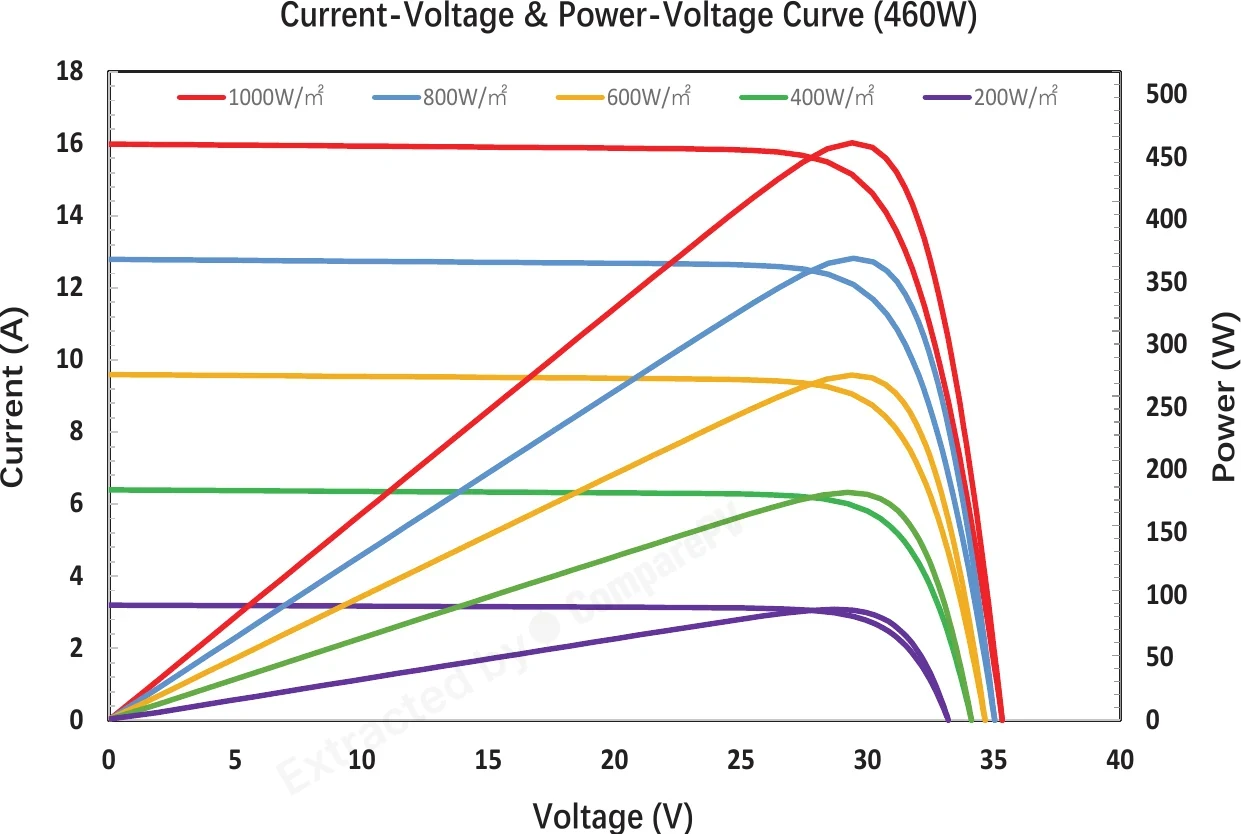

Measured curves published by Runergy in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 460 Wp appear here. The rest cover the whole series.

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-
With bifacial gain
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.290 %/°C against a segment median of -0.290
-
Bifacial gain
Rear gain over light concrete: -
-

Model: bifaciality × albedo × 0.6 view factor. A first-order estimate, not a yield simulation.

Filter these
Size
Panel Power Eff. Temp. Weight Difference
Runergy HY-DH96N11B-460 460 W 23.00% -0.290 25.0 kg You are here
JKM510T-48HL6M-DB 510 W 25.52% -0.240 22.0 kg +50 W, cooler, +2.5 pp
JKM505T-48HL6M-DB 505 W 25.27% -0.240 22.0 kg +45 W, cooler, +2.3 pp
JKM500T-48HL6M-DB 500 W 25.02% -0.240 22.0 kg +40 W, cooler, +2.0 pp
LR7-54HJD-510M 510 W 25.00% -0.240 23.5 kg +50 W, cooler, +2.0 pp
AIKO-A495-MCE54Mw 495 W 24.80% -0.260 21.0 kg +35 W, lighter, +1.8 pp
JKM495T-48HL6M-DB 495 W 24.77% -0.240 22.0 kg +35 W, cooler, +1.8 pp
LR7-54HJD-505M 505 W 24.70% -0.240 23.5 kg +45 W, cooler, +1.7 pp
WST-505BKX54-A2 505 W 24.70% -0.260 25.0 kg +45 W, cooler, +1.7 pp
SPR-BE54-HD505 505 W 24.70% -0.260 26.0 kg +45 W, +1.7 pp, +10 yr warranty
HY-DH96N11B-435 435 W 22.00% -0.290 25.0 kg -25 W, -1.0 pp
HY-DH96N11B-440 440 W 22.00% -0.290 25.0 kg -20 W, -1.0 pp
HY-DH96N11-445 445 W 22.30% -0.290 25.0 kg -15 W, -0.7 pp
HY-DH96N11B-450 450 W 22.50% -0.290 25.0 kg -10 W, -0.5 pp

Found 1444 panels of the same or similar size to this one, within ±10 mm. See them here Found 1474 panels of the same or similar size to this one, within ±25 mm. See them here Found 3758 panels of the same or similar size to this one, within ±50 mm. See them here Found 4117 panels of the same or similar size to this one, within ±100 mm. See them here

About the HY-DH96N11B Turbo Monofacial series

6 answered

These answers cover the whole series. Where a figure differs, the specification above is this module's own.

What is the maximum power output of Runergy HY-DH96N11B Turbo Monofacial panels?
The HY-DH96N11B Turbo Monofacial series reaches up to 465 Wp of maximum power. This is achieved through N-type 210R cells arranged in a half-cut configuration, which reduces power losses and improves module efficiency under low irradiance or partial shading.
Are Runergy Turbo Monofacial panels bifacial?
No, the HY-DH96N11B Turbo Monofacial series consists of monofacial modules. The dual glass construction provides mechanical rigidity and weather resistance, but the panel generates power only from its front side, simplifying installation on typical sloped roofs without needing a reflective ground surface.
What warranty comes with Runergy HY-DH96N11B panels?
The manufacturer offers a 12-year product warranty and a 30-year linear power warranty. This means the module has a guaranteed, gradual, and predictable power output decline over three decades, helping investors accurately estimate real LCOE during system design.
Are Runergy Turbo Monofacial panels resistant to LID and PID degradation?
Yes, the HY-DH96N11B series uses N-type cells resistant to LID, LeTID, and PID degradation. This allows the module to maintain stable electrical parameters throughout its service life, avoiding the sharp early-year power drop common in older P-type technologies.
Is Runergy a Tier 1 manufacturer, and can it be trusted?
Yes, Runergy is listed as a BloombergNEF Tier 1 manufacturer, a group recognized for financial stability, large-scale production, and a proven supply track record with banks and investment funds. This matters for long-term 30-year warranties, as it increases the likelihood the company will remain operational to honor claims.
Do Runergy HY-DH96N11B panels suit the aesthetics of a residential roof?
Yes, the Turbo Monofacial series features a fully all-black design, including the frame, backsheet, and interconnect ribbons. This appearance blends well with dark roof coverings and is a popular choice for residential installations where visual appeal matters as much as technical performance.
