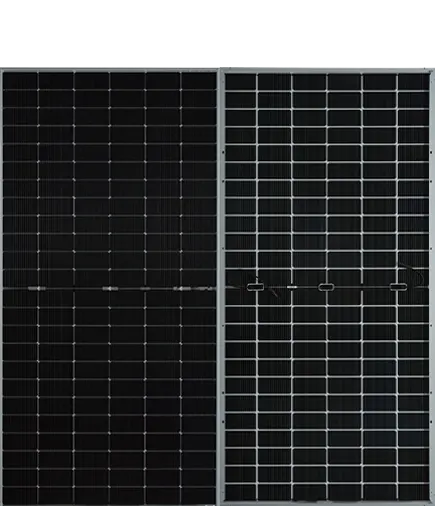

Runergy HY-DH144N8-575

Runergy HY-DH144N8-575

575 Wp N-type Bifacial 80%
ComparePV verdict

Middle of its segment, heavy for its output

Rank 5,165 of 14,354
Compare panels Datasheet PDF
Power (Wp)
575
Typical for its class
Efficiency (%)
22.30
Typical · median 22.45%
Density (Wp/m²)
222.6
Typical · median 224.5
Temp (%/°C)
-0.290
Typical · median -0.290
Weight (kg)
40.5
Weak · 10.0 kg above median
Warranty (yrs)
30
Typical · median 30 yrs

The Runergy HY-DH144N8 Pro (570-595W) modules are based on N-type monocrystalline cells in a half-cut architecture, designed for high energy yield in real operating conditions. In practice, their distinguishing feature is the dual-glass construction, which better protects the lamination against moisture, UV radiation, and accelerated aging-particularly relevant for installations exposed to challenging weather and long-term operation. Thanks to bifacial capability, the module can utilize reflected light from the ground surface-resulting in additional yield in PV farms, flat roofs, and ground-mounted systems.

The N-type technology ensures high resistance to LID and LeTID degradation, while optimized thermal performance and operation under low-light conditions help stabilize energy production during transition months. This is an excellent option for investors seeking low energy costs throughout the cycle of life and for contractors prioritizing durability, predictability, and easy project scaling.

Ranking

263 panels in the segment N-type 550-600 W
Metric This panel Median Position in segment Overall rank
Module efficiency 22.30% 22.45% Typical 5,284
Power density 222.6 224.5 Typical 5,738
Temperature coefficient -0.290 -0.290 Typical 2,288
Weight per kWp 70.4 52.7 Weak · bottom 1% 13,766
Performance warranty 30 yrs 30 yrs Typical 31
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

5 positive · 2 caution
Best for

Commercial, utility-scale and shaded-installations.

Not ideal for

Weight-limited structures.

Watch-outs
70.4 kg per kWp

Bottom 1% of the N-type 550-600 W segment, against a median of 52.7. Ranked 13,766th in the whole database.

What owners get
Dual-glass build for enhanced durability

The dual-glass laminate construction offers better protection against moisture ingress and UV-induced degradation than standard backsheet modules, supporting more stable long-term performance over the 30-year power warranty.

N-type cells with low LID/LeTID degradation

The manufacturer specifies first-year degradation below 1% and annual degradation below 0.4%, typical of N-type technology and an improvement over older PERC cells, limiting output loss over a 30-year service life.

Bifacial design boosts yield in ground-mount setups

The module captures reflected light from the ground, delivering extra energy yield especially on flat roofs, PV farms, and ground-mount systems with high-albedo surfaces.

BloombergNEF Tier-1 status

Runergy has maintained Tier-1 manufacturer status per BloombergNEF (confirmed in 2024 after BNEF tightened its selection criteria), improving project bankability for non-recourse debt financing.

Extended 30-year linear power warranty

The 30-year power warranty is standard for the premium N-type segment and gives investors greater revenue predictability over the plant's lifecycle compared to typical 25-year warranties on older PERC series.

Trade-offs
Lower efficiency versus comparable models

At 22.1-22.3%, efficiency is the lowest among the peer group - behind VSUN75N-144BMH-DG (22.7%), Luxor ECO LINE N-TYPE (22.51%), and Sunpro 210R TOPCon (23.35% at the same 575 Wp class), meaning a larger installed area is needed for equivalent energy output.

Notes from the database
  • Efficiency of 22.3% matches the N-type 550-600W median
  • At 222.6 W/m² power density, roof space requirements are typical for N-type 550-600W panels
  • At -0.29%/°C, hot weather performance is typical for N-type 550-600W panels
  • At 40.5 kg, this panel is 10.0 kg heavier than the N-type 550-600W median (30.5 kg) - more demanding for installation crews
  • Bifaciality factor of 80% can add 4-12% extra yield with reflective mounting surface

Specifications

Open datasheet PDF
Nominal power (Pmax) 575 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 22.30 % Typical Segment median 22.45%
Vmpp · Impp 43.83 V · 13.12 A Operating point at max power
Voc · Isc 51.74 V · 13.75 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 2278×1134×35 mm · 2.58 m² of roof
Weight 40.5 kg Weak Weak · 10.0 kg above median
Cells 144 · N-type Monocrystalline
Bifaciality 80 % Rear output as a share of front
Coefficient Pmax -0.290 %/°C Typical median -0.290 of its segment
Coefficient Voc · Isc -0.250 · 0.045 %/°C
NOCT 42 °C At 800 W/m², 20 °C ambient
Product warranty 12 years Hardware defects only
Performance warranty 30 years Typical median 30 yrs · median 30 yrs

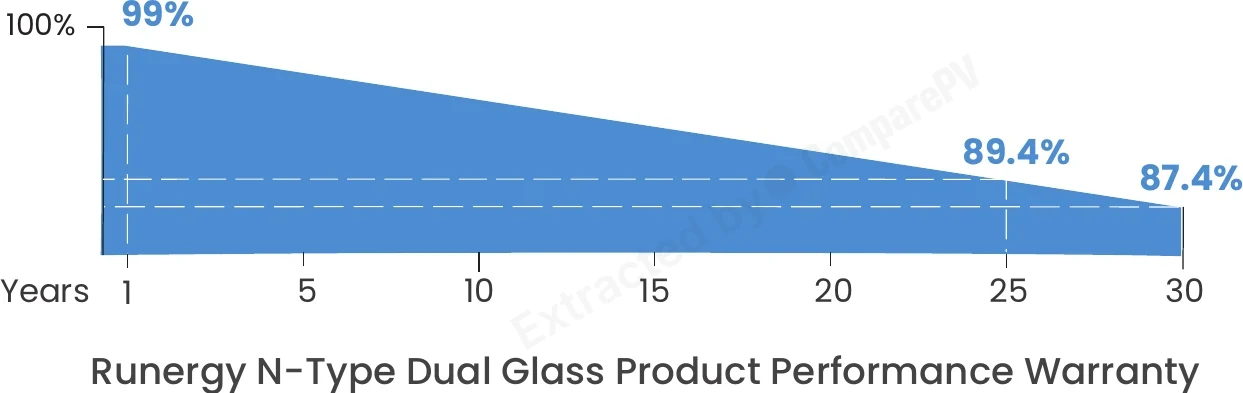

End-of-warranty output 87.4 % Equals 503 W guaranteed
Degradation 1.00 → 0.40 % First year, then annual

Datasheet charts

Open datasheet PDF

Measured curves published by Runergy in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 575 Wp appear here. The rest cover the whole series.

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-
With bifacial gain
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.290 %/°C against a segment median of -0.290
-
Bifacial gain
Rear gain over light concrete: -
-

Model: bifaciality × albedo × 0.6 view factor. A first-order estimate, not a yield simulation.

Filter these
Size
Panel Power Eff. Temp. Weight Difference
Runergy HY-DH144N8-575 575 W 22.30% -0.290 40.5 kg You are here
LR7-60HVH-560M 560 W 24.80% -0.260 25.0 kg Cooler, 16 kg lighter, +2.5 pp
SPR-BE66-GD615 615 W 24.80% -0.260 30.1 kg Lighter, +2.5 pp, +10 yr warranty
LR7-60HVH-555M 555 W 24.60% -0.260 25.0 kg Cooler, 16 kg lighter, +2.3 pp
SPR-BE66-GD610 610 W 24.60% -0.260 30.1 kg Lighter, +2.3 pp, +10 yr warranty
LR7-60HVHL-550M 550 W 24.40% -0.260 16.3 kg Cooler, 24 kg lighter, +2.1 pp
JAT60S40-540/LR 540 W 24.40% -0.260 23.5 kg -35 W, 17 kg lighter, +2.1 pp
GK-5-60HG-540M 540 W 24.40% -0.260 23.3 kg -35 W, 17 kg lighter, +2.1 pp
HY-DH144P8-535 535 W 20.70% -0.350 32.0 kg Hotter, lighter, -1.6 pp
HY-DH144P8-540 540 W 20.90% -0.350 32.0 kg Hotter, lighter, -1.4 pp
HY-WH144P8-545 545 W 21.10% -0.350 27.6 kg Hotter, lighter, -1.2 pp
HY-WH144P8-550 550 W 21.30% -0.350 27.6 kg Hotter, lighter, -1.0 pp
HY-WH144P8-555 555 W 21.50% -0.350 27.6 kg Hotter, lighter, -5 yr warranty
HY-WH144P8-560 560 W 21.70% -0.350 27.6 kg Hotter, lighter, -5 yr warranty
AIKO-A650-MAE72Mw 650 W 25.20% -0.260 27.0 kg +75 W, lighter, +2.9 pp
AIKO-A645-MAE72Mw 645 W 25.00% -0.260 27.0 kg +70 W, lighter, +2.7 pp
AIKO-A640-MAE72Mw 640 W 24.80% -0.260 27.0 kg +65 W, lighter, +2.5 pp

Found 2343 panels of the same or similar size to this one, within ±10 mm. See them here Found 2385 panels of the same or similar size to this one, within ±25 mm. See them here Found 2404 panels of the same or similar size to this one, within ±50 mm. See them here Found 2574 panels of the same or similar size to this one, within ±100 mm. See them here

About the HY-DH144N8 Pro (570–595W) series

6 answered

These answers cover the whole series. Where a figure differs, the specification above is this module's own.

What warranty does the Runergy HY-DH144N8 Pro come with?
The HY-DH144N8 Pro series carries a 12-year product warranty covering material and workmanship defects, along with a 30-year linear power output warranty. N-type cell technology keeps annual power degradation below 0.4%, resulting in a slower performance decline over the module's lifetime compared to conventional P-type cells. This is one of the most favorable warranty packages in its power class.
Do the bifacial Runergy HY-DH144N8 Pro panels actually generate more energy in real-world conditions?
Yes, though the gain depends on installation environment. The rear side of the module can deliver up to 80% of the front-side output, which makes the biggest difference in ground-mounted systems, flat roofs with light-colored membranes, or gravel substrates. On a pitched roof with dark tiles the gain is minimal. For ground-mount and commercial installations, bifacial energy gain typically ranges from 5% to 15%, directly improving project LCOE.
How does the N-type technology in the Runergy HY-DH144N8 Pro compare to standard P-type PERC cells?
N-type cells used in the HY-DH144N8 Pro are completely free from LID and LeTID degradation - a well-known drawback of P-type PERC modules, especially noticeable in the first months of operation. The result is stable production from day one, better efficiency at elevated temperatures, and improved low-light performance. Annual degradation below 0.4% is a clear improvement over the typical PERC industry standard.
Is the dual-glass construction of the Runergy HY-DH144N8 Pro suitable for harsh weather conditions?
Yes. The 2.0 mm dual tempered glass eliminates the rear backsheet, which is the primary path for moisture ingress into the laminate. The module is rated for wind loads up to 2400 Pa and snow loads up to 5400 Pa, meeting demanding European climate requirements. Dual-glass construction is especially recommended for installations exposed to frequent temperature swings, high humidity, or prolonged UV radiation over a multi-decade service life.
Can the Runergy HY-DH144N8 Pro (up to 595 Wp) be installed on a residential rooftop?
The HY-DH144N8 Pro modules measure 2278 × 1134 × 35 mm and weigh approximately 40.5 kg each - a large-format size designed primarily for commercial and utility-scale installations. Residential rooftop use is possible, but the roof structure must be assessed for load-bearing capacity, and the inverter must support the higher input voltage range. The main benefit is that fewer modules are needed to reach target system output, reducing BoS costs and installation time.
Do Runergy HY-DH144N8 Pro panels produce energy on cloudy days and in winter?
Yes. The 144 half-cut cell architecture combined with N-type technology improves module performance under diffuse and low-irradiance conditions typical of fall and winter in northern Europe. The half-cut topology also limits partial shading losses, since each half of the module operates independently via separate strings. A favorable temperature coefficient means that on cold, sunny days the module can briefly exceed its rated nameplate power.
