Risen Brand review

RSM120-8-615M

615 Wp PERC
ComparePV verdict

Light for its output, short guarantee

Rank 5,169 of 14,129
Compare panels Datasheet PDF
Power (Wp)
615
Typical for its class
Efficiency (%)
21.70
Strong · top 11%
Density (Wp/m²)
217.3
Strong · top 8%
Temp (%/°C)
-0.340
Typical · median -0.340
Weight (kg)
30.0
Strong · 4.0 kg below median
Warranty (yrs)
25
Weak · bottom 16%

The Risen TITAN series introduces a new quality in installation design thanks to the use of large-format 210 mm silicon cells. This innovative solution allows for significantly higher power density while maintaining compact dimensions, which is key for optimizing limited roof space. The use of advanced multi-busbar technology effectively reduces internal energy losses and minimizes the risk of micro-cracks, which directly translates into long-term production stability. Modules from this series effectively solve the problem of low efficiency in difficult conditions, offering high performance even in diffused light. Thanks to an exceptionally low temperature coefficient, TITAN panels operate much more efficiently on hot days, clearly distinguishing them from older competitor solutions. These products are dedicated to both conscious prosumers and commercial investors who care about maximizing return on investment while simultaneously reducing system LCOE costs. The special reinforced frame design further increases resistance to extreme snow and wind loads. By choosing the TITAN series, you are investing in advanced technology that combines modern cell architecture with the highest durability, making it one of the most cost-effective choices on the Polish photovoltaic market.

Ranking

217 panels in the segment PERC 600-650 W
Metric This panel Median Position in segment Overall rank
Module efficiency 21.70% 21.38% Strong · top 11% 7,485
Power density 217.3 213.8 Strong · top 8% 7,393
Temperature coefficient -0.340 -0.340 Typical 8,846
Weight per kWp 48.8 55.7 Strong · top 5% 2,465
Performance warranty 25 yrs 30 yrs Weak · bottom 16% 9,912
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

3 positive · 1 caution
Best for

Residential, commercial, utility-scale and hot-climate.

Not ideal for

Owners who want a long output guarantee.

Strengths
48.8 kg per kWp

Top 5% of the PERC 600-650 W segment, against a median of 55.7. Ranked 2,465th in the whole database.

217.3 watts per square metre

Top 8% of the PERC 600-650 W segment, against a median of 213.8. Ranked 7,393rd in the whole database.

21.70% module efficiency

Top 11% of the PERC 600-650 W segment, against a median of 21.38%.

Watch-outs
25 year performance warranty

Bottom 16% of the PERC 600-650 W segment, against a median of 30 yrs.

Notes from the database
  • Efficiency of 21.7% matches the PERC 600-650W median
  • At 217.3 W/m² power density, this panel generates 3.5 W/m² more per unit area than PERC 600-650W median (213.8 W/m²)
  • At -0.34%/°C, hot weather performance is typical for PERC 600-650W panels
  • Weight of 30.0 kg (4.0 kg below PERC 600-650W median of 34.0 kg) allows easier transport and roof mounting
  • Ranked #7485 out of 14129 panels for efficiency in the database

Specifications

Open datasheet PDF
Nominal power (Pmax) 615 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 21.70 % Strong Segment median 21.38%
Vmpp · Impp 35.26 V · 17.45 A Operating point at max power
Voc · Isc 42.20 V · 18.47 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 2172×1303×35 mm · 2.83 m² of roof
Weight 30.0 kg Strong Strong · 4.0 kg below median
Cells 120 · PERC Monocrystalline
Coefficient Pmax -0.340 %/°C Typical median -0.340 of its segment
Coefficient Voc · Isc -0.250 · 0.040 %/°C
NOCT 44 °C At 800 W/m², 20 °C ambient
Product warranty 12 years Hardware defects only
Performance warranty 25 years Weak bottom 16% · median 30 yrs
End-of-warranty output 84.8 % Equals 514 W guaranteed
Degradation 0.55 → 0.55 % First year, then annual

Datasheet charts

Open datasheet PDF

Measured curves published by Risen in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 615 Wp appear here. The rest cover the whole series.

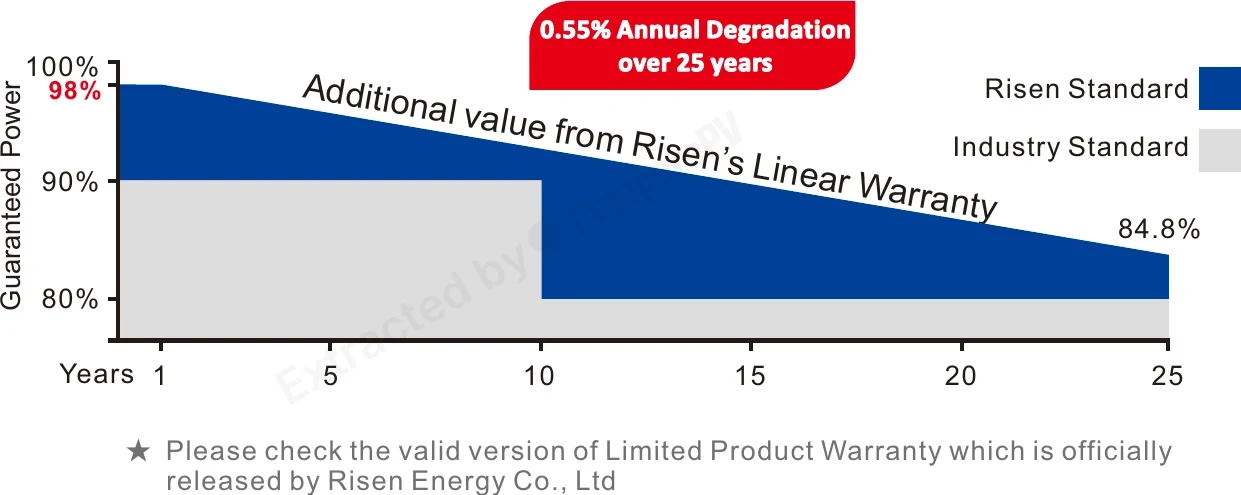

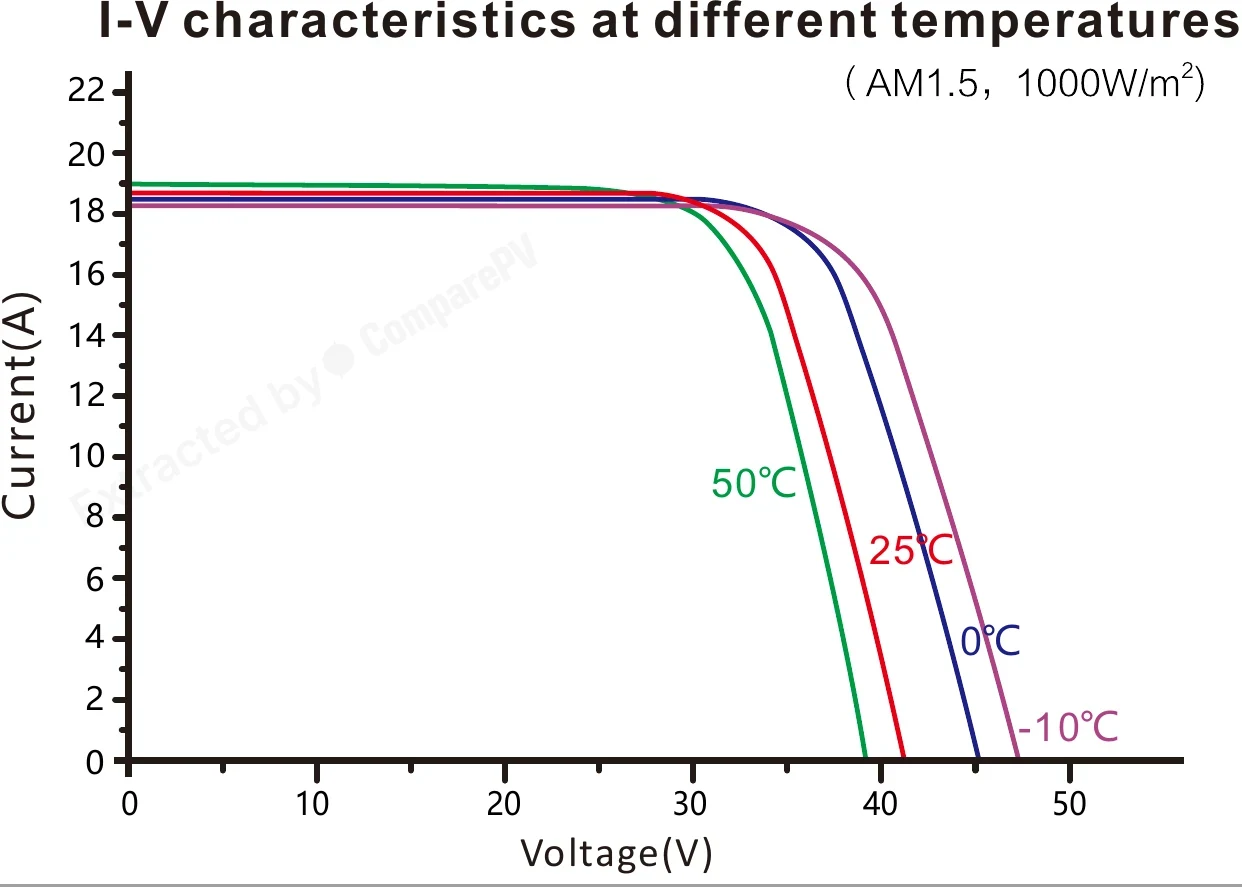

Linear Power Warranty - Degradation over 25 Years Linear Power Warranty - Degradation over 25 Years Whole series I-V Characteristics at Different Temperatures (AM1.5, 1000 W/m²) I-V Characteristics at Different Temperatures (AM1.5, 1000 W/m²) Whole series

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.340 %/°C against a segment median of -0.340
-
Filter these
Size
Panel Power Eff. Temp. Weight Difference
Risen RSM120-8-615M 615 W 21.70% -0.340 30.0 kg You are here
AIKO-A650-MAE72Mw 650 W 25.20% -0.260 27.0 kg Cooler, +3.5 pp, +5 yr warranty
AIKO-A645-MAE72Mw 645 W 25.00% -0.260 27.0 kg Cooler, +3.3 pp, +5 yr warranty
AIKO-A640-MAE72Mw 640 W 24.80% -0.260 27.0 kg Cooler, +3.1 pp, +5 yr warranty
LR8-66HVD-665M 665 W 24.62% -0.260 33.5 kg +50 W, cooler, +2.9 pp
JKM650-670N-66QL6-BDV (665W class) 665 W 24.62% -0.260 32.5 kg +50 W, cooler, +2.9 pp
HY665-B144DSS 665 W 24.62% -0.260 27.6 kg +50 W, cooler, +2.9 pp
SPDG665-BC132R12 665 W 24.62% -0.260 33.5 kg +50 W, cooler, +2.9 pp
RSM120-8-585BMDG 585 W 20.70% -0.340 37.0 kg Heavier, -1.0 pp, +5 yr warranty
RSM120-8-590M 590 W 20.80% -0.340 30.0 kg -25 W, -0.9 pp
RSM120-8-595M 595 W 21.00% -0.340 30.0 kg -20 W, -0.7 pp
RSM120-8-600M 600 W 21.20% -0.340 30.0 kg -15 W, -0.5 pp
RSM120-8-605M 605 W 21.40% -0.340 30.0 kg -10 W, -0.3 pp
RSM120-8-610M 610 W 21.60% -0.340 30.0 kg Very close match
GKA210N120 680 W 24.03% -0.340 28.0 kg +65 W, +2.3 pp, +5 yr warranty
GKA210N120-675 675 W 23.85% -0.340 28.0 kg +60 W, +2.2 pp, +5 yr warranty
QN-670HJT-01 670 W 23.70% -0.240 35.5 kg +55 W, cooler, +2.0 pp

Found 497 panels of the same or similar size to this one, within ±10 mm. See them here Found 502 panels of the same or similar size to this one, within ±25 mm. See them here Found 502 panels of the same or similar size to this one, within ±50 mm. See them here Found 502 panels of the same or similar size to this one, within ±100 mm. See them here

About the TITAN series

6 answered

These answers cover the whole series. Where a figure differs, the specification above is this module's own.

What makes the 210 mm cells in Risen TITAN panels stand out?
Risen TITAN uses large-format 210 mm silicon cells that enable a peak output of up to 615 Wp per module. The larger cell area combined with multi-busbar technology reduces resistive losses and lowers the risk of micro-cracks. In practice, this means higher power density per square meter of roof space and stable energy production over the entire service life of the system.
What is the warranty on Risen TITAN solar panels?
Risen provides a 12-year product warranty covering material and workmanship defects, plus a 30-year linear power warranty for the TITAN series. Over those 30 years, the panel is guaranteed to retain at least 80.7% of its rated output. A 30-year power warranty is among the longer standards in the industry and reflects the manufacturer's confidence in the durability of its 210 mm PERC technology.
Is the Risen TITAN RSM120-8-615M a bifacial module?
No, the TITAN series in the RSM120-8 variant is a monofacial panel - energy is harvested from the front cell surface only. If your system is installed above a highly reflective surface such as a white TPO membrane or light-colored gravel and you want to capture albedo gain, Risen's bifacial models would be worth considering. For standard pitched roofs, however, the monofacial TITAN module is fully adequate and offers lower system BoS costs.
Do Risen TITAN panels perform well on hot summer days?
Yes. The PERC technology used in the TITAN series features a low temperature coefficient of power (approximately -0.34%/°C), meaning smaller output losses at high temperatures compared to older polycrystalline modules. At a typical cell temperature of 65°C in summer, power degradation is noticeably lower, directly translating into higher annual energy yields and a shorter investment payback period.
Can Risen TITAN panels withstand heavy snow loads and strong winds?
Yes. The TITAN series features a reinforced aluminum frame that meets IEC standards for snow loads up to 5,400 Pa and wind pressure up to 2,400 Pa. These ratings are suitable for the vast majority of locations in Poland, including mountain regions with harsh winters. That said, always verify the technical documentation against a structural engineering assessment before installation.
Is Risen Energy a reliable manufacturer and is the 30-year warranty realistic?
Risen Energy is listed as a Tier 1 manufacturer by BloombergNEF, meeting strict financial and production criteria. The company has been operating since 1986 and is publicly traded on the Shenzhen Stock Exchange, providing financial transparency. This is a key factor when assessing the credibility of the 30-year power warranty - Tier 1 classification is the industry signal that a manufacturer has the resources to honor long-term obligations.
