Risen Brand review

RSM120-8-590BMDG

590 Wp PERC Bifacial 70%
ComparePV verdict

Warranty pick, heavy for its output

Rank 6,214 of 14,129
Compare panels Datasheet PDF
Power (Wp)
590
Strong · top 17%
Efficiency (%)
20.80
Weak · bottom 13%
Density (Wp/m²)
208.5
Weak · bottom 15%
Temp (%/°C)
-0.340
Typical · median -0.350
Weight (kg)
37.0
Weak · 6.2 kg above median
Warranty (yrs)
30
Strong · top 25%

The Risen TITAN series introduces a new quality in installation design thanks to the use of large-format 210 mm silicon cells. This innovative solution allows for significantly higher power density while maintaining compact dimensions, which is key for optimizing limited roof space. The use of advanced multi-busbar technology effectively reduces internal energy losses and minimizes the risk of micro-cracks, which directly translates into long-term production stability. Modules from this series effectively solve the problem of low efficiency in difficult conditions, offering high performance even in diffused light. Thanks to an exceptionally low temperature coefficient, TITAN panels operate much more efficiently on hot days, clearly distinguishing them from older competitor solutions. These products are dedicated to both conscious prosumers and commercial investors who care about maximizing return on investment while simultaneously reducing system LCOE costs. The special reinforced frame design further increases resistance to extreme snow and wind loads. By choosing the TITAN series, you are investing in advanced technology that combines modern cell architecture with the highest durability, making it one of the most cost-effective choices on the Polish photovoltaic market.

Ranking

589 panels in the segment PERC 550-600 W
Metric This panel Median Position in segment Overall rank
Module efficiency 20.80% 21.29% Weak · bottom 13% 10,533
Power density 208.5 212.9 Weak · bottom 15% 10,435
Temperature coefficient -0.340 -0.350 Typical 8,846
Weight per kWp 62.7 52.7 Weak · bottom 1% 12,910
Performance warranty 30 yrs 27 yrs Strong · top 25% 21
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

1 positive · 3 caution
Best for

Residential, commercial, utility-scale and hot-climate.

Not ideal for

Weight-limited structures, tight roof space and roofs where every square metre has to count.

Strengths
30 year performance warranty

Top 25% of the PERC 550-600 W segment, against a median of 27 yrs.

Watch-outs
62.7 kg per kWp

Bottom 1% of the PERC 550-600 W segment, against a median of 52.7. Ranked 12,910th in the whole database.

20.80% module efficiency

Bottom 13% of the PERC 550-600 W segment, against a median of 21.29%.

208.5 watts per square metre

Bottom 15% of the PERC 550-600 W segment, against a median of 212.9.

Notes from the database
  • At 20.8% efficiency, this panel is on par with typical PERC 550-600W modules
  • At 208.5 W/m², this panel generates 4.4 W/m² less per unit area than PERC 550-600W median (212.9 W/m²)
  • At -0.34%/°C, hot weather performance is typical for PERC 550-600W panels
  • At 37.0 kg (6.2 kg above PERC 550-600W median of 30.8 kg), requires checking roof load capacity
  • Bifacial design (70% factor) captures reflected light - adds 4-10% yield on ground-mount or white roof

Specifications

Open datasheet PDF
Nominal power (Pmax) 590 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 20.80 % Weak Segment median 21.29%
Vmpp · Impp 34.42 V · 17.15 A Operating point at max power
Voc · Isc 41.30 V · 18.16 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 2172×1303×35 mm · 2.83 m² of roof
Weight 37.0 kg Weak Weak · 6.2 kg above median
Cells 120 · PERC Monocrystalline
Bifaciality 70 % Rear output as a share of front
Coefficient Pmax -0.340 %/°C Typical median -0.350 of its segment
Coefficient Voc · Isc -0.250 · 0.040 %/°C
NOCT 44 °C At 800 W/m², 20 °C ambient
Product warranty 12 years Hardware defects only
Performance warranty 30 years Strong top 25% · median 27 yrs
End-of-warranty output 86.5 % Equals 501 W guaranteed
Degradation 2.00 → 0.45 % First year, then annual

Datasheet charts

Open datasheet PDF

Measured curves published by Risen in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 590 Wp appear here. The rest cover the whole series.

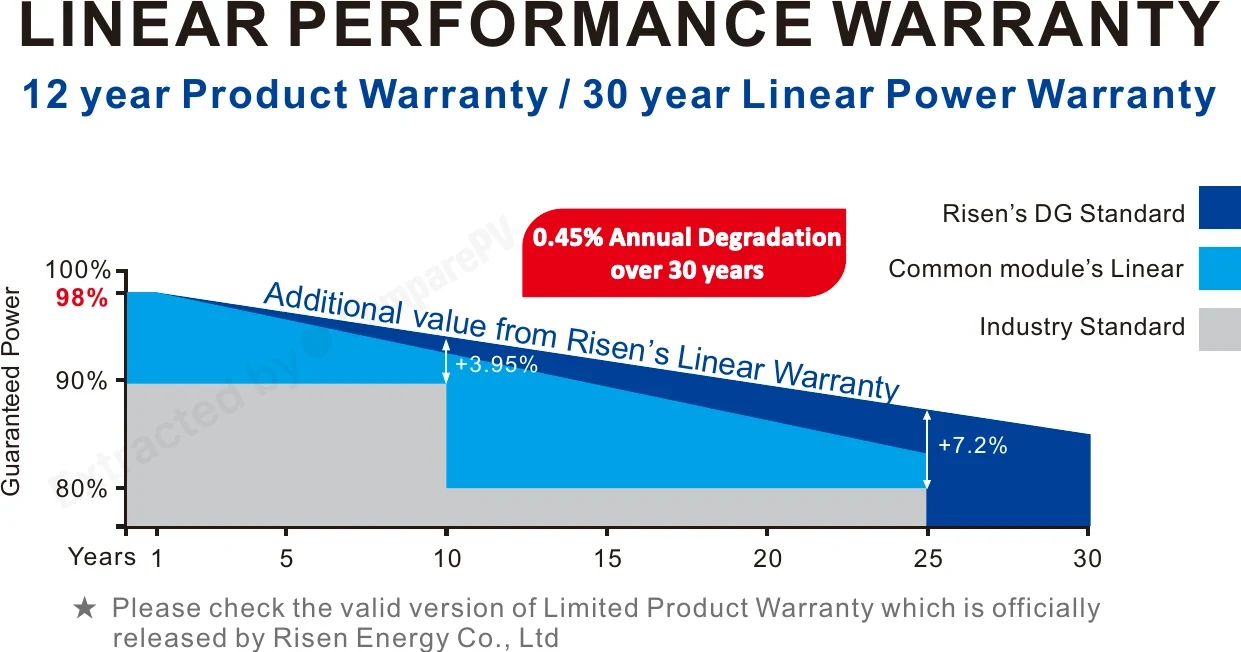

Linear Performance Warranty (12 year Product Warranty / 30 year Linear Power Warranty) Linear Performance Warranty (12 year Product Warranty / 30 year Linear Power Warranty) Whole series

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-
With bifacial gain
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.340 %/°C against a segment median of -0.350
-
Bifacial gain
Rear gain over light concrete: -
-

Model: bifaciality × albedo × 0.6 view factor. A first-order estimate, not a yield simulation.

Filter these
Size
Panel Power Eff. Temp. Weight Difference
Risen RSM120-8-590BMDG 590 W 20.80% -0.340 37.0 kg You are here
LR7-60HVH-560M 560 W 24.80% -0.260 25.0 kg Cooler, lighter, +4.0 pp
AIKO-A640-MAE72Mw 640 W 24.80% -0.260 27.0 kg Cooler, lighter, +4.0 pp
LR7-60HVH-555M 555 W 24.60% -0.260 25.0 kg Cooler, lighter, +3.8 pp
AIKO-A635-MAE72Mw 635 W 24.60% -0.260 27.0 kg Cooler, lighter, +3.8 pp
AIKO-A630-MAH72Dw 630 W 24.40% -0.260 32.5 kg Cooler, lighter, +3.6 pp
LR7-60HVHL-550M 550 W 24.40% -0.260 16.3 kg Cooler, 21 kg lighter, +3.6 pp
RSM120-8-585BMDG 585 W 20.70% -0.340 37.0 kg Very close match
RSM120-8-595M 595 W 21.00% -0.340 30.0 kg Lighter, -5 yr warranty
RSM120-8-600M 600 W 21.20% -0.340 30.0 kg Lighter, +0.4 pp, -5 yr warranty
RSM120-8-605M 605 W 21.40% -0.340 30.0 kg Lighter, +0.6 pp, -5 yr warranty
RSM120-8-610M 610 W 21.60% -0.340 30.0 kg Lighter, +0.8 pp, -5 yr warranty
GKA210N120 680 W 24.03% -0.340 28.0 kg +90 W, lighter, +3.2 pp
GKA210N120-675 675 W 23.85% -0.340 28.0 kg +85 W, lighter, +3.1 pp
QN-670HJT-01 670 W 23.70% -0.240 35.5 kg +80 W, cooler, +2.9 pp
GKA210N120-670 670 W 23.67% -0.340 28.0 kg +80 W, lighter, +2.9 pp
QN-665HJT-01 665 W 23.50% -0.240 35.5 kg +75 W, cooler, +2.7 pp

Found 497 panels of the same or similar size to this one, within ±10 mm. See them here Found 502 panels of the same or similar size to this one, within ±25 mm. See them here Found 502 panels of the same or similar size to this one, within ±50 mm. See them here Found 502 panels of the same or similar size to this one, within ±100 mm. See them here

About the TITAN series

6 answered

These answers cover the whole series. Where a figure differs, the specification above is this module's own.

What makes the 210 mm cells in Risen TITAN panels stand out?
Risen TITAN uses large-format 210 mm silicon cells that enable a peak output of up to 615 Wp per module. The larger cell area combined with multi-busbar technology reduces resistive losses and lowers the risk of micro-cracks. In practice, this means higher power density per square meter of roof space and stable energy production over the entire service life of the system.
What is the warranty on Risen TITAN solar panels?
Risen provides a 12-year product warranty covering material and workmanship defects, plus a 30-year linear power warranty for the TITAN series. Over those 30 years, the panel is guaranteed to retain at least 80.7% of its rated output. A 30-year power warranty is among the longer standards in the industry and reflects the manufacturer's confidence in the durability of its 210 mm PERC technology.
Is the Risen TITAN RSM120-8-615M a bifacial module?
No, the TITAN series in the RSM120-8 variant is a monofacial panel - energy is harvested from the front cell surface only. If your system is installed above a highly reflective surface such as a white TPO membrane or light-colored gravel and you want to capture albedo gain, Risen's bifacial models would be worth considering. For standard pitched roofs, however, the monofacial TITAN module is fully adequate and offers lower system BoS costs.
Do Risen TITAN panels perform well on hot summer days?
Yes. The PERC technology used in the TITAN series features a low temperature coefficient of power (approximately -0.34%/°C), meaning smaller output losses at high temperatures compared to older polycrystalline modules. At a typical cell temperature of 65°C in summer, power degradation is noticeably lower, directly translating into higher annual energy yields and a shorter investment payback period.
Can Risen TITAN panels withstand heavy snow loads and strong winds?
Yes. The TITAN series features a reinforced aluminum frame that meets IEC standards for snow loads up to 5,400 Pa and wind pressure up to 2,400 Pa. These ratings are suitable for the vast majority of locations in Poland, including mountain regions with harsh winters. That said, always verify the technical documentation against a structural engineering assessment before installation.
Is Risen Energy a reliable manufacturer and is the 30-year warranty realistic?
Risen Energy is listed as a Tier 1 manufacturer by BloombergNEF, meeting strict financial and production criteria. The company has been operating since 1986 and is publicly traded on the Shenzhen Stock Exchange, providing financial transparency. This is a key factor when assessing the credibility of the 30-year power warranty - Tier 1 classification is the industry signal that a manufacturer has the resources to honor long-term obligations.
