Space saver, no clear weak spot
The PolyCrown Solar Tech Monocrystalline80 solar panel series is a response to the growing demand for high power density modules while maintaining optimal unit dimensions. The use of advanced PERC cell technology allows for significantly higher solar energy conversion efficiency, which directly translates into greater yields from the available mounting area. A key feature of this series is the unique 80-cell design, which ensures stable voltage parameters, perfectly matched to the specific requirements of modern charging and energy storage systems. The application of half-cut cell technology (Half-Cut) effectively reduces resistive losses and eliminates the problem of performance drop resulting from partial shading, making these panels a reliable choice for demanding users. Thanks to high resistance to PID-type degradation and the LID phenomenon, the installation maintains its efficiency through many years of intensive operation. PolyCrown Monocrystalline80 is a solution dedicated primarily to those seeking maximum energy independence in mobile systems, home installations, and specialized off-grid projects. The solid frame construction and reinforced tempered glass distinguish this series from the competition, offering full operational safety even in difficult weather conditions.
Ranking
Signals from the data
Roofs where every square metre counts, weight-limited structures and small roofs that need every watt.
Top 5% of the 200-400 W band, against a median of 193.8. Ranked 9,613th in the whole database.
Top 6% of the 200-400 W band, against a median of 59.4. Ranked 3,317th in the whole database.
Top 6% of the 200-400 W band, against a median of 19.40%. Ranked 9,647th in the whole database.
The maximum efficiency of 23.15% matches JA Solar's Monocrystalline80 series (Tier-1) and clearly outperforms Waaree ARKA (19.81%) and Jinko's 72-cell polycrystalline series (17%) by roughly 3.3 and over 6 percentage points respectively — a result at the very top of the segment.
Splitting cells in half reduces resistive losses and limits the impact of partial shading on overall module output, which is particularly valuable in installations with uneven irradiance.
The unusual 80-cell count delivers voltage parameters tailored to charge controllers and energy storage systems, differentiating the series from the standard 72/144-cell layouts that dominate the market.
8 power variants within a single series allow the module to be matched to small mobile and off-grid installations as well as larger residential systems, without changing cell technology or voltage parameters.

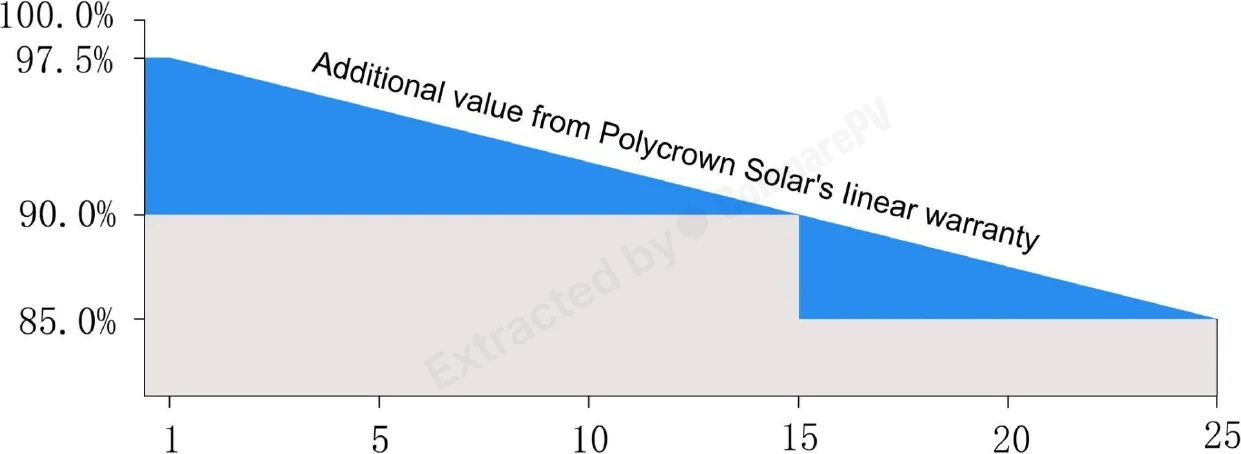

Declared high resistance to Potential Induced Degradation and Light Induced Degradation supports long-term efficiency retention, which matters given the 25-year linear power warranty.
Industry consensus places the theoretical PERC cell limit at roughly 23%, with mass-production efficiency typically at 20.5-22% (TOPCon reaches up to 23.6%). The declared 23.15% for PERC sits at the physical edge of what this technology can achieve, and would benefit from independent module testing verification.
By 2026, TOPCon cells surpassed 65% of global production (2024 data) and offer lower degradation plus better high-temperature performance than PERC. Choosing older PERC technology may mean lower real-world annual yield and reduced long-term parts/service availability as manufacturers phase out PERC production lines.
The series has no bifacial variant, while N-type technologies increasingly enable an additional 5-15% rear-side yield — the absence of this option limits flexibility for ground-mount projects and high-albedo roof installations.
- Module efficiency of 21.1% is 0.8pp below average for database panels (median: 21.8%)
- Power density of 210.5 W/m² is 7.6 W/m² below database median (218.1 W/m²) - needs more roof space
- Temperature coefficient of -0.29%/°C matches the database median
- Weight of 15.0 kg (11.5 kg below database median of 26.5 kg) allows easier transport and roof mounting
- #9647 for efficiency, #2165 for temperature performance out of 14005 panels
Specifications
Datasheet charts

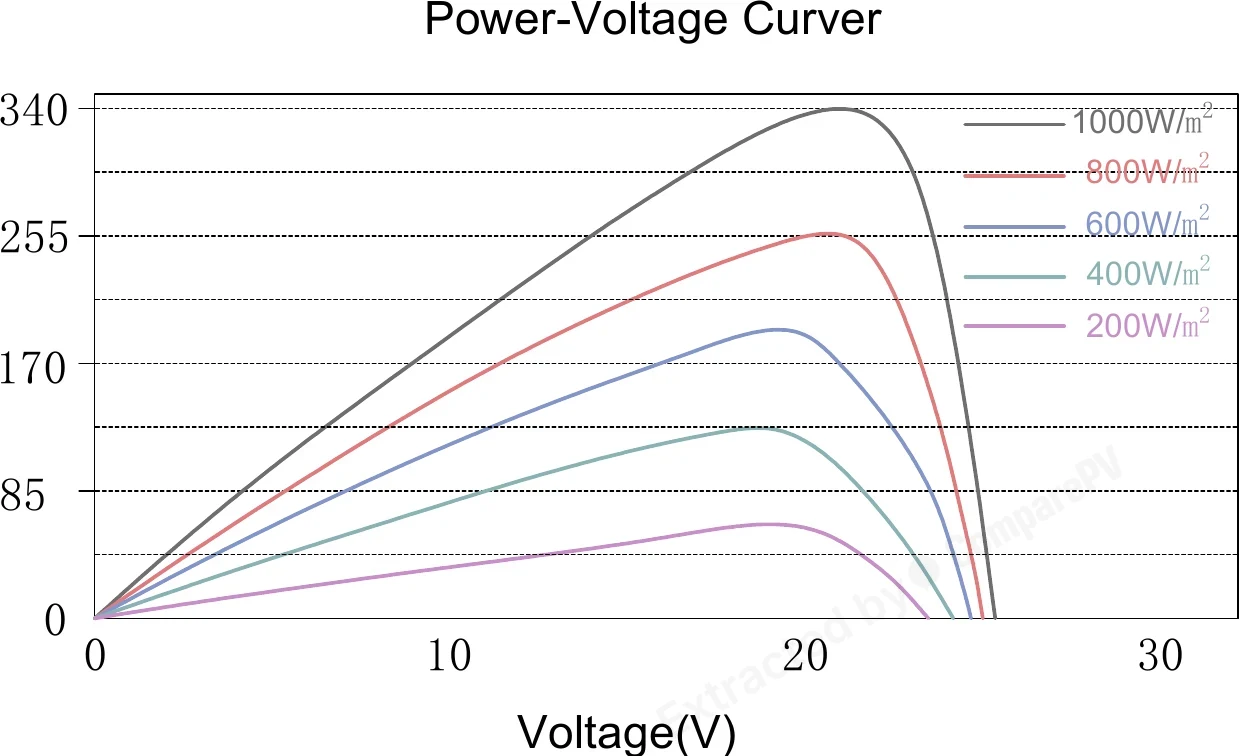

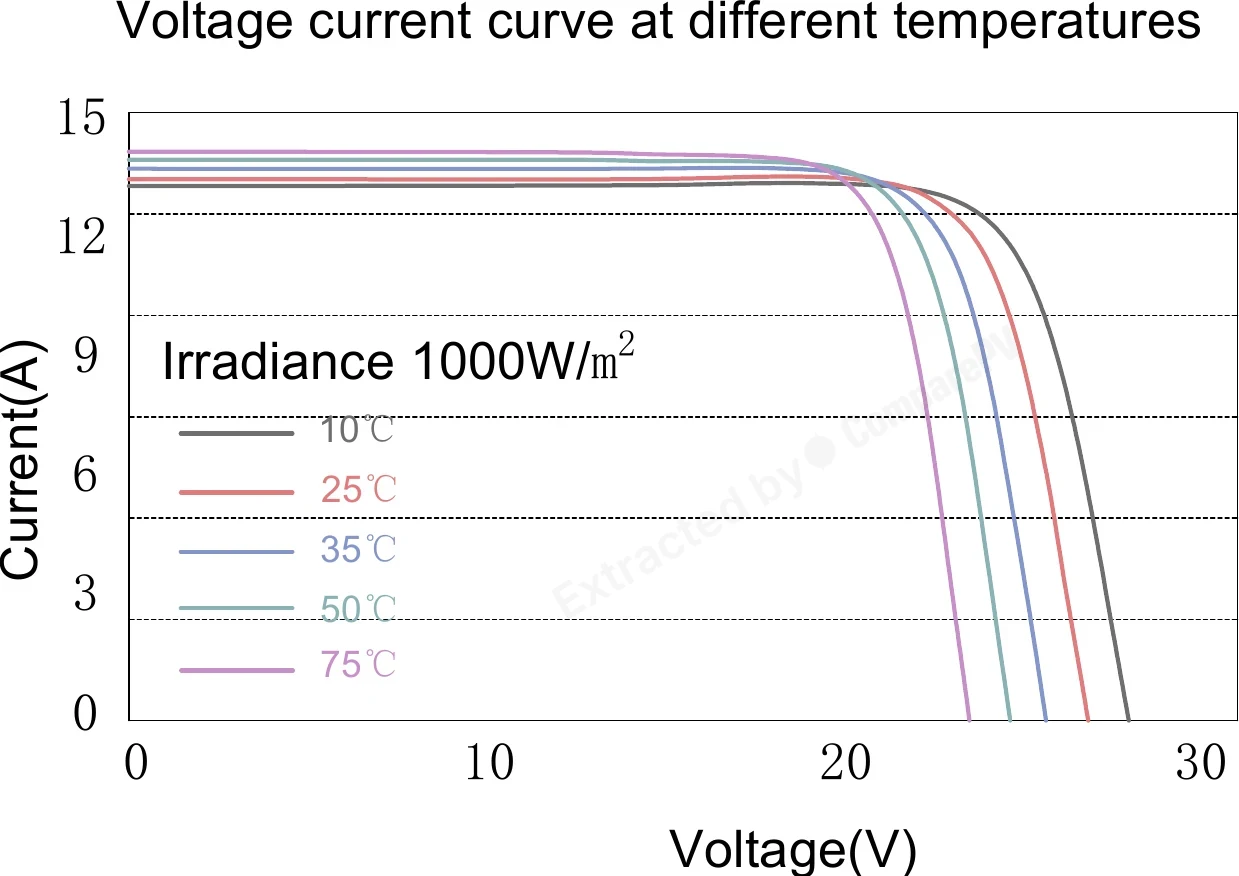

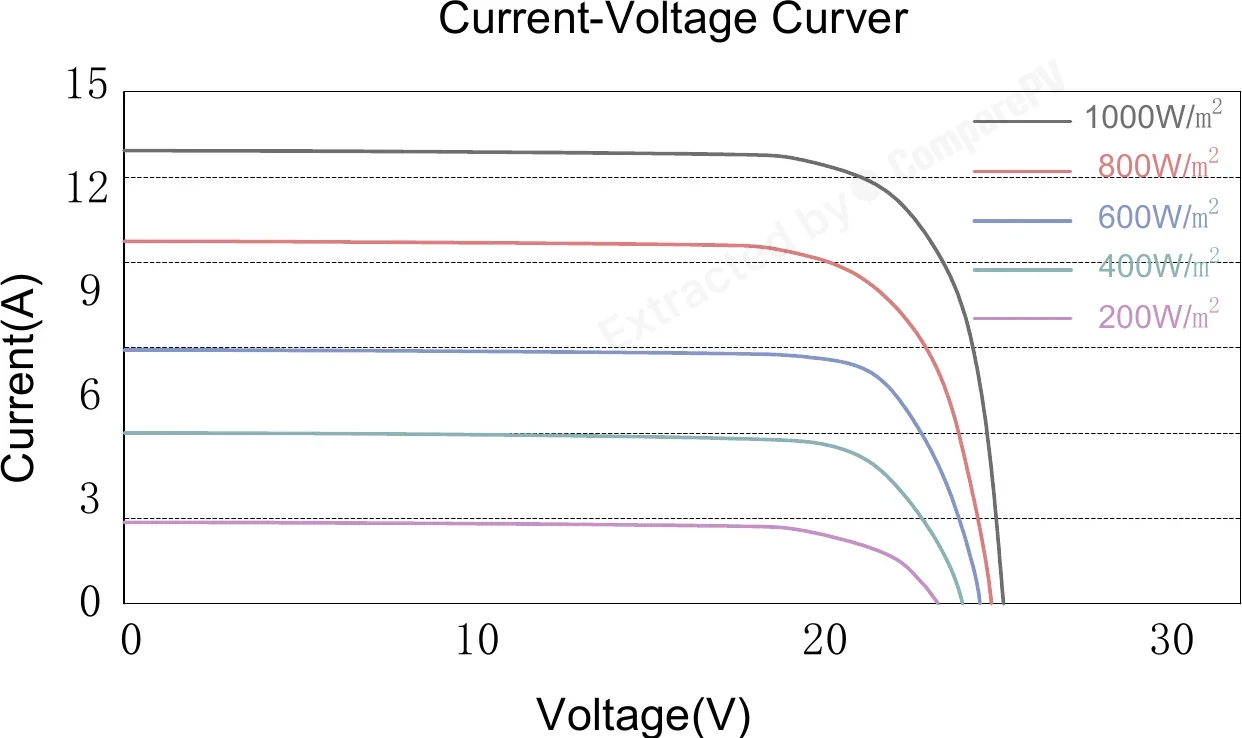

Measured curves published by PolyCrown Solar Tech in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 300 Wp appear here. The rest cover the whole series.
Simulations
Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.
