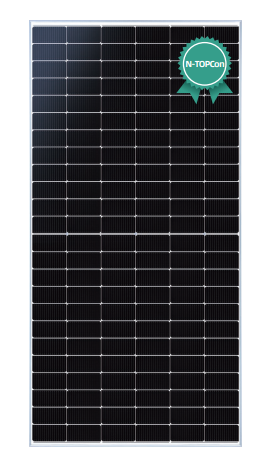

Phono Solar PS595M8GF-24/TNH
Phono Solar Brand review

PS595M8GF-24/TNH

595 Wp TOPCon Bifacial 80%
ComparePV verdict

Efficiency leader, no clear weak spot

Rank 2,778 of 14,129
Compare panels Datasheet PDF
Power (Wp)
595
Strong · top 5%
Efficiency (%)
23.03
Strong · top 5%
Density (Wp/m²)
230.3
Strong · top 7%
Temp (%/°C)
-0.290
Typical · median -0.290
Weight (kg)
32.0
Typical · median 31.2 kg
Warranty (yrs)
30
Typical · median 30 yrs

The Phono Solar Draco Module Series (N-TOPCon HIGH EFFICIENCY 144-16BB-W-WG) was designed to maximize yield under real-world operating conditions-especially when irradiance is low or the angle of light incidence is not ideal. The application of N-TOPCon technology translates to more stable performance and a better response to low-light conditions, which has direct implications for annual energy production in Poland's climate. The modules utilize a bifacial structure, allowing them to capture additional energy from reflected light-particularly beneficial on bright roofs, ground, gravel, or in snowy surroundings. Another key feature is the 16BB configuration, which supports lower internal losses and more uniform current conduction, while the double glazing enhances durability and resilience in demanding locations. This solution is ideal for investors seeking higher yields and reliable performance in commercial installations, utility-scale solar farms, and industrial projects, where long-term reliability is key, not just catalog parameters.

Ranking

1,022 panels in the segment TOPCon 550-600 W
Metric This panel Median Position in segment Overall rank
Module efficiency 23.03% 22.44% Strong · top 5% 1,794
Power density 230.3 224.4 Strong · top 7% 1,809
Temperature coefficient -0.290 -0.290 Typical 2,220
Weight per kWp 53.8 53.8 Typical 7,926
Performance warranty 30 yrs 30 yrs Typical 21
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

7 positive · 1 caution
Best for

Commercial, utility-scale, cold-climate and hot-climate.

Strengths
23.03% module efficiency

Top 5% of the TOPCon 550-600 W segment, against a median of 22.44%. Ranked 1,794th in the whole database.

230.3 watts per square metre

Top 7% of the TOPCon 550-600 W segment, against a median of 224.4. Ranked 1,809th in the whole database.

What owners get
Top-tier efficiency in the segment

Efficiency of 22.84-23.03% puts the Draco series on par with the best peers - Solarspace Lumina II (23.03%) and Heliene 144HC NTYP (23.02%) - and clearly ahead of Sunova TS-BW78 (21.3%) at the same 595 Wp power class.

High bifaciality, up to 30% extra yield

Cell bifaciality factor exceeds 80%, with the manufacturer claiming up to 30% additional energy yield depending on ground albedo - a meaningful advantage on light-colored roofs, gravel, or snow-covered surroundings typical of Polish winters.

30-year linear power warranty with low degradation

The manufacturer guarantees ≥87.4% power output after 30 years with annual degradation of just 0.4% (and under 1% in year one) - performance comparable to leading Tier-1 brands, delivering a predictable production profile across the module's lifetime.

Bankable Tier-1 with a 20-year track record

Phono Solar has operated since 2004 and holds Tier-1 bankable status, easing financing for commercial and utility-scale PV projects. The Draco series (launched 2022) remains in active production, ensuring continuity of supply and warranty service.

16BB layout with dual glass and low temp. coefficient

The 16-busbar layout reduces resistive losses, while a -0.29%/°C power temperature coefficient combined with dual-glass construction improves thermal resilience and mechanical durability in demanding industrial installations.

Trade-offs
15-year product warranty

The product warranty runs 15 years - standard for the market, but shorter than the 20-25-year product warranties already offered by some premium TOPCon manufacturers - worth weighing when comparing total risk cost over 25-30-year project lifetimes.

Notes from the database
  • Efficiency of 23.0% is 0.6pp above the TOPCon 550-600W median (22.4%)
  • At 230.3 W/m² power density, this panel generates 5.9 W/m² more per unit area than TOPCon 550-600W median (224.4 W/m²)
  • Temperature coefficient of -0.29%/°C matches the TOPCon 550-600W median
  • Bifaciality factor of 80% can add 4-12% extra yield with reflective mounting surface
  • In the top 13% for efficiency among all TOPCon panels

Specifications

Open datasheet PDF
Nominal power (Pmax) 595 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 23.03 % Strong Segment median 22.44%
Vmpp · Impp 43.75 V · 13.60 A Operating point at max power
Voc · Isc 52.92 V · 14.32 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 2278×1134×30 mm · 2.58 m² of roof
Weight 32.0 kg Typical Typical · median 31.2 kg
Cells 144 · TOPCon Monocrystalline
Bifaciality 80 % Rear output as a share of front
Coefficient Pmax -0.290 %/°C Typical median -0.290 of its segment
Coefficient Voc · Isc -0.250 · 0.040 %/°C
NOCT 42 °C At 800 W/m², 20 °C ambient
Product warranty 15 years Hardware defects only
Performance warranty 30 years Typical median 30 yrs · median 30 yrs
End-of-warranty output 87.4 % Equals 520 W guaranteed
Degradation 1.00 → 0.40 % First year, then annual

Datasheet charts

Open datasheet PDF

Measured curves published by Phono Solar in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 595 Wp appear here. The rest cover the whole series.

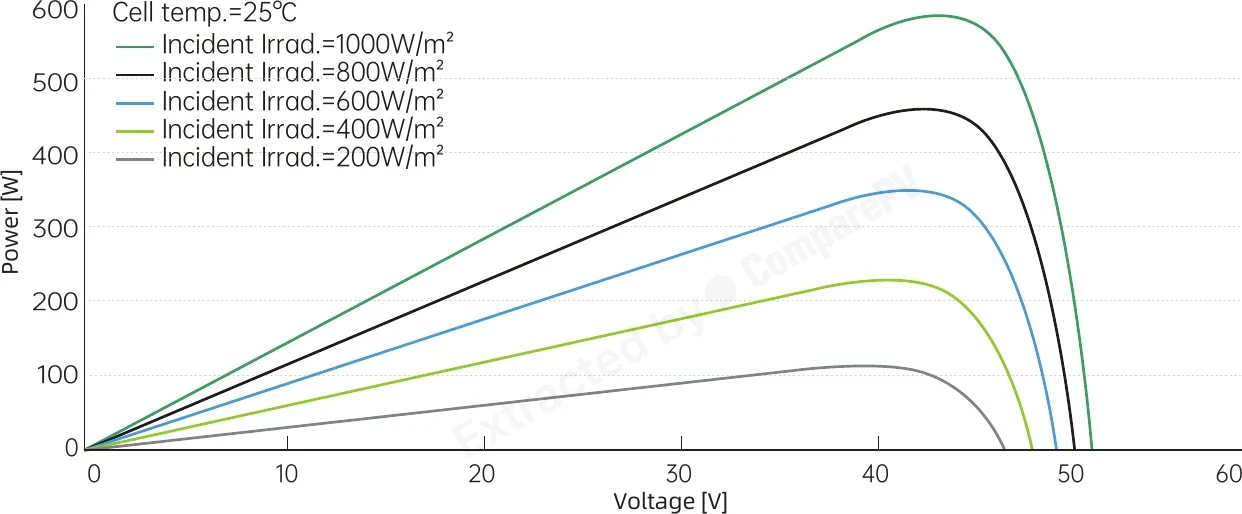

Guaranteed Power - Linear Performance Warranty (30-Year) Guaranteed Power - Linear Performance Warranty (30-Year) Whole series Power-Voltage Curves (Cell temp.=25°C) Power-Voltage Curves (Cell temp.=25°C) Whole series

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-
With bifacial gain
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.290 %/°C against a segment median of -0.290
-
Bifacial gain
Rear gain over light concrete: -
-

Model: bifaciality × albedo × 0.6 view factor. A first-order estimate, not a yield simulation.

Filter these
Size
Panel Power Eff. Temp. Weight Difference
Phono Solar PS595M8GF-24/TNH 595 W 23.03% -0.290 32.0 kg You are here
AIKO-A645-MAE72Mw 645 W 25.00% -0.260 27.0 kg +50 W, lighter, +2.0 pp
LR7-60HVH-560M 560 W 24.80% -0.260 25.0 kg -35 W, lighter, +1.8 pp
AIKO-A640-MAE72Mw 640 W 24.80% -0.260 27.0 kg +45 W, lighter, +1.8 pp
LR7-60HVH-555M 555 W 24.60% -0.260 25.0 kg -40 W, lighter, +1.6 pp
AIKO-A635-MAE72Mw 635 W 24.60% -0.260 27.0 kg +40 W, lighter, +1.6 pp
PS535M8GF-24/TH 535 W 20.71% -0.330 32.0 kg -60 W, hotter, -2.3 pp
PS540M8-24/TH 540 W 20.90% -0.350 28.0 kg -55 W, hotter, -2.1 pp
PS545M8-24/TH 545 W 21.10% -0.350 28.0 kg -50 W, hotter, -1.9 pp
AIKO-A650-MAE72Mw 650 W 25.20% -0.260 27.0 kg +55 W, lighter, +2.2 pp
AIKO-A630-MAH72Dw 630 W 24.40% -0.260 32.5 kg +35 W, cooler, +1.4 pp

Found 2327 panels of the same or similar size to this one, within ±10 mm. See them here Found 2369 panels of the same or similar size to this one, within ±25 mm. See them here Found 2383 panels of the same or similar size to this one, within ±50 mm. See them here Found 2548 panels of the same or similar size to this one, within ±100 mm. See them here

About the Draco Module Series (N-TOPCon HIGH EFFICIENCY 144-16BB-W-WG) series

6 answered

These answers cover the whole series. Where a figure differs, the specification above is this module's own.

What warranty does the Phono Solar Draco N-TOPCon 144-16BB series come with, and what does it cover?
The Draco N-TOPCon 144-16BB series includes a 15-year product warranty covering defects in materials and workmanship, plus a 30-year linear power output warranty. After 30 years, Phono Solar guarantees at least 87.4% of nominal power. First-year degradation is capped at 1%, followed by 0.4% per year, giving installers and owners a predictable generation curve throughout the system's operational lifetime.
What advantage does N-TOPCon cell technology offer in the Phono Solar Draco modules compared to standard PERC?
N-TOPCon cells achieve higher module efficiency - up to 23.03% for the 595 W variant - and deliver better low-light response than conventional PERC. The temperature coefficient of Pmax is just -0.29%/°C, meaning less power loss on hot days. In climates with frequent overcast conditions, the improved weak-illumination performance translates into measurably more kWh per year compared to PERC-based modules of similar nameplate power.
Can Phono Solar Draco 595 W dual-glass modules be installed on a residential pitched roof?
The modules measure 2278×1134×30 mm and, due to their dual-glass construction, weigh approximately 32-34 kg each - noticeably more than backsheet modules. Pitched-roof installation is possible but requires a structural load assessment and an appropriately rated racking system. This series is optimized for utility-scale ground-mount arrays, commercial rooftops, and industrial projects where weight is less of a constraint. For residential use, verifying roof structure load capacity is essential before specifying these modules.
How does bifacial technology work in the Phono Solar Draco series, and how much extra energy can it generate?
Draco bifacial modules have active cells on both the front and rear surfaces, capturing light reflected from the ground or mounting surface. Cell bifaciality exceeds 80%, and Phono Solar claims up to 30% additional power yield under optimal albedo conditions. Practical gains depend heavily on surface reflectivity: light-colored gravel, concrete, white roofing membranes, or snow coverage produce the highest rear-side gains. In typical ground-mount installations, real-world bifacial yield uplift ranges from 5% to 15%.
Do Phono Solar Draco N-TOPCon panels perform well in cold temperatures and winter conditions?
Yes. PV modules operate more efficiently at lower temperatures, and the Draco's favorable temperature coefficient of -0.29%/°C means minimal power loss even during summer heat. In winter, cold but sunny days can push output above STC nameplate power. N-TOPCon technology's superior low-light response also ensures solid generation on overcast winter days, which is particularly relevant for high-latitude markets with limited winter irradiance.
What types of installations is the Phono Solar Draco 144-16BB best suited for, and can it work in a small residential system?
The Draco N-TOPCon 144-16BB series, with up to 595 W per module, is engineered for utility-scale ground-mount farms, large commercial rooftops, and industrial PV projects where high per-module power reduces BoS costs and module count. Residential installation is technically possible but requires an inverter with a compatible MPPT voltage and current range, as well as a roof structure capable of supporting the higher weight of dual-glass modules. For typical 5-10 kW home systems, lighter single-glass alternatives may be more practical.
