New East Solar Brand review

NESE 430-54THB-M10

430 Wp TOPCon Bifacial 80%
ComparePV verdict

Middle of its segment, heavy for its output

Rank 10,082 of 14,005
Compare panels Datasheet PDF
Power (Wp)
430
Typical for its class
Efficiency (%)
22.02
Typical · median 22.00%
Density (Wp/m²)
220.2
Typical · median 220.2
Temp (%/°C)
-0.300
Typical · median -0.290
Weight (kg)
24.5
Weak · 2.5 kg above median
Warranty (yrs)
30
Typical · median 30 yrs

The New East Solar NESE 435-54THB-M10 panels are an advanced solution based on N-type TOPCon cell technology, which ensures significantly higher efficiency and better performance in difficult lighting conditions than traditional modules. Thanks to the use of a black frame and dark coating, this series features an elegant Full Black design, making it an ideal choice for investors who care about the highest roof aesthetics. The use of modern M10 format cells allows for maximizing power from a limited area, effectively solving the problem of small roofs with complex geometry. These panels stand out for their exceptionally low degradation rate, which guarantees stable production of free energy for decades and a much faster return on investment. The design based on 108 half-cells translates into compact dimensions and optimal weight, which facilitates installation on single-family houses and prosumer structures. Compared to market competitors, this model offers an excellent price-to-performance ratio and increased resistance to LID, or light-induced degradation. It is a reliable choice for those looking for modern technology that combines high operational performance with an uncompromising look for the entire installation. These modules perform excellently in the Polish climate, offering parameter stability even at high ambient temperatures.

Ranking

1,218 panels in the segment TOPCon 400-450 W
Metric This panel Median Position in segment Overall rank
Module efficiency 22.02% 22.00% Typical 6,329
Power density 220.2 220.2 Typical 6,481
Temperature coefficient -0.300 -0.290 Typical 6,093
Weight per kWp 57.0 51.4 Weak · bottom 14% 10,964
Performance warranty 30 yrs 30 yrs Typical 21
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

5 positive · 3 caution
Not ideal for

Weight-limited structures.

Watch-outs
57.0 kg per kWp

Bottom 14% of the TOPCon 400-450 W segment, against a median of 51.4.

What owners get
N-type TOPCon + bifacial cells

N-type TOPCon technology delivers lower LID degradation and better performance at high temperatures and low irradiance than older PERC cells. The bifacial module design additionally captures reflected light on the rear side, boosting overall system energy yield.

Efficiency at the top of the segment

Peak efficiency of 22.28% places the NESE 435-54THB-M10 series just behind the leading comparable model (SunLink SL5N108 at 22.30%) and effectively on par with SunKean SKT415~435M10-108D4 (22.27%) and Lina Energy LEPV 108 Nexa (22.26%), putting it firmly among the top peer comparables.

30-year linear power warranty

The 30-year linear power warranty matches the standard set by leading TOPCon manufacturers, giving investors a predictable, long-term energy yield and supporting a lower system LCOE calculation.

Tier-1 BNEF, bankable manufacturer

New East Solar is listed as a BNEF Tier-1 manufacturer, which eases access to bank and leasing financing for installations using these panels - a key factor for commercial projects and larger prosumer installations.

Compact M10 format with Full Black aesthetics

The 108 half-cut M10-format cell design maximizes power output on limited roof area, while the black frame combined with a dark coating (Full Black) makes the module a visually attractive choice for single-family homes where roof aesthetics matter.

Trade-offs
Shorter product warranty period

The 12-year product warranty is shorter than what some TOPCon segment leaders now offer on their premium residential lines - e.g., Trina Solar (TrinaProtect, 25 years) or JA Solar DeepBlue (25-year product / 30-year performance). For investors seeking maximum service coverage this may be a differentiating factor, despite the industry-standard 30-year power warranty.

Shorter track record in the European market

New East Solar shifted manufacturing to Cambodia relatively recently, as part of a supply-chain adjustment to anti-dumping regulations, meaning a shorter documented track record in the European market compared to brands like JinkoSolar, Trina Solar, or LONGi, which have been established in Poland for over a decade with extensive service networks.

Notes from the database
  • Efficiency of 22.0% matches the TOPCon 400-450W median
  • Power density of 220.2 W/m² matches the TOPCon 400-450W median
  • At -0.30%/°C, hot weather performance is typical for TOPCon 400-450W panels
  • Weight of 24.5 kg is 2.5 kg above TOPCon 400-450W median (22.0 kg) - verify structural support
  • Bifaciality factor of 80% can add 4-12% extra yield with reflective mounting surface

Specifications

Open datasheet PDF
Nominal power (Pmax) 430 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 22.02 % Typical Segment median 22.00%
Vmpp · Impp 31.90 V · 13.48 A Operating point at max power
Voc · Isc 38.40 V · 14.25 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 1722×1134×30 mm · 1.95 m² of roof
Weight 24.5 kg Weak Weak · 2.5 kg above median
Cells 108 · TOPCon Monocrystalline
Bifaciality 80 % Rear output as a share of front
Coefficient Pmax -0.300 %/°C Typical median -0.290 of its segment
Coefficient Voc · Isc -0.250 · 0.046 %/°C
NOCT 44 °C At 800 W/m², 20 °C ambient
Product warranty 12 years Hardware defects only
Performance warranty 30 years Typical median 30 yrs · median 30 yrs
End-of-warranty output 87.4 % Equals 376 W guaranteed
Degradation 1.00 → 0.40 % First year, then annual

Datasheet charts

Open datasheet PDF

Measured curves published by New East Solar in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 430 Wp appear here. The rest cover the whole series.

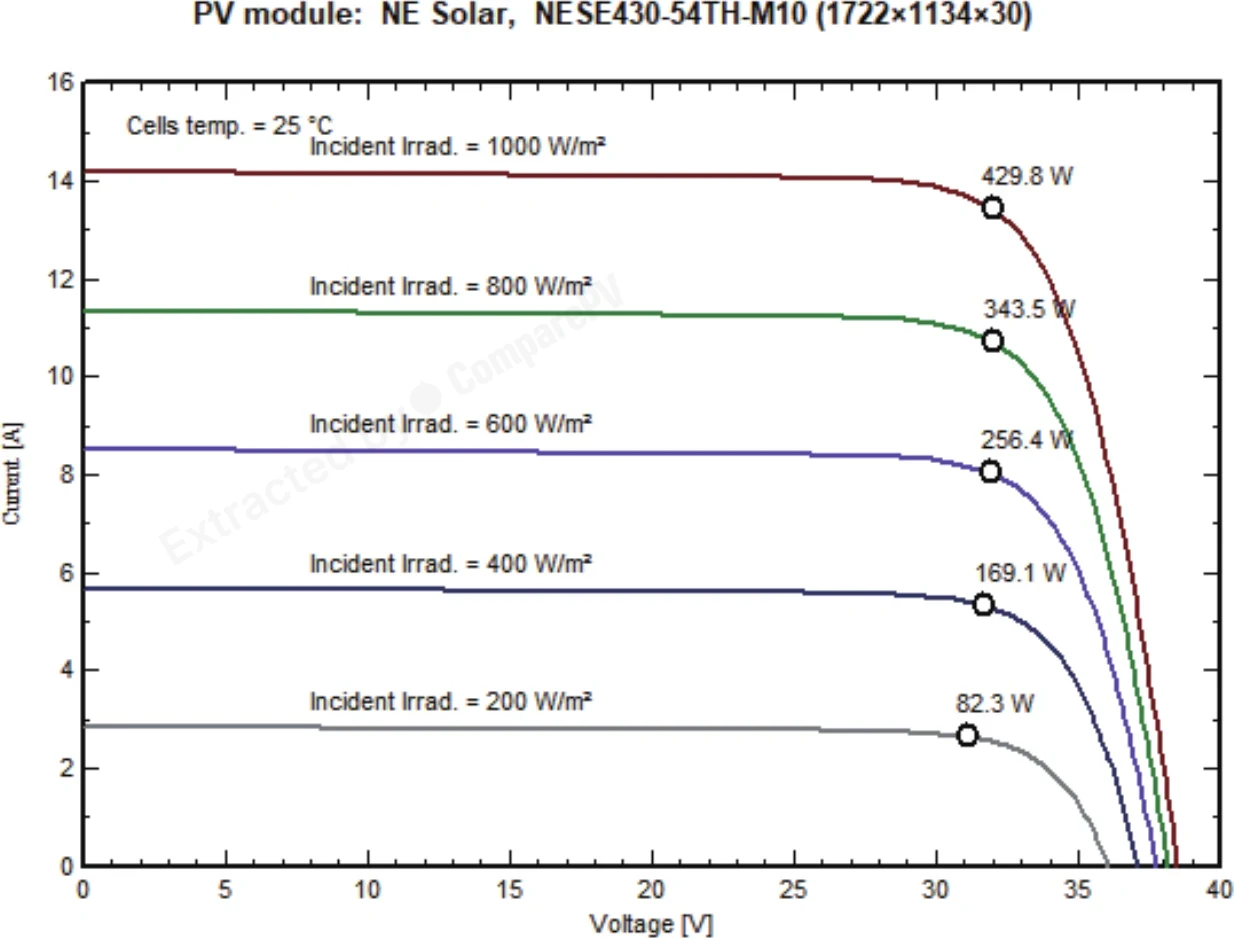

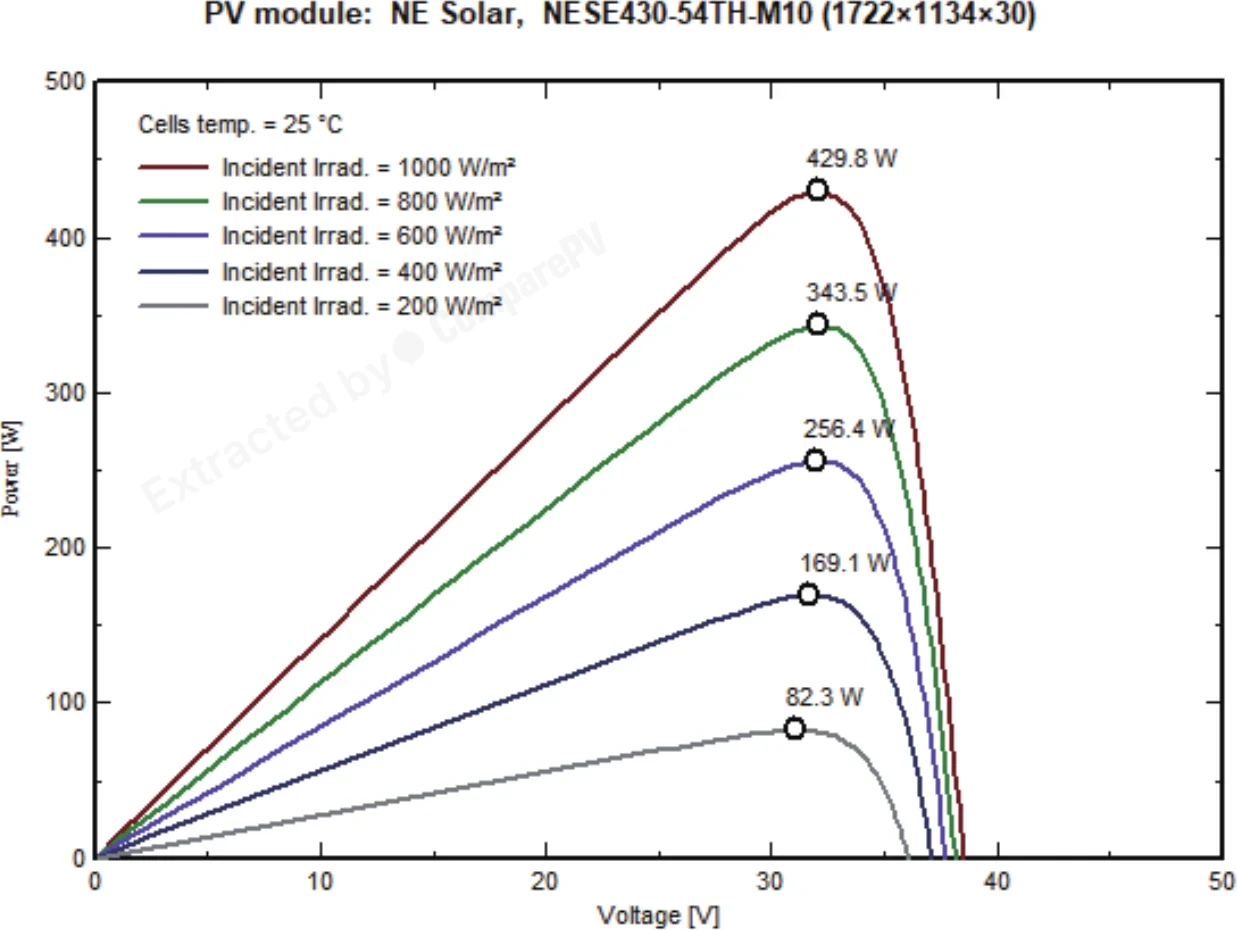

PV module: NE Solar, NESE430-54TH-M10 (1722×1134×30) - Current-Voltage Curve PV module: NE Solar, NESE430-54TH-M10 (1722×1134×30) - Current-Voltage Curve 430 W PV module: NE Solar, NESE430-54TH-M10 (1722×1134×30) - Power-Voltage Curve PV module: NE Solar, NESE430-54TH-M10 (1722×1134×30) - Power-Voltage Curve 430 W

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-
With bifacial gain
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.300 %/°C against a segment median of -0.290
-
Bifacial gain
Rear gain over light concrete: -
-

Model: bifaciality × albedo × 0.6 view factor. A first-order estimate, not a yield simulation.

Filter these
Size
Panel Power Eff. Temp. Weight Difference
New East Solar NESE 430-54THB-M10 430 W 22.02% -0.300 24.5 kg You are here
AIKO-A480-MAH54Mw 480 W 24.10% -0.260 21.5 kg +50 W, cooler, +2.1 pp
GK-5-54HG-480M 480 W 24.10% -0.260 21.0 kg +50 W, cooler, +2.1 pp
JKM480N-48QL6-DB-F2-EU 480 W 24.02% -0.260 24.4 kg +50 W, cooler, +2.0 pp
GKA96N-PRO-480W 480 W 24.02% -0.300 21.0 kg +50 W, lighter, +2.0 pp
NESE 415-54THB-M10 415 W 21.25% -0.300 24.5 kg -15 W, -0.8 pp
NESE 420-54THB-M10 420 W 21.51% -0.300 24.5 kg -10 W, -0.5 pp
NESE 425-54THB-M10 425 W 21.76% -0.300 24.5 kg -0.3 pp
NESE 435-54THB-M10 435 W 22.28% -0.300 24.5 kg +0.3 pp
LR7-54HJD-510M 510 W 25.00% -0.240 23.5 kg +80 W, cooler, +3.0 pp
AIKO-A495-MCE54Mw 495 W 24.80% -0.260 21.0 kg +65 W, cooler, +2.8 pp
LR7-54HJD-505M 505 W 24.70% -0.240 23.5 kg +75 W, cooler, +2.7 pp
AIKO-A490-MCE54Mw 490 W 24.50% -0.260 21.0 kg +60 W, cooler, +2.5 pp
LR7-54HJD-500M 500 W 24.50% -0.240 23.5 kg +70 W, cooler, +2.5 pp
CIPRO-TN9C54M-500W 500 W 24.50% -0.260 21.4 kg +70 W, cooler, +2.5 pp

Found 1783 panels of the same or similar size to this one, within ±10 mm. See them here Found 1914 panels of the same or similar size to this one, within ±25 mm. See them here Found 3392 panels of the same or similar size to this one, within ±50 mm. See them here Found 3970 panels of the same or similar size to this one, within ±100 mm. See them here

Common questions

6 answered
What warranties come with the New East Solar NESE 435-54THB-M10 panels?
The manufacturer provides a 12-year product warranty covering material and workmanship defects, along with a 30-year linear power warranty. Under the power warranty, the panel is guaranteed to deliver at least 87.4% of its rated output after 30 years of operation. Thanks to the N-type TOPCon cell technology, annual degradation is approximately 0.4%, meaning real-world performance often exceeds the minimum guaranteed levels throughout the module's service life.
Is the NESE 435-54THB-M10 a bifacial panel, and does it matter for a rooftop installation?
Yes, the NESE 435-54THB-M10 is a bifacial module, meaning the rear side also generates power from reflected irradiance. On a typical pitched roof without a highly reflective surface below, bifacial gain typically ranges from 5 to 10%. The full benefit of bifacial technology is realized in ground-mounted systems above light-colored surfaces such as gravel or concrete. On rooftops, bifacial construction still improves yield under diffuse light conditions common in Central Europe.
Why are N-type TOPCon cells in the NESE 435-54THB-M10 better than standard PERC modules?
N-type TOPCon cells deliver higher conversion efficiency (typically above 23.5%), a lower temperature coefficient (approx. -0.30%/°C vs. -0.40%/°C for PERC), and significantly lower light-induced degradation (LID) during initial light exposure. In practice this means more energy output on hot days and more stable production over the system's lifetime, resulting in a faster LCOE improvement and faster return on investment compared to same-wattage PERC modules.
Do the New East Solar NESE 435-54THB-M10 Full Black panels work well on a small or complex roof?
The NESE 435-54THB-M10 uses 108 half-cut M10 format cells, resulting in compact dimensions and a weight below 22 kg. The half-cut cell layout reduces mismatch losses from partial shading, which is common on roofs with dormers or chimneys. The all-black frame and backsheet of the Full Black design minimize visual impact on the building facade. These characteristics make the series a strong fit for small or irregular roof sections where maximizing power per square meter is critical.
Is New East Solar a reliable manufacturer, and where are the panels made?
New East Solar Energy, headquartered in Cambodia, holds Tier 1 manufacturer status, meaning it has been independently audited and recognized by financial industry analysts such as Bloomberg NEF. Tier 1 status is important for project bankability and warranty security. The company produces crystalline silicon modules for the European market, including Poland, and supplies panels certified to IEC and MCS standards, ensuring compatibility with standard grid-tied inverters and regulatory requirements.
How does the NESE 435-54THB-M10 perform in winter and on overcast days?
N-type TOPCon technology delivers superior response to diffuse irradiance compared to standard PERC cells, which is particularly relevant in Central Europe where overcast days are frequent. The low temperature coefficient (approx. -0.30%/°C) also reduces power losses during summer heat. In winter, the module operates efficiently at low temperatures, and the bifacial construction can capture additional reflected irradiance from snow on the roof surface or ground below the array.
