M565N72LB-SF-F3

565 Wp TOPCon Bifacial 100%
ComparePV verdict

Middle of its segment, modest efficiency

Rank 3,033 of 14,005
Compare panels Datasheet PDF
Power (Wp)
565
Weak · bottom 17%
Efficiency (%)
21.87
Weak · bottom 19%
Density (Wp/m²)
218.7
Weak · bottom 20%
Temp (%/°C)
-0.300
Typical · median -0.290
Weight (kg)
31.7
Weak · bottom 19%
Warranty (yrs)
30
Typical · median 30 yrs

The LEDVANCE M560~580N72LB-SF-F3 series are modules engineered for maximizing energy yield where every square meter counts - on C&I rooftops, ground-mounted installations, and projects where long-term production predictability is key. The application of N-type cells in TOPCon technology helps maintain high operational efficiency even under challenging thermal conditions and intense sunlight, while the bifacial design allows capturing additional energy from reflected light, effectively boosting output on bright rooftops and on appropriately prepared foundations in PV farms. A highlight of this series is the glass-glass construction, offering superior protection against moisture and mechanical stress, supporting parameter stability over the long term. For investors, the resistance to PID is ensured through quality control, and the original Stäubli MC4 EVO2 connectors facilitate safe integration into professional systems. This is the proposal for those seeking durability, high yields, and reduced operational risk.

Ranking

1,018 panels in the segment TOPCon 550-600 W
Metric This panel Median Position in segment Overall rank
Module efficiency 21.87% 22.44% Weak · bottom 19% 6,908
Power density 218.7 224.4 Weak · bottom 20% 6,841
Temperature coefficient -0.300 -0.290 Typical 6,093
Weight per kWp 56.1 53.8 Weak · bottom 19% 10,393
Performance warranty 30 yrs 30 yrs Typical 21
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

5 positive · 5 caution
Best for

Commercial and utility-scale.

Not ideal for

Tight roof space, weight-limited structures and roofs where every square metre has to count.

Watch-outs
21.87% module efficiency

Bottom 19% of the TOPCon 550-600 W segment, against a median of 22.44%.

56.1 kg per kWp

Bottom 19% of the TOPCon 550-600 W segment, against a median of 53.8.

218.7 watts per square metre

Bottom 20% of the TOPCon 550-600 W segment, against a median of 224.4.

What owners get
High-efficiency N-type TOPCon cells

Module efficiency reaches 21.67-22.45%, matching top bifacial glass-glass peer series (Emmvee Titanium Duo 22.45%, ZNShine ZXM7-UHLD144 22.44%). N-type TOPCon technology delivers lower LID/LeTID degradation and better high-temperature performance than older PERC cells.

Bifacial design boosts energy yield

The bifacial construction captures additional energy from reflected light off high-albedo surfaces - a real production gain, particularly in ground-mount installations and light-colored C&I roofs where the albedo effect is fully utilized.

Extended warranty: 25-year product, 30-year power

LEDVANCE guarantees retention of at least 87.4% of nominal power after 30 years - a longer power warranty than the standard 25 years offered by many Tier-1 manufacturers, reducing long-term degradation risk for investors.

Glass-glass construction with Stäubli MC4 EVO2 connectors

The dual-glass build (2 mm) improves moisture sealing and mechanical resistance (snow, hail load) versus glass-backsheet modules, while original Stäubli MC4 EVO2 connectors enable certified, safe system integration without counterfeit-connector risk.

PID resistance

Quality control during manufacturing mitigates potential-induced degradation (PID) risk, which matters for large-scale C&I and utility PV plants operating at high DC system voltages.

Trade-offs
LEDVANCE absent from BNEF Tier 1 list

The manufacturer does not appear on BloombergNEF's Tier 1 list (Q2 2026, 42 manufacturers including Jinko, LONGi, Trina, JA Solar), which can complicate project financing (bankability) for C&I and utility-scale deployments where lenders often require Tier-1 status.

Limited track record in PV segment

LEDVANCE, primarily known for lighting products, entered the PV panel segment relatively recently (series launched in 2024, company founded 2016), meaning it lacks the multi-year field track record of mature PV manufacturers like Emmvee or ZNShine.

Notes from the database
  • Efficiency of 21.9% is 0.6pp below the TOPCon 550-600W median (22.4%)
  • 218.7 W/m² power density is 5.7 W/m² below TOPCon 550-600W median (224.4 W/m²) - requires larger installation area
  • Temperature coefficient of -0.30%/°C matches the TOPCon 550-600W median
  • 100% bifaciality enables rear-side power generation, boosting yield by 5-15% on reflective surfaces
  • Ranked #6908 out of 14005 panels for efficiency in the database

Specifications

Open datasheet PDF
Nominal power (Pmax) 565 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 21.87 % Weak Segment median 22.44%
Vmpp · Impp 42.17 V · 13.40 A Operating point at max power
Voc · Isc 50.87 V · 14.19 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 2278×1134×30 mm · 2.58 m² of roof
Weight 31.7 kg Weak Weak · bottom 19%
Cells 144 · TOPCon Monocrystalline
Bifaciality 100 % Rear output as a share of front
Coefficient Pmax -0.300 %/°C Typical median -0.290 of its segment
Coefficient Voc · Isc -0.250 · 0.046 %/°C
NOCT 44 °C At 800 W/m², 20 °C ambient
Product warranty 25 years Hardware defects only
Performance warranty 30 years Typical median 30 yrs · median 30 yrs
End-of-warranty output 87.4 % Equals 494 W guaranteed
Degradation 1.00 → 0.40 % First year, then annual

Datasheet charts

Open datasheet PDF

Measured curves published by LEDVANCE in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 565 Wp appear here. The rest cover the whole series.

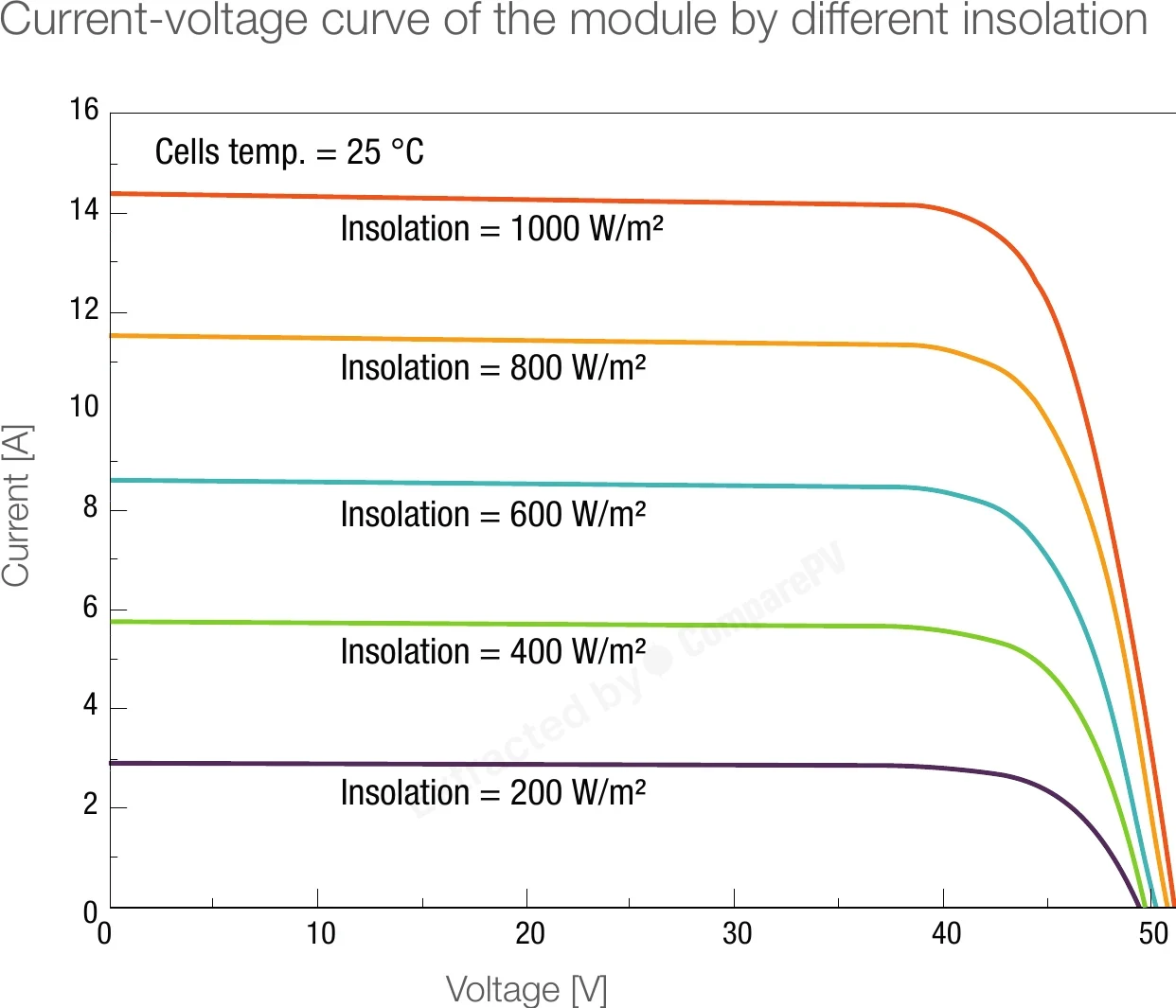

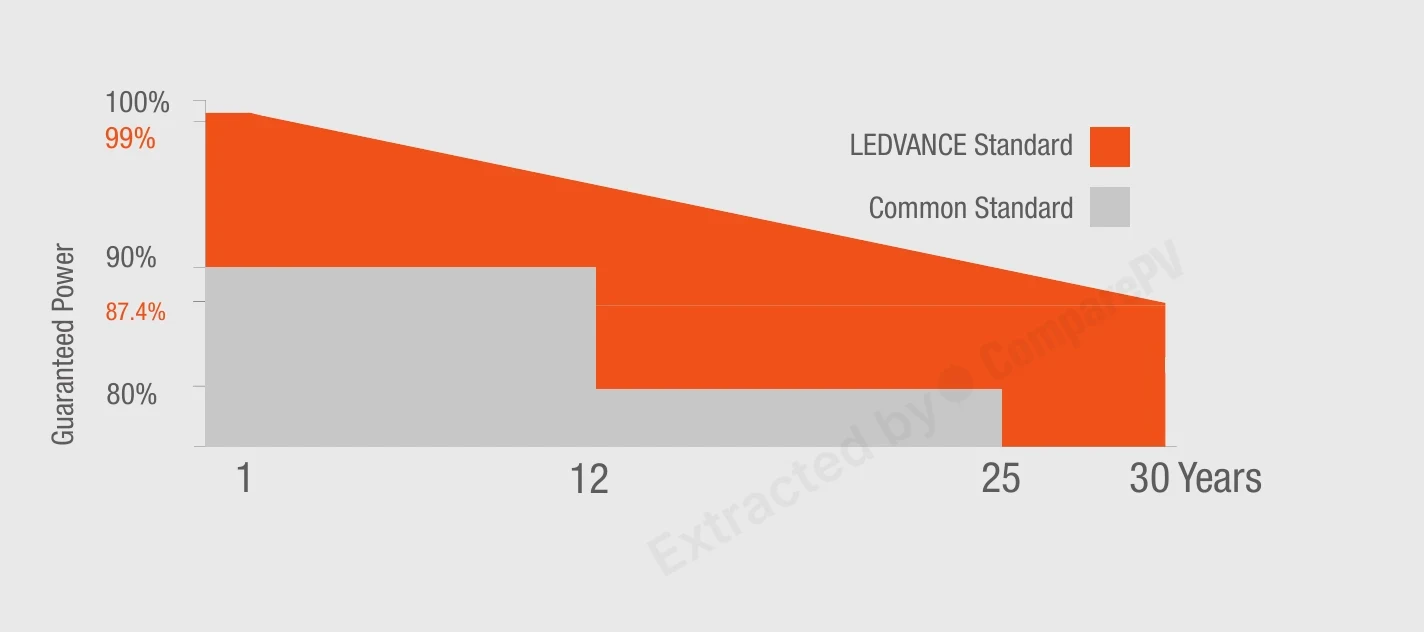

Guaranteed power vs. years (LEDVANCE Standard vs Common Standard) Guaranteed power vs. years (LEDVANCE Standard vs Common Standard) Whole series Current-voltage curve of the module by different insolation Current-voltage curve of the module by different insolation Whole series

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-
With bifacial gain
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.300 %/°C against a segment median of -0.290
-
Bifacial gain
Rear gain over light concrete: -
-

Model: bifaciality × albedo × 0.6 view factor. A first-order estimate, not a yield simulation.

Filter these
Size
Panel Power Eff. Temp. Weight Difference
LEDVANCE M565N72LB-SF-F3 565 W 21.87% -0.300 31.7 kg You are here
LR7-60HVH-560M 560 W 24.80% -0.260 25.0 kg Cooler, lighter, +2.9 pp
LR7-60HVH-555M 555 W 24.60% -0.260 25.0 kg Cooler, lighter, +2.7 pp
LR7-60HVHL-550M 550 W 24.40% -0.260 16.3 kg Cooler, 15 kg lighter, +2.5 pp
JAT60S40-540/LR 540 W 24.40% -0.260 23.5 kg Cooler, lighter, +2.5 pp
GK-5-60HG-540M 540 W 24.40% -0.260 23.3 kg Cooler, lighter, +2.5 pp
JKM545-54QL6-DV-F1-EU 545 W 24.27% -0.260 27.5 kg Cooler, lighter, +2.4 pp
LR7-60HVH-545M 545 W 24.20% -0.260 25.0 kg Cooler, lighter, +2.3 pp
M540P72LM-SF 540 W 20.90% -0.335 27.5 kg Lighter, -1.0 pp, -5 yr warranty
M545P72LM-SF 545 W 21.10% -0.335 27.5 kg Lighter, -0.8 pp, -5 yr warranty
M550P72LM-SF 550 W 21.30% -0.335 27.5 kg Hotter, lighter, -5 yr warranty
M555P72LM-SF 555 W 21.50% -0.335 27.5 kg Hotter, lighter, -5 yr warranty
M560P72LM-SF 560 W 21.68% -0.335 27.5 kg Hotter, lighter, -5 yr warranty
M570N72LB-SF-F3 570 W 22.06% -0.300 31.7 kg Very close match
M575N72LB-SF-F3 575 W 22.25% -0.300 31.7 kg +10 W, +0.4 pp
AIKO-A650-MAE72Mw 650 W 25.20% -0.260 27.0 kg +85 W, lighter, +3.3 pp
AIKO-A645-MAE72Mw 645 W 25.00% -0.260 27.0 kg +80 W, lighter, +3.1 pp

Found 2326 panels of the same or similar size to this one, within ±10 mm. See them here Found 2368 panels of the same or similar size to this one, within ±25 mm. See them here Found 2382 panels of the same or similar size to this one, within ±50 mm. See them here Found 2547 panels of the same or similar size to this one, within ±100 mm. See them here

Common questions

6 answered
Is the LEDVANCE M560~580N72LB-SF-F3 glass-glass module significantly heavier than a standard framed panel?
The module weighs approximately 31.7 kg with dimensions of 2278×1134×30 mm, which is somewhat heavier than a comparable single-glass panel. Roof or racking load capacity should be verified before installation. The dual-glass (glass-glass) construction offers superior moisture resistance and mechanical load tolerance, extending system lifetime and reducing the risk of parameter degradation over the years.
How does TOPCon technology affect the performance of LEDVANCE M560~580N72LB-SF-F3 panels on hot summer days?
N-type TOPCon cells carry a power temperature coefficient of -0.30%/°C, which is more favorable than typical PERC cells at -0.35%/°C. On a rooftop heated to 60°C, the panel loses proportionally less output, resulting in a measurable improvement in annual energy yield. For C&I systems operating at full irradiance throughout summer, the difference in annual production becomes noticeable within the first season.
How much additional energy does the bifacial design of the LEDVANCE M560~580N72LB-SF-F3 actually deliver in practice?
Bifacial operation captures light reflected onto the rear glass, delivering roughly 5–15% additional yield compared to a monofacial module of equivalent rated power, depending on surface albedo. The gain is most pronounced on light-colored membrane rooftops, gravel-covered ground-mount systems, or in winter conditions with snow cover. Proper module elevation above the reflecting surface is key to maximizing bifacial gain.
What warranties does the LEDVANCE M560~580N72LB-SF-F3 come with and what exactly do they cover?
LEDVANCE provides a 25-year product warranty covering materials and workmanship, plus a 30-year linear power output warranty guaranteeing at least 87.4% of rated power at end of life. This is among the more comprehensive warranty packages on the market, making long-term LCOE calculations more predictable and particularly valuable for C&I rooftop and utility-scale projects with extended financing horizons.
Are the connectors on LEDVANCE M560~580N72LB-SF-F3 panels compatible with standard MC4 wiring and equipment?
The series ships with genuine Stäubli MC4 EVO2 connectors, which are fully compatible with the standard MC4 interface used across the vast majority of inverters, combiner boxes, and PV cables available on the market. Stäubli connectors are recognized for their IP68 sealing and mechanical durability, reducing connector-related failure risk in installations exposed to prolonged moisture and UV.
Are LEDVANCE M560~580N72LB-SF-F3 panels suitable for industrial hall and warehouse rooftop systems?
Yes, the M560~580N72LB-SF-F3 series is designed with C&I applications in mind — factory rooftops, logistics centers, and warehouses. Cell efficiency reaching up to 22.45% maximizes power output per square meter of available roof area, and a static load rating of up to 5,400 Pa meets the structural requirements of most commercial roofing systems. Built-in PID resistance further lowers operational risk in large-scale series-connected arrays.
