Efficiency leader, no clear weak spot
The Jinko Solar Tiger Neo 48HL4M-DB (All Black mono-facial with dual glass) was designed for maximum yield from the same rooftop surface, without compromising aesthetics. The modules utilize N-type TOPCon cells, which minimize typical initial losses and better capture energy in low-light conditions - a tangible benefit in Polish conditions, especially during autumn and winter, as well as frequent cloudiness. Additionally, the HOT 3.0 technology supports stable performance and high parameter repeatability over the long term.
A key differentiator compared to many competitive panels is the dual glass construction - glass on both sides improves resistance to micro-cracks, moisture, and temperature fluctuations, which is appreciated by installations facing more challenging conditions. The entire design is complemented by All Black, ideal for modern roofs and investments where appearance matters. This is an excellent choice for homes, carports, and commercial roofs, where reliability, high yield, and long-term durability are key.
Ranking
Signals from the data
Residential, commercial and shaded-installations.
Top 17% of the TOPCon 450-500 W segment, against a median of 22.52%.
Top 20% of the TOPCon 450-500 W segment, against a median of 225.2.
N-type TOPCon cells guarantee linear power degradation of 0.40%/yr versus 0.55–0.70% typical for P-type PERC modules, with near-zero LID and LeTID in early years of operation. For a 10 kWp system, this translates into several hundred kWh of additional cumulative energy yield over the module's lifetime compared to legacy technologies.
Jinko guarantees ≥87.4% of rated power after 30 years at 0.40%/yr degradation, surpassing the standard 25-year warranties of older P-type series. For a 10 kWp residential system, this represents approximately 130–150 kWh/yr of additional generation in the final years compared to panels degrading at 0.55%/yr.
2.0 mm tempered front glass and 2.0 mm heat-strengthened rear glass deliver 6,000 Pa front / 4,000 Pa rear static load resistance and tested resistance to moisture ingress and microcracks. This is especially relevant in the Polish climate, characterized by wide seasonal temperature swings and high humidity.
The 1762×1134 mm module with full-black frame, cells, and rear glass reaches up to 23.77% efficiency via SMBB and HOT 3.0 technology, maximizing energy harvest from limited roof space while maintaining a seamless dark appearance — critical for pitched roofs, carports, and installations where aesthetics are a priority.
Jinko Solar has maintained uninterrupted BNEF Tier-1 bankability status and ranks in the global top-2 manufacturers with approximately 120 GW of annual production capacity (Q4 2025, SEC 6-K filing). This minimizes the risk of losing warranty coverage due to manufacturer insolvency — critical over a 25–30-year warranty horizon.
The double-glass construction increases module weight to approximately 24 kg, versus 19–21 kg for comparable all-black backsheet modules in 48-cell format. On roofs with limited load capacity this may require reinforced racking, and the added weight increases installation labor and complicates single-person handling.
- At 23.0% efficiency, this panel is on par with typical TOPCon 450-500W modules
- At 230.2 W/m² power density, this panel generates 5.0 W/m² more per unit area than TOPCon 450-500W median (225.2 W/m²)
- At -0.29%/°C, hot weather performance is typical for TOPCon 450-500W panels
- Ranked #1797 out of 14005 panels for efficiency in the database
Specifications
Datasheet charts

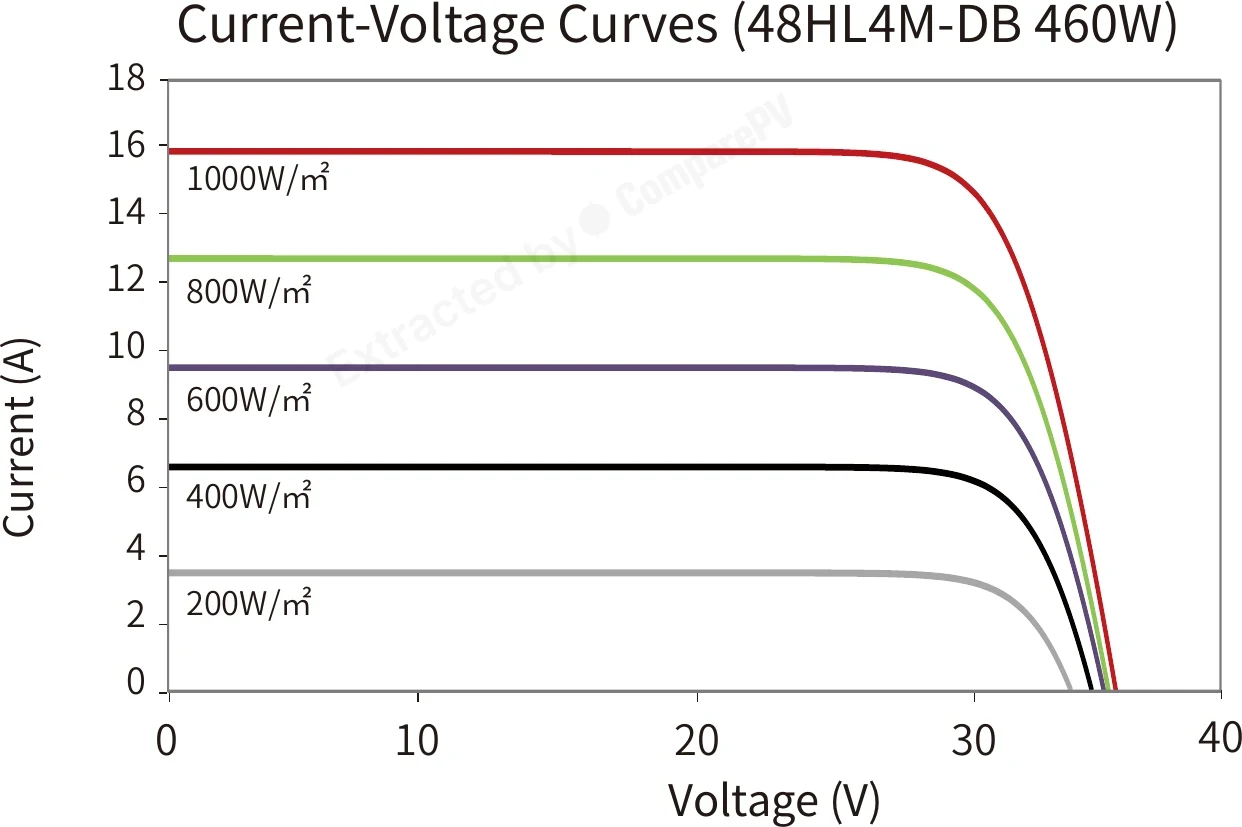

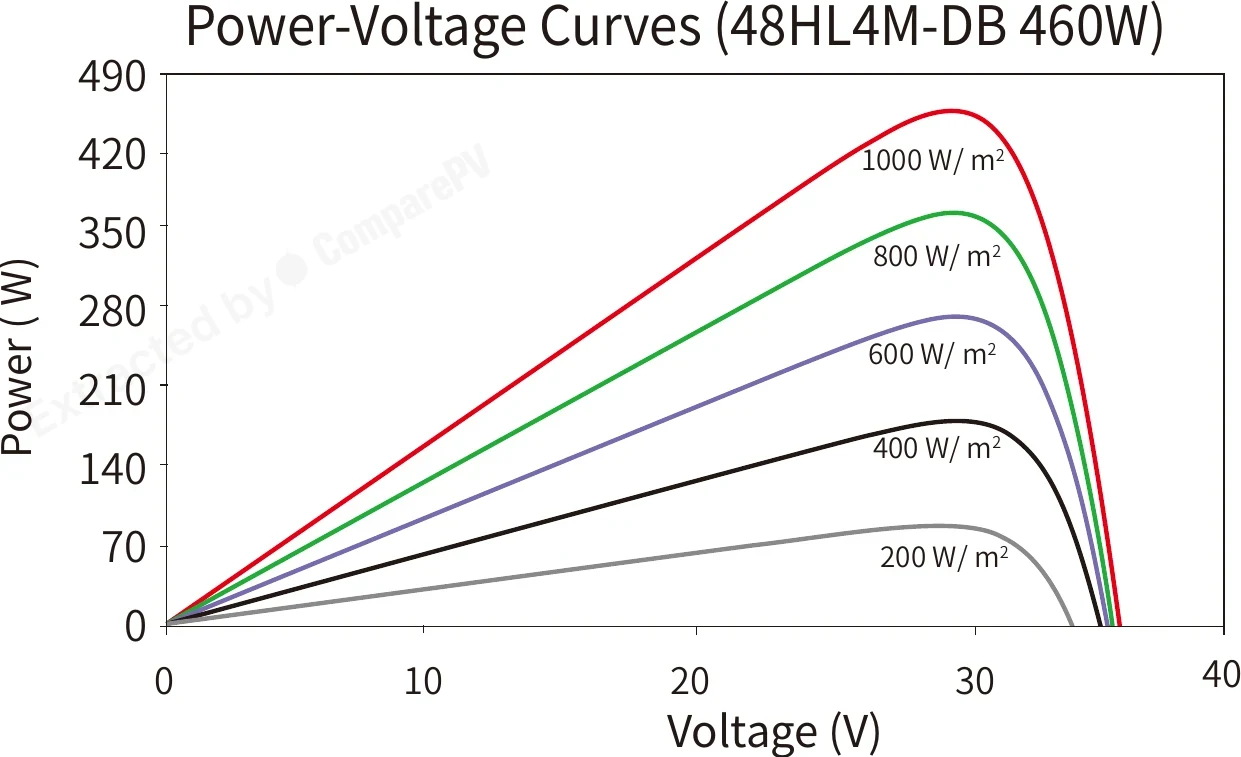

Measured curves published by Jinko Solar in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 460 Wp appear here. The rest cover the whole series.
Simulations
Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.
