Jinko Solar JKM430-455N-54HL4R-B-F8-EN (430W)
Jinko Solar Brand review

JKM430-455N-54HL4R-B-F8-EN (430W)

430 Wp TOPCon
ComparePV verdict

Middle of its segment, modest efficiency

Rank 8,099 of 14,005
Compare panels Datasheet PDF
Power (Wp)
430
Typical for its class
Efficiency (%)
21.52
Weak · bottom 23%
Density (Wp/m²)
215.2
Weak · bottom 23%
Temp (%/°C)
-0.290
Typical · median -0.290
Weight (kg)
21.0
Typical · median 22.0 kg
Warranty (yrs)
30
Typical · median 30 yrs

The Jinko Solar Tiger Neo 54HL4R-B (All Black, mono-facial) is a proposition for investors seeking the maximally aesthetic roof without compromises. The entirely black appearance (frame and backsheet) performs exceptionally well on dark roofing, where a cohesive, architectural installation line matters. The modules utilize N-type cells in TOPCon technology, ensuring better parameter retention over time and more efficient operation in real-world conditions, especially when temperatures rise or sunlight is less intense. A key feature is SMBB (Super Multi-Busbar), which improves current collection and supports reliability under partial shading. For safety, the manufacturer emphasizes PID resistance, and for operation in tougher environments, high resistance to salt mist and ammonia. This is an excellent choice for single-family homes, premium buildings, and roofs where appearance is just as important as stable energy production over the years.

Ranking

1,218 panels in the segment TOPCon 400-450 W
Metric This panel Median Position in segment Overall rank
Module efficiency 21.52% 22.00% Weak · bottom 23% 7,853
Power density 215.2 220.2 Weak · bottom 23% 7,816
Temperature coefficient -0.290 -0.290 Typical 2,165
Weight per kWp 48.8 51.4 Typical 2,492
Performance warranty 30 yrs 30 yrs Typical 21
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

5 positive · 4 caution
Best for

Residential, commercial, shaded-installations and hot-climate.

Not ideal for

Tight roof space and roofs where every square metre has to count.

Watch-outs
21.52% module efficiency

Bottom 23% of the TOPCon 400-450 W segment, against a median of 22.00%.

215.2 watts per square metre

Bottom 23% of the TOPCon 400-450 W segment, against a median of 220.2.

What owners get
N-type TOPCon + SMBB: low degradation and higher yield

N-type TOPCon cells deliver an annual degradation rate of just 0.40% (vs. ~0.70% for P-type PERC), resulting in meaningfully higher cumulative energy yield over 30 years. The SMBB architecture improves current collection and reduces losses under partial shading. Independent tests show 3–5% higher energy output under low-irradiance conditions (<200 W/m²) compared to equivalent PERC modules.

Temperature coefficient of -0.29%/°C

At -0.29%/°C, this module outperforms typical PERC panels (-0.34 to -0.35%/°C). At a cell temperature of 60°C, the advantage translates to roughly 3–3.5% more energy produced relative to PERC — a measurable gain for south-facing rooftop installations during summer peak hours.

30-year linear power warranty (87.4% retention)

Jinko guarantees at least 87.4% of rated power output after 30 years, with annual degradation not exceeding 0.40%. None of the listed peer comparables (Sunlike Solar, Waaree ARKA, IBC Solar) document an equivalent 30-year commitment, placing this series above the industry-standard 25-year benchmark.

Up to 22.77% efficiency — top-tier segment performance

Peak module efficiency of 22.77% matches the segment leaders — Sunlike Solar SKT420~455M10-108D6 (22.8%) and IBC Solar LS-TA2 (22.8%) — while exceeding Waaree ARKA (20.93%) by approximately 1.84 percentage points. On a typical 30 m² roof, the gap versus Waaree translates to roughly 15–20 Wp of additional peak power.

Highest market bankability (BNEF Tier-1 #1)

JinkoSolar is the only PV module manufacturer to achieve 100% bankability in Bloomberg BNEF's PV Module Bankability Survey 2024 — ranking first for the tenth consecutive year. This directly reduces project financing risk and simplifies due diligence for commercial and utility-scale investors.

Trade-offs
Monofacial only — no bifacial energy gain

The series is not bifacial (is_bifacial = false). On flat commercial rooftops with light-colored membranes or ground-mount systems, bifacial TOPCon modules of comparable class can harvest 10–25% additional energy from reflected irradiance. For standard pitched residential roofs the gap is minimal, but for industrial rooftops or carport structures, choosing a monofacial module foregoes measurable yield potential.

All-Black backsheet raises operating temperature

The dark frame and rear foil absorb more thermal radiation than a standard white backsheet, raising cell operating temperature by an estimated 2–4°C versus an equivalent standard-format module. With a temperature coefficient of -0.29%/°C, this can result in approximately 0.6–1.2% power loss under peak summer irradiance — a trade-off that aesthetics-focused buyers should consciously accept.

Notes from the database
  • Efficiency of 21.5% matches the TOPCon 400-450W median
  • At 215.2 W/m², this panel generates 5.0 W/m² less per unit area than TOPCon 400-450W median (220.2 W/m²)
  • At -0.29%/°C, hot weather performance is typical for TOPCon 400-450W panels
  • At 21.0 kg, weight matches the TOPCon 400-450W median
  • In the top 56% for efficiency among all TOPCon panels

Specifications

Open datasheet PDF
Nominal power (Pmax) 430 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 21.52 % Weak Segment median 22.00%
Vmpp · Impp 32.58 V · 13.20 A Operating point at max power
Voc · Isc 39.16 V · 13.65 A Sizes the string length
Max system voltage 1000 V Longer strings than 1000 V modules
Dimensions 1762×1134×30 mm · 2.00 m² of roof
Weight 21.0 kg Typical Typical · median 22.0 kg
Cells 108 · TOPCon Monocrystalline
Coefficient Pmax -0.290 %/°C Typical median -0.290 of its segment
Coefficient Voc · Isc -0.250 · 0.045 %/°C
Product warranty 25 years Hardware defects only
Performance warranty 30 years Typical median 30 yrs · median 30 yrs
End-of-warranty output 87.4 % Equals 376 W guaranteed
Degradation 1.00 → 0.40 % First year, then annual

Datasheet charts

Open datasheet PDF

Measured curves published by Jinko Solar in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 430 Wp appear here. The rest cover the whole series.

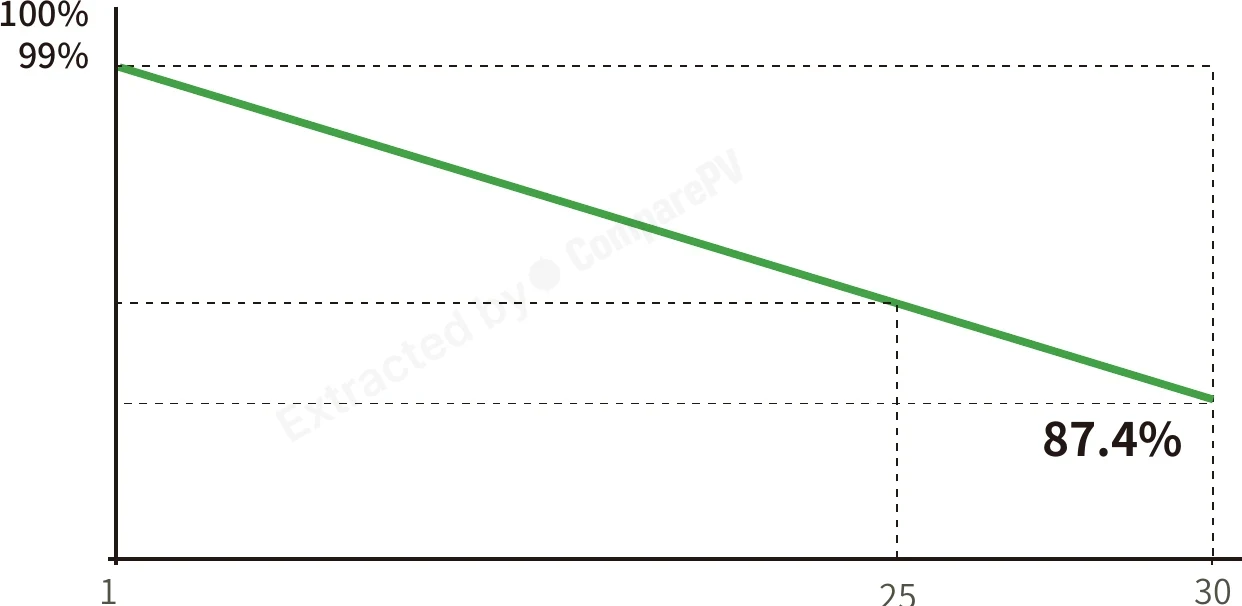

30-year Linear Performance Warranty 30-year Linear Performance Warranty Whole series

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.290 %/°C against a segment median of -0.290
-
Filter these
Size
Panel Power Eff. Temp. Weight Difference
Jinko Solar JKM430-455N-54HL4R-B-F8-EN (430W) 430 W 21.52% -0.290 21.0 kg You are here
AIKO-A480-MAH54Mw 480 W 24.10% -0.260 21.5 kg +50 W, cooler, +2.6 pp
GK-5-54HG-480M 480 W 24.10% -0.260 21.0 kg +50 W, cooler, +2.6 pp
JKM480N-48QL6-DB-F2-EU 480 W 24.02% -0.260 24.4 kg +50 W, heavier, +2.5 pp
GKA96N-PRO-480W 480 W 24.02% -0.300 21.0 kg +50 W, hotter, +2.5 pp
JKM420N-54HL4R-BDV 420 W 21.02% -0.290 22.0 kg -10 W, heavier, -0.5 pp
EU-JKM425-450N-54HL4R-BDB-G4 (425W class) 425 W 21.27% -0.290 24.5 kg Heavier, -0.2 pp
LR7-54HJD-510M 510 W 25.00% -0.240 23.5 kg +80 W, cooler, +3.5 pp
AIKO-A495-MCE54Mw 495 W 24.80% -0.260 21.0 kg +65 W, cooler, +3.3 pp
LR7-54HJD-505M 505 W 24.70% -0.240 23.5 kg +75 W, cooler, +3.2 pp
AIKO-A490-MCE54Mw 490 W 24.50% -0.260 21.0 kg +60 W, cooler, +3.0 pp
LR7-54HJD-500M 500 W 24.50% -0.240 23.5 kg +70 W, cooler, +3.0 pp
CIPRO-TN9C54M-500W 500 W 24.50% -0.260 21.4 kg +70 W, cooler, +3.0 pp

Found 1395 panels of the same or similar size to this one, within ±10 mm. See them here Found 1425 panels of the same or similar size to this one, within ±25 mm. See them here Found 3614 panels of the same or similar size to this one, within ±50 mm. See them here Found 3962 panels of the same or similar size to this one, within ±100 mm. See them here

Common questions

6 answered
What warranty does the Jinko Solar Tiger Neo 54HL4R-B All Black come with?
Jinko Solar provides a 25-year product warranty covering material and workmanship defects, plus a 30-year linear power output guarantee — at year 30 the panel must still deliver at least 87.4% of its rated wattage. Degradation is minimal: 1% in the first year and only 0.4% per year thereafter, placing this series among the most durable modules available on the market.
What is TOPCon technology and why does it matter in the Tiger Neo 54HL4R-B series?
TOPCon (Tunnel Oxide Passivated Contact) is an N-type cell technology that achieves superior surface passivation compared to conventional PERC. In the Tiger Neo 54HL4R-B it translates to module efficiency up to ~22.5%, a lower temperature coefficient (–0.29%/°C vs. –0.34%/°C for PERC), and slower long-term degradation. The real-world result is more energy generated — both in peak summer heat and under low-irradiance conditions.
Do the Tiger Neo 54HL4R-B All Black panels lose significant power on hot days?
No — with a temperature coefficient of –0.29%/°C, the Tiger Neo 54HL4R-B outperforms PERC modules in heat. For every 10°C above 25°C, output drops roughly 2.9% instead of 3.4%. The gap may seem small, but over a full summer season it adds up to a measurably higher energy yield from the same installed capacity.
How does the Tiger Neo 54HL4R-B series handle partial shading?
The SMBB (Super Multi-Busbar) design shortens current paths within each cell, reducing the effect of localized shading on the entire module. The 54HL4R-B is a monofacial panel, but the combination of SMBB and N-type TOPCon cells makes it more tolerant of uneven irradiance than standard PERC modules — an advantage on roofs with chimneys, dormers, or nearby trees.
What mechanical loads can the Jinko Tiger Neo 54HL4R-B panels withstand?
The 54HL4R-B series is certified for wind loads up to 2400 Pa and snow loads up to 5400 Pa. This level of structural resilience makes it well suited for demanding climates, including mountainous or coastal areas with heavy snowfall, strong gusts, or both.
How does the Tiger Neo 54HL4R-B All Black differ from the standard Tiger Neo version?
The primary difference is aesthetics: the 54HL4R-B features a fully black aluminum frame and black backsheet, creating a uniform all-black appearance that blends seamlessly into dark roof surfaces for a clean, architectural look. Core technical specs — TOPCon cell technology, SMBB, and up to 455 Wp — are identical to the standard version, so All Black is the right pick when curb appeal matters as much as reliable energy production over 30 years.
