JKM450N-54HL4R-(V)

450 Wp TOPCon
ComparePV verdict

Light for its output, no clear weak spot

Rank 8,281 of 14,005
Compare panels Datasheet PDF
Power (Wp)
450
Weak · bottom 9%
Efficiency (%)
22.52
Typical · median 22.52%
Density (Wp/m²)
225.2
Typical · median 225.2
Temp (%/°C)
-0.290
Typical · median -0.290
Weight (kg)
21.0
Strong · 3.0 kg below median
Warranty (yrs)
30
Typical · median 30 yrs

The Jinko Solar TIGER Neo series redefines efficiency standards through the use of advanced N-type cells in TOPCon technology. Choosing these modules solves the problem of power loss over time, offering significantly lower annual degradation and a better performance warranty compared to traditional P-type panels. Thanks to SMBB Super Multi Busbar technology, these panels handle current flow better, which minimizes the risk of micro-cracks and significantly increases the mechanical durability of the entire structure. Tiger Neo is the ideal solution for investors looking for maximum yield from limited roof space, as these modules generate more energy even in low-light conditions, for example at dawn, dusk, or on cloudy days. They are distinguished from the competition by an exceptionally low temperature coefficient, which makes the entire installation work much more efficiently during hot Polish summers, without losing power as rapidly as older models. This series is dedicated to both demanding home prosumers and professional solar farms where a fast return on investment is key. By choosing Tiger Neo, you gain the certainty of long-term energy stability and a product of the highest efficiency that sets the current direction of modern photovoltaics development.

Ranking

1,089 panels in the segment TOPCon 450-500 W
Metric This panel Median Position in segment Overall rank
Module efficiency 22.52% 22.52% Typical 4,108
Power density 225.2 225.2 Typical 4,225
Temperature coefficient -0.290 -0.290 Typical 2,165
Weight per kWp 46.7 52.2 Strong · top 19% 1,258
Performance warranty 30 yrs 30 yrs Typical 21
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

6 positive · 2 caution
Best for

Residential, commercial and hot-climate.

Strengths
46.7 kg per kWp

Top 19% of the TOPCon 450-500 W segment, against a median of 52.2.

What owners get
Premium efficiency – up to 23.02%

Tiger Neo achieves module efficiency of up to 23.02%, matching SunKean SKT440~460 (23.02%) and outperforming Risen RSM96-11 (23.00%) and Zonergy ZPM MH3-72 (21.16%). This translates to over 1.8 percentage points more energy yield per m² of roof area compared to the lowest-efficiency peer in the comparison set.

N-type TOPCon: no LID, low degradation

N-type cells virtually eliminate Light-Induced Degradation (LID) inherent to P-type PERC technology. First-year degradation is below 1%, and the linear annual degradation rate of ≤0.4%/year ensures higher retained power output across the full 30-year operational lifetime.

Low temperature coefficient (-0.29%/°C)

The Pmax temperature coefficient of approximately -0.29 to -0.30%/°C is 0.05–0.06 percentage points better than typical PERC panels (-0.35%/°C). At a module operating temperature of 65°C during summer peaks, this results in approximately 1.5–2% less lost energy generation compared to P-type technology.

30-year linear power output warranty

Jinko Solar guarantees a linear power degradation schedule over 30 years at ≤0.4%/year after the first year. This is among the longest warranty terms in the segment — peer comparable Zonergy ZPM MH3-72 does not publicly disclose comparable warranty conditions.

BNEF bankability leader – #1 for 10 consecutive years

Jinko Solar is the only manufacturer rated bankable by 100% of respondents in the Bloomberg BNEF Bankability Report (2025), holding the #1 position for 10 consecutive years. This directly improves module acceptance in non-recourse project finance and reduces counterparty risk for institutional investors and EPCs.

Trade-offs
Product warranty only 15 years

The product (materials and workmanship) warranty is 15 years, while the current premium-segment benchmark in 2025 is 25 years. Jinko's own newer Tiger Neo 3.0 series already carries a 25-year product warranty. For prosumers planning 25+ year system lifetimes, this represents a real risk gap for physical module defect claims.

Monofacial only — no bifacial variant

The 435–460 Wp series is exclusively monofacial, whereas peer comparable Risen RSM96-11-440-460BNDG offers a bifacial variant in the same power range. In ground-mount or flat-roof installations with high-albedo surfaces (white TPO membrane, gravel), the absence of bifaciality foregoes a potential 5–15% additional energy yield from reflected irradiance.

Notes from the database
  • Efficiency of 22.5% matches the TOPCon 450-500W median
  • At 225.2 W/m² power density, roof space requirements are typical for TOPCon 450-500W panels
  • Temperature coefficient of -0.29%/°C matches the TOPCon 450-500W median
  • Weight of 21.0 kg (3.0 kg below TOPCon 450-500W median of 24.0 kg) allows easier transport and roof mounting
  • Ranked #4108 out of 14005 panels for efficiency in the database

Specifications

Open datasheet PDF
Nominal power (Pmax) 450 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 22.52 % Typical Segment median 22.52%
Vmpp · Impp 33.21 V · 13.55 A Operating point at max power
Voc · Isc 39.78 V · 14.00 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 1762×1134×30 mm · 2.00 m² of roof
Weight 21.0 kg Strong Strong · 3.0 kg below median
Cells 108 · TOPCon Monocrystalline
Coefficient Pmax -0.290 %/°C Typical median -0.290 of its segment
Coefficient Voc · Isc -0.250 · 0.045 %/°C
Product warranty 15 years Hardware defects only
Performance warranty 30 years Typical median 30 yrs · median 30 yrs
End-of-warranty output 87.4 % Equals 393 W guaranteed
Degradation 1.00 → 0.40 % First year, then annual

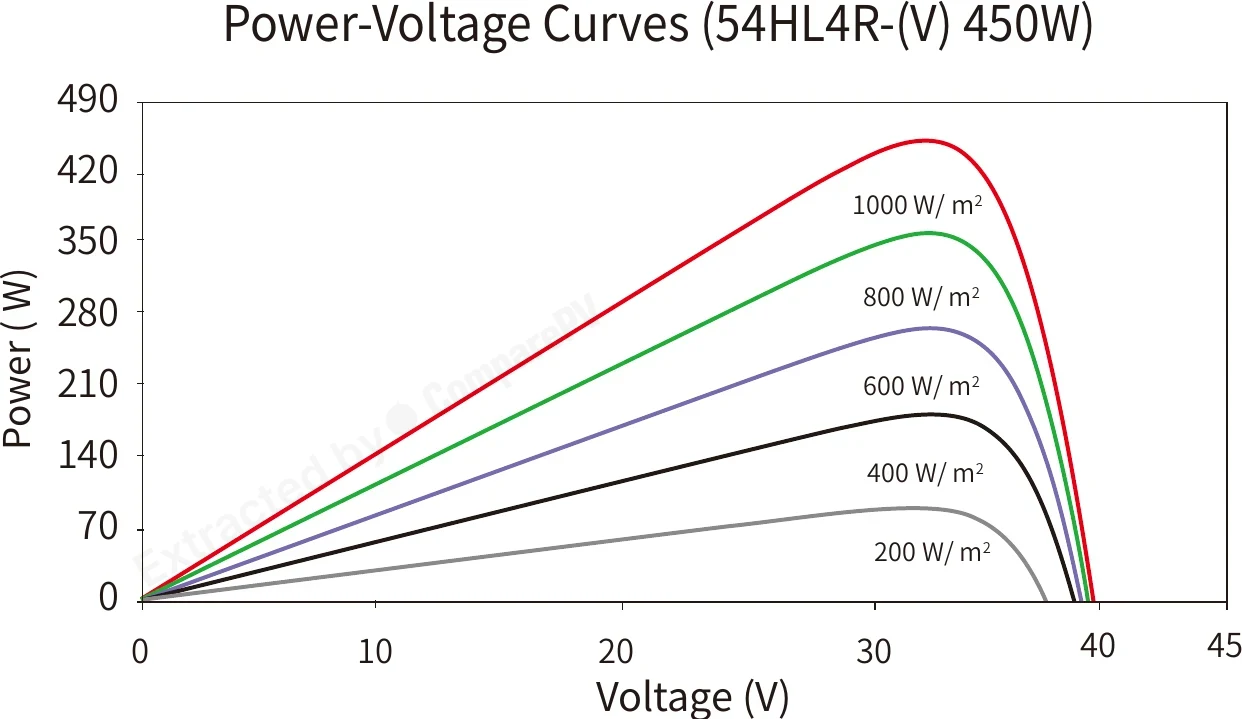

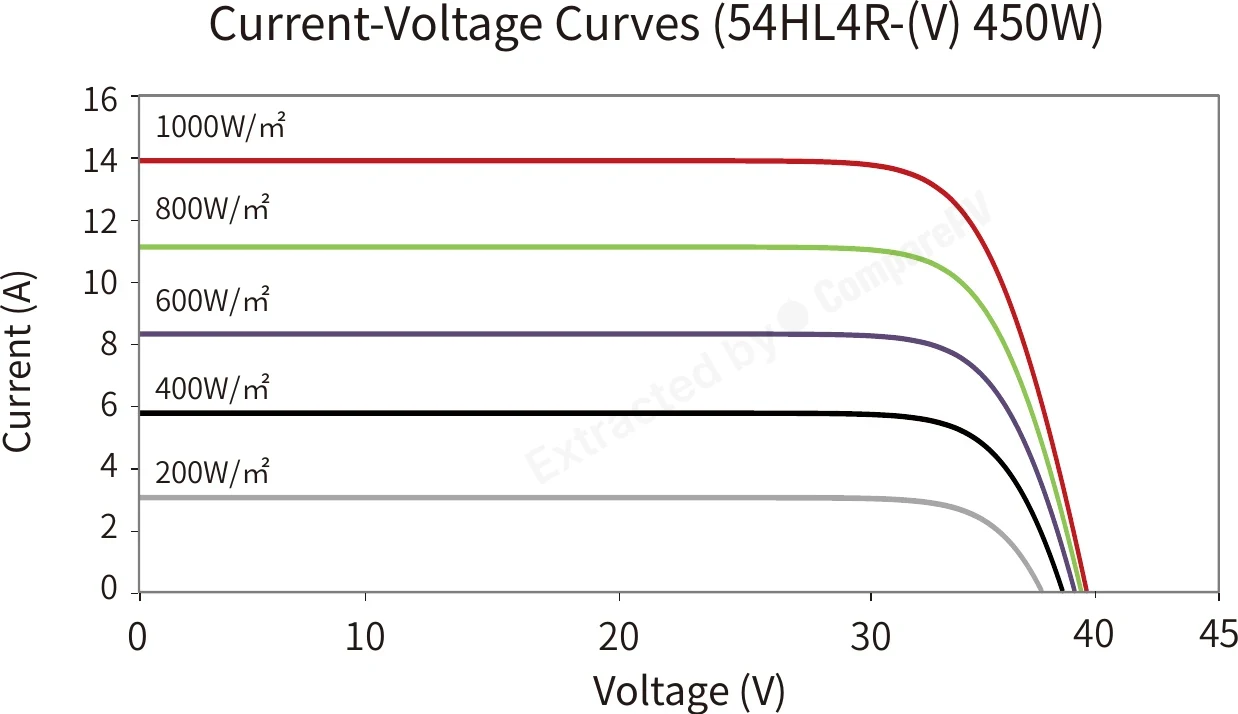

Datasheet charts

Open datasheet PDF

Measured curves published by Jinko Solar in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 450 Wp appear here. The rest cover the whole series.

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.290 %/°C against a segment median of -0.290
-
Filter these
Size
Panel Power Eff. Temp. Weight Difference
Jinko Solar JKM450N-54HL4R-(V) 450 W 22.52% -0.290 21.0 kg You are here
AIKO-A495-MCE54Mw 495 W 24.80% -0.260 21.0 kg +45 W, cooler, +2.3 pp
AIKO-A490-MCE54Mw 490 W 24.50% -0.260 21.0 kg +40 W, cooler, +2.0 pp
LR7-54HJD-500M 500 W 24.50% -0.240 23.5 kg +50 W, cooler, +2.0 pp
CIPRO-TN9C54M-500W 500 W 24.50% -0.260 21.4 kg +50 W, cooler, +2.0 pp
GK-3-54HGb-500M 500 W 24.50% -0.260 21.4 kg +50 W, cooler, +2.0 pp
GCL-NR10R/54BGDF 500 W 24.50% -0.260 24.6 kg +50 W, heavier, +2.0 pp
JKM420N-54HL4R-BDV 420 W 21.02% -0.290 22.0 kg -30 W, heavier, -1.5 pp
EU-JKM425-450N-54HL4R-BDB-G4 (425W class) 425 W 21.27% -0.290 24.5 kg -25 W, heavier, -1.2 pp
JKM430-455N-54HL4R-B-F8-EN (430W) 430 W 21.52% -0.290 21.0 kg -20 W, -1.0 pp
LR7-54HJD-510M 510 W 25.00% -0.240 23.5 kg +60 W, cooler, +2.5 pp
LR7-54HJD-505M 505 W 24.70% -0.240 23.5 kg +55 W, cooler, +2.2 pp

Found 1395 panels of the same or similar size to this one, within ±10 mm. See them here Found 1425 panels of the same or similar size to this one, within ±25 mm. See them here Found 3614 panels of the same or similar size to this one, within ±50 mm. See them here Found 3962 panels of the same or similar size to this one, within ±100 mm. See them here

Common questions

6 answered
What warranty does the Jinko Solar TIGER Neo series come with?
The TIGER Neo series comes with a 15-year product warranty and a 30-year linear power output warranty. After 30 years of operation, Jinko Solar guarantees the module will retain at least 87.4% of its rated output. This is among the longest performance warranties available in the market and directly reflects the high reliability of N-type TOPCon cells, which exhibit exceptionally low degradation over time.
How does the TOPCon technology in TIGER Neo differ from standard PERC panels?
TOPCon (Tunnel Oxide Passivated Contact) cells in the TIGER Neo series are N-type, which means significantly lower annual degradation (approx. 0.4% after year one) and far greater resistance to LID (Light Induced Degradation). Conventional PERC panels (P-type) typically degrade at around 0.55% per year. Over the module's full lifetime, a TIGER Neo installation generates more cumulative energy per watt-peak, resulting in a meaningfully lower LCOE and a shorter investment payback period.
How do TIGER Neo panels perform during summer heat — do they lose significant power?
The TIGER Neo series features a low temperature coefficient of -0.30%/°C, meaning minimal power loss even during hot summer days. Standard PERC panels typically carry a coefficient of -0.35%/°C or worse, so TIGER Neo loses noticeably less output during heat waves. For installations on dark, sun-exposed rooftops or in warmer climates, this translates into measurable gains in annual energy yield throughout the system's lifetime.
Are Jinko Solar TIGER Neo 460 Wp panels suitable for a residential pitched-roof installation?
Yes, TIGER Neo modules up to 460 Wp are designed for both residential prosumer rooftop systems and large-scale utility PV farms. The SMBB (Super Multi Busbar) technology improves cell mechanical integrity and minimizes the risk of micro-cracks. The modules are certified for wind loads up to 2,400 Pa and snow loads up to 5,400 Pa, comfortably meeting the climatic requirements typical of Central Europe.
Is the Jinko Solar TIGER Neo series a bifacial panel?
No, the TIGER Neo 460 Wp offered here is a monofacial (single-sided) module. Jinko Solar also manufactures bifacial variants — identified by the BDV suffix in the model name — in higher power classes and with dual-glass construction. However, the standard TIGER Neo modules in this listing collect energy exclusively from the front side. For a typical pitched-roof installation, a monofacial module is a fully sufficient and more cost-effective solution.
What is the annual degradation rate of TIGER Neo panels and how does it affect energy output after 20–25 years?
TIGER Neo panels degrade approximately 1% in the first year and only 0.4% per year thereafter. As a result, the 460 Wp module retains over 87% of its original rated output after 30 years. Compared to older PERC panels degrading at roughly 0.55% annually, a TIGER Neo installation generates significantly more cumulative energy over its lifetime, directly reducing the payback period for both residential prosumers and utility-scale PV farms.
