Jinko Solar 54HL4R-(V) 460W
Jinko Solar Brand review

54HL4R-(V) 460W

460 Wp N-type
ComparePV verdict

Light for its output, no clear weak spot

Rank 7,286 of 14,005
Compare panels Datasheet PDF
Power (Wp)
460
Typical for its class
Efficiency (%)
23.02
Strong · top 23%
Density (Wp/m²)
230.2
Typical · median 225.2
Temp (%/°C)
-0.290
Typical · median -0.290
Weight (kg)
21.0
Strong · 2.7 kg below median
Warranty (yrs)
30
Typical · median 30 yrs

The Jinko Solar Tiger Neo 54HL4R-(V) series are modules based on N-type TOPCon cells, designed for high energy yield in real-world operating conditions, not just in the lab. The application of half-cut architecture and modern wiring layout helps minimize internal losses and better handle partial shading - a common issue on rooftops near chimneys, skylights, or tree installations.

In practice, this series stands out with more stable performance over time - N-type technology reduces the risk of power drops associated with typical degradation mechanisms, translating to more predictable yields year after year. An additional advantage is high mechanical strength, which is crucial for installation on snowy and windy rooftops.

The Tiger Neo 54HL4R-(V) is suitable for both residential and commercial installations, where efficiency on limited space and long-term reliability matter more than the initial purchase price alone.

Ranking

301 panels in the segment N-type 450-500 W
Metric This panel Median Position in segment Overall rank
Module efficiency 23.02% 22.52% Strong · top 23% 1,797
Power density 230.2 225.2 Typical 1,876
Temperature coefficient -0.290 -0.290 Typical 2,165
Weight per kWp 45.7 49.5 Strong · top 17% 805
Performance warranty 30 yrs 30 yrs Typical 21
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

7 positive · 1 caution
Best for

Residential, commercial, shaded-installations, cold-climate and hot-climate.

Strengths
45.7 kg per kWp

Top 17% of the N-type 450-500 W segment, against a median of 49.5.

23.02% module efficiency

Top 23% of the N-type 450-500 W segment, against a median of 22.52%.

What owners get
Efficiency up to 23.02% – segment leader

Peak efficiency of 23.02% places this series at the top of its peer group (SunKean SKT440~460M12-96D4: 23.02%, Risen RSM96-11-440-460BNDG: 23.0%), well ahead of Zonergy ZPM MH3-72 (21.16%). For roof space-constrained installations, this translates to more kWp without adding modules.

Low N-type degradation: ~0.4%/yr

N-type TOPCon technology suppresses LID/LeTID effects, keeping annual degradation at ~0.4% vs ~0.7% for standard P-type PERC modules. Over a 30-year operational life, the cumulative difference amounts to several percentage points of additional energy yield, directly improving system LCOE.

Temperature coefficient Pmax: -0.29%/°C

A Pmax temperature coefficient of -0.29%/°C outperforms the typical -0.35%/°C seen in P-type modules. At a cell temperature of 65°C — common in central European summers — power losses relative to STC are approximately 2 percentage points lower, resulting in measurably higher summer yield.

Mechanical resistance: 4,000 Pa wind, 6,000 Pa snow

Certified mechanical load ratings of 4,000 Pa (wind) and 6,000 Pa (snow) comfortably exceed Polish structural requirements for sloped roofs in snow zone III (~2,400 Pa per PN-EN 1991-1-3). The series is suitable for demanding climatic conditions without additional racking reinforcement.

Manufacturer credibility: PVEL Top Performer 11x, BNEF #1

JinkoSolar is the only PV module manufacturer with a 100% bankability rating in BloombergNEF's 2024 survey and has earned Top Performer status in all 11 editions of the PVEL PV Module Reliability Scorecard. With 86.8 GW shipped in 2025, warranty fulfillment risk over the 30-year power guarantee period is minimal.

Trade-offs
Monofacial design – no albedo gain

The 54HL4R-(V) series is monofacial (is_bifacial = false), while several competitors in this power class offer bifacial variants. On high-albedo surfaces (white TPO/PVC membrane, gravel, snow), potential bifacial energy bonuses of 5–15% are foregone, limiting the series' competitiveness in ground-mount and flat commercial-roof applications.

Notes from the database
  • Efficiency of 23.0% matches the N-type 450-500W median
  • 230.2 W/m² power density - 5.0 W/m² more than N-type 450-500W median (225.2 W/m²), more power per roof area
  • At -0.29%/°C, hot weather performance is typical for N-type 450-500W panels
  • Weight of 21.0 kg (2.7 kg below N-type 450-500W median of 23.7 kg) allows easier transport and roof mounting
  • Ranked #1797 out of 14005 panels for efficiency in the database

Specifications

Open datasheet PDF
Nominal power (Pmax) 460 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 23.02 % Strong Segment median 22.52%
Vmpp · Impp 33.60 V · 13.69 A Operating point at max power
Voc · Isc 40.17 V · 14.14 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 1762×1134×30 mm · 2.00 m² of roof
Weight 21.0 kg Strong Strong · 2.7 kg below median
Cells 108 · N-type Monocrystalline
Coefficient Pmax -0.290 %/°C Typical median -0.290 of its segment
Coefficient Voc · Isc -0.250 · 0.045 %/°C
Product warranty 15 years Hardware defects only
Performance warranty 30 years Typical median 30 yrs · median 30 yrs
End-of-warranty output 87.4 % Equals 402 W guaranteed
Degradation 1.00 → 0.40 % First year, then annual

Datasheet charts

Open datasheet PDF

Measured curves published by Jinko Solar in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 460 Wp appear here. The rest cover the whole series.

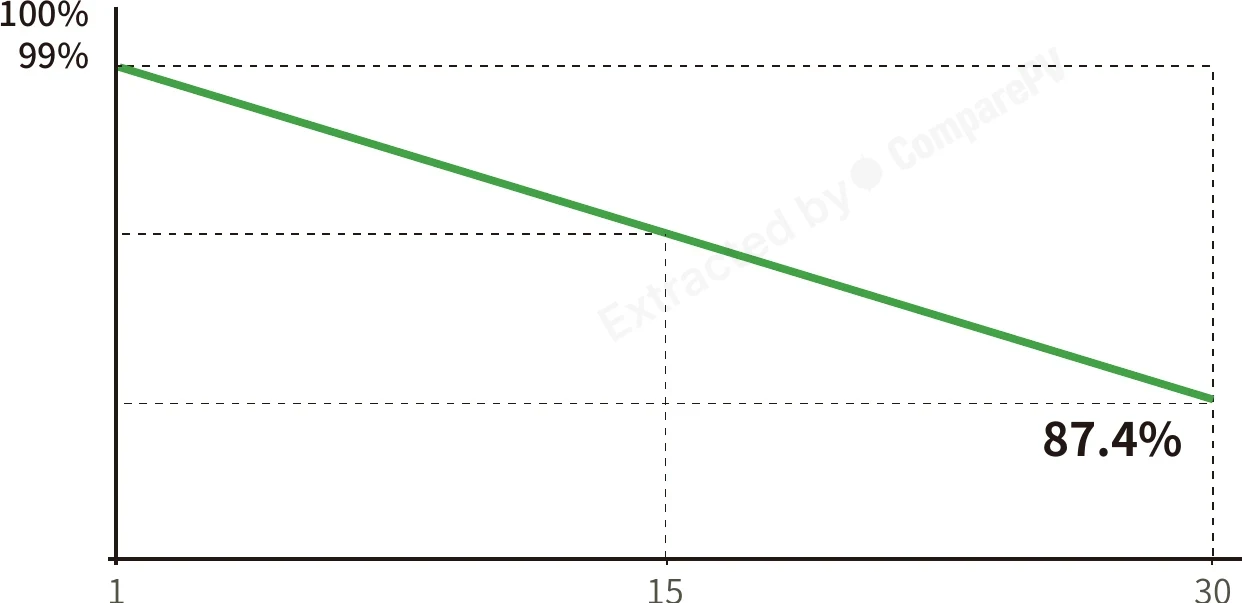

Linear Performance Warranty (87.4% at Year 30) Linear Performance Warranty (87.4% at Year 30) Whole series

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.290 %/°C against a segment median of -0.290
-
Filter these
Size
Panel Power Eff. Temp. Weight Difference
Jinko Solar 54HL4R-(V) 460W 460 W 23.02% -0.290 21.0 kg You are here
LR7-54HJD-510M 510 W 25.00% -0.240 23.5 kg +50 W, cooler, +2.0 pp
AIKO-A495-MCE54Mw 495 W 24.80% -0.260 21.0 kg +35 W, cooler, +1.8 pp
LR7-54HJD-505M 505 W 24.70% -0.240 23.5 kg +45 W, cooler, +1.7 pp
AIKO-A490-MCE54Mw 490 W 24.50% -0.260 21.0 kg +30 W, cooler, +1.5 pp
LR7-54HJD-500M 500 W 24.50% -0.240 23.5 kg +40 W, cooler, +1.5 pp
CIPRO-TN9C54M-500W 500 W 24.50% -0.260 21.4 kg +40 W, cooler, +1.5 pp
JKM420N-54HL4R-BDV 420 W 21.02% -0.290 22.0 kg -40 W, heavier, -2.0 pp
EU-JKM425-450N-54HL4R-BDB-G4 (425W class) 425 W 21.27% -0.290 24.5 kg -35 W, heavier, -1.8 pp
JKM430-455N-54HL4R-B-F8-EN (430W) 430 W 21.52% -0.290 21.0 kg -30 W, -1.5 pp

Found 1395 panels of the same or similar size to this one, within ±10 mm. See them here Found 1425 panels of the same or similar size to this one, within ±25 mm. See them here Found 3614 panels of the same or similar size to this one, within ±50 mm. See them here Found 3962 panels of the same or similar size to this one, within ±100 mm. See them here

Common questions

6 answered
What warranty does the Jinko Solar Tiger Neo 54HL4R-(V) series come with?
The Tiger Neo 54HL4R-(V) series includes a 15-year product warranty covering defects in materials and workmanship, plus a 30-year linear power warranty. After 30 years of operation, the module is guaranteed to retain at least 87.4% of its rated power output. These are among the best warranty terms available, consistent with Jinko Solar's Tier 1 manufacturer status.
What is TOPCon technology, and is it worth choosing Tiger Neo over standard PERC panels?
TOPCon (Tunnel Oxide Passivated Contact) is an N-type cell architecture that delivers significantly lower initial degradation (LID/LETID) and better high-temperature performance compared to P-type PERC modules. In real-world conditions this translates to higher and more predictable energy yields over the system lifetime — a difference that becomes especially noticeable within the first few years of operation.
Can the Tiger Neo 54HL4R-(V) panels handle heavy snow loads or strong winds?
Yes, the 54HL4R-(V) series is engineered for demanding weather conditions. The frame withstands snow loads of up to 5,400 Pa and wind loads of up to 2,400 Pa. To put that in perspective, 5,400 Pa is roughly equivalent to 550 kg per square meter, comfortably exceeding the requirements for Central European high-snow-load zones.
What is the efficiency of the Jinko Tiger Neo 54HL4R-(V), and how much roof space does an installation require?
Modules in this series reach up to 23.02% efficiency at STC. At 1,762×1,134 mm and 21 kg per panel, four 460 W modules occupy roughly 8 m² of roof area and together yield approximately 1.84 kWp — excellent power density for residential rooftop systems where available space is limited.
How do the Tiger Neo 54HL4R-(V) panels perform in cold temperatures and overcast conditions?
The N-type TOPCon cells feature a low power temperature coefficient of -0.29%/°C, meaning less power loss when the module heats up compared to PERC technology (typically -0.35%/°C). On cool but sunny days, output can actually exceed the STC-rated value. The 108-cell half-cut layout further improves performance under partial shading — a common issue on rooftops with chimneys or dormers.
Is the Jinko Solar Tiger Neo 54HL4R-(V) series still available for purchase?
Yes, the Tiger Neo 54HL4R-(V) series is currently in active production and available through distributors. It is a monofacial N-type TOPCon module offered in the 435–460 W power range, manufactured by Jinko Solar — a globally recognized Tier 1 supplier. Check with your local distributor for current stock levels of specific wattage variants before ordering.
