Strong in heat, no clear weak spot

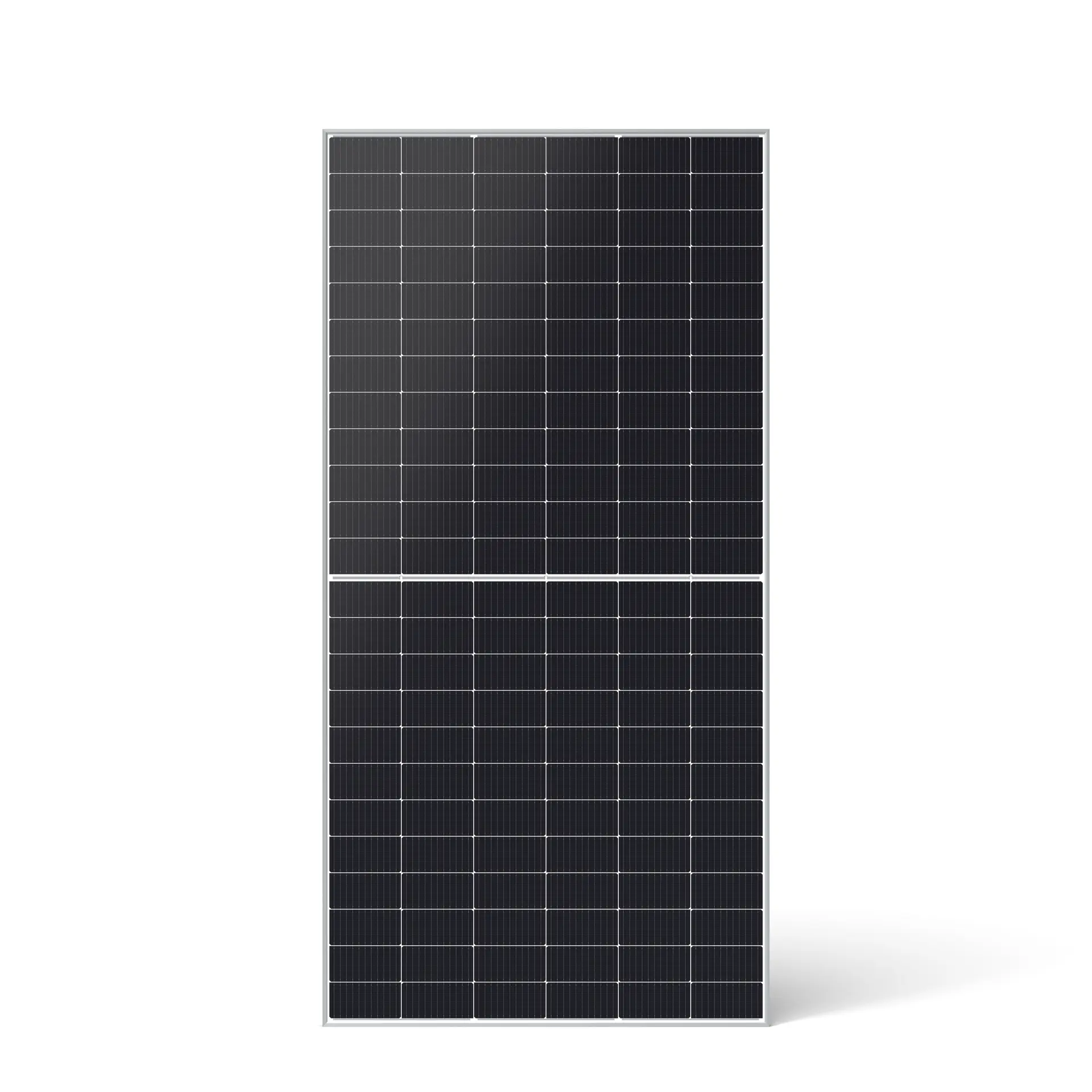

JA Solar JAM72D30 MB Bifacial Modules are designed for maximum real-world performance - not just on paper. Thanks to the double glass construction, the panels better withstand moisture, temperature fluctuations, and mechanical stress, reducing the risk of microcracks and power performance degradation in the following years. The application of monocrystalline PERC cells in a half-cut configuration improves performance under partial shading and reduces losses, particularly benefiting installations on rooftops with obstacles or east-west layouts. Additionally, the multi-busbar technology increases resistance to degradation and stabilizes parameters over the long term.
The JAM72D30 MB is an excellent choice for PV farms and larger commercial installations, where predictable power output and better use of reflected ground light are key. It stands out from many competitive modules due to its emphasis on structural durability and practical tolerance for challenging operating conditions.
Ranking
Price offers
| Shop | Country | Price | Per kWp | Stock | Offer updated | Link to shop |
|---|---|---|---|---|---|---|
| www.modernoutpost.com | Canada | 199 C$ net | 365.14 C$/kWp | In stock | 13h ago | Visit shop |
Signals from the data
Commercial, utility-scale and shaded-installations.
Top 1% of the PERC 500-550 W segment, against a median of -0.350. Ranked 2,220th in the whole database.
Top 18% of the PERC 500-550 W segment, against a median of 209.0.
Top 21% of the PERC 500-550 W segment, against a median of 20.90%.
The bifacial design (dual-side PERC cells) delivers a 10-25% annual yield gain over monofacial modules of the same STC rating, depending on ground albedo (0.2-0.4 typical). The double glass encapsulation eliminates the backsheet, significantly improving PID resistance, moisture ingress protection, and UV stability - resulting in a flatter degradation curve over the full 30-year service life.
Splitting cells in half reduces series resistance and thermal losses, while the 11-busbar (11BB) layout shortens current paths and improves resistance to microcracks. In practice, the series outperforms standard 9BB half-cut configurations under partial shading and shows lower mismatch losses within strings.
The declared linear degradation of 0.45%/yr is among the lowest in the P-type PERC class (industry average for PERC is 0.55-0.60%/yr per manufacturer data). After 30 years, the module retains >86.5% of nameplate power - on par with all three peer comparables in this segment (ET Solar Elite PLUS, Boviet VEGA Series, BYD AURO, all rated at 30 years).
JA Solar has maintained continuous BNEF Tier-1 bankable status since 2012, demonstrating consistent eligibility for bank-financed utility-scale PV projects. For commercial and utility installations this translates to lower lender risk premiums, easier project finance approval, and more favorable insurance underwriting.
Per manufacturer data, the JAM72D30 MB series reached end-of-life in 2024. For new projects this means limited availability of current-production modules, increased risk of non-identical replacements under warranty claims, and potential difficulty expanding existing installations with matched modules in the future.
PVEL's 2025 dataset shows that 78% of P-type PERC BOMs degrade 1.5-2.5% under the LID (light-induced degradation, boron-oxygen defect) test protocol. Competing N-type TOPCon modules introduced since 2024 are LID-free and carry warranted degradation of ~0.40%/yr versus this series' 0.45%/yr - a meaningful LCOE difference over 30 years.
The product (materials & workmanship) warranty covers only 12 years, while most modules entering the market in 2023-2025 - including JA Solar's own N-type DeepBlue 4.0 generation - offer 15-25-year product coverage. For installations with a payback period exceeding 12 years, this creates a real gap in manufacturer-backed service protection.
- Efficiency of 21.1% matches the PERC 500-550W median
- At 211.0 W/m² power density, roof space requirements are typical for PERC 500-550W panels
- At -0.29%/°C (vs median -0.35%/°C), loses ~2% less power in hot conditions
- At 31.8 kg, this panel is 3.5 kg heavier than the PERC 500-550W median (28.3 kg) - more demanding for installation crews
- 70% bifaciality enables rear-side power generation, boosting yield by 4-10% on reflective surfaces
Specifications
Simulations
Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.
Model: bifaciality × albedo × 0.6 view factor. A first-order estimate, not a yield simulation.
Found 2327 panels of the same or similar size to this one, within ±10 mm. See them here Found 2369 panels of the same or similar size to this one, within ±25 mm. See them here Found 2383 panels of the same or similar size to this one, within ±50 mm. See them here Found 2548 panels of the same or similar size to this one, within ±100 mm. See them here
About the JAM72D30 MB series
These answers cover the whole series. Where a figure differs, the specification above is this module's own.
