Space saver, no clear weak spot

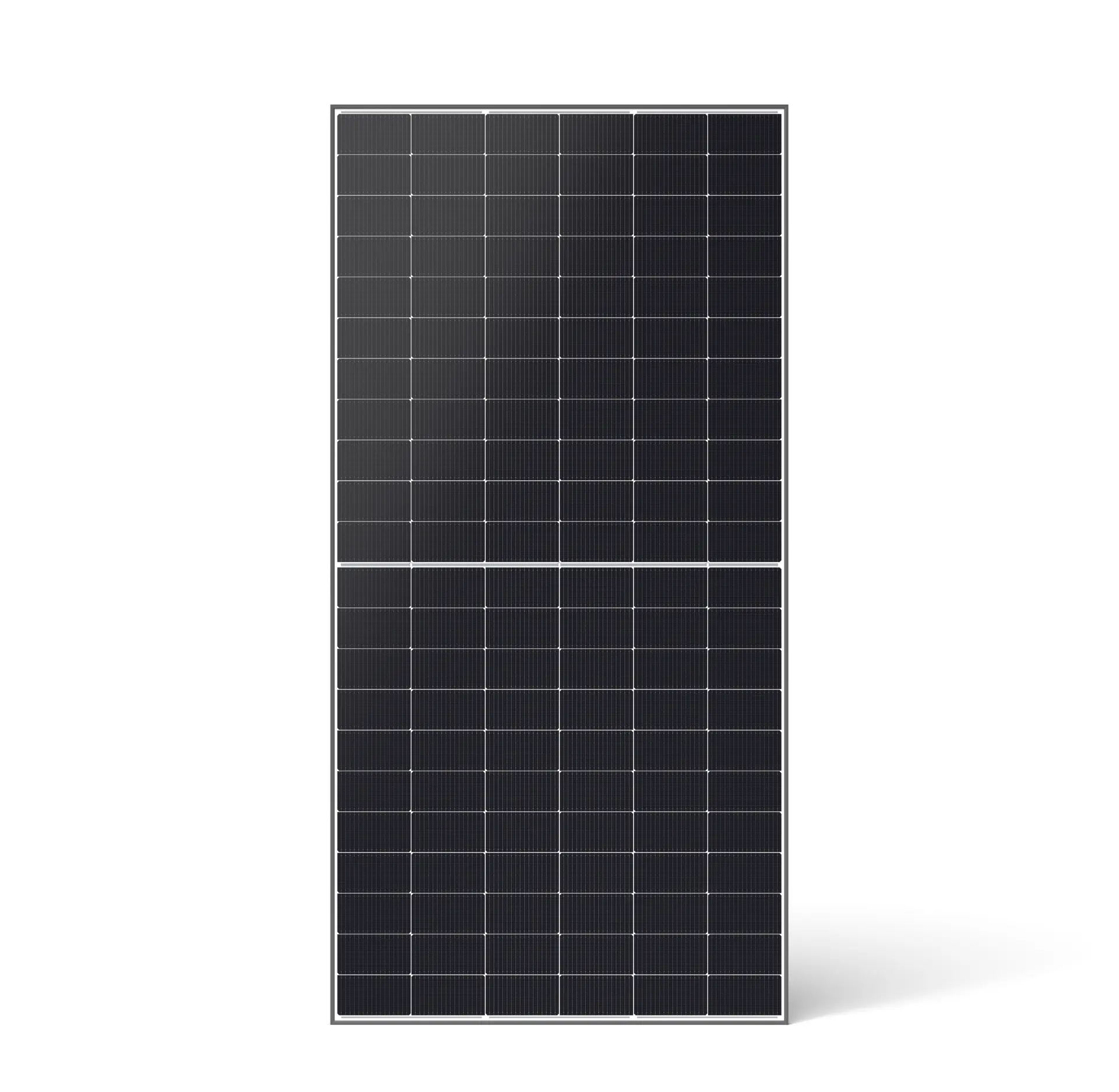

JA Solar JAM66D42 MB series modules are designed for installations where high energy yield from the same surface area and stable performance over years are crucial - especially for commercial rooftops and utility-scale PV farms. These modules feature N-type TOPCon cells, which maintain their parameters better in the long term and are less susceptible to typical operational losses, effectively mitigating the risk of disappointment with production after several seasons. The double glass construction enhances resistance to environmental conditions and improves laminate durability, which is vital for projects with a long payback period. Thanks to bifacial technology, the module can utilize reflected light from the ground, boosting energy yield where every percentage point counts. The semi-lattice design supports better tolerance to partial shading and minimizes connection losses, while the refined cell architecture aids performance under lower irradiance. This is an excellent choice for investors, EPC contractors, and companies optimizing LCOE who seek advantages over standard P-type PERC modules.
Ranking
Signals from the data
Commercial, utility-scale and shaded-installations.
Top 7% of the TOPCon 550-600 W segment, against a median of 224.4. Ranked 1,809th in the whole database.
Top 10% of the TOPCon 550-600 W segment, against a median of 22.44%. Ranked 1,970th in the whole database.
The temperature coefficient of Pmax is -0.29 %/°C, significantly better than the typical -0.34 to -0.35 %/°C of P-type PERC modules. This translates to measurably higher energy yield during summer peak-irradiance hours, a critical advantage for large utility-scale PV farms.
The series reaches up to 23.4% module efficiency, well above comparably priced peers: JS Solar JS210MHC120 (21.4%) and LEDVANCE M585-605P60UB (21.37%). This equates to approximately 9-10% more energy per unit of roof or land area compared to those alternatives at the same power class.
The double-glass construction eliminates the rear EVA backsheet as a degradation vector, reducing LID/PID risk. The bifacial design enables an additional 5-15% energy gain via ground albedo reflection, particularly valuable on PV farms with light-colored gravel surfaces or seasonal snow cover.
JA Solar guarantees ≥87.4% of rated power output after 30 years, with an annual degradation rate of 0.4% and a first-year cap of ≤1%. This is among the more stringent performance thresholds in the large-format TOPCon segment, directly de-risking project LCOE projections over a 25-30 year horizon.
JA Solar maintains a continuous BNEF Tier-1 listing, a prerequisite for non-recourse project financing on assets exceeding 10 MW. The module holds IEC 61215, IEC 61730, and UL 61730 certifications, with a mechanical load rating of 5,400 Pa (snow) / 2,400 Pa (wind), qualifying it for utility-scale deployment in temperate and continental climate zones.
Within the premium TOPCon class, Jinko Tiger Neo 3.0 offers a 15-year product warranty, meaning the JAM66D42 MB falls 3 years short in factory-defect coverage. For EPC projects with O&M contracts exceeding 12 years, this gap may necessitate additional module insurance or warranty top-up arrangements.
- At 23.0% efficiency, this panel is 0.6pp above typical TOPCon 550-600W modules (median: 22.4%)
- Power density of 230.3 W/m² packs 5.9 W/m² more into the same footprint vs TOPCon 550-600W median (224.4 W/m²)
- Temperature coefficient of -0.29%/°C matches the TOPCon 550-600W median
- 80% bifaciality enables rear-side power generation, boosting yield by 4-12% on reflective surfaces
- In the top 14% for efficiency among all TOPCon panels
Specifications
Datasheet charts
Measured curves published by JA Solar in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 595 Wp appear here. The rest cover the whole series.
Simulations
Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.
Model: bifaciality × albedo × 0.6 view factor. A first-order estimate, not a yield simulation.
Found 2327 panels of the same or similar size to this one, within ±10 mm. See them here Found 2369 panels of the same or similar size to this one, within ±25 mm. See them here Found 2383 panels of the same or similar size to this one, within ±50 mm. See them here Found 2548 panels of the same or similar size to this one, within ±100 mm. See them here
About the JAM66D42 MB series
These answers cover the whole series. Where a figure differs, the specification above is this module's own.
