Efficiency leader, no clear weak spot
The Isola New Energy 182M SPLIT CELL series utilizes advanced half-cut cell architecture, which drastically minimizes energy losses resulting from internal resistance. Thanks to the use of multi-busbar (MBB) technology, these panels provide a shorter current flow path, which directly translates into a lower risk of micro-cracks and higher long-term operational stability. The split cell design makes the modules perform excellently in partial shading conditions - when the lower part of the module is in the shade, the upper half still generates energy at full efficiency. The use of monocrystalline M10 silicon wafers allows for high power density, which is crucial for limited installation space on building roofs. These panels are characterized by a low temperature coefficient, guaranteeing stable power production even during intense heat. This solution is dedicated to demanding investors looking for maximum efficiency per square meter while maintaining excellent mechanical resistance to wind pressure and snow loads. Compared to conventional solutions, the 182M series offers significantly better shade tolerance and extended cell lifespan, making it a safe choice for both residential prosumer installations and large-scale commercial projects.
Ranking
Signals from the data
Residential, commercial and shaded-installations.
Top 3% of the PERC 250-300 W segment, against a median of 17.21%. Ranked 9,065th in the whole database.
Top 3% of the PERC 250-300 W segment, against a median of 172.1. Ranked 9,082nd in the whole database.
Top 3% of the PERC 250-300 W segment, against a median of 66.5. Ranked 3,019th in the whole database.
At 21.22% module efficiency, the series significantly outperforms available peer comparables: Huayao N series M10 (13.44%) and LinkSol/JA Solar LKS-5M (18.8%). On a per-square-meter basis, this translates to roughly 12–58% more power than alternatives — a decisive advantage on constrained roof areas.

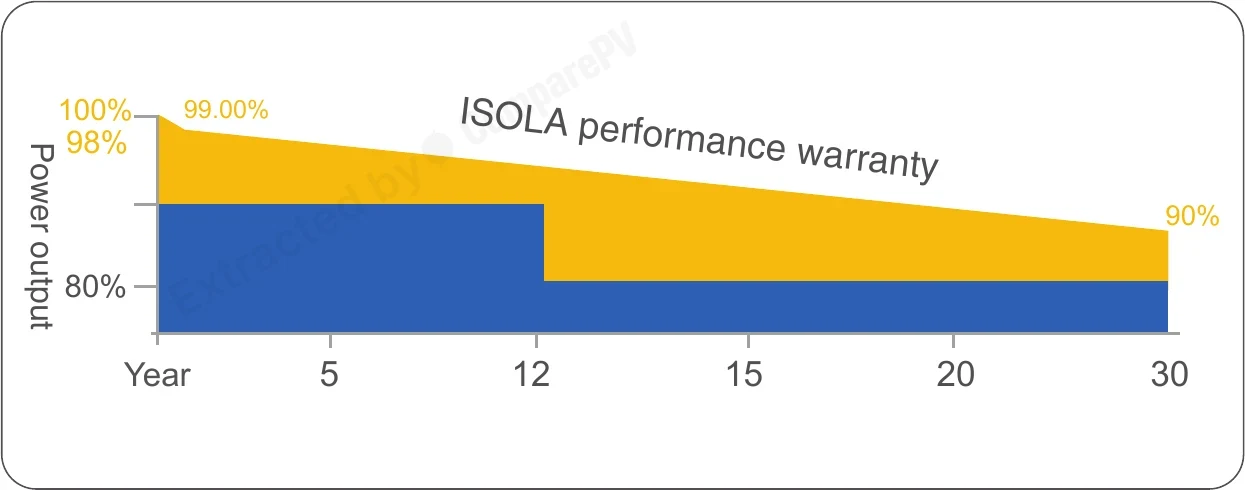

The manufacturer provides a 30-year warranty on both the product and linear power output, exceeding the market standard where most PERC modules (e.g., JA Solar) offer 25-year power warranties. Over the full installation lifetime this results in a measurably lower LCOE.
Half-cut cell architecture reduces resistive losses by ~50% per sub-cell, while multi-busbar (MBB) interconnection shortens current path length. Under partial shading, the shaded bottom half does not curtail generation in the top half — a configuration that typically delivers 1.5–3% higher annual yield versus standard full-cell modules.
The M10 wafer format (182×182 mm) enables high power packing. At 21.22% efficiency and 250 Wp, the module occupies approximately 1.18 m², yielding a power density of ~212 Wp/m² — competitive for residential prosumer installations with limited available roof area.
PERC technology exhibits an annual LID/LeTID degradation rate of approximately 0.55%/year, compared to ~0.40%/year for TOPCon cells. Over 30 years, the cumulative difference amounts to roughly 4–5 percentage points of output power. With TOPCon market share exceeding 45% globally in 2025 and projected to reach 60% by 2030, the 182M SPLIT CELL series is built on a technology losing market dominance.
Isola New Energy does not appear on the available BNEF Tier 1 module manufacturer lists (Q1 2026 — cross-checked via vicoexport.com and ComparePV). For commercial projects financed by banks or infrastructure funds, the absence of Tier 1 classification may limit product acceptance by lenders and project insurers.
Standard 60-cell equivalent (120 half-cut) modules built on M10 wafers typically deliver 380–430 Wp from leading manufacturers (JA Solar, LONGi). The 250 Wp output suggests a smaller cell count or non-standard layout, resulting in higher BoS (Balance of System) cost per kWp — more strings, connectors, and MPPT inputs required for equivalent system capacity.
- Efficiency of 21.2% is 1.8pp above the PERC 0-400W median (19.4%)
- At 212.2 W/m² power density, this panel generates 17.8 W/m² more per unit area than PERC 0-400W median (194.4 W/m²)
- Temperature coefficient of -0.34%/°C matches the PERC 0-400W median
- At 12.4 kg, this panel is 8.1 kg lighter than PERC 0-400W median (20.5 kg) - easier handling during installation
- #9065 for efficiency, #8778 for temperature performance out of 14005 panels
Specifications
Datasheet charts
Measured curves published by Isola New Energy in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 250 Wp appear here. The rest cover the whole series.
Simulations
Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.
