Efficiency leader, heavy for its output
The ZEUS 3.0 Performance series is Heckert Solar's flagship line, built for investors who want maximum energy yield from limited roof space. These panels use Back-Contact technology, where the entire cell surface acts as active photovoltaic area with no visible busbars on the front - delivering both a sleek, uniformly black appearance and a real boost in energy harvest. The bifacial glass-glass design captures light reflected off the roof or ground as well, increasing total power output without expanding the array footprint. The use of half-cut cells improves resilience to partial shading, giving the module optimal shading behavior and reducing performance losses when part of the panel is blocked by a chimney, tree, or an adjacent row of modules. A low power temperature coefficient means the series performs better on hot days than conventional PERC modules, effectively lowering LCOE in warmer climates. The whole product is backed by a 30-year product and performance warranty, issued directly by the German manufacturer, giving investors and installers confidence in the long-term value of their investment. The ZEUS 3.0 Performance is the right choice for anyone prioritizing aesthetics, durability, and maximum energy yield per square meter of roof.
Ranking
Signals from the data
Residential, commercial, shaded-installations and hot-climate.
Weight-limited structures.
Top 22% of the Back Contact 450-500 W segment, against a median of 23.50%.
Top 23% of the Back Contact 450-500 W segment, against a median of 235.2.
Bottom 21% of the Back Contact 450-500 W segment, against a median of 48.0.
The 24% efficiency ties with the top comparable model (Solar-Fabrik Mono S4 Halfcut BC – 24%) and clearly outperforms Renesola RS4-490NX-E1 (22.71%) and Silfab HN (20.9%) at the same 490 Wp power class, meaning less roof area is needed for the same installed capacity.
Heckert Solar backs the module with 30 years of both product and power warranty — well beyond the industry-standard 12-25 years product / 25 years power warranty offered by most tier-1 manufacturers, reducing long-term investment risk.
N-type ABC (Advanced Back Contact) cells eliminate visible busbars and ribbons on the front side, increasing active photovoltaic surface and delivering a uniform black aesthetic, with a declared bifaciality of up to 43.6%.
The double 2×2 mm glass laminate boosts energy yield by capturing rear-side reflected light and improves mechanical rigidity and micro-crack resistance compared to glass-backsheet designs.
The half-cut cell layout combined with back-contact architecture reduces power loss under partial shading (e.g., from a chimney or an adjacent module row) compared to conventional full-cell PERC panels.
The ZEUS 3.0 Performance series was launched in 2025 and already discontinued in 2026 (a one-year production cycle), which — despite the stated 30-year warranty — raises concerns about long-term service continuity and availability of identical replacement modules for future array expansion.
At 4362×1134×30 mm and 24.2 kg, the module is heavier than comparable glass-backsheet panels of the same power class, increasing roof load requirements and installation labor for the mounting crew.
- Efficiency of 24.0% matches the Back Contact 450-500W median
- At 240.1 W/m² power density, this panel generates 4.9 W/m² more per unit area than Back Contact 450-500W median (235.2 W/m²)
- Temperature coefficient of -0.26%/°C matches the Back Contact 450-500W median
- Weight of 24.8 kg is 1.3 kg above Back Contact 450-500W median (23.5 kg) - verify structural support
- 80% bifaciality enables rear-side power generation, boosting yield by 4-12% on reflective surfaces
Specifications

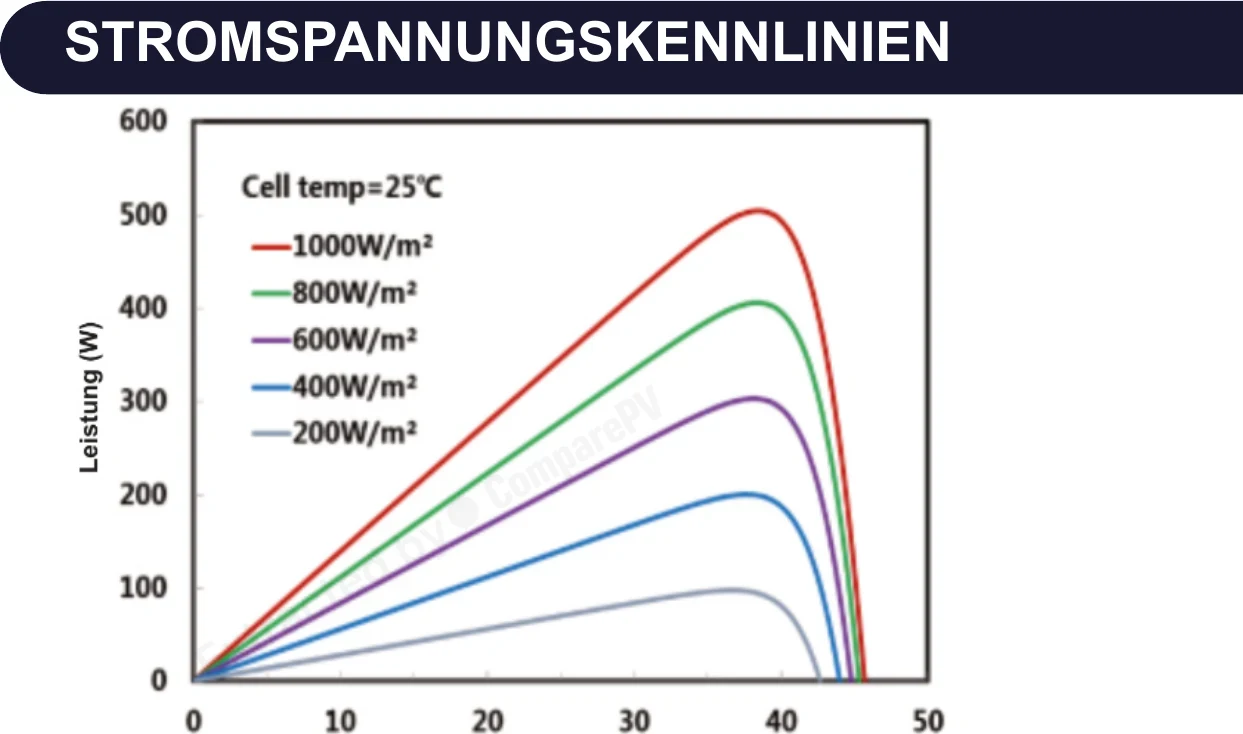

Datasheet charts
Measured curves published by Heckert Solar in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 490 Wp appear here. The rest cover the whole series.
Simulations
Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.
Model: bifaciality × albedo × 0.6 view factor. A first-order estimate, not a yield simulation.
Found 197 panels of the same or similar size to this one, within ±10 mm. See them here Found 201 panels of the same or similar size to this one, within ±25 mm. See them here Found 1712 panels of the same or similar size to this one, within ±50 mm. See them here Found 4014 panels of the same or similar size to this one, within ±100 mm. See them here
