Heckert Solar ZEUS 3.0 108 495WP PERFORMANCE
Space saver, no clear weak spot
The ZEUS 3.0 Performance series from Heckert Solar comprises bifacial photovoltaic modules built on N-Type Back-Contact technology, where all electrical contacts are moved to the rear side of the cell. This leaves the front surface free of visible grid lines and busbars, delivering a uniform, clean aesthetic that is ideal for residential roofs with high street visibility. The use of 108 half-cut cells (6x18) combined with the bifacial design allows the module to additionally capture light reflected off the mounting surface, boosting energy yield without increasing the installed area. The series stands out for its optimal partial shading behavior, which limits production losses under difficult site conditions, and its superior temperature behavior, allowing modules to perform more efficiently during hot summer periods than conventional designs. The panel is set in a black anodized aluminum frame with enhanced mechanical strength, rated for high snow and wind loads and classified in the top hail-resistance category. The product is backed by a 30-year product warranty and linear power warranty, guaranteed directly by a German manufacturer offering direct service. It is a solid choice for investors seeking durability, aesthetics, and stable output across varying irradiance conditions.
Ranking
Signals from the data
Residential, commercial and shaded-installations.
Top 12% of the Back Contact 450-500 W segment, against a median of 235.2.
Top 15% of the Back Contact 450-500 W segment, against a median of 23.52%.
Moving all electrical contacts to the rear of the cell eliminates visible busbars and gridlines on the front surface, delivering a uniform aesthetic and reducing busbar-related shading losses - a feature still rare in the residential segment, where standard TOPCon modules without back-contact dominate.
At 495 Wp, the 24.25% efficiency clearly outperforms comparable modules of the same power class, such as Hanersun Hitouch 5N (22.9%), Resun RS8K-M-FB (22.94%), and Solarspace SS8-60HD (22.87%) - a 1.3-1.4 pp gap, meaning a smaller roof footprint for the same installed capacity.
The module captures reflected light (albedo) from the mounting surface, boosting energy yield without increasing array footprint - particularly valuable on light-colored roofs, metal tile roofing, or ground-mounted installations.
Heckert Solar provides a 30-year product warranty and a 30-year linear power warranty, exceeding the market standard of roughly 12-15 years product and 25 years power coverage typical of most Asian manufacturers listed in the peer comparables.
Heckert Solar is a German manufacturer founded in 1992, and combined with direct European warranty service, this reduces logistical and claims-handling risk compared to the less established peer brands (Hanersun, Resun, Solarspace).
The ZEUS 3.0 Performance Back Contact series is a relatively new design (launched 2025), so the market still lacks long-term, independent field performance data compared to mature TOPCon/PERC technologies that competitors have offered for years.
- At 24.2% efficiency, this panel is 0.7pp above typical Back Contact 450-500W modules (median: 23.5%)
- At 242.5 W/m² power density, this panel generates 7.3 W/m² more per unit area than Back Contact 450-500W median (235.2 W/m²)
- At -0.26%/°C, hot weather performance is typical for Back Contact 450-500W panels
- At 24.6 kg, this panel is 1.1 kg heavier than the Back Contact 450-500W median (23.5 kg) - more demanding for installation crews
- Bifaciality factor of 60% can add 3-9% extra yield with reflective mounting surface
Specifications
Datasheet charts

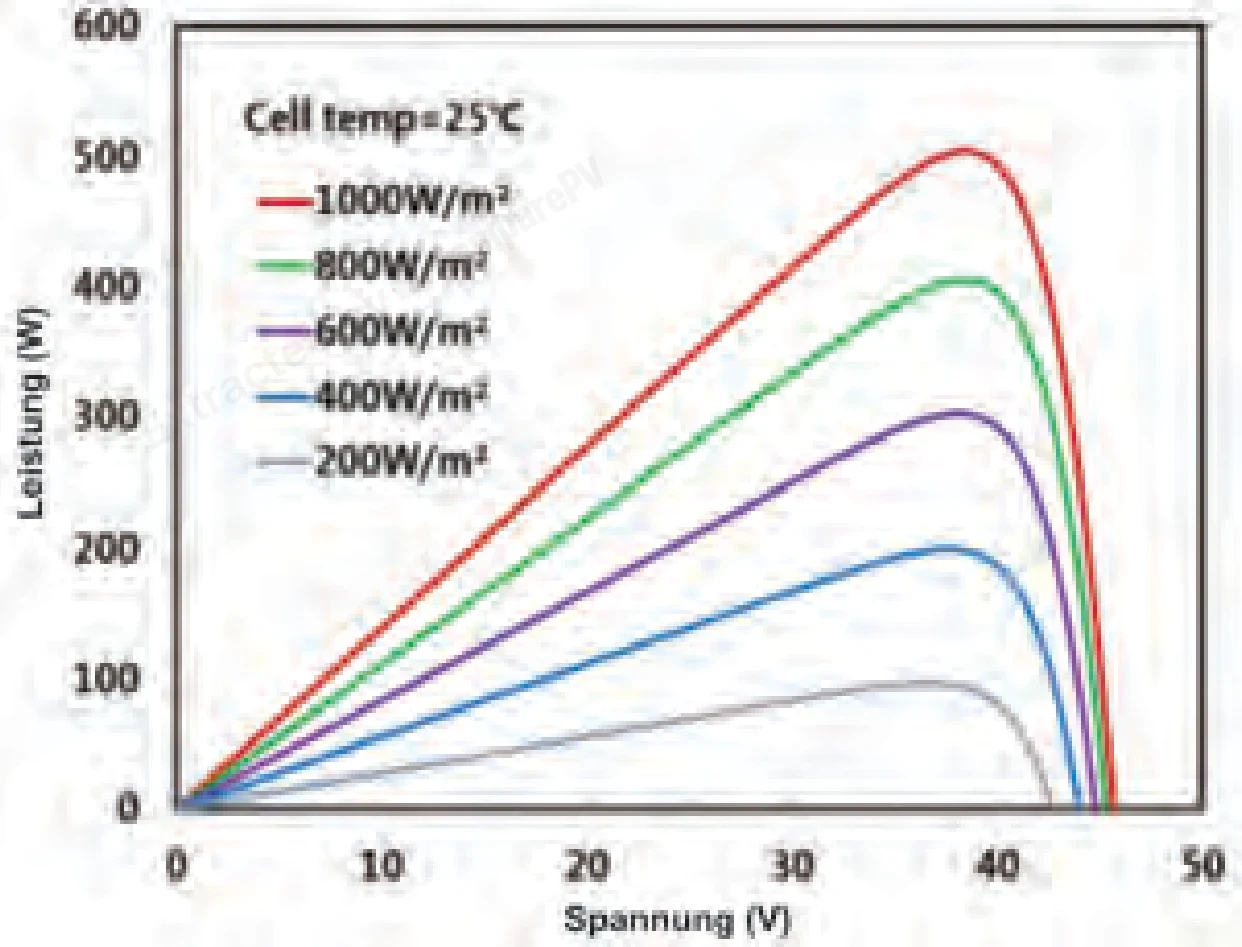

Measured curves published by Heckert Solar in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 495 Wp appear here. The rest cover the whole series.
Simulations

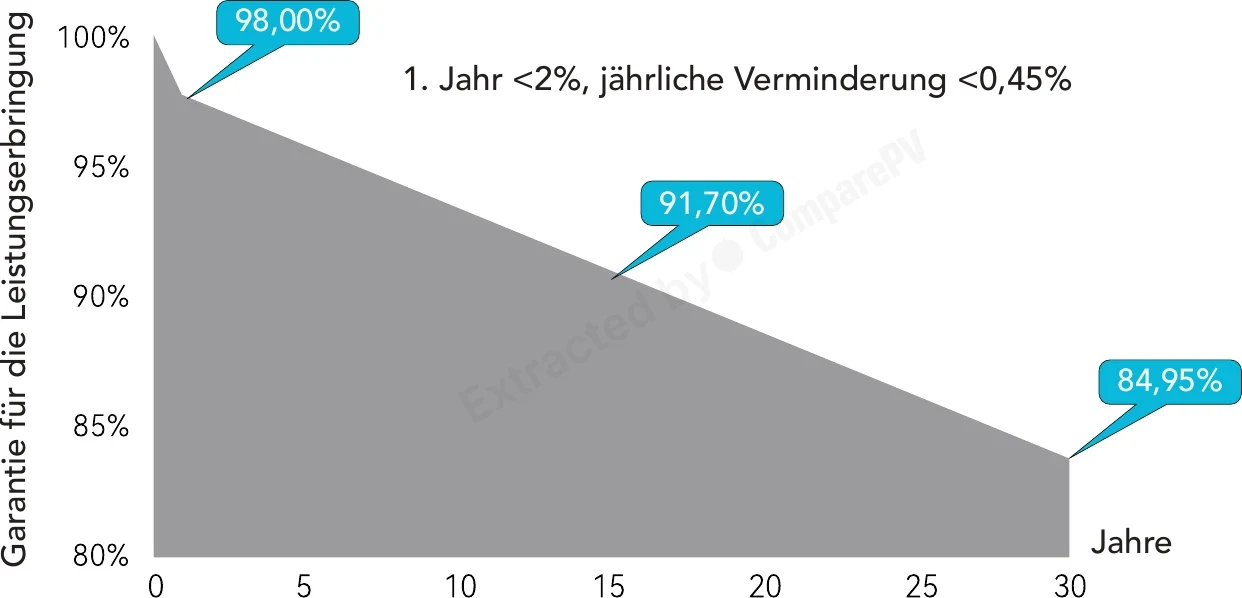

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.
Model: bifaciality × albedo × 0.6 view factor. A first-order estimate, not a yield simulation.
Found 213 panels of the same or similar size to this one, within ±10 mm. See them here Found 217 panels of the same or similar size to this one, within ±25 mm. See them here Found 1735 panels of the same or similar size to this one, within ±50 mm. See them here Found 4051 panels of the same or similar size to this one, within ±100 mm. See them here
About the ZEUS 3.0 series
These answers cover the whole series. Where a figure differs, the specification above is this module's own.
