600Wp
GCL Review

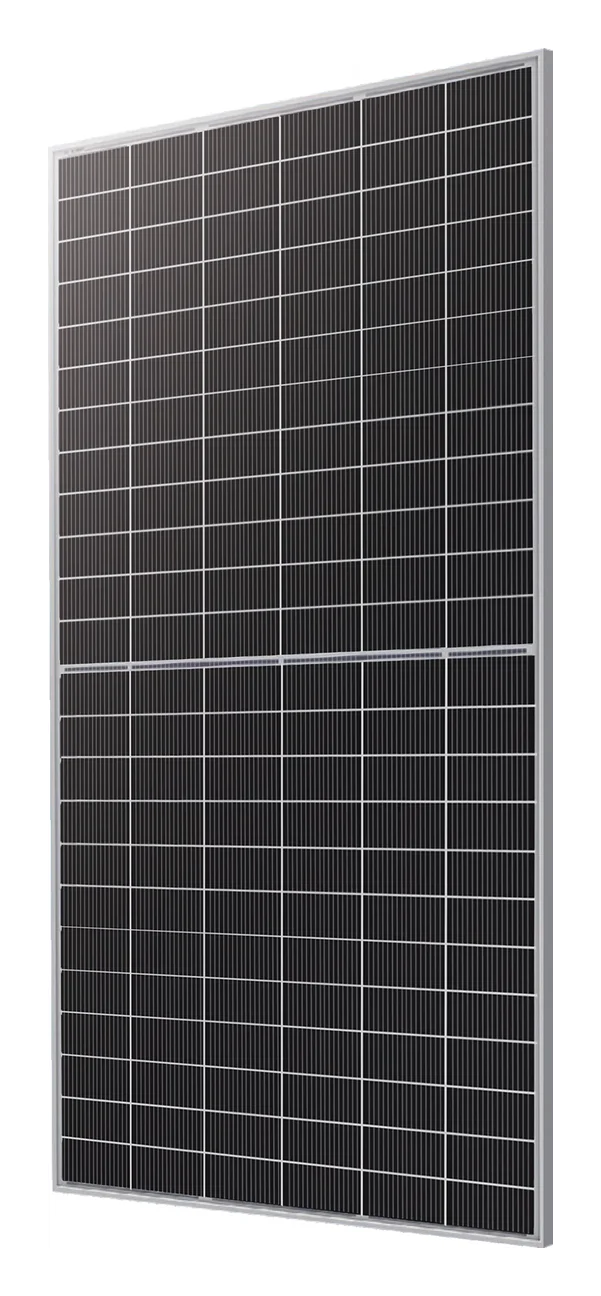

GCL-NT10/72GDF-600

MonocrystallineBifacial
23.23%
Efficiency
232.3 Wp/m²
Power Density
-0.290%/°C
Temp. Coeff. Pmax chart
524W from 600W
Power after 30 years
  • Efficiency of 23.2% matches the N-type 600-650W median
  • 232.3 W/m² power density - 4.6 W/m² more than N-type 600-650W median (227.7 W/m²), more power per roof area
  • Temperature coefficient of -0.29%/°C matches the N-type 600-650W median
  • 31.1 kg weight - 1.4 kg lighter than N-type 600-650W median (32.5 kg), reducing installation effort
  • Bifaciality factor of 80% can add 4-12% extra yield with reflective mounting surface
Performance Profile
Price Offers 0
Shop Country Price Price/kWp
Series NT10/72GDF 6 variants
Efficiency Range 22.4% - 23.4%
Avg. Efficiency 22.94%
Technology N-type
Dimensions 2278 × 1134 mm
Show series description

GCL NT10/72GDF photovoltaic panels are an advanced solution based on N-type TOPCon technology, setting new efficiency standards in large-scale installations. Thanks to the use of N-type cells, these modules are characterized by near-zero light-induced degradation and excellent efficiency in low sunlight. The bifacial dual-glass construction allows for the effective use of light reflected from the ground, which significantly increases total energy generation compared to standard, single-sided counterparts. The use of large silicon wafers translates into system cost optimization, which is crucial for investors seeking a maximum return on investment. This series effectively eliminates the problem of rapid power loss over time, offering exceptional parameter stability over decades of operation. It is a product dedicated primarily to professional photovoltaic farms and large commercial facilities, where every kilowatt-hour of yield and durability in variable weather conditions count. What distinguishes them from the competition is the precise combination of high power density with a low temperature coefficient, which ensures that the modules work stably even during hot days. By choosing the GCL NT10/72GDF series, you gain investment certainty based on innovations that realistically shorten the payback period through higher production in a real-world operating environment.

Panels from the same series differ mainly in power output while having identical dimensions. Learn why →
Electrical Parameters (STC)
Nominal Power (Pmax)600 Wp
Module Efficiency23.23%
Voltage at Max Power (Vmpp)44.55 V
Current at Max Power (Impp)13.47 A
Open Circuit Voltage (Voc)52.50 V
Short Circuit Current (Isc)14.25 A
Max System Voltage1500 V
Temperature Coefficients
Temp. Coeff. Pmax-0.290%/°C
Temp. Coeff. Voc-0.250%/°C
Temp. Coeff. Isc0.045%/°C
NOCT-
Cell Technology
Cell TypeMonocrystalline
Cell Count144
BifacialYes
Bifaciality Factor80%
Dimensions & Weight
Length2278 mm
Width1134 mm
Height30 mm
Weight31.1 kg
Area2.58 m²
Power Density232.3 Wp/m²
Warranty
Product Warranty12 years
Performance Warranty30 years
End-of-Warranty Output87.4%
First Year Degradation1.00%
Annual Degradation0.40%/year
Key Specifications
23.23%
Efficiency
600 Wp
Power
-0.29%/°C
Temp Coeff
30 yrs
Warranty
