EGing PV EG-425NT54-HLV
EGing PV Brand review

EG-425NT54-HLV

425 Wp TOPCon
ComparePV verdict

Light for its output, short guarantee

Rank 10,880 of 14,005
Compare panels Datasheet PDF
Power (Wp)
425
Typical for its class
Efficiency (%)
21.76
Typical · median 22.00%
Density (Wp/m²)
217.6
Typical · median 220.2
Temp (%/°C)
-0.300
Typical · median -0.290
Weight (kg)
20.2
Strong · 1.8 kg below median
Warranty (yrs)
25
Weak · bottom 7%

The EGing PV STAR Pro SERIES are modules based on N-type TOPCon cells, designed for high productivity in Polish conditions - even when the weather is unfavorable. Thanks to half-cut technology and SMBB (multi-busbar) solutions, the panels better limit internal losses and operate more stably under partial shading, which genuinely simplifies the design of rooftop installations near chimneys, windows, or neighboring obstructions. In practice, this means more predictable yields and lower risks of underestimating energy production.

The bifacial dual-glass versions additionally allow for utilizing reflected light, which is significant on light-colored rooftops, ground installations, or industrial setups. The series also stands out for its PID resistance and optimized performance in low-light conditions, translating to better profitability during transitional seasons.

It is an excellent choice for premium home installations, commercial rooftops, and projects where high efficiency, durability, and operational safety are key.

Ranking

1,218 panels in the segment TOPCon 400-450 W
Metric This panel Median Position in segment Overall rank
Module efficiency 21.76% 22.00% Typical 7,285
Power density 217.6 220.2 Typical 7,172
Temperature coefficient -0.300 -0.290 Typical 6,093
Weight per kWp 47.5 51.4 Strong · top 15% 1,744
Performance warranty 25 yrs 30 yrs Weak · bottom 7% 9,798
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

6 positive · 2 caution
Best for

Residential, commercial, utility-scale, shaded-installations and cold-climate.

Not ideal for

Owners who want a long output guarantee.

Strengths
47.5 kg per kWp

Top 15% of the TOPCon 400-450 W segment, against a median of 51.4.

Watch-outs
25 year performance warranty

Bottom 7% of the TOPCon 400-450 W segment, against a median of 30 yrs. Ranked 9,798th in the whole database.

What owners get
22.45% Efficiency at the Top-Segment Level

The peak efficiency of 22.45% is on par with direct competitors (Emmvee Titanium White N-type 22.45%, ZNShine ZXM7-UHLD144 22.44%), placing the series among the absolute best available TOPCon modules. This allows more power to be harvested from limited roof space without any technological compromise.

30-Year Linear Power Warranty ≥87.4%

The manufacturer guarantees degradation of ≤1% in Year 1 and ≤0.40%/year for the subsequent 29 years, resulting in a minimum of 87.4% of rated power after 30 years. Standard Tier-1 PERC panels (e.g., JA Solar, Trina) typically offer 25-year warranties with an 84.8% floor — STAR Pro delivers both a longer coverage period and a higher minimum power threshold.

Favorable Temperature Coefficient of -0.30%/°C

The temperature coefficient of -0.30%/°C outperforms the typical range of legacy P-type PERC cells (-0.35 to -0.45%/°C), meaningfully reducing power losses on hot days. EGing reports an approximately 3% increase in annual energy yield compared to P-type modules under equivalent climatic conditions.

Half-Cut + SMBB Technology for Challenging Roof Layouts

The combination of half-cut cells and super multi-busbar (SMBB) technology reduces resistive losses and limits the impact of partial shading on the entire string. In practical residential installations featuring chimneys or dormers, effective shading affects fewer cells than in a conventional 60-cell full-cell module.

20+ Years of Manufacturing Experience and Bankable Status

EGing PV has been in operation since 2003 and is the first publicly listed pure-play module manufacturer on the Shanghai Stock Exchange (SHA: 600537). Its Tier-1/bankable status confirms its eligibility to support bank-financed projects on a non-recourse basis.

Trade-offs
Significant Manufacturer Financial Risk

In 2024, EGing PV reported a net loss of approximately RMB 2.09 billion (~USD 288 million), accompanied by a 57% year-over-year revenue decline; its TOPCon facilities in Chuzhou (7.5 GW of capacity) were fully suspended in 2025 amid module capacity utilization of approximately 35%. Despite the completion of a pre-restructuring process and the securing of RMB 819 million in new financing (April 2026), the severe deterioration in profitability represents a material risk factor for honoring the 30-year power warranty — particularly for installations with long payback horizons.

Notes from the database
  • At 21.8% efficiency, this panel is on par with typical TOPCon 400-450W modules
  • At 217.6 W/m² power density, roof space requirements are typical for TOPCon 400-450W panels
  • At -0.30%/°C, hot weather performance is typical for TOPCon 400-450W panels
  • At 20.2 kg, this panel is 1.8 kg lighter than TOPCon 400-450W median (22.0 kg) - easier handling during installation
  • #7285 for efficiency, #6093 for temperature performance out of 14005 panels

Specifications

Open datasheet PDF
Nominal power (Pmax) 425 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 21.76 % Typical Segment median 22.00%
Vmpp · Impp 31.70 V · 13.41 A Operating point at max power
Voc · Isc 38.26 V · 14.16 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 1722×1134×30 mm · 1.95 m² of roof
Weight 20.2 kg Strong Strong · 1.8 kg below median
Cells 108 · TOPCon Monocrystalline
Coefficient Pmax -0.300 %/°C Typical median -0.290 of its segment
Coefficient Voc · Isc -0.250 · 0.046 %/°C
NOCT 44 °C At 800 W/m², 20 °C ambient
Product warranty 12 years Hardware defects only
Performance warranty 25 years Weak bottom 7% · median 30 yrs
End-of-warranty output 89.4 % Equals 371 W guaranteed
Degradation 1.00 → 0.40 % First year, then annual

Datasheet charts

Open datasheet PDF

Measured curves published by EGing PV in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 425 Wp appear here. The rest cover the whole series.

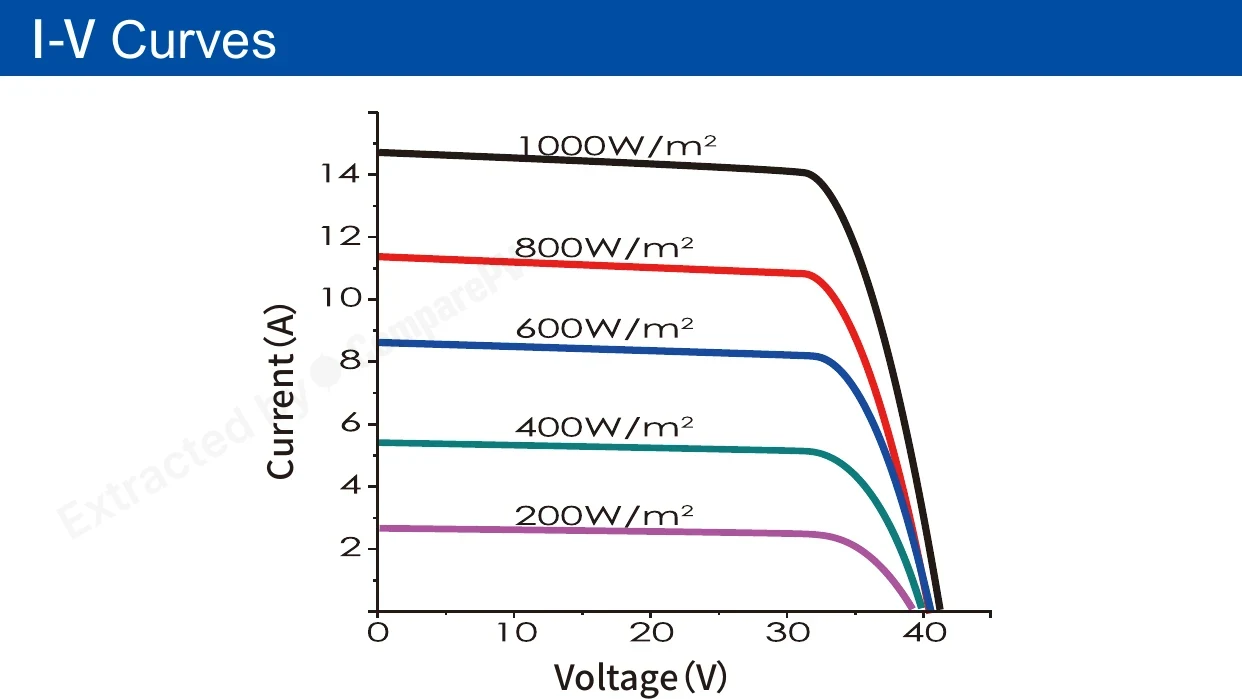

I-V Curves I-V Curves Whole series

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.300 %/°C against a segment median of -0.290
-
Filter these
Size
Panel Power Eff. Temp. Weight Difference
EGing PV EG-425NT54-HLV 425 W 21.76% -0.300 20.2 kg You are here
SPR-MAX7-475 475 W 24.00% -0.270 21.1 kg +50 W, +2.2 pp, +15 yr warranty
JST-EDMH-(445-465)W-TD (465W class) 465 W 23.81% -0.300 20.5 kg +40 W, +2.0 pp, +5 yr warranty
JAT54S40-475/LR 475 W 23.80% -0.260 19.3 kg +50 W, +2.0 pp, +5 yr warranty
TWMNH-48HW475 475 W 23.80% -0.280 23.7 kg +50 W, +2.0 pp, +5 yr warranty
CHSM48RN(DG)/F-BH-475 475 W 23.80% -0.290 24.5 kg +50 W, +2.0 pp, +5 yr warranty
AIKO-A475-MCE54Mw 475 W 23.80% -0.260 21.0 kg +50 W, +2.0 pp, +5 yr warranty
AIKO-A475-MAH54Mw 475 W 23.80% -0.260 21.5 kg +50 W, +2.0 pp, +5 yr warranty
EG-385M54-HLV (black) 385 W 19.71% -0.350 20.2 kg -40 W, hotter, -2.1 pp
EG-390M54-HLV (black) 390 W 19.97% -0.350 20.2 kg -35 W, hotter, -1.8 pp
EG-415M54-HLV-395W 395 W 20.22% -0.350 20.2 kg -30 W, hotter, -1.5 pp
EG-400M54-HLV (black) 400 W 20.48% -0.350 20.2 kg -25 W, hotter, -1.3 pp
LR7-54HJD-510M 510 W 25.00% -0.240 23.5 kg +85 W, cooler, +3.2 pp
AIKO-A495-MCE54Mw 495 W 24.80% -0.260 21.0 kg +70 W, +3.0 pp, +5 yr warranty
LR7-54HJD-505M 505 W 24.70% -0.240 23.5 kg +80 W, cooler, +2.9 pp
AIKO-A490-MCE54Mw 490 W 24.50% -0.260 21.0 kg +65 W, +2.7 pp, +5 yr warranty
LR7-54HJD-500M 500 W 24.50% -0.240 23.5 kg +75 W, cooler, +2.7 pp

Found 1783 panels of the same or similar size to this one, within ±10 mm. See them here Found 1914 panels of the same or similar size to this one, within ±25 mm. See them here Found 3392 panels of the same or similar size to this one, within ±50 mm. See them here Found 3970 panels of the same or similar size to this one, within ±100 mm. See them here

Common questions

6 answered
What warranty is offered on EGing PV STAR Pro SERIES panels?
EGing PV provides a 12-year product warranty (covering material and manufacturing defects) and a 30-year linear power output warranty on the STAR Pro series. This means that after 30 years, the panel should still produce at least 87.4% of its nominal output power. Warranty claims are handled through an authorized distributor or directly with the manufacturer.
Do EGing PV STAR Pro SERIES panels perform well in winter and under overcast conditions?
Yes. N-type TOPCon cells feature a low temperature coefficient (approx. -0.30%/°C), which means smaller power losses during freezing temperatures compared to older P-type modules. The STAR Pro series is also optimized for low-irradiance conditions, so even on overcast autumn and winter days the installation generates a measurable amount of energy.
What do half-cut cell technology and SMBB offer in the STAR Pro panels, and does it really matter when shading occurs?
In the STAR Pro series, cells are cut in half and additionally interconnected with multiple thin wires (SMBB, multi-busbar). If part of the panel falls into the shadow of a chimney, dormer, or antenna, the power loss is confined to the shaded section only, rather than affecting the entire module. In practice, on typical residential rooftops this can increase annual energy yield by several to more than ten percent compared to full-cell modules without SMBB.
Is the EGing PV STAR Pro SERIES available in a bifacial version?
EGing PV does offer a bifacial dual-glass variant for the STAR Pro series; however, the standard product line available in Poland consists of monofacial modules. Bifacial versions are worth considering for ground-mount installations or on light-colored flat roofs, where reflected irradiance can increase energy yield by a few percent. It is advisable to confirm the availability of a specific variant with your distributor before purchase.
What power output and efficiency do EGing PV STAR Pro SERIES panels achieve, and who are they intended for?
Peak power output for the 72-cell models reaches up to 580 Wp, with a conversion efficiency of approximately 22.45%. These are top-tier specifications within the prosumer and commercial segments. The series is well suited for premium residential installations, commercial rooftops, and larger projects where maximizing energy yield from a limited roof area is a priority.
Is EGing PV a reliable manufacturer, and do the STAR Pro panels meet quality standards?
EGing PV is a Chinese manufacturer that has been operating since 2003 and holds Tier 1 status according to the BloombergNEF ranking, indicating financial stability and supply reliability. STAR Pro series panels carry IEC certifications, and the N-type TOPCon cells are resistant to PID (Potential Induced Degradation). This is particularly important in Poland, where humidity and fluctuating temperatures can accelerate the aging of lower-quality modules.
