ODA430-27V-MHD

430 Wp TOPCon Bifacial 79%
ComparePV verdict

Middle of its segment, heavy for its output

Rank 9,692 of 14,005
Compare panels Datasheet PDF
Power (Wp)
430
Typical for its class
Efficiency (%)
22.02
Typical · median 22.00%
Density (Wp/m²)
220.2
Typical · median 220.2
Temp (%/°C)
-0.290
Typical · median -0.290
Weight (kg)
24.7
Weak · 2.7 kg above median
Warranty (yrs)
30
Typical · median 30 yrs

Austa Energy ODA-108MHD is an advanced series of photovoltaic modules that utilizes N-type TOPCon cell technology, ensuring significantly higher efficiency and better performance in low-light conditions. Thanks to the bifacial dual glass design, these panels allow for additional energy yields from the rear surface, making them an ideal choice for ground-mounted systems and modern rooftop structures. This series effectively eliminates the problem of light-induced degradation, resulting in exceptional long-term stability of electricity production. A standout feature of the ODA-108MHD is its high resistance to extreme weather conditions, including significant snow and wind loads, achieved through the use of double tempered glass instead of traditional backsheet film. This solves the key problem of mechanical durability in the demanding Polish climate. These panels are dedicated to prosumers and commercial investors seeking premium technology that maximizes self-consumption with limited mounting space. Compared to standard solutions, the ODA-108MHD series offers a more favorable temperature coefficient, which makes the system work more efficiently during summer heatwaves. This is an innovative solution combining aesthetics with the highest technological parameters, which effectively shortens the payback period for investments in green energy.

Ranking

1,218 panels in the segment TOPCon 400-450 W
Metric This panel Median Position in segment Overall rank
Module efficiency 22.02% 22.00% Typical 6,329
Power density 220.2 220.2 Typical 6,481
Temperature coefficient -0.290 -0.290 Typical 2,165
Weight per kWp 57.4 51.4 Weak · bottom 11% 11,214
Performance warranty 30 yrs 30 yrs Typical 21
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

5 positive · 3 caution
Best for

Residential, commercial and cold-climate.

Not ideal for

Weight-limited structures.

Watch-outs
57.4 kg per kWp

Bottom 11% of the TOPCon 400-450 W segment, against a median of 51.4.

What owners get
Efficiency of up to 22.54% – among the best in its segment

The series achieves a maximum efficiency of 22.54%, surpassing the Kingdom Solar (22.5%) and Lina Energy LEPV 132 Ultra Premium (22.37%) models. Only the Luxor ECO LINE N-TYPE NON-REFLECT model, with an efficiency of 22.86%, exceeds it, making the ODA-108MHD a strong contender in the 440 Wp class, without requiring the use of top-tier, more expensive modules.

N-type TOPCon technology – reduced LID degradation

N-type TOPCon cells eliminate light-induced degradation (LID), which means higher efficiency in the first 2-3 years of operation compared to PERC panels. The improved temperature coefficient (typically -0.28 to -0.30%/°C vs -0.34%/°C for PERC) translates into a significantly higher power output during the hot summer months in the Polish climate.

Bifacial dual-pane glass – achieve performance from both sides and ensure durability.

The use of a double layer of tempered glass instead of a rear panel increases the mechanical strength (typically >5400 Pa under snow load, >2400 Pa under wind) and allows for additional energy generation from the rear surface, up to approximately 20-25% in ground-mounted systems with light-colored surfaces. This is particularly important given the heavy snowfall in Poland.

30-year performance guarantee

The 30-year linear warranty aligns with the premium standard of the N-type TOPCon segment and ensures predictable energy yield throughout the lifespan of the installation. Comparable ZNShine ZXM7-UHLDD108 440W (N-type dual glass) modules also offer a 30-year warranty, confirming that AUSTA meets the industry standard for this product class.

7 power options, ranging from 410 to 440 Wp

The wide range of 7 different power ratings in a single series allows for precise matching of the project requirements without the need to combine different series – minimizing the risk of oversizing the inverter and simplifying the purchasing process.

Trade-offs
Not classified as Tier 1 bankable

AUSTA ENERGY is not listed on the BNEF Tier 1 Bankable Manufacturers list (as of May 2026). This could make it difficult to obtain financing or reduce the value of collateral for projects financed with bank loans or operating leases. Technologically comparable modules from certified Tier 1 manufacturers (e.g., Luxor Solar ECO LINE N-TYPE) are available in the same power and efficiency range.

15-year product warranty – below premium standards

The market standard for N-type TOPCon dual-glass panels in 2025-2026 is a 25-year product warranty (VSUN 440W N-type: 25 years, Hyundai NF 440W: 25 years). The 15-year product warranty for the ODA-108MHD panel is 10 years shorter than the best practice in the segment – a significant difference in the event of any defects in the panel during the 16-25 year period of the installation's lifespan.

Notes from the database
  • At 22.0% efficiency, this panel is on par with typical TOPCon 400-450W modules
  • At 220.2 W/m² power density, roof space requirements are typical for TOPCon 400-450W panels
  • Temperature coefficient of -0.29%/°C matches the TOPCon 400-450W median
  • Weight of 24.7 kg is 2.7 kg above TOPCon 400-450W median (22.0 kg) - verify structural support
  • Bifacial design (79% factor) captures reflected light - adds 4-12% yield on ground-mount or white roof

Specifications

Open datasheet PDF
Nominal power (Pmax) 430 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 22.02 % Typical Segment median 22.00%
Vmpp · Impp 31.88 V · 13.49 A Operating point at max power
Voc · Isc 38.49 V · 14.23 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 1722×1134×30 mm · 1.95 m² of roof
Weight 24.7 kg Weak Weak · 2.7 kg above median
Cells 108 · TOPCon Monocrystalline
Bifaciality 79 % Rear output as a share of front
Coefficient Pmax -0.290 %/°C Typical median -0.290 of its segment
Coefficient Voc · Isc -0.250 · 0.041 %/°C
NOCT 45 °C At 800 W/m², 20 °C ambient
Product warranty 15 years Hardware defects only
Performance warranty 30 years Typical median 30 yrs · median 30 yrs

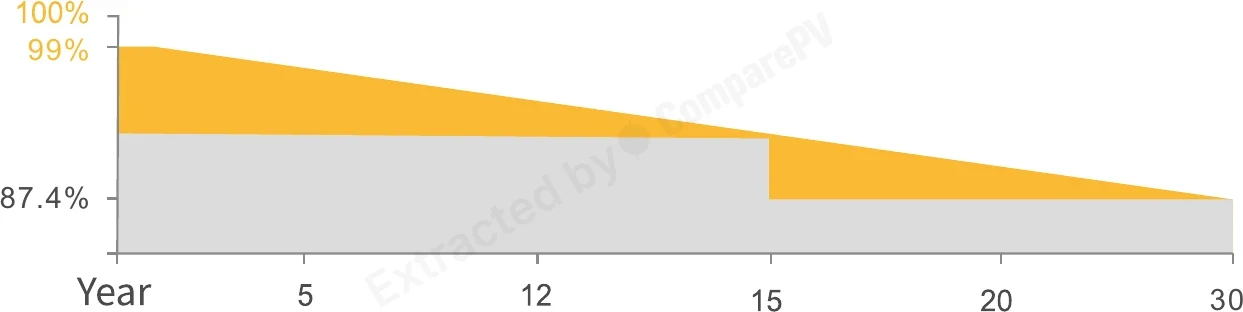

End-of-warranty output 87.4 % Equals 376 W guaranteed
Degradation 1.00 → 0.40 % First year, then annual

Datasheet charts

Open datasheet PDF

Measured curves published by AUSTA ENERGY in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 430 Wp appear here. The rest cover the whole series.

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-
With bifacial gain
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.290 %/°C against a segment median of -0.290
-
Bifacial gain
Rear gain over light concrete: -
-

Model: bifaciality × albedo × 0.6 view factor. A first-order estimate, not a yield simulation.

Filter these
Size
Panel Power Eff. Temp. Weight Difference
AUSTA ENERGY ODA430-27V-MHD 430 W 22.02% -0.290 24.7 kg You are here
AIKO-A480-MAH54Mw 480 W 24.10% -0.260 21.5 kg +50 W, lighter, +2.1 pp
GK-5-54HG-480M 480 W 24.10% -0.260 21.0 kg +50 W, lighter, +2.1 pp
JKM480N-48QL6-DB-F2-EU 480 W 24.02% -0.260 24.4 kg +50 W, cooler, +2.0 pp
GKA96N-PRO-480W 480 W 24.02% -0.300 21.0 kg +50 W, lighter, +2.0 pp
ODA410-27V-MHD 410 W 21.00% -0.290 24.7 kg -20 W, -1.0 pp
ODA415-27V-MHD 415 W 21.25% -0.290 24.7 kg -15 W, -0.8 pp
ODA420-27V-MHD 420 W 21.51% -0.290 24.7 kg -10 W, -0.5 pp
ODA425-27V-MHD 425 W 21.76% -0.290 24.7 kg -0.3 pp
ODA435-27V-MHD 435 W 22.28% -0.290 24.7 kg +0.3 pp
ODA440-27V-MHD 440 W 22.54% -0.290 24.7 kg +10 W, +0.5 pp
LR7-54HJD-510M 510 W 25.00% -0.240 23.5 kg +80 W, cooler, +3.0 pp
AIKO-A495-MCE54Mw 495 W 24.80% -0.260 21.0 kg +65 W, lighter, +2.8 pp
LR7-54HJD-505M 505 W 24.70% -0.240 23.5 kg +75 W, cooler, +2.7 pp
AIKO-A490-MCE54Mw 490 W 24.50% -0.260 21.0 kg +60 W, lighter, +2.5 pp
LR7-54HJD-500M 500 W 24.50% -0.240 23.5 kg +70 W, cooler, +2.5 pp
CIPRO-TN9C54M-500W 500 W 24.50% -0.260 21.4 kg +70 W, lighter, +2.5 pp

Found 1783 panels of the same or similar size to this one, within ±10 mm. See them here Found 1914 panels of the same or similar size to this one, within ±25 mm. See them here Found 3392 panels of the same or similar size to this one, within ±50 mm. See them here Found 3970 panels of the same or similar size to this one, within ±100 mm. See them here

Common questions

6 answered
What is the warranty on Asta Energy ODA-108MHD solar panels?
The ODA-108MHD series is covered by a 15-year product warranty for material and workmanship defects, as well as a 30-year linear warranty for power. This means that the manufacturer guarantees that the system will maintain a specified percentage of its nominal power of 440 W for 30 years. This is one of the longer power warranty periods available on the market, which reflects the high confidence in the durability of the N-type TOPCon and double-tempered glass technology.
What is TOPCon technology and why should you choose the ODA-108MHD panel instead of PERC panels?
TOPCon (Tunnel Oxide Passivated Contact) is a generation of N-type solar cells that offers higher efficiency compared to popular PERC cells. In the ODA-108MHD series, this translates to improved energy yield under low-light conditions, such as cloudy days, as well as a more favorable temperature coefficient, which means the panel loses less power during hot summer days. Furthermore, N-type cells are practically resistant to light-induced degradation (LID), which ensures more stable production throughout the lifespan of the installation.
Is the Asta Energy ODA-108MHD panel suitable for underground installation?
Yes, the ODA-108MHD series is particularly recommended for ground-mounted installations. The bifacial dual-glass construction allows the rear surface of the panel to capture reflected energy from the ground, which can increase energy yield by up to 15% in bright conditions, on gravel or snow. The double-tempered glass also provides high resistance to wind and snow loads, which can be significant in the Polish climate.
What power output does the ODA-108MHD panel produce, and how many of these panels do I need for my home?
The maximum power output of the module is 440 W under standard test conditions (STC). For a typical single-family home consuming 4000–5000 kWh per year, it is usually sufficient to have between 10 and 14 modules, resulting in an installation with a power of 4.4–6.2 kW. Thanks to the high efficiency of N-type TOPCon and bifacial design, a similar annual production can be achieved with fewer panels compared to older technologies, which is important when roof space is limited.
Will Asta Energy ODA-108MHD solar panels perform adequately on a roof in Poland's winter climate?
Yes. The ODA-108MHD series stands out due to two key features relevant to Polish winter conditions: double-layered tempered glass provides high resistance to snow loads, and N-type TOPCon solar cells offer improved performance in diffuse and low-light conditions typical of autumn and winter. The panel can generate power even with only a few percent of its nominal sunlight intensity, and low ambient temperatures further enhance its electrical efficiency.
Is Austa Energy a trusted manufacturer, and is the ODA-108MHD certified?
Austa Energy is a manufacturer based in India, operating on the European market. The brand does not appear in Bloomberg NEF's Tier 1 classification, but it offers standard certifications required in the EU market, such as IEC 61215 and IEC 61730. Before purchasing, it is advisable to verify the current list of certifications with a Polish distributor and to check if the panel is listed in the European Solar Test Installation (ESTI) register, which provides additional assurance of quality.
