AUSTA ENERGY Brand review

AU565-36V-MHD

565 Wp TOPCon
ComparePV verdict

Middle of its segment, heavy for its output

Rank 5,086 of 14,005
Compare panels Datasheet PDF
Power (Wp)
565
Weak · bottom 17%
Efficiency (%)
21.87
Weak · bottom 19%
Density (Wp/m²)
218.7
Weak · bottom 20%
Temp (%/°C)
-0.300
Typical · median -0.290
Weight (kg)
32.2
Weak · 1.0 kg above median
Warranty (yrs)
30
Typical · median 30 yrs

Ranking

1,018 panels in the segment TOPCon 550-600 W
Metric This panel Median Position in segment Overall rank
Module efficiency 21.87% 22.44% Weak · bottom 19% 6,908
Power density 218.7 224.4 Weak · bottom 20% 6,841
Temperature coefficient -0.300 -0.290 Typical 6,093
Weight per kWp 57.0 53.8 Weak · bottom 12% 10,994
Performance warranty 30 yrs 30 yrs Typical 21
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

0 positive · 3 caution
Not ideal for

Weight-limited structures, tight roof space and roofs where every square metre has to count.

Watch-outs
57.0 kg per kWp

Bottom 12% of the TOPCon 550-600 W segment, against a median of 53.8.

21.87% module efficiency

Bottom 19% of the TOPCon 550-600 W segment, against a median of 22.44%.

218.7 watts per square metre

Bottom 20% of the TOPCon 550-600 W segment, against a median of 224.4.

Notes from the database
  • Module efficiency of 21.9% is 0.6pp below average for TOPCon 550-600W panels (median: 22.4%)
  • At 218.7 W/m², this panel generates 5.7 W/m² less per unit area than TOPCon 550-600W median (224.4 W/m²)
  • At -0.30%/°C, hot weather performance is typical for TOPCon 550-600W panels
  • At 32.2 kg, this panel is 1.0 kg heavier than the TOPCon 550-600W median (31.2 kg) - more demanding for installation crews
  • Ranked #6908 out of 14005 panels for efficiency in the database

Specifications

Open datasheet PDF
Nominal power (Pmax) 565 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 21.87 % Weak Segment median 22.44%
Vmpp · Impp 41.92 V · 13.48 A Operating point at max power
Voc · Isc 50.60 V · 14.23 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 2278×1134×35 mm · 2.58 m² of roof
Weight 32.2 kg Weak Weak · 1.0 kg above median
Cells 144 · TOPCon Monocrystalline
Bifaciality 80 % Rear output as a share of front
Coefficient Pmax -0.300 %/°C Typical median -0.290 of its segment
Coefficient Voc · Isc -0.250 · 0.046 %/°C
NOCT 45 °C At 800 W/m², 20 °C ambient
Product warranty 15 years Hardware defects only
Performance warranty 30 years Typical median 30 yrs · median 30 yrs

Datasheet charts

Open datasheet PDF

Measured curves published by AUSTA ENERGY in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 565 Wp appear here. The rest cover the whole series.

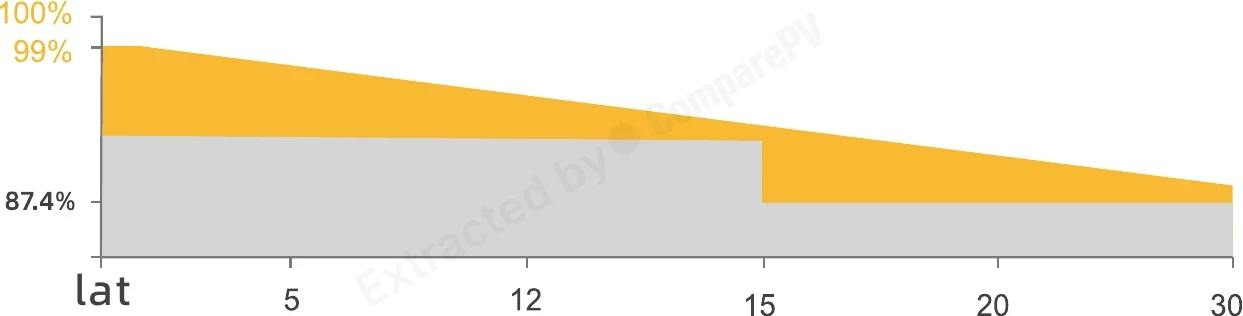

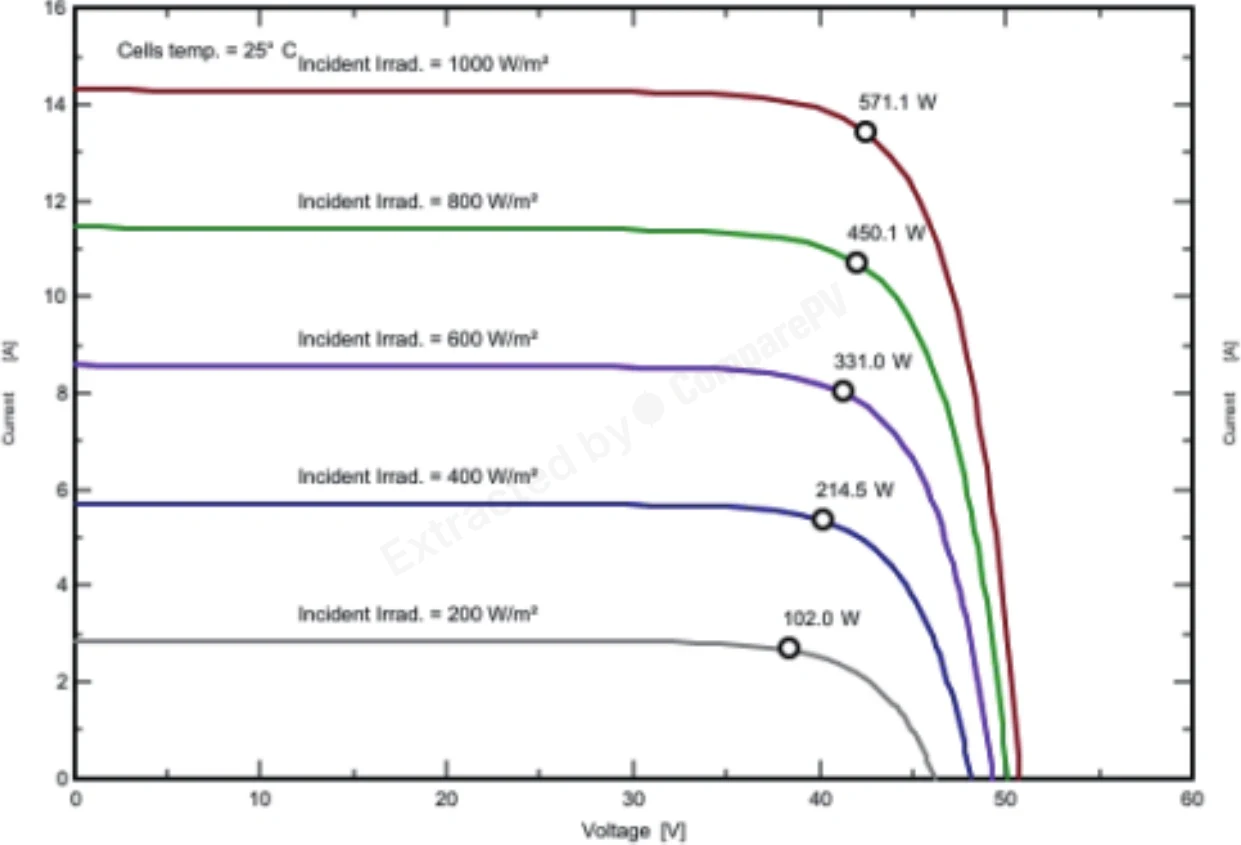

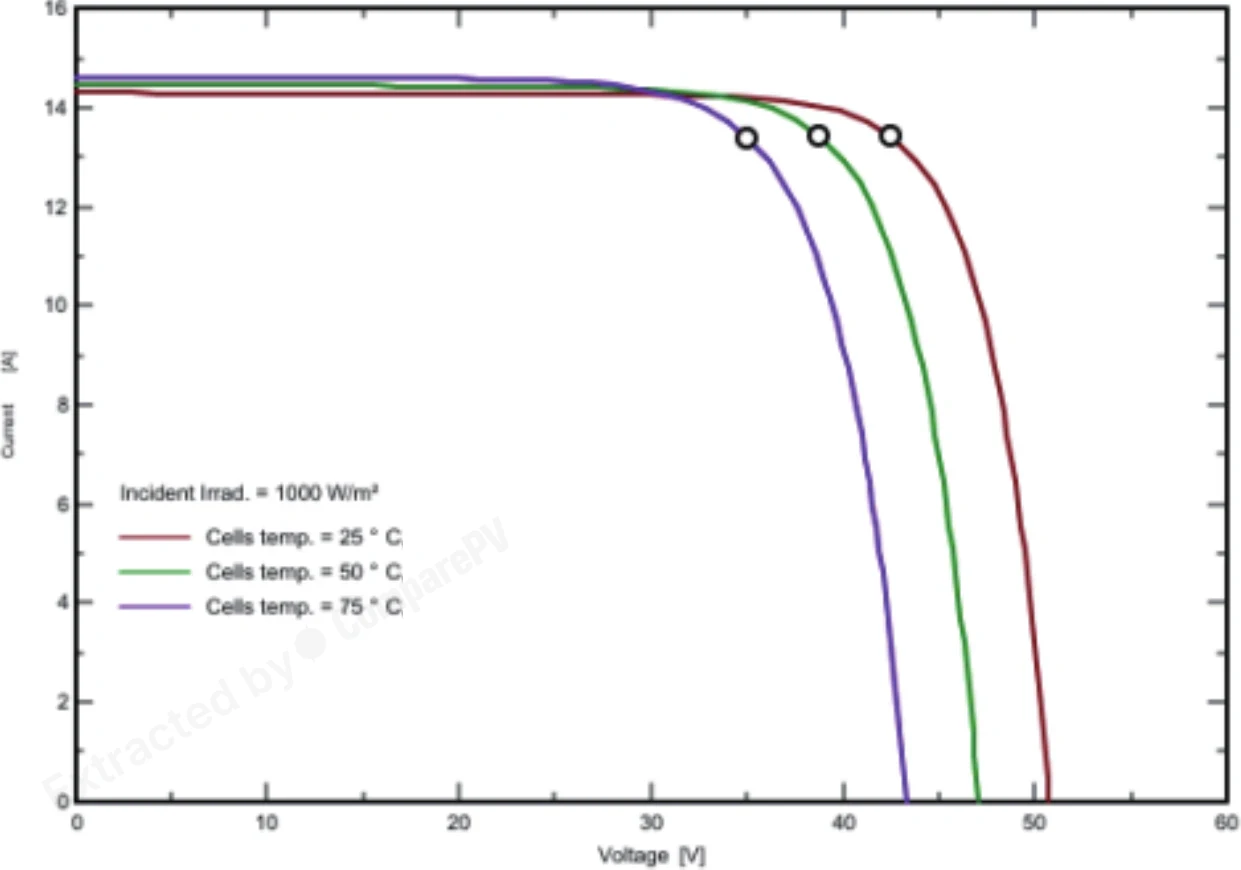

30-Year Linear Power Warranty (power retention vs. years) 30-Year Linear Power Warranty (power retention vs. years) Whole series Current-Voltage (I-V) Curves at Varying Irradiance (Cell Temp. 25°C) Current-Voltage (I-V) Curves at Varying Irradiance (Cell Temp. 25°C) Whole series Current-Voltage (I-V) Curves at Different Cell Temperatures (Irradiance 1000 W/m²) Current-Voltage (I-V) Curves at Different Cell Temperatures (Irradiance 1000 W/m²) Whole series

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-
With bifacial gain
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.300 %/°C against a segment median of -0.290
-
Bifacial gain
Rear gain over light concrete: -
-

Model: bifaciality × albedo × 0.6 view factor. A first-order estimate, not a yield simulation.

Filter these
Size
Panel Power Eff. Temp. Weight Difference
AUSTA ENERGY AU565-36V-MHD 565 W 21.87% -0.300 32.2 kg You are here
LR7-60HVH-560M 560 W 24.80% -0.260 25.0 kg Cooler, lighter, +2.9 pp
LR7-60HVH-555M 555 W 24.60% -0.260 25.0 kg Cooler, lighter, +2.7 pp
LR7-60HVHL-550M 550 W 24.40% -0.260 16.3 kg Cooler, 16 kg lighter, +2.5 pp
JAT60S40-540/LR 540 W 24.40% -0.260 23.5 kg Cooler, lighter, +2.5 pp
GK-5-60HG-540M 540 W 24.40% -0.260 23.3 kg Cooler, lighter, +2.5 pp
JKM545-54QL6-DV-F1-EU 545 W 24.27% -0.260 27.5 kg Cooler, lighter, +2.4 pp
LR7-60HVH-545M 545 W 24.20% -0.260 25.0 kg Cooler, lighter, +2.3 pp
ODA525-36V-MH 525 W 20.31% -0.350 28.4 kg -40 W, hotter, -1.6 pp
ODA530-36V-MH 530 W 20.50% -0.350 28.4 kg Hotter, lighter, -1.4 pp
ODA535-36V-MH 535 W 20.70% -0.350 28.4 kg Hotter, lighter, -1.2 pp
ODA540-36V-MH 540 W 20.89% -0.350 28.4 kg Hotter, lighter, -1.0 pp
ODA545-36V-MH 545 W 21.08% -0.350 28.4 kg Hotter, lighter, -0.8 pp
ODA550-36V-MH 550 W 21.28% -0.350 28.4 kg Hotter, lighter, -0.6 pp
ODA550-36V-MHD 550 W 21.29% -0.290 32.0 kg -15 W, cooler, -0.6 pp
ODA555-36V-MHD 555 W 21.48% -0.290 32.0 kg -10 W, cooler, -0.4 pp
AIKO-A650-MAE72Mw 650 W 25.20% -0.260 27.0 kg +85 W, lighter, +3.3 pp

Found 2326 panels of the same or similar size to this one, within ±10 mm. See them here Found 2368 panels of the same or similar size to this one, within ±25 mm. See them here Found 2382 panels of the same or similar size to this one, within ±50 mm. See them here Found 2547 panels of the same or similar size to this one, within ±100 mm. See them here
