AE Solar CMD-144BDS-595
AE Solar Brand review

CMD-144BDS-595

595 Wp TOPCon Bifacial 80%
ComparePV verdict

Efficiency leader, no clear weak spot

Rank 2,694 of 14,129
Compare panels Datasheet PDF
Power (Wp)
595
Strong · top 5%
Efficiency (%)
23.05
Strong · top 3%
Density (Wp/m²)
230.5
Strong · top 3%
Temp (%/°C)
-0.290
Typical · median -0.290
Weight (kg)
31.0
Typical · median 31.2 kg
Warranty (yrs)
30
Typical · median 30 yrs

The METEOR CMD-144BDS series is AE Solar's answer to the growing demands of rooftop and ground-mount project developers who expect maximum energy yield from limited available space. The panels use N-type TOPCon cells arranged in a half-cut configuration, which reduces resistive losses and improves module behavior under partial shading and at high operating temperatures. The bifacial double-glass construction allows the module to additionally capture light reflected from the ground, boosting energy production without expanding the installation footprint, which matters when BoS budgets are tight. The black frame and clean design make the series well suited both for large-scale solar farms and commercial rooftops, where aesthetics matter. Thanks to stable long-term performance and TOPCon technology, which outperforms older PERC solutions in terms of degradation, these modules translate into a lower LCOE over the entire lifetime of the installation. This is a solution for installers and investors seeking a balance between high efficiency, durability, and predictable return on investment in commercial and industrial projects.

Ranking

1,022 panels in the segment TOPCon 550-600 W
Metric This panel Median Position in segment Overall rank
Module efficiency 23.05% 22.44% Strong · top 3% 1,750
Power density 230.5 224.4 Strong · top 3% 1,743
Temperature coefficient -0.290 -0.290 Typical 2,220
Weight per kWp 52.1 53.8 Typical 5,590
Performance warranty 30 yrs 30 yrs Typical 21
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

7 positive · 1 caution
Best for

Commercial and utility-scale.

Strengths
23.05% module efficiency

Top 3% of the TOPCon 550-600 W segment, against a median of 22.44%. Ranked 1,750th in the whole database.

230.5 watts per square metre

Top 3% of the TOPCon 550-600 W segment, against a median of 224.4. Ranked 1,743rd in the whole database.

What owners get
Highest efficiency in the peer group

23.05% efficiency is the highest among direct 595 Wp peers - ahead of Heliene 144HC M10 NTYP SL (23.02%), Solarspace Lumina II (23.03%), and clearly ahead of Sunova TS-BW78 (21.3%). This translates into higher energy yield from the same rooftop or ground area.

N-type TOPCon half-cut cells

N-type TOPCon technology offers a lower LID/LeTID degradation rate and better high-temperature performance than legacy PERC cells, while the half-cut layout reduces resistive losses and improves partial-shading tolerance.

Bifacial dual-glass construction

Dual-glass build with 80±5% bifaciality (2.0 mm AR-coated front glass and 2.0 mm tempered back glass) captures light reflected off the ground, boosting energy production without increasing the installation footprint - key when BoS budget is limited.

Tier-1 manufacturer with long track record

AE Solar is a German manufacturer operating since 2003, classified as bankable Tier-1, which eases project financing for commercial and industrial installations and increases confidence in the 30-year power warranty being honored.

Current, non-discontinued series

Launched in 2023, the series is not discontinued, ensuring continuity of supply, service, and spare parts throughout the installation's operating life.

Trade-offs
Product warranty shorter than segment leaders

The 15-year product warranty is a market standard but falls short of premium TOPCon segment leaders, who offer 20-25 years of product warranty at comparable power and efficiency levels.

Notes from the database
  • At 23.1% efficiency, this panel is 0.6pp above typical TOPCon 550-600W modules (median: 22.4%)
  • 230.5 W/m² power density - 6.1 W/m² more than TOPCon 550-600W median (224.4 W/m²), more power per roof area
  • At -0.29%/°C, hot weather performance is typical for TOPCon 550-600W panels
  • 80% bifaciality enables rear-side power generation, boosting yield by 4-12% on reflective surfaces
  • #1750 for efficiency, #2220 for temperature performance out of 14129 panels

Specifications

Open datasheet PDF
Nominal power (Pmax) 595 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 23.05 % Strong Segment median 22.44%
Vmpp · Impp 43.46 V · 13.69 A Operating point at max power
Voc · Isc 52.30 V · 14.61 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 2278×1133×30 mm · 2.58 m² of roof
Weight 31.0 kg Typical Typical · median 31.2 kg
Cells 144 · TOPCon Monocrystalline
Bifaciality 80 % Rear output as a share of front
Coefficient Pmax -0.290 %/°C Typical median -0.290 of its segment
Coefficient Voc · Isc -0.250 · 0.046 %/°C
NOCT 42 °C At 800 W/m², 20 °C ambient
Product warranty 15 years Hardware defects only
Performance warranty 30 years Typical median 30 yrs · median 30 yrs
End-of-warranty output 87.4 % Equals 520 W guaranteed
Degradation 1.00 → 0.40 % First year, then annual

Datasheet charts

Open datasheet PDF

Measured curves published by AE Solar in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 595 Wp appear here. The rest cover the whole series.

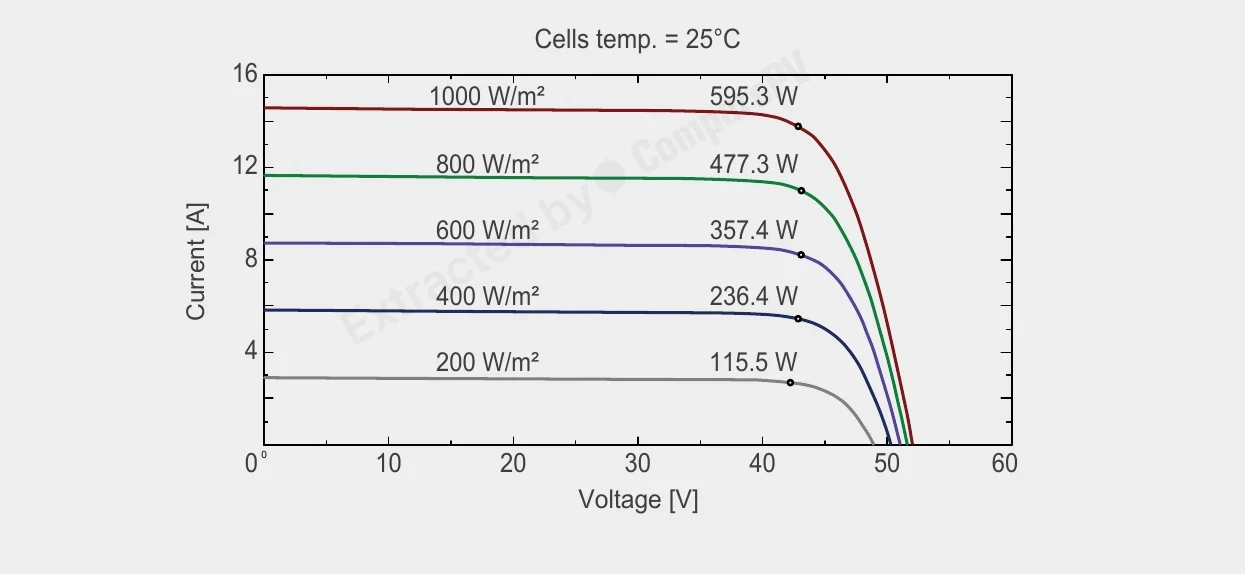

Current-Voltage Curves (Cells temp. = 25°C) Current-Voltage Curves (Cells temp. = 25°C) 595 W

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-
With bifacial gain
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.290 %/°C against a segment median of -0.290
-
Bifacial gain
Rear gain over light concrete: -
-

Model: bifaciality × albedo × 0.6 view factor. A first-order estimate, not a yield simulation.

Filter these
Size
Panel Power Eff. Temp. Weight Difference
AE Solar CMD-144BDS-595 595 W 23.05% -0.290 31.0 kg You are here
AIKO-A645-MAE72Mw 645 W 25.00% -0.260 27.0 kg +50 W, lighter, +1.9 pp
LR7-60HVH-560M 560 W 24.80% -0.260 25.0 kg -35 W, lighter, +1.8 pp
AIKO-A640-MAE72Mw 640 W 24.80% -0.260 27.0 kg +45 W, lighter, +1.8 pp
LR7-60HVH-555M 555 W 24.60% -0.260 25.0 kg -40 W, lighter, +1.6 pp
AIKO-A635-MAE72Mw 635 W 24.60% -0.260 27.0 kg +40 W, lighter, +1.6 pp
AE CMD-96BD 375W 375 W 14.53% -0.290 31.0 kg -220 W, -8.5 pp
AE CMD-96BD 380W 380 W 14.72% -0.290 31.0 kg -215 W, -8.3 pp
AE CMD-96BD 385W 385 W 14.92% -0.290 31.0 kg -210 W, -8.1 pp
AE CMD-96BD 390W 390 W 15.11% -0.290 31.0 kg -205 W, -7.9 pp
AE CMD-96BD 395W 395 W 15.30% -0.290 31.0 kg -200 W, -7.8 pp
AIKO-A650-MAE72Mw 650 W 25.20% -0.260 27.0 kg +55 W, lighter, +2.1 pp
AIKO-A630-MAH72Dw 630 W 24.40% -0.260 32.5 kg +35 W, cooler, +1.3 pp

Found 2327 panels of the same or similar size to this one, within ±10 mm. See them here Found 2369 panels of the same or similar size to this one, within ±25 mm. See them here Found 2383 panels of the same or similar size to this one, within ±50 mm. See them here Found 2548 panels of the same or similar size to this one, within ±100 mm. See them here

About the METEOR CMD-144BDS series

6 answered

These answers cover the whole series. Where a figure differs, the specification above is this module's own.

What is the maximum power rating of the METEOR CMD-144BDS series panels?
Top-bin modules in the METEOR CMD-144BDS series reach up to 595 Wp of maximum power. This is achieved through N-type TOPCon cells arranged in a half-cut layout, which reduces resistive losses and delivers high efficiency within a standard 144-cell module footprint.
How does TOPCon technology in the METEOR CMD-144BDS differ from older PERC panels?
TOPCon is a newer generation of N-type cell technology that, compared to PERC, offers lower annual degradation and better performance at high temperatures and under partial shading. In practice this means a higher and more stable energy yield over the system's lifetime, resulting in a lower LCOE.
Do the bifacial METEOR CMD-144BDS panels require special installation?
The dual-glass bifacial construction captures light reflected from the ground, so best results are achieved when installed over a light-colored or reflective surface with adequate clearance from the roof or ground. It's not a strict requirement, though - the panels also work fine in standard rooftop configurations, just with a smaller rear-side energy gain.
What warranty does AE Solar offer on the METEOR CMD-144BDS solar panels?
The manufacturer provides a 15-year product warranty along with a 30-year linear power output warranty. As a Tier 1 manufacturer headquartered in Germany, AE Solar offers stable after-sales support and predictable long-term returns, which is important for commercial and industrial projects.
What installation types are the METEOR CMD-144BDS panels best suited for?
The series is designed primarily for large-scale solar farms and commercial or industrial rooftops, where both high energy yield from limited space and aesthetics matter thanks to the black frame. The dual-glass bifacial design further boosts returns in ground-mounted systems with adequate rear-side light exposure.
Is the AE Solar METEOR CMD-144BDS series still available for purchase?
Yes, the METEOR CMD-144BDS series remains part of AE Solar's active lineup and is not being discontinued. It's a current TOPCon-based model recommended for new commercial and industrial projects seeking high efficiency on limited installation area.
