AE Solar CMD-144-585
AE Solar Brand review

CMD-144-585

585 Wp TOPCon
ComparePV verdict

Light for its output, no clear weak spot

Rank 3,365 of 14,129
Compare panels Datasheet PDF
Power (Wp)
585
Typical for its class
Efficiency (%)
22.67
Typical · median 22.44%
Density (Wp/m²)
226.7
Typical · median 224.4
Temp (%/°C)
-0.290
Typical · median -0.290
Weight (kg)
26.5
Strong · 4.7 kg below median
Warranty (yrs)
30
Typical · median 30 yrs

The METEOR CMD-144 series is a photovoltaic module built for installations where stable, long-term energy output and resistance to harsh environmental conditions matter most. At its core are n-Type TOPCon cells arranged in a half-cut configuration, which reduce resistive losses and deliver higher energy yield than conventional PERC modules, especially at elevated operating temperatures. The manufacturer places strong emphasis on mechanical durability - the module passes tests for resistance to salt mist corrosion, sand, ammonia, and PID effects, making it a solid choice for coastal, agricultural, and industrial installations where standard panels tend to degrade faster. Thanks to n-Type technology, the series also features no LID and LeTID effects, resulting in a more predictable power decline over time and a genuinely lower levelized cost of energy (LCOE) across the entire lifecycle of the installation. The panel is offered in a mono-facial configuration, with an anodized aluminum frame and an IP68-rated junction box, making it easier to mount across different racking systems. An additional selling point is the extended product warranty of up to 30 years, paired with a performance warranty that gives investors and installers greater financial security for their projects. This is a solution aimed at commercial investors and prosumers who expect high durability and predictable returns from their photovoltaic installation.

Ranking

1,022 panels in the segment TOPCon 550-600 W
Metric This panel Median Position in segment Overall rank
Module efficiency 22.67% 22.44% Typical 3,563
Power density 226.7 224.4 Typical 3,537
Temperature coefficient -0.290 -0.290 Typical 2,220
Weight per kWp 45.3 53.8 Strong · top 6% 684
Performance warranty 30 yrs 30 yrs Typical 21
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

6 positive · 1 caution
Best for

Commercial and utility-scale.

Strengths
45.3 kg per kWp

Top 6% of the TOPCon 550-600 W segment, against a median of 53.8. Ranked 684th in the whole database.

What owners get
High efficiency up to 23.05%

The METEOR CMD-144 series reaches up to 23.05% efficiency, placing it at the top of the segment - higher than Solarspace Lumina II (23.03%) and Heliene 144HC M10 NTYP SL (23.02%), and well above Sunova TS-BW78 (21.3%) at the same 595 Wp max power.

N-Type TOPCon half-cut cells

The use of n-Type TOPCon half-cut cells reduces resistive losses and eliminates LID and LeTID effects, resulting in a more predictable, slower power degradation over time compared to legacy PERC modules.

30-year power warranty

The performance warranty covers 30 years, with a 15-year product warranty - a premium-class standard among n-type TOPCon manufacturers, giving investors greater confidence in LCOE over the full system lifecycle.

Resistance to harsh environmental conditions

The module passes salt-mist, sand, ammonia, and PID resistance tests, making it a proven choice for coastal, agricultural, and industrial installations where standard panels degrade faster.

Tier-1 manufacturer with stable backing

AE Solar is a German Tier-1 (bankable) manufacturer operating since 2003, which means easier project financing through banks and insurers and lower risk for commercial investors.

Trade-offs
Mono-facial, no rear-side gain

Unlike the comparable Heliene 144HC M10 NTYP SL Bifacial (595 Wp, 23.02%), the METEOR CMD-144 series is mono-facial only, ruling out additional albedo-driven energy yield in ground-mount or bright-roof installations.

Notes from the database
  • At 22.7% efficiency, this panel is on par with typical TOPCon 550-600W modules
  • At 226.7 W/m² power density, roof space requirements are typical for TOPCon 550-600W panels
  • At -0.29%/°C, hot weather performance is typical for TOPCon 550-600W panels
  • At 26.5 kg, this panel is 4.7 kg lighter than TOPCon 550-600W median (31.2 kg) - easier handling during installation
  • In the top 25% for efficiency among all TOPCon panels

Specifications

Open datasheet PDF
Nominal power (Pmax) 585 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 22.67 % Typical Segment median 22.44%
Vmpp · Impp 43.14 V · 13.56 A Operating point at max power
Voc · Isc 52.18 V · 14.47 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 2278×1133×30 mm · 2.58 m² of roof
Weight 26.5 kg Strong Strong · 4.7 kg below median
Cells 144 · TOPCon Monocrystalline
Coefficient Pmax -0.290 %/°C Typical median -0.290 of its segment
Coefficient Voc · Isc -0.250 · 0.046 %/°C
NOCT 42 °C At 800 W/m², 20 °C ambient
Product warranty 15 years Hardware defects only
Performance warranty 30 years Typical median 30 yrs · median 30 yrs
End-of-warranty output 87.4 % Equals 511 W guaranteed
Degradation 1.00 → 0.40 % First year, then annual

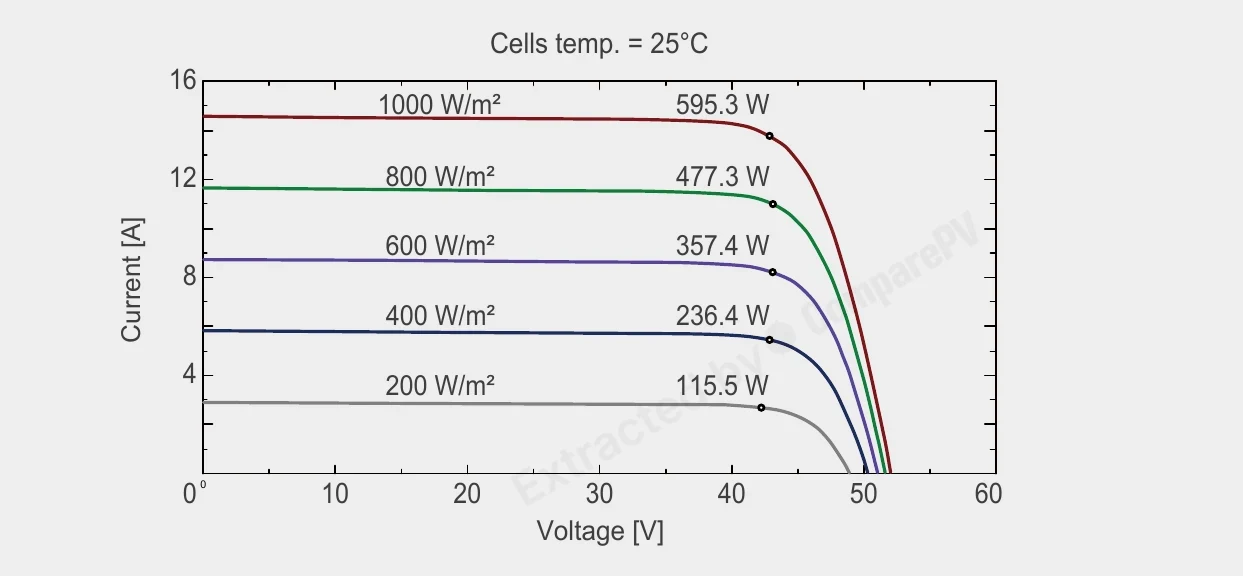

Datasheet charts

Open datasheet PDF

Measured curves published by AE Solar in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 585 Wp appear here. The rest cover the whole series.

Cells temp. = 25°C Cells temp. = 25°C Whole series

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.290 %/°C against a segment median of -0.290
-
Filter these
Size
Panel Power Eff. Temp. Weight Difference
AE Solar CMD-144-585 585 W 22.67% -0.290 26.5 kg You are here
LR7-60HVH-560M 560 W 24.80% -0.260 25.0 kg -25 W, cooler, +2.1 pp
LR7-60HVH-555M 555 W 24.60% -0.260 25.0 kg -30 W, cooler, +1.9 pp
AIKO-A635-MAE72Mw 635 W 24.60% -0.260 27.0 kg +50 W, cooler, +1.9 pp
AIKO-A630-MAH72Dw 630 W 24.40% -0.260 32.5 kg +45 W, heavier, +1.7 pp
LR7-60HVHL-550M 550 W 24.40% -0.260 16.3 kg -35 W, lighter, +1.7 pp
AE CMD-96BD 375W 375 W 14.53% -0.290 31.0 kg -210 W, heavier, -8.1 pp
AE CMD-96BD 380W 380 W 14.72% -0.290 31.0 kg -205 W, heavier, -8.0 pp
AE CMD-96BD 385W 385 W 14.92% -0.290 31.0 kg -200 W, heavier, -7.8 pp
AE CMD-96BD 390W 390 W 15.11% -0.290 31.0 kg -195 W, heavier, -7.6 pp
AE CMD-96BD 395W 395 W 15.30% -0.290 31.0 kg -190 W, heavier, -7.4 pp
AIKO-A650-MAE72Mw 650 W 25.20% -0.260 27.0 kg +65 W, cooler, +2.5 pp
AIKO-A645-MAE72Mw 645 W 25.00% -0.260 27.0 kg +60 W, cooler, +2.3 pp
AIKO-A640-MAE72Mw 640 W 24.80% -0.260 27.0 kg +55 W, cooler, +2.1 pp

Found 2327 panels of the same or similar size to this one, within ±10 mm. See them here Found 2369 panels of the same or similar size to this one, within ±25 mm. See them here Found 2383 panels of the same or similar size to this one, within ±50 mm. See them here Found 2548 panels of the same or similar size to this one, within ±100 mm. See them here

About the METEOR CMD-144 series

6 answered

These answers cover the whole series. Where a figure differs, the specification above is this module's own.

What is the maximum power output of the AE Solar METEOR CMD-144 panel?
Panels in the METEOR CMD-144 series reach a maximum power of up to 595 Wp. This is achieved through n-Type TOPCon cells in a half-cut layout, which reduce resistive losses and deliver higher energy yield than classic PERC modules, especially at high operating temperatures. Higher unit power means fewer panels are needed to reach a target system size, lowering mounting structure and labor costs.
How does the TOPCon technology in METEOR CMD-144 panels differ from PERC?
N-Type TOPCon cells feature an additional passivation layer that reduces electron recombination and increases efficiency compared to traditional p-Type PERC cells. In practice, this means better performance at high temperatures and the absence of LID and LeTID degradation, resulting in a more predictable power decline over the years. This translates into more reliable energy production and a lower LCOE over the system's lifetime.
What warranty comes with the METEOR CMD-144 panels?
AE Solar offers a 15-year product warranty along with an extended 30-year power performance warranty. This means the manufacturer guarantees a defined power output level for three decades, one of the longest terms available on the market. Such a warranty increases the financial security of the investment and makes it easier to secure bank financing for commercial installations.
Are METEOR CMD-144 panels suitable for coastal or agricultural installations?
Yes, modules in this series pass salt mist, sand, and ammonia corrosion resistance tests, making them a solid choice for installations near the sea and in agricultural settings such as livestock farms. The panel is also PID-resistant, so it retains its performance in humid, salty environments where standard panels tend to degrade faster.
Are the METEOR CMD-144 panels bifacial?
No, the METEOR CMD-144 series is only available in a mono-facial version. The panel generates energy from the front side only, unlike bifacial panels that also capture light reflected from the ground. This is a simpler solution to mount and is sufficient for most standard rooftop and ground-mount installations where albedo effects play a minor role.
Who manufactures the METEOR CMD-144 panels, and is it a reliable brand?
The METEOR CMD-144 panels are manufactured by AE Solar, a company headquartered in Germany and classified as a tier 1 manufacturer, indicating strong financial stability and bankability required for commercial-scale investments. The IP68-rated junction box and anodized aluminum frame further confirm the build quality typical of manufacturers in this category.
