580-XM+-BIFACIAL vs 530 XM 12 of 19 identical Swap Change panels

Silfab SIL-580-XM+-BIFACIAL vs Silfab SIL-530 XM

Silfab
SIL-580-XM+-BIFACIAL
580 Wp 22.40 % N-type Bifacial
Open panel page Datasheet PDF
VS

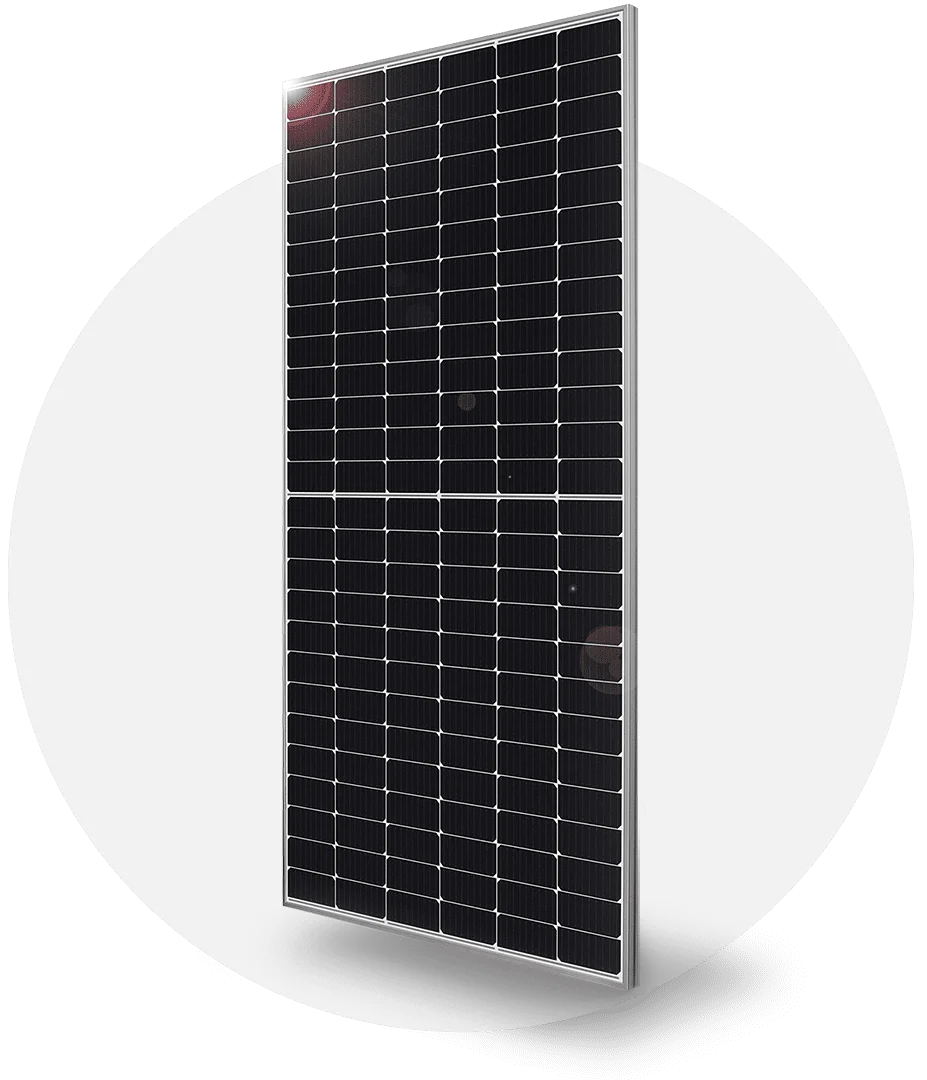

Silfab SIL-530 XM
Silfab
SIL-530 XM
530 Wp 22.30 % N-type Bifacial
Open panel page Datasheet PDF
The verdict

580-XM+-BIFACIAL leads on the differences that matter

The largest is rated power: 50 W more power. 12 of 19 comparable parameters are identical.

See all 7 differences
How alike are they
12 of 19 comparable
parameters are identical
identical differs
01

What actually differs

7 of 19 parameters
Parameter 580-XM+-BIFACIAL 530 XM Difference
Rated power 580 Wp 530 Wp 50 W more power
Open-circuit voltage 52.27 V 47.74 V 4.53 V apart
Module area 2.581 m² 2.377 m² 0.204 m² apart
Weight 28.5 kg 26.2 kg 2.3 kg lighter
Cell count 144 132 12 cells apart
Voltage at max power 44.27 V 41.05 V 3.22 V apart
Dimensions 2278x1133x35 mm 2098x1133x35 mm 2278x1133x35 mm vs 2098x1133x35 mm
02

What it means on a roof

Thirty years of production
Each panel's own declared degradation curve, at 1,200 kWh/kWp a year
Same temp coeff. for both panels (-0.290 %/°C), so a warmer roof scales both curves by the same factor: the totals fall together and neither panel gains on the other.
580-XM+-BIFACIAL
19,554 kWh
530 XM
17,785 kWh
Lifetime gap
1,769 kWh
Output when it is hot
Rated power carried across the range a module actually sees
Scenario 580-XM+-BIFACIAL 530 XM
Standard test conditions 25 °C 100.0% of rated power 580 W 530 W
Cool, bright day 40 °C 95.7% of rated power 555 W 507 W
Typical summer roof 55 °C 91.3% of rated power 530 W 484 W
Hot roof 70 °C 87.0% of rated power 504 W 461 W
03

Full specification

Parameter 580-XM+-BIFACIAL 530 XM Difference
Power and efficiency
Rated power 580 Wp 530 Wp +50 W for 580-XM+-BIFACIAL
Module efficiency 22.40 % 22.30 % Effectively the same
Power density 224.7 Wp/m² 223.0 Wp/m² Effectively the same
Open-circuit voltage 52.27 V 47.74 V 4.53 V apart
Voltage at max power 44.27 V 41.05 V 3.22 V apart
Short-circuit current 13.85 A 13.71 A Effectively the same
Current at max power 13.10 A 12.91 A Effectively the same
Temperature
Temperature coefficient -0.290 %/°C -0.290 %/°C Same
Mechanical
Dimensions 2278x1133x35 mm 2098x1133x35 mm 2278x1133x35 mm vs 2098x1133x35 mm
Module area 2.581 m² 2.377 m² 0.204 m² apart
Weight 28.5 kg 26.2 kg -2.3 kg for 530 XM
Weight per kWp 49.1 kg/kWp 49.4 kg/kWp Effectively the same
Warranty and degradation
Product warranty 25 yrs 25 yrs Same
Performance warranty 30 yrs 30 yrs Same
Annual degradation 0.30 %/yr 0.33 %/yr Effectively the same
Technology
Cell technology N-type N-type Same
Cell type Monocrystalline Monocrystalline Same
Cell count 144 132 12 cells apart
Bifacial Yes Yes Same
04

Against the whole database

14,005 panels
Efficiency
#4,774 vs #5,100
580-XM+-BIFACIAL leads by 326 places
Power density
#4,528 vs #5,094
580-XM+-BIFACIAL leads by 566 places
Heat behaviour
#2,165 vs #2,165
Tied - the same position in the database
Weight
#2,767 vs #2,957
580-XM+-BIFACIAL leads by 190 places
Warranty
#21 vs #21
Tied - the same position in the database
Overall
#2,018 vs #3,682
580-XM+-BIFACIAL leads by 1,664 places
05

More useful comparisons

Open the full database
Same series, other bin
Silfab
Silfab SIL-580-XM+-BIFACIAL vs Silfab SIL-590 XM+
3 differences, the largest is module efficiency
Same series, other bin
Silfab
Silfab SIL-580-XM+-BIFACIAL vs Silfab SIL-570 XM+ BIFACIAL
3 differences, the largest is module efficiency
Same series, other bin
Silfab
Silfab SIL-580-XM+-BIFACIAL vs Silfab SIL-570 XM+
3 differences, the largest is module efficiency
Same series, other bin
Silfab
Silfab SIL-580-XM+-BIFACIAL vs Silfab SIL-520 XM
10 differences, the largest is rated power
Same series, other bin
Silfab
Silfab SIL-580-XM+-BIFACIAL vs Silfab SIL-520 QM
11 differences, the largest is rated power
Same manufacturer
Silfab
Silfab SIL-580-XM+-BIFACIAL vs Silfab SIL-640 XL
10 differences, the largest is rated power
06

Written summary

07

Questions about this pairing

Which panel is better: Silfab SIL-580-XM+-BIFACIAL or Silfab SIL-530 XM?
According to our database: Silfab SIL-580-XM+-BIFACIAL has higher module efficiency (22.40% vs 22.30%). See the full spec comparison and 30-year energy simulation above for a complete picture.
What is the efficiency of Silfab SIL-580-XM+-BIFACIAL and Silfab SIL-530 XM?
Silfab SIL-580-XM+-BIFACIAL has a module efficiency of 22.40%, while Silfab SIL-530 XM is 22.30%. Higher efficiency means more electricity from the same roof area - useful when space is limited.
What cell technology does Silfab SIL-580-XM+-BIFACIAL use vs Silfab SIL-530 XM?
Silfab SIL-580-XM+-BIFACIAL uses N-type cells; Silfab SIL-530 XM uses N-type. Modern n-type technologies (TOPCon, HJT, BC) typically deliver higher efficiency and lower degradation compared to older PERC (p-type) cells.
What is the warranty on Silfab SIL-580-XM+-BIFACIAL and Silfab SIL-530 XM?
Silfab SIL-580-XM+-BIFACIAL has a 30 years power warranty; Silfab SIL-530 XM has a 30 years power warranty. The power warranty guarantees a minimum percentage of rated output at the end of the warranty period (typically 80-87%). Product (materials) warranties are usually shorter.
Are Silfab SIL-580-XM+-BIFACIAL and Silfab SIL-530 XM bifacial panels?
Both Silfab SIL-580-XM+-BIFACIAL and Silfab SIL-530 XM are bifacial - they capture reflected light from the ground, which can add 5-15% more annual energy on ground-mount or elevated rooftop installations with a light surface beneath.

Shop prices: See 2 Silfab offers

Every figure here is from the manufacturers' own datasheets - a dash means the value is not published, never an estimate. The thirty-year projection and the temperature scenarios are calculations from those figures, and each states its assumption above.
