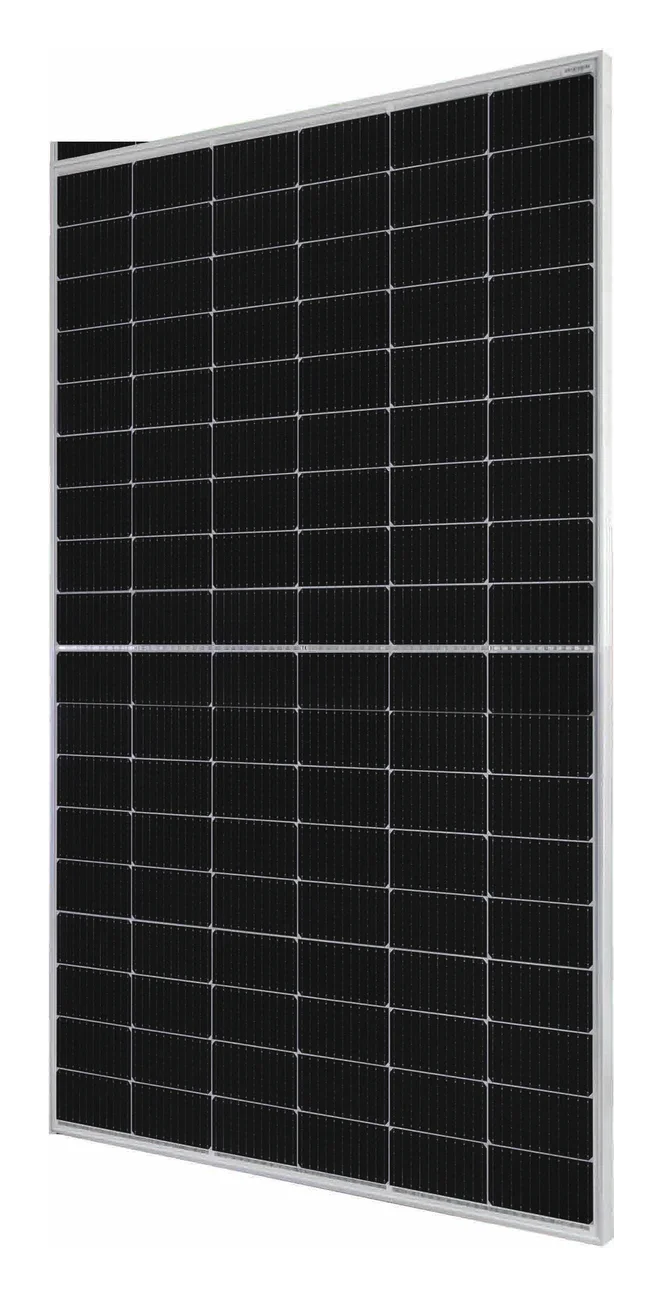

JA Solar JAM54S30-395/MR vs JA Solar JAM54S30-415/MR
VS
The verdict
415/MR leads on the differences that matter
The largest is module efficiency: 1.10 pp more efficient. 15 of 19 comparable parameters are identical.
See all 4 differencesHow alike are they
15
of 19 comparable
parameters are identical
parameters are identical
identical
differs
01
4 of 19 parameters
What actually differs
Parameter
395/MR
415/MR
Difference
Module efficiency
20.20 %
21.30 %
1.10 pp more efficient
Power density
202.3 Wp/m²
212.5 Wp/m²
10.2 Wp/m² higher
Rated power
395 Wp
415 Wp
20 W more power
Weight per kWp
49.4 kg/kWp
47.0 kg/kWp
2.4 kg/kWp lighter
02
What it means on a roof
Thirty years of production
Each panel's own declared degradation curve, at 1,200 kWh/kWp a year
Same temp coeff. for both panels (-0.350 %/°C), so a warmer roof scales both curves by the same factor: the totals fall together and neither panel gains on the other.
395/MR
12,802 kWh
415/MR
13,450 kWh
Lifetime gap
648 kWh
Output when it is hot
Rated power carried across the range a module actually sees
Scenario
395/MR
415/MR
Standard test conditions
25 °C
100.0% of rated power
395 W
415 W
Cool, bright day
40 °C
94.8% of rated power
374 W
393 W
Typical summer roof
55 °C
89.5% of rated power
354 W
371 W
Hot roof
70 °C
84.2% of rated power
333 W
350 W
03
Full specification
Parameter
395/MR
415/MR
Difference
Power and efficiency
Rated power
395 Wp
415 Wp
+20 W for 415/MR
Module efficiency
20.20 %
21.30 %
+1.10 pp for 415/MR
Power density
202.3 Wp/m²
212.5 Wp/m²
+10.2 Wp/m² for 415/MR
Open-circuit voltage
36.98 V
37.45 V
Effectively the same
Voltage at max power
30.84 V
31.61 V
Effectively the same
Short-circuit current
13.70 A
14.02 A
Effectively the same
Current at max power
12.81 A
13.13 A
Effectively the same
Temperature
Temperature coefficient
-0.350 %/°C
-0.350 %/°C
Same
Mechanical
Dimensions
1722x1134x30 mm
1722x1134x30 mm
Same
Module area
1.953 m²
1.953 m²
Same
Weight
19.5 kg
19.5 kg
Same
Weight per kWp
49.4 kg/kWp
47.0 kg/kWp
-2.4 kg/kWp for 415/MR
Warranty and degradation
Product warranty
12 yrs
12 yrs
Same
Performance warranty
25 yrs
25 yrs
Same
Annual degradation
0.55 %/yr
0.55 %/yr
Same
Technology
Cell technology
PERC
PERC
Same
Cell type
Monocrystalline
Monocrystalline
Same
Cell count
108
108
Same
Bifacial
No
No
Same
04
14,005 panels
Against the whole database
Efficiency
#11,956
vs
#8,519
415/MR leads by 3,437 places
Power density
#11,887
vs
#8,791
415/MR leads by 3,096 places
Heat behaviour
#10,419
vs
#10,419
Tied - the same position in the database
Weight
#2,878
vs
#1,446
415/MR leads by 1,432 places
Warranty
#9,798
vs
#9,798
Tied - the same position in the database
Overall
#12,239
vs
#11,313
415/MR leads by 926 places
05
Open the full database
More useful comparisons
Same series, other bin
JA Solar JAM54S30-395/MR vs JA Solar JAM54S30-410/MR
3 differences, the largest is module efficiency
Same series, other bin
JA Solar JAM54S30-395/MR vs JA Solar JAM54S30-405/MR
3 differences, the largest is module efficiency
Same series, other bin
JA Solar JAM54S30-395/MR vs JA Solar JAM54S30-400/MR
One difference: module efficiency
Same series, other bin
JA Solar JAM54S30-395/MR vs JA Solar JAM54S30-390/MR
One difference: module efficiency
Same manufacturer
JA Solar JAM54S30-395/MR vs JA Solar JAM66D46-740/LB
17 differences, the largest is module efficiency
Same manufacturer
JA Solar JAM54S30-395/MR vs JA Solar JAM66D46-735/LB
17 differences, the largest is module efficiency
06
Written summary
Checking cache...
07
Questions about this pairing
Which panel is better: JA Solar JAM54S30-395/MR or JA Solar JAM54S30-415/MR?
According to our database: JA Solar JAM54S30-415/MR has higher module efficiency (21.30% vs 20.20%). See the full spec comparison and 30-year energy simulation above for a complete picture.
What is the efficiency of JA Solar JAM54S30-395/MR and JA Solar JAM54S30-415/MR?
JA Solar JAM54S30-395/MR has a module efficiency of 20.20%, while JA Solar JAM54S30-415/MR is 21.30%. Higher efficiency means more electricity from the same roof area - useful when space is limited.
What cell technology does JA Solar JAM54S30-395/MR use vs JA Solar JAM54S30-415/MR?
JA Solar JAM54S30-395/MR uses PERC cells; JA Solar JAM54S30-415/MR uses PERC. Modern n-type technologies (TOPCon, HJT, BC) typically deliver higher efficiency and lower degradation compared to older PERC (p-type) cells.
What is the warranty on JA Solar JAM54S30-395/MR and JA Solar JAM54S30-415/MR?
JA Solar JAM54S30-395/MR has a 25 years power warranty; JA Solar JAM54S30-415/MR has a 25 years power warranty. The power warranty guarantees a minimum percentage of rated output at the end of the warranty period (typically 80-87%). Product (materials) warranties are usually shorter.
Shop prices: See 390 JA Solar offers
Every figure here is from the manufacturers' own datasheets - a dash means the value is not published, never an estimate. The thirty-year projection and the temperature scenarios are calculations from those figures, and each states its assumption above.
