Waaree Brand review

BiN-08-545

545 Wp TOPCon Bifacial 80%
ComparePV verdict

Middle of its segment, modest efficiency

Rank 7,424 of 14,005
Compare panels Datasheet PDF
Power (Wp)
545
Strong · top 2%
Efficiency (%)
21.09
Weak · bottom 5%
Density (Wp/m²)
210.9
Weak · bottom 5%
Temp (%/°C)
-0.300
Weak · bottom 20%
Weight (kg)
32.0
Weak · 5.0 kg above median
Warranty (yrs)
30
Typical · median 30 yrs

The Waaree Elite Series N TOPCon Technology redefines efficiency standards in modern photovoltaic installations, basing its design on advanced N-type cells. Thanks to the use of innovative TOPCon technology, these panels are characterized by the almost complete elimination of the LID phenomenon and excellent resistance to UV radiation, which directly translates into significantly higher energy yields throughout the entire thirty-year system life cycle. This solution effectively addresses the problem of limited mounting space, offering the highest power density and a faster return on investment. A key differentiator of the series is its exceptional efficiency in low-light conditions, which in the specific Polish climate allows for effective electricity generation in the morning, evening, and during heavy cloud cover. Additionally, a very low temperature coefficient ensures the modules operate stably during summer heat, limiting losses resulting from cell heating. This product, featuring enhanced resistance to micro-cracks and mechanical loads, is an ideal choice for demanding prosumers and commercial farms focused on maximizing self-consumption and durability. Compared to the competition, the Elite series stands out with an excellent bifaciality factor and technology that guarantees stable electrical parameters for decades, providing a secure foundation for any investment in renewable energy sources.

Ranking

432 panels in the segment TOPCon 500-550 W
Metric This panel Median Position in segment Overall rank
Module efficiency 21.09% 22.73% Weak · bottom 5% 9,519
Power density 210.9 227.4 Weak · bottom 5% 9,399
Temperature coefficient -0.300 -0.290 Weak · bottom 20% 6,093
Weight per kWp 58.7 52.4 Weak · bottom 5% 11,844
Performance warranty 30 yrs 30 yrs Typical 21
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

0 positive · 3 caution
Best for

Commercial, utility-scale, hot-climate and shaded-installations.

Not ideal for

Tight roof space, roofs where every square metre has to count and weight-limited structures.

Watch-outs
21.09% module efficiency

Bottom 5% of the TOPCon 500-550 W segment, against a median of 22.73%. Ranked 9,519th in the whole database.

210.9 watts per square metre

Bottom 5% of the TOPCon 500-550 W segment, against a median of 227.4. Ranked 9,399th in the whole database.

58.7 kg per kWp

Bottom 5% of the TOPCon 500-550 W segment, against a median of 52.4. Ranked 11,844th in the whole database.

Notes from the database
  • At 21.1% efficiency, this panel is 1.6pp below the TOPCon 500-550W median of 22.7%
  • At 210.9 W/m², this panel generates 16.5 W/m² less per unit area than TOPCon 500-550W median (227.4 W/m²)
  • Temperature coefficient of -0.30%/°C matches the TOPCon 500-550W median
  • Weight of 32.0 kg is 5.0 kg above TOPCon 500-550W median (27.0 kg) - verify structural support
  • Bifaciality factor of 80% can add 4-12% extra yield with reflective mounting surface

Specifications

Open datasheet PDF
Nominal power (Pmax) 545 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 21.09 % Weak Segment median 22.73%
Vmpp · Impp 41.40 V · 13.17 A Operating point at max power
Voc · Isc 50.10 V · 13.93 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 2279×1134×35 mm · 2.58 m² of roof
Weight 32.0 kg Weak Weak · 5.0 kg above median
Cells 144 · TOPCon Monocrystalline
Bifaciality 80 % Rear output as a share of front
Coefficient Pmax -0.300 %/°C Weak bottom 20% of its segment
Coefficient Voc · Isc -0.250 · 0.046 %/°C
NOCT 44 °C At 800 W/m², 20 °C ambient
Product warranty 12 years Hardware defects only
Performance warranty 30 years Typical median 30 yrs · median 30 yrs
End-of-warranty output 87.4 % Equals 476 W guaranteed
Degradation 1.00 → 0.40 % First year, then annual

Datasheet charts

Open datasheet PDF

Measured curves published by Waaree in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 545 Wp appear here. The rest cover the whole series.

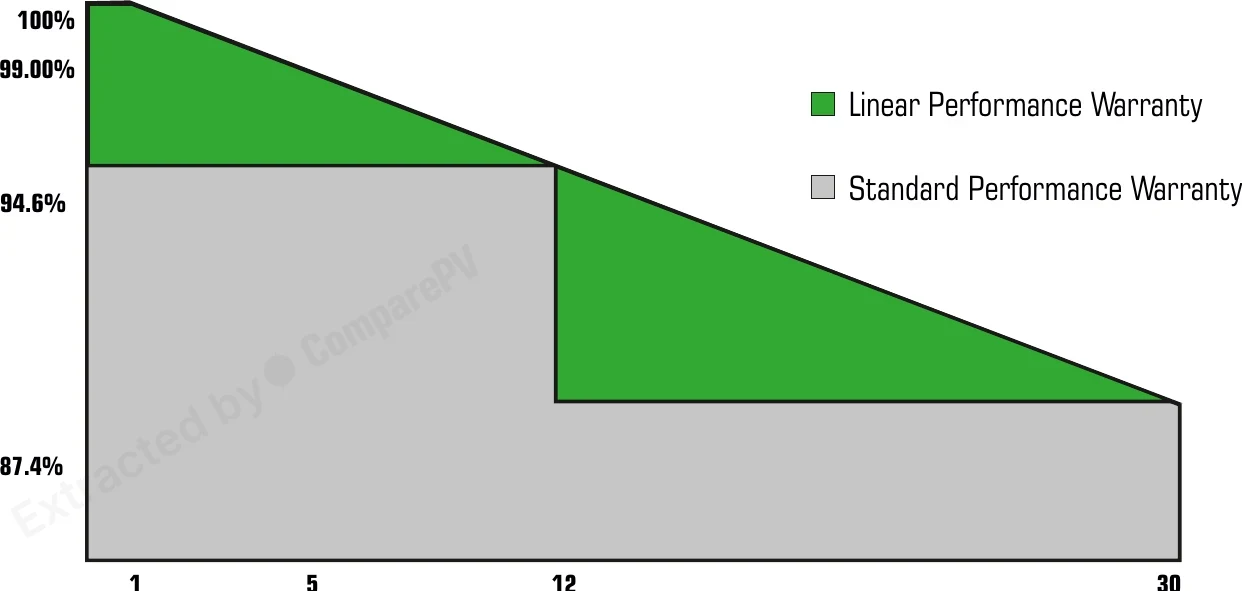

Linear Performance Warranty vs Standard Performance Warranty Linear Performance Warranty vs Standard Performance Warranty Whole series

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-
With bifacial gain
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.300 %/°C against a segment median of -0.290
-
Bifacial gain
Rear gain over light concrete: -
-

Model: bifaciality × albedo × 0.6 view factor. A first-order estimate, not a yield simulation.

Filter these
Size
Panel Power Eff. Temp. Weight Difference
Waaree BiN-08-545 545 W 21.09% -0.300 32.0 kg You are here
LR7-54HJD-510M 510 W 25.00% -0.240 23.5 kg Cooler, lighter, +3.9 pp
AIKO-A495-MCE54Mw 495 W 24.80% -0.260 21.0 kg -50 W, lighter, +3.7 pp
LR7-60HVH-560M 560 W 24.80% -0.260 25.0 kg Cooler, lighter, +3.7 pp
LR7-54HJD-505M 505 W 24.70% -0.240 23.5 kg Cooler, lighter, +3.6 pp
LR7-60HVH-555M 555 W 24.60% -0.260 25.0 kg Cooler, lighter, +3.5 pp
LR7-54HJD-500M 500 W 24.50% -0.240 23.5 kg Cooler, lighter, +3.4 pp
Bi-55-515 515 W 20.01% -0.350 32.5 kg -30 W, hotter, -1.1 pp
Bi-55-520 520 W 20.20% -0.350 32.5 kg -25 W, hotter, -0.9 pp
WSMD-525 525 W 20.39% -0.350 27.5 kg Hotter, lighter, -0.7 pp
Bi-55-530 530 W 20.59% -0.350 32.5 kg -15 W, hotter, -0.5 pp
AIKO-A650-MAE72Mw 650 W 25.20% -0.260 27.0 kg +105 W, lighter, +4.1 pp
AIKO-A645-MAE72Mw 645 W 25.00% -0.260 27.0 kg +100 W, lighter, +3.9 pp
AIKO-A640-MAE72Mw 640 W 24.80% -0.260 27.0 kg +95 W, lighter, +3.7 pp
AIKO-A635-MAE72Mw 635 W 24.60% -0.260 27.0 kg +90 W, lighter, +3.5 pp
AIKO-A630-MAH72Dw 630 W 24.40% -0.260 32.5 kg +85 W, cooler, +3.3 pp

Found 2326 panels of the same or similar size to this one, within ±10 mm. See them here Found 2368 panels of the same or similar size to this one, within ±25 mm. See them here Found 2382 panels of the same or similar size to this one, within ±50 mm. See them here Found 2542 panels of the same or similar size to this one, within ±100 mm. See them here

Common questions

6 answered
What is TOPCon technology in Waaree Elite Series N panels and how does it differ from standard PERC cells?
TOPCon (Tunnel Oxide Passivated Contact) is an N-type cell technology with an additional passivation layer that reduces electron recombination and increases conversion efficiency compared to conventional P-type PERC cells. In practice, this means higher power output from the same panel surface, virtually no LID degradation, and more stable electrical parameters throughout the system's 30-year lifespan.
Are Waaree Elite Series N panels bifacial, and how much extra energy can they generate?
Yes, the Elite N TOPCon series uses bifacial cells that capture light on both the front and rear glass surfaces. The energy gain depends on the installation setup — with a reflective surface underneath (such as white gravel or a metal roof) and adequate ground clearance, you can expect a few to over ten percent higher annual yield compared to a monofacial panel of the same rated power.
What warranty comes with the Waaree Elite Series N TOPCon 560 Wp panels?
The manufacturer provides a 12-year product warranty covering material and workmanship defects, along with a 30-year linear power output warranty. This means that even after three decades of operation, the panel is expected to retain a significant share of its original rated power, giving investors long-term confidence in the system's profitability.
Do Waaree Elite Series N panels perform well in cloudy, low-irradiance climates like Poland?
Yes, this series is known for strong low-light performance, which matters in climates with frequent cloud cover and shorter daylight hours in autumn and winter. The panels effectively generate power in early morning, late afternoon, and diffuse-light conditions, resulting in more consistent energy production throughout the year rather than only on clear summer days.
How do Waaree Elite N panels perform during hot summer weather?
This series features a low temperature coefficient of power, meaning it loses less output as cell temperature rises compared to standard PERC modules. In practice, on hot, sunny days when the roof and panel surface heat up significantly, the power drop is smaller, resulting in higher real-world energy production during summer months.
Is Waaree a Tier 1 manufacturer, and where are Elite Series N panels made?
Yes, Waaree Energies holds Tier 1 manufacturer status, confirming financial stability and proven experience in large-scale module production. The company is headquartered in India and is one of the country's largest solar panel manufacturers, supplying both the domestic market and exports to Europe and the US, which supports warranty servicing and spare parts availability.
