Ulica Solar Brand review

UL-500M-120BHVN

500 Wp TOPCon
ComparePV verdict

Light for its output, no clear weak spot

Rank 6,372 of 14,005
Compare panels Datasheet PDF
Power (Wp)
500
Weak · bottom 10%
Efficiency (%)
22.59
Typical · median 22.73%
Density (Wp/m²)
225.9
Typical · median 227.4
Temp (%/°C)
-0.290
Typical · median -0.290
Weight (kg)
22.5
Strong · 4.5 kg below median
Warranty (yrs)
30
Typical · median 30 yrs

The Ulica Solar Black Jade series is primarily elegance combined with state-of-the-art cell technology. These panels stand out with their deep black color, making them blend perfectly into modern roof architecture. Thanks to the use of N-type technology, the modules offer higher efficiency and better resistance to light-induced degradation, which translates into stable energy gains for decades. They solve the problem of aesthetics, which often conflicts with functionality, by providing a product of the highest visual class without compromising on power. Exceptional resistance to extreme weather conditions makes Black Jade panels a safe choice for installations exposed to strong winds or snow loads. This series is dedicated mainly to demanding private investors who care about the prestigious appearance of their home and maximizing self-consumption. Compared to the competition, Black Jade offers an excellent temperature coefficient, allowing for efficient operation even on hot days. Choosing this series is an investment in an innovative half-cut cell structure, which minimizes energy losses resulting from shading, ensuring smooth system operation in difficult installation conditions. This is a premium-class solution that effectively combines long-term durability with reliability.

Ranking

432 panels in the segment TOPCon 500-550 W
Metric This panel Median Position in segment Overall rank
Module efficiency 22.59% 22.73% Typical 3,825
Power density 225.9 227.4 Typical 3,718
Temperature coefficient -0.290 -0.290 Typical 2,165
Weight per kWp 45.0 52.4 Strong · top 4% 574
Performance warranty 30 yrs 30 yrs Typical 21
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

1 positive · 0 caution
Best for

Residential, shaded-installations and hot-climate.

Strengths
45.0 kg per kWp

Top 4% of the TOPCon 500-550 W segment, against a median of 52.4. Ranked 574th in the whole database.

Notes from the database
  • Efficiency of 22.6% matches the TOPCon 500-550W median
  • At 225.9 W/m² power density, roof space requirements are typical for TOPCon 500-550W panels
  • At -0.29%/°C, hot weather performance is typical for TOPCon 500-550W panels
  • At 22.5 kg, this panel is 4.5 kg lighter than TOPCon 500-550W median (27.0 kg) - easier handling during installation
  • #3825 for efficiency, #2165 for temperature performance out of 14005 panels

Specifications

Open datasheet PDF
Nominal power (Pmax) 500 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 22.59 % Typical Segment median 22.73%
Vmpp · Impp 37.02 V · 13.51 A Operating point at max power
Voc · Isc 43.78 V · 14.48 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 1952×1134×30 mm · 2.21 m² of roof
Weight 22.5 kg Strong Strong · 4.5 kg below median
Cells 120 · TOPCon Monocrystalline
Coefficient Pmax -0.290 %/°C Typical median -0.290 of its segment
Coefficient Voc · Isc -0.250 · 0.046 %/°C
NOCT 43 °C At 800 W/m², 20 °C ambient
Product warranty 15 years Hardware defects only
Performance warranty 30 years Typical median 30 yrs · median 30 yrs
End-of-warranty output 87.4 % Equals 437 W guaranteed
Degradation 1.00 → 0.40 % First year, then annual

Datasheet charts

Open datasheet PDF

Measured curves published by Ulica Solar in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 500 Wp appear here. The rest cover the whole series.

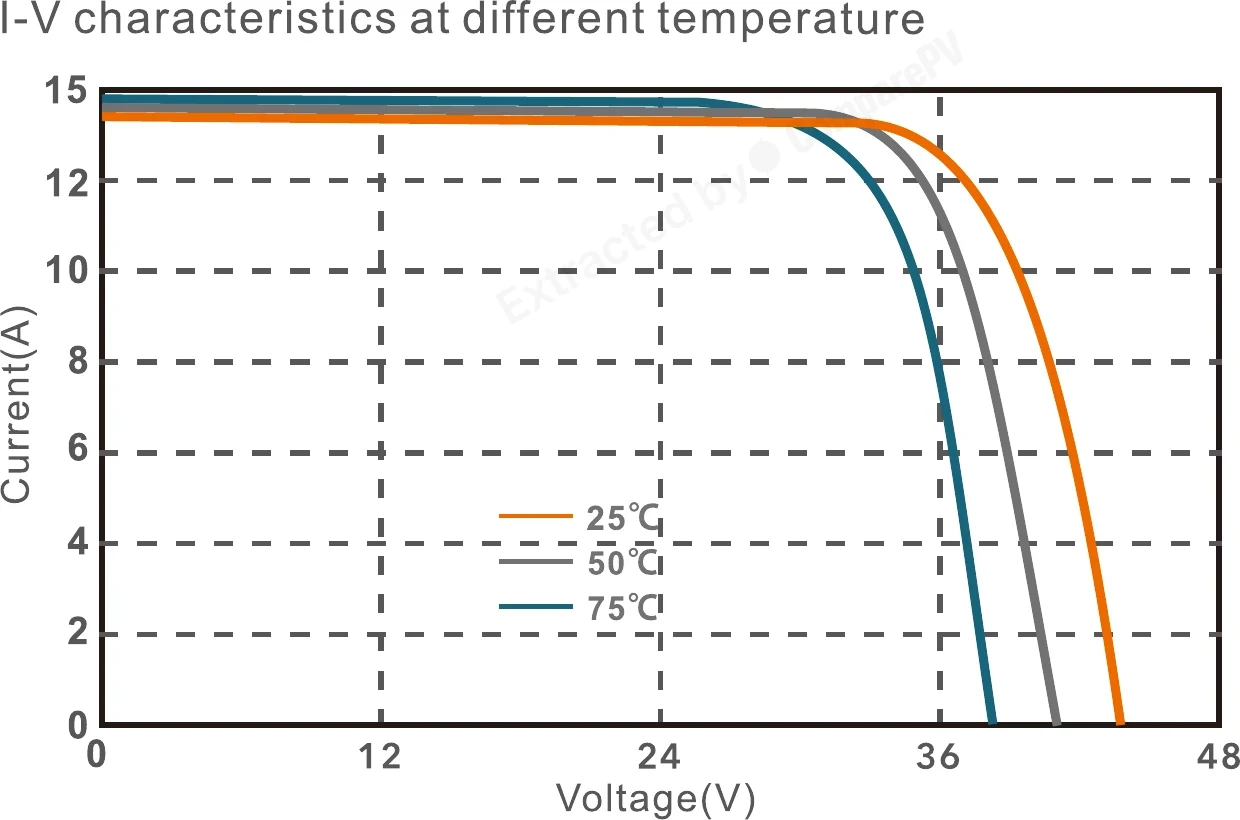

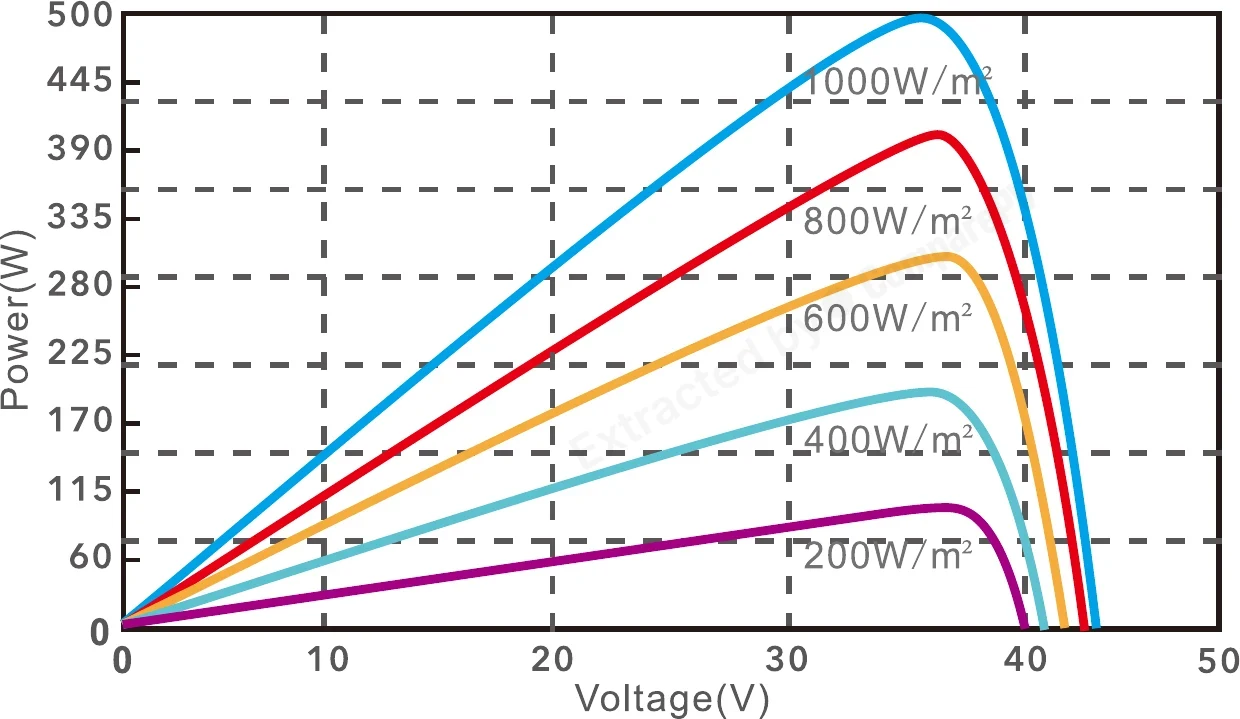

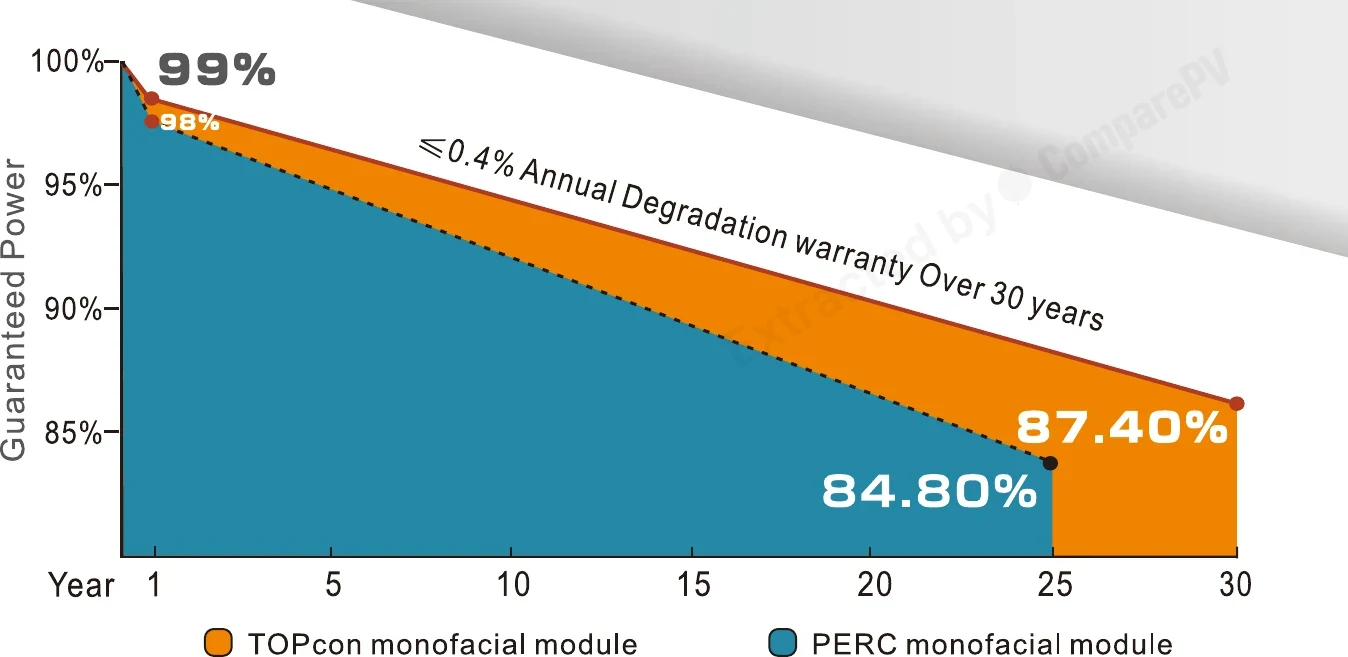

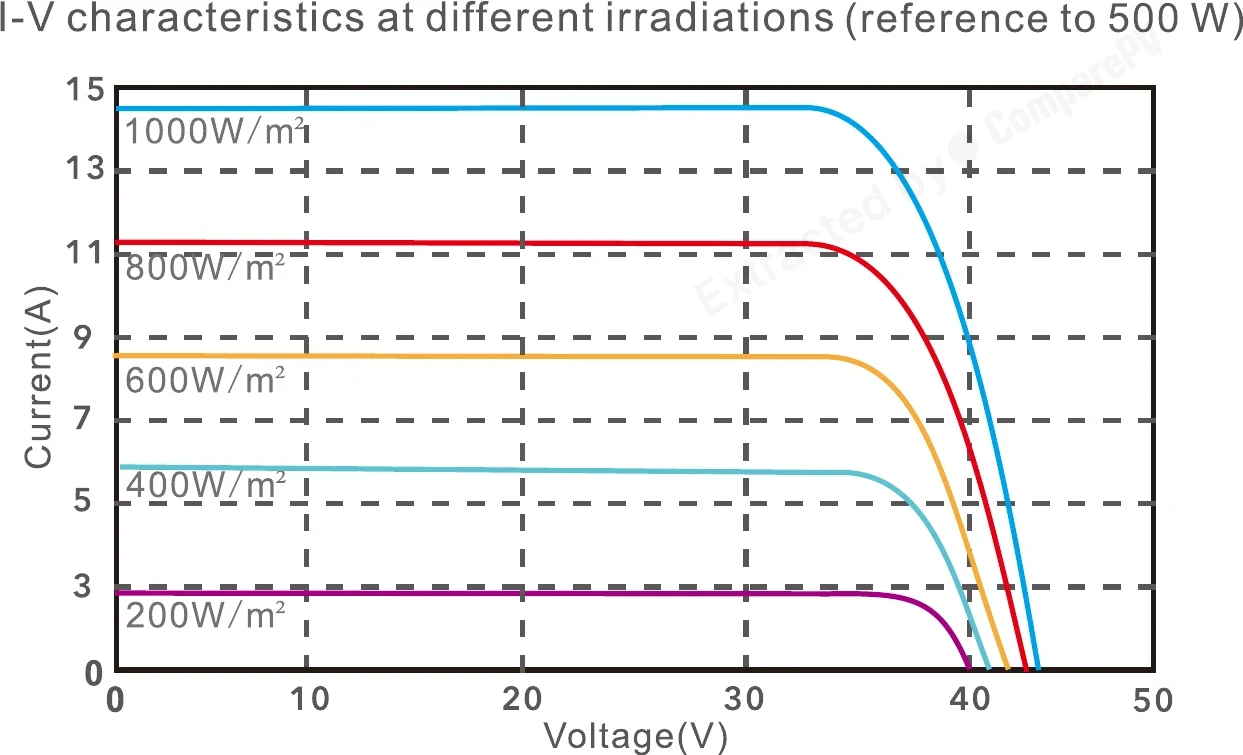

Linear Power Output Warranty Over 30 Years (≤0.4% Annual Degradation) Linear Power Output Warranty Over 30 Years (≤0.4% Annual Degradation) Whole series I-V characteristics at different irradiations (reference to 500 W) I-V characteristics at different irradiations (reference to 500 W) 500 W P-V characteristics at different irradiations P-V characteristics at different irradiations Whole series I-V characteristics at different temperature I-V characteristics at different temperature Whole series

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.290 %/°C against a segment median of -0.290
-
Filter these
Size
Panel Power Eff. Temp. Weight Difference
Ulica Solar UL-500M-120BHVN 500 W 22.59% -0.290 22.5 kg You are here
LR7-54HJD-510M 510 W 25.00% -0.240 23.5 kg +10 W, cooler, +2.4 pp
AIKO-A495-MCE54Mw 495 W 24.80% -0.260 21.0 kg Cooler, lighter, +2.2 pp
LR7-54HJD-505M 505 W 24.70% -0.240 23.5 kg Cooler, heavier, +2.1 pp
AIKO-A490-MCE54Mw 490 W 24.50% -0.260 21.0 kg Cooler, lighter, +1.9 pp
LR7-54HJD-500M 500 W 24.50% -0.240 23.5 kg Cooler, heavier, +1.9 pp
CIPRO-TN9C54M-500W 500 W 24.50% -0.260 21.4 kg Cooler, lighter, +1.9 pp
UL-490M-120BDGN 490 W 22.14% -0.290 26.5 kg -10 W, heavier, -0.4 pp
UL-495M-120BDGN 495 W 22.36% -0.290 26.5 kg Heavier, -0.2 pp
UL-505M-120BDGN 505 W 22.81% -0.290 26.5 kg Heavier, +0.2 pp
LR7-60HVH-560M 560 W 24.80% -0.260 25.0 kg +60 W, cooler, +2.2 pp
LR7-60HVH-555M 555 W 24.60% -0.260 25.0 kg +55 W, cooler, +2.0 pp
LR7-60HVHL-550M 550 W 24.40% -0.260 16.3 kg +50 W, lighter, +1.8 pp
JAT60S40-540/LR 540 W 24.40% -0.260 23.5 kg +40 W, cooler, +1.8 pp
GK-5-60HG-540M 540 W 24.40% -0.260 23.3 kg +40 W, cooler, +1.8 pp
JKM545-54QL6-DV-F1-EU 545 W 24.27% -0.260 27.5 kg +45 W, heavier, +1.7 pp
LR7-60HVH-545M 545 W 24.20% -0.260 25.0 kg +45 W, cooler, +1.6 pp

Found 488 panels of the same or similar size to this one, within ±10 mm. See them here Found 507 panels of the same or similar size to this one, within ±25 mm. See them here Found 1350 panels of the same or similar size to this one, within ±50 mm. See them here Found 1469 panels of the same or similar size to this one, within ±100 mm. See them here

Common questions

6 answered
What's the difference between TOPCon technology in Ulica Solar Black Jade panels and older PERC cells?
The N-type TOPCon cells used in the Black Jade series feature an additional passivation layer on the rear side of the cell, which reduces electron recombination and boosts efficiency compared to P-type PERC cells. In practice, this means higher power output from the same module area, lower light-induced degradation (LID), and more stable performance throughout the module's lifetime, even under the high temperatures typical of a sun-exposed roof in summer.
What warranty comes with the Ulica Solar Black Jade Series panels?
The manufacturer backs the Black Jade series with a 15-year product warranty covering material and workmanship defects, plus a 30-year linear power output warranty. This means that after three decades of use, the panel should still deliver a guaranteed percentage of its initial rated power, making this series an attractive long-term investment for residential installations where a stable return over the panel's lifetime matters.
Are Black Jade panels bifacial, capturing extra energy from reflected light?
No, the Ulica Solar Black Jade series consists of monofacial panels. The manufacturer prioritized a uniform, deep-black front surface that blends aesthetically with roofs, at the cost of harvesting additional energy through the rear side. If maximizing yield for a ground-mount or facade installation is your priority, consider the bifacial counterparts of this series in the manufacturer's lineup.
What is the maximum power output of the Ulica Solar Black Jade series?
The top modules in the Black Jade series reach a maximum power of up to 505 Wp. Combined with a standard module footprint, this rating delivers a high power density per square meter of roof, which matters for single-family homes with limited roof area, where every extra watt from the same mounting space directly affects the achievable system size.
Can Ulica Solar Black Jade panels withstand strong wind and heavy snow loads?
Yes, the Black Jade modules are engineered for enhanced mechanical strength, backed by certified climate load ratings. They perform reliably in installations exposed to strong wind gusts and heavy winter snow accumulation, both common in the Polish climate. The reinforced frame and laminate structure minimize the risk of cell microcracks under high mechanical loads acting on the module surface.
Is Ulica Solar a Tier 1 manufacturer, and is it a trustworthy brand?
Ulica Solar is a Chinese PV module manufacturer operating since 2005, though it does not currently appear on the BloombergNEF Tier 1 list, a ranking based mainly on bank financing scale rather than product quality itself. In practice, Black Jade panels hold full IEC quality certifications and long-term warranties, making them a solid choice for residential installations at a reasonable price point.
