Ulica Solar Brand review

UL-500M-120BDGN

500 Wp TOPCon Bifacial
ComparePV verdict

Solid all-round for its segment

Rank 6,518 of 14,005
Compare panels Datasheet PDF
Power (Wp)
500
Weak · bottom 10%
Efficiency (%)
22.59
Typical · median 22.73%
Density (Wp/m²)
225.9
Typical · median 227.4
Temp (%/°C)
-0.290
Typical · median -0.290
Weight (kg)
26.5
Typical · median 27.0 kg
Warranty (yrs)
30
Typical · median 30 yrs

The Ulica Solar Black Jade-Flow (TOPCon N-type) 490-505W series is designed for investors who want to maximize energy production from a limited roof or ground-mounted surface, without compromising on durability. The use of TOPCon N-type cells helps maintain high efficiency over time and performs better in high-temperature conditions, which is particularly important in the summer on dark roof surfaces. A key feature of this series is Cutting Free technology - the non-cutting design reduces the risk of microcracks, ensuring long-term stability. Additionally, the modules have Anti-PID resistance, making them less susceptible to performance degradation in demanding installations and during long-term operation. The entire series is completed by sleek, aesthetic finish, which looks great on modern homes and premium buildings. This is a sensible choice for residential installations, small businesses, and projects where reliability, appearance, and predictable output are important.

Ranking

432 panels in the segment TOPCon 500-550 W
Metric This panel Median Position in segment Overall rank
Module efficiency 22.59% 22.73% Typical 3,825
Power density 225.9 227.4 Typical 3,718
Temperature coefficient -0.290 -0.290 Typical 2,165
Weight per kWp 53.0 52.4 Typical 6,725
Performance warranty 30 yrs 30 yrs Typical 21
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

0 positive · 0 caution
Best for

Residential, commercial and hot-climate.

Notes from the database
  • Efficiency of 22.6% matches the TOPCon 500-550W median
  • Power density of 225.9 W/m² matches the TOPCon 500-550W median
  • At -0.29%/°C, hot weather performance is typical for TOPCon 500-550W panels
  • In the top 27% for efficiency among all TOPCon panels

Specifications

Open datasheet PDF
Nominal power (Pmax) 500 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 22.59 % Typical Segment median 22.73%
Vmpp · Impp 37.02 V · 13.51 A Operating point at max power
Voc · Isc 43.78 V · 14.48 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 1952×1134×30 mm · 2.21 m² of roof
Weight 26.5 kg Typical Typical · median 27.0 kg
Cells 120 · TOPCon Monocrystalline
Coefficient Pmax -0.290 %/°C Typical median -0.290 of its segment
Coefficient Voc · Isc -0.250 · 0.046 %/°C
NOCT 43 °C At 800 W/m², 20 °C ambient
Product warranty 15 years Hardware defects only
Performance warranty 30 years Typical median 30 yrs · median 30 yrs
End-of-warranty output 87.4 % Equals 437 W guaranteed
Degradation 1.00 → 0.40 % First year, then annual

Datasheet charts

Open datasheet PDF

Measured curves published by Ulica Solar in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 500 Wp appear here. The rest cover the whole series.

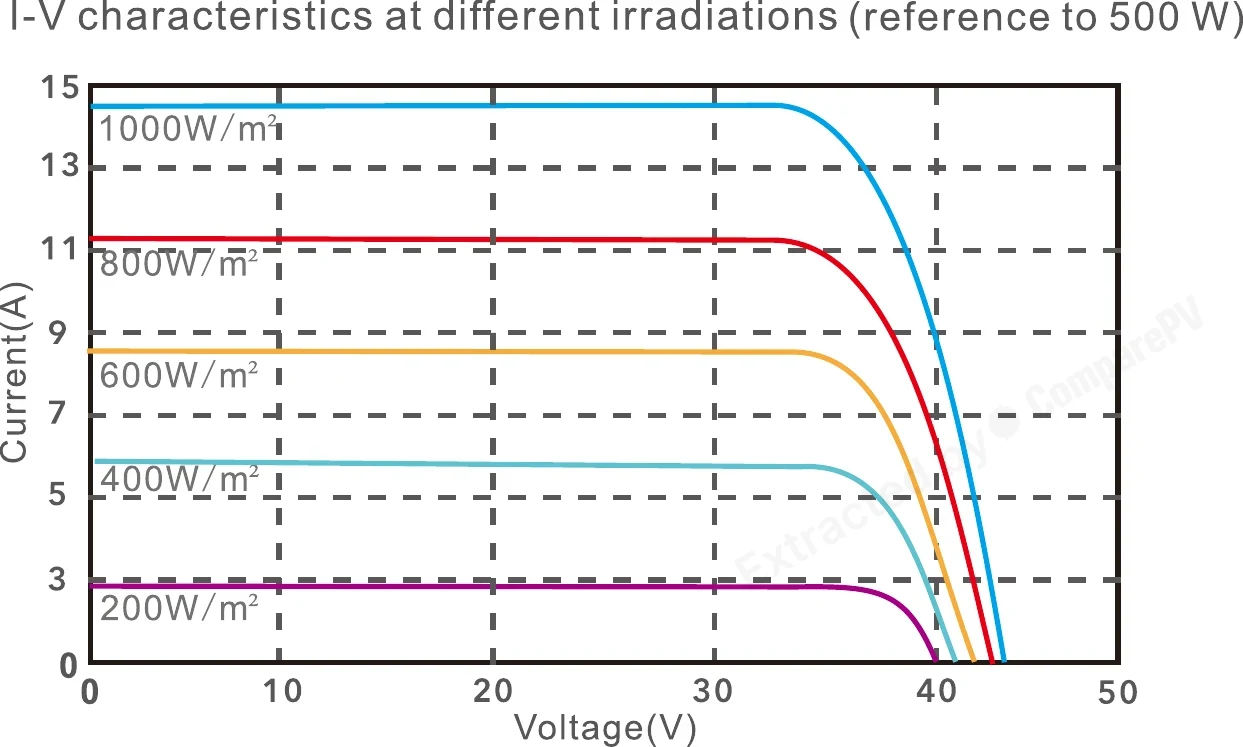

30-year Linear Power Warranty (Guaranteed Power Degradation) 30-year Linear Power Warranty (Guaranteed Power Degradation) Whole series I-V characteristics at different irradiations (reference to 500 W) I-V characteristics at different irradiations (reference to 500 W) 500 W I-V characteristics at different temperature I-V characteristics at different temperature Whole series

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.290 %/°C against a segment median of -0.290
-
Filter these
Size
Panel Power Eff. Temp. Weight Difference
Ulica Solar UL-500M-120BDGN 500 W 22.59% -0.290 26.5 kg You are here
LR7-54HJD-510M 510 W 25.00% -0.240 23.5 kg Cooler, lighter, +2.4 pp
AIKO-A495-MCE54Mw 495 W 24.80% -0.260 21.0 kg Cooler, lighter, +2.2 pp
LR7-54HJD-505M 505 W 24.70% -0.240 23.5 kg Cooler, lighter, +2.1 pp
AIKO-A490-MCE54Mw 490 W 24.50% -0.260 21.0 kg Cooler, lighter, +1.9 pp
LR7-54HJD-500M 500 W 24.50% -0.240 23.5 kg Cooler, lighter, +1.9 pp
CIPRO-TN9C54M-500W 500 W 24.50% -0.260 21.4 kg Cooler, lighter, +1.9 pp
UL-490M-120BDGN 490 W 22.14% -0.290 26.5 kg -10 W, -0.4 pp
UL-495M-120BDGN 495 W 22.36% -0.290 26.5 kg -0.2 pp
UL-505M-120BDGN 505 W 22.81% -0.290 26.5 kg +0.2 pp
LR7-60HVH-560M 560 W 24.80% -0.260 25.0 kg +60 W, cooler, +2.2 pp
LR7-60HVH-555M 555 W 24.60% -0.260 25.0 kg +55 W, cooler, +2.0 pp
LR7-60HVHL-550M 550 W 24.40% -0.260 16.3 kg +50 W, lighter, +1.8 pp
JAT60S40-540/LR 540 W 24.40% -0.260 23.5 kg +40 W, lighter, +1.8 pp
GK-5-60HG-540M 540 W 24.40% -0.260 23.3 kg +40 W, lighter, +1.8 pp
JKM545-54QL6-DV-F1-EU 545 W 24.27% -0.260 27.5 kg +45 W, cooler, +1.7 pp
LR7-60HVH-545M 545 W 24.20% -0.260 25.0 kg +45 W, cooler, +1.6 pp

Found 488 panels of the same or similar size to this one, within ±10 mm. See them here Found 507 panels of the same or similar size to this one, within ±25 mm. See them here Found 1350 panels of the same or similar size to this one, within ±50 mm. See them here Found 1469 panels of the same or similar size to this one, within ±100 mm. See them here

Common questions

6 answered
Are Ulica Solar Black Jade-Flow panels bifacial, and is that worth paying for?
Yes, Black Jade-Flow modules use a double-glass bifacial construction - the rear side of the cells also captures light reflected off the roof, ground, or a bright surface. This delivers extra energy yield, especially on light-colored surfaces, ground-mount racking, or flat roofs with gravel or white PVC membranes. On a typical pitched roof with dark tiles the bifacial gain is smaller, but the dual-glass design still improves mechanical durability and long-term reliability.
What is Cutting Free technology in Ulica Solar panels, and is it worth choosing?
Cutting Free means the silicon cells are not laser-cut in half, unlike standard half-cut modules. This removes the risk of microcracks that form during the cutting process and can later develop into hot spots and power loss. As a result, the panel maintains a more stable energy yield throughout its lifetime, which matters especially given the 30-year linear power warranty offered on this series.
What warranty applies to Ulica Solar Black Jade-Flow panels?
The Black Jade-Flow series comes with a 15-year product warranty covering material and workmanship defects, plus a 30-year linear power output warranty. That means the manufacturer guarantees a defined minimum power level even three decades into operation, which is standard for modern TOPCon N-type panels and helps you calculate long-term ROI more accurately.
Are the 505W Black Jade-Flow panels suitable for a small pitched roof?
Yes, the high per-module power (up to 505 Wp) makes this series well suited to limited roof space, since you can reach a higher system power with fewer panels. TOPCon N-type cell technology also handles high temperatures better on hot, sun-exposed, dark roof surfaces in summer, and the black finish blends well with the look of a typical pitched roof.
How do the TOPCon N-type cells in Black Jade-Flow differ from standard PERC cells?
TOPCon N-type cells have a lower temperature- and light-induced degradation rate than older P-type PERC cells, so they hold higher efficiency for longer, particularly in summer on a heated roof. These modules also feature Anti-PID resistance, meaning they're less prone to potential-induced degradation, which can be an issue in systems with higher system voltage or in humid climates.
Is Ulica Solar a Tier 1 manufacturer, and is it a trustworthy brand?
Ulica Solar is a Chinese manufacturer that is not currently on the BloombergNEF Tier 1 list, but it has been operating in the market for years and backs its modules with industry-standard warranties - 15 years on the product and 30 years on power output. Tier 1 status mainly reflects access to bank financing for utility-scale projects rather than module quality directly, so it shouldn't be the sole selection criterion for residential or small commercial installations.
