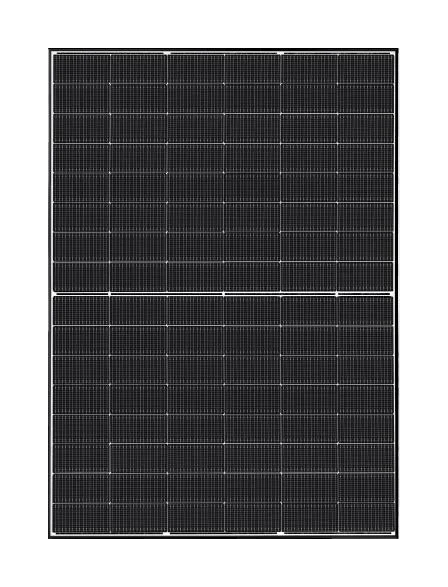

Suntech STP440S-H48-Nth+
Suntech Brand review

STP440S-H48-Nth+

440 Wp TOPCon Bifacial 80%
ComparePV verdict

Solid all-round for its segment

Rank 7,094 of 14,005
Compare panels Datasheet PDF
Power (Wp)
440
Typical for its class
Efficiency (%)
22.00
Typical · median 22.00%
Density (Wp/m²)
220.2
Typical · median 220.2
Temp (%/°C)
-0.290
Typical · median -0.290
Weight (kg)
21.5
Typical · median 22.0 kg
Warranty (yrs)
30
Typical · median 30 yrs

Suntech Ultra V Pro mini (Transparent Black Glass-Glass Bifacial Module) are modules designed for installations where aesthetics, durability, and real energy yield matter. What sets them apart is the Transparent Black finish - an elegant, cohesive visual design easily adaptable to modern roofs and architectural projects compared to traditional panels with contrasting grid lines. The glass-glass construction with thin glass panels enhances moisture and micro-crack resistance while simultaneously reducing roof load - a key advantage for older roof structures and lightweight coverings.

N-type TOPCon cells help minimize performance degradation over time and maintain efficiency under typical rooftop operating conditions. The half-cut technology increases resilience to partial shading (chimneys, window frames, antennas), translating to more stable energy production. Thanks to the bifacial design, the module can harness reflected light, making it ideal for bright roofs, facades, carports, and ground-mounted systems where high albedo provides additional gain.

Ranking

1,218 panels in the segment TOPCon 400-450 W
Metric This panel Median Position in segment Overall rank
Module efficiency 22.00% 22.00% Typical 6,517
Power density 220.2 220.2 Typical 6,328
Temperature coefficient -0.290 -0.290 Typical 2,165
Weight per kWp 48.9 51.4 Typical 2,535
Performance warranty 30 yrs 30 yrs Typical 21
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Price offers

1 from shops we track
Shop Country Price Per kWp Stock Offer updated
solarbatterysupermarket.com.au Australia 179 A$ incl. VAT 406.82 A$/kWp In stock 9h ago Visit shop

Signals from the data

0 positive · 0 caution
Best for

Residential, commercial, shaded-installations and BIPV.

Notes from the database
  • Efficiency of 22.0% matches the TOPCon 400-450W median
  • At 220.2 W/m² power density, roof space requirements are typical for TOPCon 400-450W panels
  • At -0.29%/°C, hot weather performance is typical for TOPCon 400-450W panels
  • Bifacial design (80% factor) captures reflected light - adds 4-12% yield on ground-mount or white roof
  • Ranked #6517 out of 14005 panels for efficiency in the database

Specifications

Open datasheet PDF
Nominal power (Pmax) 440 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 22.00 % Typical Segment median 22.00%
Vmpp · Impp 28.97 V · 15.19 A Operating point at max power
Voc · Isc 35.29 V · 15.85 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 1762×1134×30 mm · 2.00 m² of roof
Weight 21.5 kg Typical Typical · median 22.0 kg
Cells 96 · TOPCon Monocrystalline
Bifaciality 80 % Rear output as a share of front
Coefficient Pmax -0.290 %/°C Typical median -0.290 of its segment
Coefficient Voc · Isc -0.250 · 0.046 %/°C
NOCT 42 °C At 800 W/m², 20 °C ambient
Product warranty 25 years Hardware defects only
Performance warranty 30 years Typical median 30 yrs · median 30 yrs
End-of-warranty output 87.4 % Equals 385 W guaranteed
Degradation 1.00 → 0.40 % First year, then annual

Datasheet charts

Open datasheet PDF

Measured curves published by Suntech in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 440 Wp appear here. The rest cover the whole series.

Linear Performance Warranty (Power Degradation over 30 Years) Linear Performance Warranty (Power Degradation over 30 Years) Whole series Current-Voltage and Power-Voltage Curves Current-Voltage and Power-Voltage Curves Whole series

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-
With bifacial gain
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.290 %/°C against a segment median of -0.290
-
Bifacial gain
Rear gain over light concrete: -
-

Model: bifaciality × albedo × 0.6 view factor. A first-order estimate, not a yield simulation.

Filter these
Size
Panel Power Eff. Temp. Weight Difference
Suntech STP440S-H48-Nth+ 440 W 22.00% -0.290 21.5 kg You are here
AIKO-A490-MCE54Mw 490 W 24.50% -0.260 21.0 kg +50 W, cooler, +2.5 pp
STP-NT11/48QGSF-490 490 W 24.50% -0.260 21.5 kg +50 W, cooler, +2.5 pp
JAT54S40-485/LR 485 W 24.30% -0.260 19.3 kg +45 W, cooler, +2.3 pp
AIKO-A485-MCE54Mw 485 W 24.30% -0.260 21.0 kg +45 W, cooler, +2.3 pp
AIKO-A485-MAH54Mw 485 W 24.30% -0.260 21.5 kg +45 W, cooler, +2.3 pp
GK-5-54HG-485M 485 W 24.30% -0.260 21.0 kg +45 W, cooler, +2.3 pp
ZEUS 3.0+ 108 485WP 485 W 24.30% -0.260 24.2 kg +45 W, cooler, +2.3 pp
STP430S-H48-Nfb 430 W 21.50% -0.290 21.5 kg -10 W, -0.5 pp
STP435S-H48-Nfb 435 W 21.80% -0.290 21.5 kg Very close match
LR7-54HJD-510M 510 W 25.00% -0.240 23.5 kg +70 W, cooler, +3.0 pp
AIKO-A495-MCE54Mw 495 W 24.80% -0.260 21.0 kg +55 W, cooler, +2.8 pp
LR7-54HJD-505M 505 W 24.70% -0.240 23.5 kg +65 W, cooler, +2.7 pp
LR7-54HJD-500M 500 W 24.50% -0.240 23.5 kg +60 W, cooler, +2.5 pp
CIPRO-TN9C54M-500W 500 W 24.50% -0.260 21.4 kg +60 W, cooler, +2.5 pp

Found 1395 panels of the same or similar size to this one, within ±10 mm. See them here Found 1425 panels of the same or similar size to this one, within ±25 mm. See them here Found 3614 panels of the same or similar size to this one, within ±50 mm. See them here Found 3962 panels of the same or similar size to this one, within ±100 mm. See them here

About the Ultra V Pro mini (Transparent Black Glass-Glass Bifacial Module) series

6 answered

These answers cover the whole series. Where a figure differs, the specification above is this module's own.

How much power does the Suntech Ultra V Pro mini deliver and who is it suited for?
The module reaches a maximum power output of 440 Wp, allowing high energy yield from a limited roof area with fewer panels. Thanks to N-type TOPCon cells and bifacial construction, it works well for both residential rooftop installations and ground-mount or carport projects, where the extra gain from reflected light adds real value.
What's the difference between the bifacial technology in the Ultra V Pro mini and a standard monofacial panel?
A bifacial module generates electricity from both the front and rear side, capturing light reflected off the roof, facade, or bright ground surfaces. In practice this means additional energy yield, especially noticeable on light-colored surfaces, ground-mount systems, or elevated mounting structures, compared to conventional monofacial panels.
What warranty comes with the Suntech Ultra V Pro mini panels?
The manufacturer provides a 25-year product warranty and a 30-year linear power output warranty. This means that even after three decades of use, the panel should still deliver a significant share of its original power output, supporting a predictable long-term return on investment.
Is the glass-glass construction of the Ultra V Pro mini heavier and does it require roof reinforcement?
No, despite having two glass layers, the glass-glass module uses thinner glass than traditional glass-backsheet designs, keeping the weight increase minimal. This makes the panel safe for older roof trusses and lightweight roofing, while also improving resistance to moisture ingress and microcracks compared to standard construction.
Does the Transparent Black design suit modern homes without compromising performance compared to classic panels?
Transparent Black offers a uniform black finish without a visible grid pattern between cells, blending better with modern architecture than panels with a contrasting frame. The aesthetic doesn't affect electrical performance - the module still uses TOPCon cells, half-cut technology, and bifacial construction, so it retains full energy efficiency.
How do TOPCon cells and half-cut technology affect performance under partial shading?
Half-cut technology splits cells into smaller segments, so shading part of the panel (for example from a chimney or antenna) has less impact on the output of the entire module. N-type TOPCon cells also degrade more slowly over time, together resulting in more stable and predictable energy yield throughout the panel's service life.
