SunLink Brand review

SL5N108D-450W

450 Wp TOPCon Bifacial 2500%
ComparePV verdict

Middle of its segment, weak in heat

Rank 8,443 of 14,005
Compare panels Datasheet PDF
Power (Wp)
450
Weak · bottom 9%
Efficiency (%)
22.50
Typical · median 22.52%
Density (Wp/m²)
225.2
Typical · median 225.2
Temp (%/°C)
-0.300
Weak · bottom 20%
Weight (kg)
23.0
Typical · median 24.0 kg
Warranty (yrs)
30
Typical · median 30 yrs

The SunLink SL5N108D series is designed to maximize energy yield in installations where every square meter counts. The use of N-type cells in TOPCon technology minimizes typical degradation-related losses and helps maintain stable performance for years, even under demanding temperature conditions. The modules utilize a Half-Cell design, which improves performance under partial shading and facilitates high production in real roof conditions.

A key feature of the series is its bifacial architecture, which allows for the recovery of additional energy from the rear side - particularly when installed on light surfaces, flat roofs, and ground-mounted structures. The use of a multi-busbar connection design (SMBB) increases resistance to microcracks and improves reliability over the long term.

SL5N108D is a good choice for homes, businesses, and prosumer installations that require high efficiency, better shading tolerance, and predictable yields without compromising on quality.

Ranking

1,089 panels in the segment TOPCon 450-500 W
Metric This panel Median Position in segment Overall rank
Module efficiency 22.50% 22.52% Typical 4,222
Power density 225.2 225.2 Typical 4,225
Temperature coefficient -0.300 -0.290 Weak · bottom 20% 6,093
Weight per kWp 51.1 52.2 Typical 4,436
Performance warranty 30 yrs 30 yrs Typical 21
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

0 positive · 1 caution
Best for

Residential, commercial and shaded-installations.

Not ideal for

Hot climates.

Watch-outs
-0.300 %/°C temperature coefficient

Bottom 20% of the TOPCon 450-500 W segment, against a median of -0.290.

Notes from the database
  • Efficiency of 22.5% matches the TOPCon 450-500W median
  • At 225.2 W/m² power density, roof space requirements are typical for TOPCon 450-500W panels
  • Temperature coefficient of -0.30%/°C matches the TOPCon 450-500W median
  • Weight of 23.0 kg is typical for TOPCon 450-500W panels
  • Ranked #4222 out of 14005 panels for efficiency in the database

Specifications

Open datasheet PDF
Nominal power (Pmax) 450 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 22.50 % Typical Segment median 22.52%
Vmpp · Impp 32.82 V · 13.71 A Operating point at max power
Voc · Isc 39.70 V · 14.49 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 1762×1134×30 mm · 2.00 m² of roof
Weight 23.0 kg Typical Typical · median 24.0 kg
Cells 108 · TOPCon Monocrystalline
Bifaciality 2500 % Rear output as a share of front
Coefficient Pmax -0.300 %/°C Weak bottom 20% of its segment
Coefficient Voc · Isc -0.260 · 0.046 %/°C
Product warranty 15 years Hardware defects only
Performance warranty 30 years Typical median 30 yrs · median 30 yrs
End-of-warranty output 87.4 % Equals 393 W guaranteed
Degradation 1.00 → 0.40 % First year, then annual

Datasheet charts

Open datasheet PDF

Measured curves published by SunLink in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 450 Wp appear here. The rest cover the whole series.

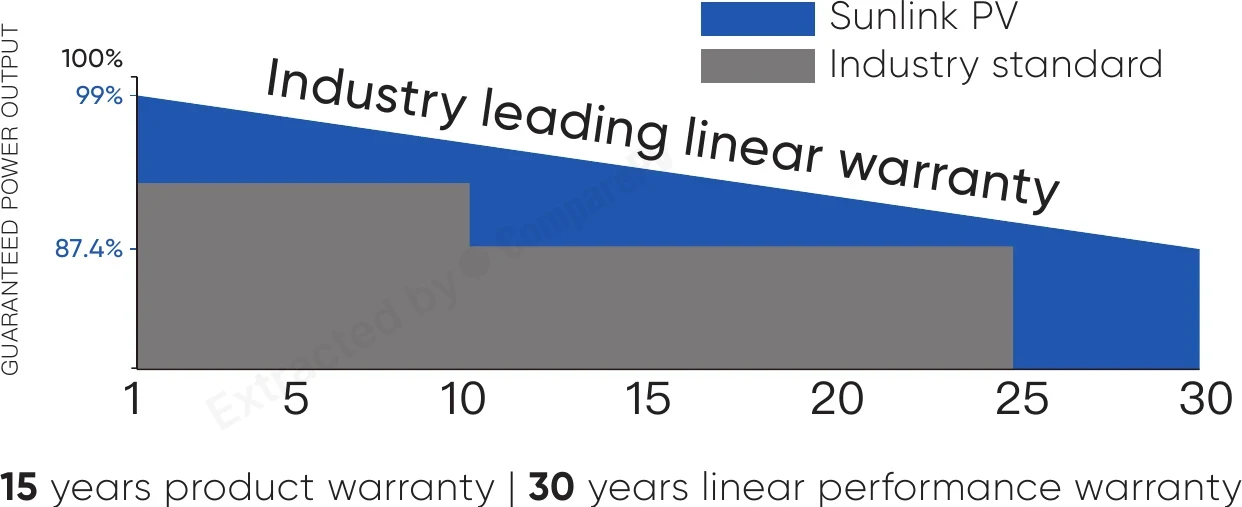

Industry Leading Linear Warranty (Guaranteed Power Output) Industry Leading Linear Warranty (Guaranteed Power Output) Whole series

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-
With bifacial gain
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.300 %/°C against a segment median of -0.290
-
Bifacial gain
Rear gain over light concrete: -
-

Model: bifaciality × albedo × 0.6 view factor. A first-order estimate, not a yield simulation.

Filter these
Size
Panel Power Eff. Temp. Weight Difference
SunLink SL5N108D-450W 450 W 22.50% -0.300 23.0 kg You are here
AIKO-A495-MCE54Mw 495 W 24.80% -0.260 21.0 kg +45 W, cooler, +2.3 pp
AIKO-A490-MCE54Mw 490 W 24.50% -0.260 21.0 kg +40 W, cooler, +2.0 pp
LR7-54HJD-500M 500 W 24.50% -0.240 23.5 kg +50 W, cooler, +2.0 pp
CIPRO-TN9C54M-500W 500 W 24.50% -0.260 21.4 kg +50 W, cooler, +2.0 pp
GK-3-54HGb-500M 500 W 24.50% -0.260 21.4 kg +50 W, cooler, +2.0 pp
GCL-NR10R/54BGDF 500 W 24.50% -0.260 24.6 kg +50 W, cooler, +2.0 pp
SL5N108-440W 440 W 22.00% -0.300 22.0 kg -10 W, lighter, -0.5 pp
SL5N108-445W 445 W 22.30% -0.300 22.0 kg Lighter
SL5N108D-455W 455 W 22.80% -0.300 23.0 kg +0.3 pp
LR7-54HJD-510M 510 W 25.00% -0.240 23.5 kg +60 W, cooler, +2.5 pp
LR7-54HJD-505M 505 W 24.70% -0.240 23.5 kg +55 W, cooler, +2.2 pp

Found 1395 panels of the same or similar size to this one, within ±10 mm. See them here Found 1425 panels of the same or similar size to this one, within ±25 mm. See them here Found 3614 panels of the same or similar size to this one, within ±50 mm. See them here Found 3962 panels of the same or similar size to this one, within ±100 mm. See them here

Common questions

6 answered
What warranty does the SunLink SL5N108D panel carry?
The SL5N108D comes with a 15-year product warranty and a 30-year linear power output warranty. The power warranty guarantees a minimum performance level over three decades — one of the longer output guarantees available on the market. This reflects the manufacturer's confidence in the long-term stability of the TOPCon cell technology used in this series.
Do the SL5N108D panels perform well under partial shading?
Yes, the half-cut cell design in the SL5N108D series significantly reduces power losses caused by partial shading. Splitting each cell in half lowers internal resistance and limits the shadow impact on the full module. The SMBB multi-busbar technology further distributes current across more conductive pathways, improving resilience against typical rooftop obstacles such as chimneys, dormers, or antennas.
What benefit does the bifacial design of the SunLink SL5N108D provide?
Bifacial modules capture solar energy from both the front and rear sides. When installed over a reflective surface — such as a white membrane on a flat roof, gravel, or light-colored ground — the rear side collects reflected irradiance and boosts overall energy yield. The bifacial gain is most pronounced in ground-mount systems and flat-roof installations with adequate substrate albedo.
How do the TOPCon cells in the SL5N108D differ from standard PERC cells?
TOPCon is an N-type cell technology that exhibits lower light-induced degradation (LID) and better long-term power stability compared to P-type PERC cells. In practical terms, the SL5N108D loses less power during the first years of operation and handles high operating temperatures more efficiently, resulting in a higher actual energy yield across the full 30-year service life.
Are the SunLink SL5N108D panels suitable for ground-mount installations?
Yes, the SL5N108D series is an especially strong choice for ground-mount systems. The bifacial architecture allows the rear side to harvest reflected light from the ground surface — sand, gravel, or grass can increase energy yield by several percentage points over a monofacial module. Confirm that the module's mechanical certifications match the structural requirements of your mounting system before installation.
What is the output of the SL5N108D panel and how many modules does a typical home need?
The SL5N108D has a peak output of 455 Wp. A typical single-family home consuming 4,000–5,000 kWh per year generally requires 10–14 modules, yielding a system size of roughly 4.5 to 6.4 kWp. The exact number depends on roof orientation, available roof area, and local solar irradiance — consult a certified installer to size the system accurately.
