Sunlike Solar SKT490M12-108D4
Sunlike Solar Brand review

SKT490M12-108D4

490 Wp N-type Bifacial 100%
ComparePV verdict

Middle of its segment, needs the roof space

Rank 7,475 of 14,005
Compare panels Datasheet PDF
Power (Wp)
490
Strong · top 13%
Efficiency (%)
22.03
Weak · bottom 20%
Density (Wp/m²)
220.3
Weak · bottom 19%
Temp (%/°C)
-0.290
Typical · median -0.290
Weight (kg)
23.9
Typical · median 23.7 kg
Warranty (yrs)
30
Typical · median 30 yrs

Sunlike Solar panels from the SKT490-510M12-108D4 series are an advanced solution based on N-Type TOPCon cells, which provide significantly higher efficiency compared to older technologies. Thanks to the use of bifacial technology, i.e., double-sided energy generation, these modules maximize yield per square meter of surface area, which is crucial when installation space is limited. The use of large M12 silicon wafers allows for achieving high unit power while maintaining the compact dimensions of the 108-cell design. This solves the problem of mounting structure costs, as a smaller number of modules generates the same system power. This series stands out with a low temperature coefficient, which makes the panels operate stably even on hot days, minimizing energy losses. The product is dedicated to both prosumer and commercial installations, where long-term durability and resistance to LID and LeTID degradation matter. Compared to the competition, Sunlike Solar offers an excellent price-to-performance ratio, using double tempered glass, which guarantees excellent mechanical protection and resistance to harsh weather conditions. It is an investment in energy stability and a faster return on investment.

Ranking

301 panels in the segment N-type 450-500 W
Metric This panel Median Position in segment Overall rank
Module efficiency 22.03% 22.52% Weak · bottom 20% 6,306
Power density 220.3 225.2 Weak · bottom 19% 6,276
Temperature coefficient -0.290 -0.290 Typical 2,165
Weight per kWp 48.8 49.5 Typical 2,456
Performance warranty 30 yrs 30 yrs Typical 21
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

0 positive · 2 caution
Best for

Residential, commercial and hot-climate.

Not ideal for

Roofs where every square metre has to count and tight roof space.

Watch-outs
220.3 watts per square metre

Bottom 19% of the N-type 450-500 W segment, against a median of 225.2.

22.03% module efficiency

Bottom 20% of the N-type 450-500 W segment, against a median of 22.52%.

Notes from the database
  • Efficiency of 22.0% matches the N-type 450-500W median
  • Power density of 220.3 W/m² is 4.8 W/m² below N-type 450-500W median (225.2 W/m²) - needs more roof space
  • Temperature coefficient of -0.29%/°C matches the N-type 450-500W median
  • 100% bifaciality enables rear-side power generation, boosting yield by 5-15% on reflective surfaces
  • Ranked #6306 out of 14005 panels for efficiency in the database

Specifications

Open datasheet PDF
Nominal power (Pmax) 490 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 22.03 % Weak Segment median 22.52%
Vmpp · Impp 32.88 V · 14.90 A Operating point at max power
Voc · Isc 39.52 V · 15.80 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 1961×1134×30 mm · 2.22 m² of roof
Weight 23.9 kg Typical Typical · median 23.7 kg
Cells 108 · N-type Monocrystalline
Bifaciality 100 % Rear output as a share of front
Coefficient Pmax -0.290 %/°C Typical median -0.290 of its segment
Coefficient Voc · Isc -0.250 · 0.045 %/°C
NOCT 45 °C At 800 W/m², 20 °C ambient
Product warranty 15 years Hardware defects only
Performance warranty 30 years Typical median 30 yrs · median 30 yrs
End-of-warranty output 87.4 % Equals 428 W guaranteed
Degradation 1.00 → 0.40 % First year, then annual

Datasheet charts

Open datasheet PDF

Measured curves published by Sunlike Solar in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 490 Wp appear here. The rest cover the whole series.

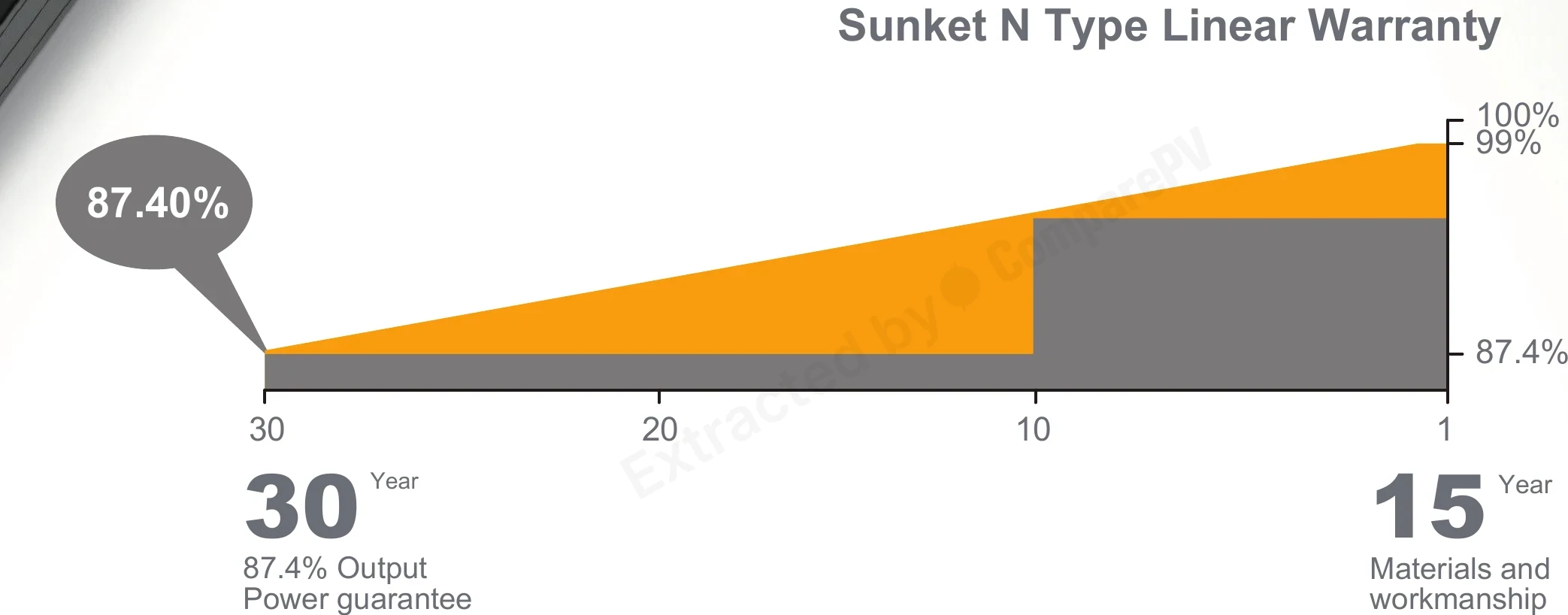

Sunket N Type Linear Warranty Sunket N Type Linear Warranty Whole series

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-
With bifacial gain
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.290 %/°C against a segment median of -0.290
-
Bifacial gain
Rear gain over light concrete: -
-

Model: bifaciality × albedo × 0.6 view factor. A first-order estimate, not a yield simulation.

Filter these
Size
Panel Power Eff. Temp. Weight Difference
Sunlike Solar SKT490M12-108D4 490 W 22.03% -0.290 23.9 kg You are here
LR7-54HJD-510M 510 W 25.00% -0.240 23.5 kg +20 W, cooler, +3.0 pp
AIKO-A495-MCE54Mw 495 W 24.80% -0.260 21.0 kg Cooler, lighter, +2.8 pp
LR7-54HJD-505M 505 W 24.70% -0.240 23.5 kg +15 W, cooler, +2.7 pp
AIKO-A490-MCE54Mw 490 W 24.50% -0.260 21.0 kg Cooler, lighter, +2.5 pp
LR7-54HJD-500M 500 W 24.50% -0.240 23.5 kg +10 W, cooler, +2.5 pp
CIPRO-TN9C54M-500W 500 W 24.50% -0.260 21.4 kg Cooler, lighter, +2.5 pp
SKT495M12-108D4 495 W 22.26% -0.290 23.9 kg +0.2 pp
SKT500M12-108D4 500 W 22.48% -0.290 23.9 kg +10 W, +0.4 pp
SKT505M12-108D4 505 W 22.71% -0.290 23.9 kg +15 W, +0.7 pp
SKT510M12-108D4 510 W 22.93% -0.290 23.9 kg +20 W, +0.9 pp
LR7-60HVH-560M 560 W 24.80% -0.260 25.0 kg +70 W, cooler, +2.8 pp
LR7-60HVH-555M 555 W 24.60% -0.260 25.0 kg +65 W, cooler, +2.6 pp
LR7-60HVHL-550M 550 W 24.40% -0.260 16.3 kg +60 W, lighter, +2.4 pp
JAT60S40-540/LR 540 W 24.40% -0.260 23.5 kg +50 W, cooler, +2.4 pp
GK-5-60HG-540M 540 W 24.40% -0.260 23.3 kg +50 W, cooler, +2.4 pp
JKM545-54QL6-DV-F1-EU 545 W 24.27% -0.260 27.5 kg +55 W, heavier, +2.2 pp

Found 471 panels of the same or similar size to this one, within ±10 mm. See them here Found 508 panels of the same or similar size to this one, within ±25 mm. See them here Found 662 panels of the same or similar size to this one, within ±50 mm. See them here Found 1471 panels of the same or similar size to this one, within ±100 mm. See them here

Common questions

6 answered
Is the Sunlike Solar SKT490-510M12-108D4 series still available for purchase?
The SKT490-510M12-108D4 series has been discontinued and is being replaced by the manufacturer's newer models. Units may still be available from distributors as remaining stock, though quantities are limited. For larger installations, it's worth confirming availability of the required number of modules with matching batch numbers from your supplier beforehand.
How does the N-type TOPCon technology in this series differ from classic PERC panels?
The N-type TOPCon cells used in the SKT490-510M12-108D4 series offer higher conversion efficiency and significantly lower degradation over time than older P-type PERC cells. An additional tunnel oxide layer reduces electron recombination, resulting in higher energy yield, especially under high temperature and irradiance, plus longer real-world system lifespan.
How much extra energy do I really gain from the bifacial technology in these panels?
Dual-side generation in the bifacial SKT490-510M12-108D4 series can yield an additional 5-20% energy from the rear side, depending on ground albedo, mounting height, and tilt angle. Best results are achieved over bright, reflective surfaces such as gravel or white roofing, and with ground-mount structures that provide sufficient clearance beneath the module.
What warranty comes with the Sunlike Solar SKT490-510M12-108D4 series?
The manufacturer offers a 15-year product warranty covering material and workmanship defects, plus a 30-year linear power output warranty. This means that even after three decades of operation, the module should retain a guaranteed, high percentage of its original rated power, making this series a solid long-term investment.
Do the large M12 wafers and 108-cell layout make this panel too heavy or large for a pitched roof?
Modules built on M12 wafers in a 108-cell configuration have a larger surface area and higher power output than standard panels, meaning fewer modules and less mounting hardware are needed to reach the same system power. Before installing on a pitched roof, it's important to check roof load capacity and module dimensions, as the larger size may require extra care during transport and mounting.
How does the SKT490-510M12-108D4 series perform in summer heat on a hot roof?
This series features a low temperature coefficient, typical of N-type TOPCon cells, which limits power loss during heat waves compared to older P-type technologies. As a result, the panels deliver a more stable energy yield on hot summer days, when the module surface temperature on a roof can significantly exceed ambient air temperature.
