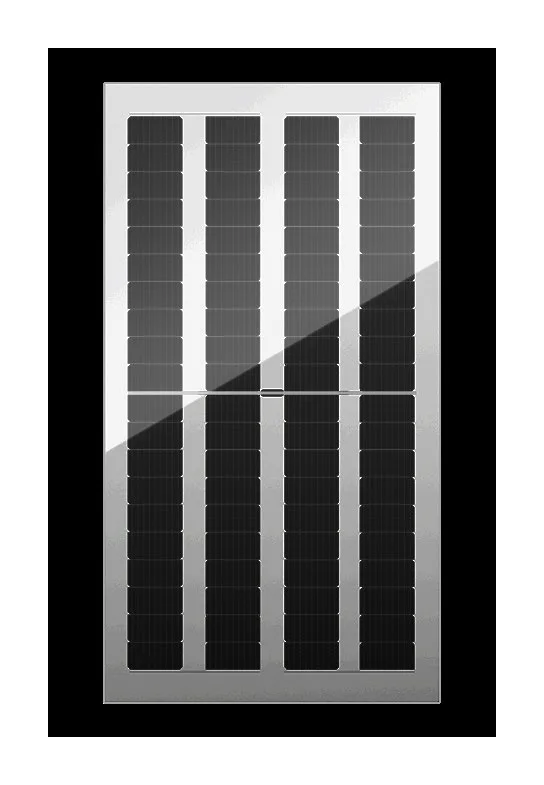

SunEvo Solar SE5-40HBD-330W
SunEvo Solar Brand review

SE5-40HBD-330W

330 Wp N-type Bifacial 80%
ComparePV verdict

Middle of its segment, modest efficiency

Rank 13,865 of 14,129
Compare panels Datasheet PDF
Power (Wp)
330
Weak · bottom 6%
Efficiency (%)
14.01
Weak · bottom 3%
Density (Wp/m²)
140.1
Weak · bottom 3%
Temp (%/°C)
-0.300
Typical · median -0.300
Weight (kg)
27.0
Weak · 5.0 kg above median
Warranty (yrs)
30
Typical · median 30 yrs

The SunEvo Solar Evo T series consists of transparent bifacial modules with a double glass construction and a frameless design, intended for locations where both energy generation and aesthetics are important. Thanks to its high transparency, the module can function as an active glazing - allowing natural light to enter while also generating electricity, making it easy to design modern glazing solutions without sacrificing self-consumption.

The use of double glazing improves resistance to weather conditions and ensures long-term stability, while N-type monocrystalline cells help maintain good performance even in demanding conditions and with variable sunlight exposure. The bifacial design also allows for the utilization of reflected light from the surroundings - a real advantage on bright surfaces, in windy conditions, and in open structures.

The Evo T is particularly suitable for BIPV (Building Integrated Photovoltaics), greenhouses, winter gardens, carports, and Agri-PV projects, where conventional, opaque panels simply limit the functionality of the building.

Ranking

186 panels in the segment N-type 230-430 W
Metric This panel Median Position in segment Overall rank
Module efficiency 14.01% 21.02% Weak · bottom 3% 14,044
Power density 140.1 210.1 Weak · bottom 3% 14,026
Temperature coefficient -0.300 -0.300 Typical 6,152
Weight per kWp 81.8 53.0 Weak · bottom 8% 13,900
Performance warranty 30 yrs 30 yrs Typical 21
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

0 positive · 3 caution
Best for

BIPV, agrivoltaic and commercial.

Not ideal for

Tight roof space, roofs where every square metre has to count and weight-limited structures.

Watch-outs
14.01% module efficiency

Bottom 3% of the N-type 230-430 W segment, against a median of 21.02%. Ranked 14,044th in the whole database.

140.1 watts per square metre

Bottom 3% of the N-type 230-430 W segment, against a median of 210.1. Ranked 14,026th in the whole database.

81.8 kg per kWp

Bottom 8% of the N-type 230-430 W segment, against a median of 53.0. Ranked 13,900th in the whole database.

Notes from the database
  • Module efficiency of 14.0% is 5.5pp below average for N-type 0-400W panels (median: 19.5%)
  • 140.1 W/m² power density is 54.8 W/m² below N-type 0-400W median (194.9 W/m²) - requires larger installation area
  • Temperature coefficient of -0.30%/°C vs median -0.32%/°C means ~1% less power loss at 65°C
  • Weight of 27.0 kg is 5.0 kg above N-type 0-400W median (22.0 kg) - verify structural support
  • 80% bifaciality enables rear-side power generation, boosting yield by 4-12% on reflective surfaces

Specifications

Open datasheet PDF
Nominal power (Pmax) 330 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 14.01 % Weak Segment median 21.02%
Vmpp · Impp 25.00 V · 13.20 A Operating point at max power
Voc · Isc 28.46 V · 14.03 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 2088×1128×5 mm · 2.36 m² of roof
Weight 27.0 kg Weak Weak · 5.0 kg above median
Cells 80 · N-type Monocrystalline
Bifaciality 80 % Rear output as a share of front
Coefficient Pmax -0.300 %/°C Typical median -0.300 of its segment
Coefficient Voc · Isc -0.250 · 0.040 %/°C
NOCT 42 °C At 800 W/m², 20 °C ambient
Performance warranty 30 years Typical median 30 yrs · median 30 yrs
End-of-warranty output 87.4 % Equals 284 W guaranteed
Degradation 1.00 → 0.45 % First year, then annual

Datasheet charts

Open datasheet PDF

Measured curves published by SunEvo Solar in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 330 Wp appear here. The rest cover the whole series.

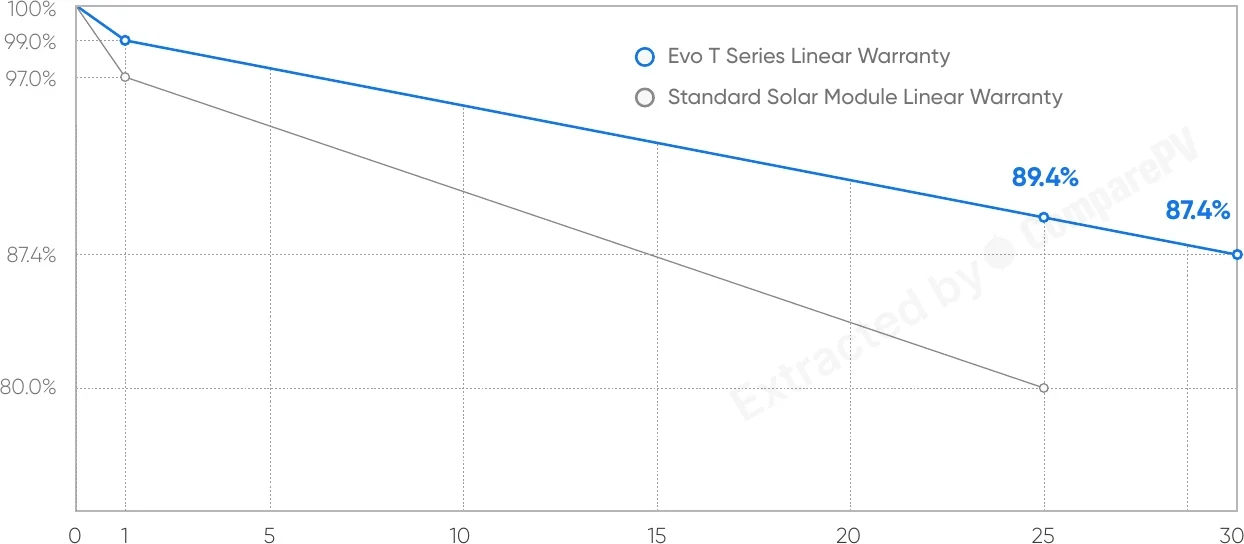

Linear Warranty Degradation Chart (Evo T Series vs Standard Solar Module) Linear Warranty Degradation Chart (Evo T Series vs Standard Solar Module) Whole series

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-
With bifacial gain
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.300 %/°C against a segment median of -0.300
-
Bifacial gain
Rear gain over light concrete: -
-

Model: bifaciality × albedo × 0.6 view factor. A first-order estimate, not a yield simulation.

Filter these
Size
Panel Power Eff. Temp. Weight Difference
SunEvo Solar SE5-40HBD-330W 330 W 14.01% -0.300 27.0 kg You are here
NS-300MH-72 300 W 23.32% -0.290 12.5 kg Lighter, +9.3 pp, -5 yr warranty
NS-300MH-72 300 W 23.32% -0.290 12.5 kg Lighter, +9.3 pp, -5 yr warranty
ZEUS 1.2 FullBlack 280W 280 W 23.31% -0.260 14.3 kg -50 W, lighter, +9.3 pp
NS-330MH-80 330 W 23.15% -0.290 15.0 kg Lighter, +9.1 pp, -5 yr warranty
NS-330MH-80 330 W 23.15% -0.290 15.0 kg Lighter, +9.1 pp, -5 yr warranty
ZEUS 3.2 285WP FullBlack 285 W 23.14% -0.260 15.6 kg -45 W, lighter, +9.1 pp
GKA182M285W 285 W 23.00% - 10.8 kg -45 W, 16 kg lighter, +9.0 pp
GKA182M300W 300 W 23.00% - 16.2 kg -30 W, lighter, +9.0 pp
GKA210M320W 320 W 23.00% - 16.2 kg -10 W, lighter, +9.0 pp
SE5-40HBD-320W 320 W 13.59% -0.300 27.0 kg -10 W, -0.4 pp
SE5-40HBD-325W 325 W 13.80% -0.300 27.0 kg -0.2 pp
SE5-40HBD-335W 335 W 14.22% -0.300 27.0 kg +0.2 pp
SE5-40HBD-340W 340 W 14.44% -0.300 27.0 kg +10 W, +0.4 pp
LR7-60HVH-560M 560 W 24.80% -0.260 25.0 kg +230 W, cooler, +10.8 pp
LR7-60HVH-555M 555 W 24.60% -0.260 25.0 kg +225 W, cooler, +10.6 pp
LR7-60HVHL-550M 550 W 24.40% -0.260 16.3 kg +220 W, lighter, +10.4 pp

Found 383 panels of the same or similar size to this one, within ±10 mm. See them here Found 423 panels of the same or similar size to this one, within ±25 mm. See them here Found 425 panels of the same or similar size to this one, within ±50 mm. See them here Found 969 panels of the same or similar size to this one, within ±100 mm. See them here

About the Evo T Series (High Transmittance Double Glass Bifacial Frameless Solar PV Module) series

6 answered

These answers cover the whole series. Where a figure differs, the specification above is this module's own.

What is the light transmittance of the SunEvo Solar Evo T modules and what does it mean for the end user?
The Evo T Series offers customizable transmittance ranging from 5% to 70%, meaning the module can let through varying amounts of natural daylight. In practice, you choose the daylighting level that fits your project - for example, a 45% transmittance variant balances power output with visibility, which works well in greenhouses and canopies. Note that higher transmittance results in lower wattage; the 45% variant reaches up to 340 Wp.
Are SunEvo Solar Evo T modules suitable for BIPV and architectural glazing applications?
Yes, the Evo T is engineered specifically for BIPV. Its frameless double-glass construction allows direct integration into facades, skylights, sunrooms, and canopies. The module simultaneously serves as structural glazing and a power generator, eliminating the need for separate decorative elements. This makes it particularly valuable for projects where architectural requirements and energy generation goals must be met together.
Do the N-type cells in the Evo T actually perform better under overcast skies and diffuse irradiance?
Yes. Monocrystalline N-type cells have a lower temperature coefficient of power loss and higher sensitivity to low-irradiance conditions compared to conventional P-type PERC cells. In climates with frequent cloudy days - like much of Central and Northern Europe - the annual yield advantage of N-type technology can reach several percentage points, making Evo T a practical choice for regions with variable solar resources.
What power warranty does SunEvo Solar offer for the Evo T Series?
SunEvo Solar provides a 30-year linear power warranty for the Evo T Series, guaranteeing that annual power degradation stays below a specified threshold - typically under 0.5% per year for N-type technology. It is worth reviewing the full warranty terms carefully, as SunEvo Solar is not classified as a Tier 1 manufacturer, which may affect long-term warranty enforceability and bankability for larger commercial projects.
How does the bifacial design of the Evo T affect energy yield in a carport or canopy installation?
In carports and canopies, the rear side of the Evo T module can absorb irradiance reflected off a bright surface - concrete, light-gray pavers, or snow. Under typical conditions, bifaciality adds 5-15% additional energy production compared to a monofacial equivalent. The gain is most pronounced when ground albedo is high and during winter months when snow cover significantly boosts reflected irradiance reaching the rear cell surface.
Does the frameless design of the Evo T modules require a special mounting system?
Yes. Without an aluminum frame, standard module clamps are incompatible. Evo T modules must be mounted using double-glass-specific clamps or point-fixing hardware - such as through-laminate bolts - depending on the structural design. Before purchasing, consult your distributor or installer to confirm a compatible racking system, especially for BIPV applications with specific fire-resistance or load requirements.
