Sun Earth Brand review

DXM8-60H 500W

500 Wp Monocrystalline
ComparePV verdict

Light for its output, no clear weak spot

Rank 6,379 of 14,005
Compare panels Datasheet PDF
Power (Wp)
500
Typical for its class
Efficiency (%)
23.10
Strong · top 6%
Density (Wp/m²)
231.1
Strong · top 6%
Temp (%/°C)
-0.290
Typical · median -0.300
Weight (kg)
22.5
Strong · 2.5 kg below median
Warranty (yrs)
30
Typical · median 30 yrs

Ranking

8,499 panels in the 400-600 W band, all technologies
Metric This panel Median Position in segment Overall rank
Module efficiency 23.10% 21.80% Strong · top 6% 1,570
Power density 231.1 217.8 Strong · top 6% 1,626
Temperature coefficient -0.290 -0.300 Typical 2,165
Weight per kWp 45.0 52.5 Strong · top 5% 574
Performance warranty 30 yrs 30 yrs Typical 21
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

3 positive · 0 caution
Best for

Weight-limited structures, roofs where every square metre counts and small roofs that need every watt.

Strengths
45.0 kg per kWp

Top 5% of the 400-600 W band, against a median of 52.5. Ranked 574th in the whole database.

231.1 watts per square metre

Top 6% of the 400-600 W band, against a median of 217.8. Ranked 1,626th in the whole database.

23.10% module efficiency

Top 6% of the 400-600 W band, against a median of 21.80%. Ranked 1,570th in the whole database.

Notes from the database
  • 23.1% module efficiency - 1.3pp better than the database median of 21.8%
  • 231.1 W/m² power density - 13.0 W/m² more than database median (218.1 W/m²), more power per roof area
  • Temperature coefficient of -0.29%/°C matches the database median
  • At 22.5 kg, this panel is 4.0 kg lighter than database median (26.5 kg) - easier handling during installation
  • Ranked #1570 out of 14005 panels for efficiency in the database

Specifications

Open datasheet PDF
Nominal power (Pmax) 500 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 23.10 % Strong Segment median 21.80%
Vmpp · Impp 35.80 V · 13.97 A Operating point at max power
Voc · Isc 43.40 V · 14.63 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 1908×1134×30 mm · 2.16 m² of roof
Weight 22.5 kg Strong Strong · 2.5 kg below median
Cells 120 Monocrystalline
Coefficient Pmax -0.290 %/°C Typical median -0.300 of its segment
Coefficient Voc · Isc -0.230 · 0.040 %/°C
NOCT 45 °C At 800 W/m², 20 °C ambient
Product warranty 12 years Hardware defects only
Performance warranty 30 years Typical median 30 yrs · median 30 yrs

Datasheet charts

Open datasheet PDF

Measured curves published by Sun Earth in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 500 Wp appear here. The rest cover the whole series.

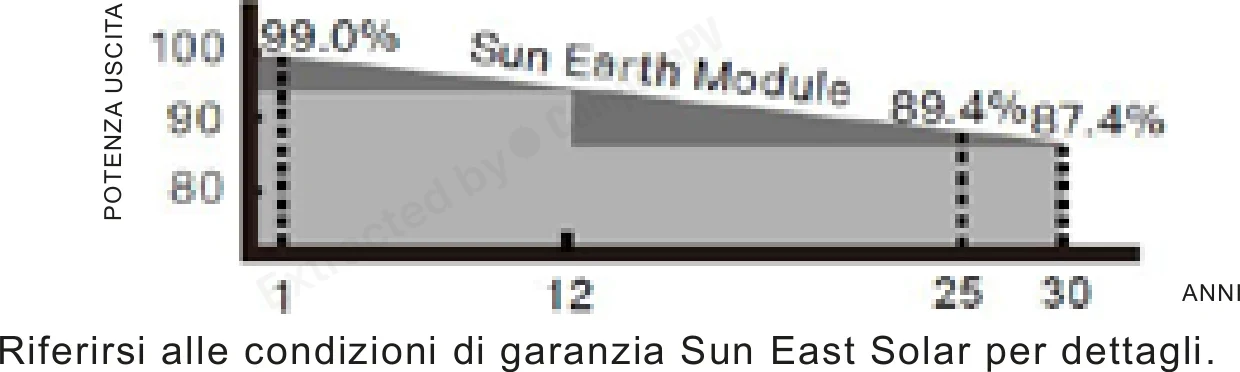

Linear Power Output Warranty (30 Years) - Sun Earth Module Linear Power Output Warranty (30 Years) - Sun Earth Module Whole series

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.290 %/°C against a segment median of -0.300
-
Filter these
Size
Panel Power Eff. Temp. Weight Difference
Sun Earth DXM8-60H 500W 500 W 23.10% -0.290 22.5 kg You are here
LR7-54HJD-510M 510 W 25.00% -0.240 23.5 kg +10 W, cooler, +1.9 pp
AIKO-A495-MCE54Mw 495 W 24.80% -0.260 21.0 kg Cooler, lighter, +1.7 pp
LR7-54HJD-505M 505 W 24.70% -0.240 23.5 kg Cooler, heavier, +1.6 pp
AIKO-A490-MCE54Mw 490 W 24.50% -0.260 21.0 kg Cooler, lighter, +1.4 pp
LR7-54HJD-500M 500 W 24.50% -0.240 23.5 kg Cooler, heavier, +1.4 pp
CIPRO-TN9C54M-500W 500 W 24.50% -0.260 21.4 kg Cooler, lighter, +1.4 pp
DXM8-60HBG 460W 460 W 21.30% -0.290 26.5 kg -40 W, heavier, -1.8 pp
DXM8-60HBG 470W 470 W 21.70% -0.290 26.5 kg -30 W, heavier, -1.4 pp
DXM8-60HBG 480W 480 W 22.20% -0.290 26.5 kg -20 W, heavier, -0.9 pp
DXM8-60HBG 490W 490 W 22.60% -0.290 26.5 kg -10 W, heavier, -0.5 pp
LR7-60HVH-560M 560 W 24.80% -0.260 25.0 kg +60 W, cooler, +1.7 pp
LR7-60HVH-555M 555 W 24.60% -0.260 25.0 kg +55 W, cooler, +1.5 pp
LR7-60HVHL-550M 550 W 24.40% -0.260 16.3 kg +50 W, lighter, +1.3 pp
JAT60S40-540/LR 540 W 24.40% -0.260 23.5 kg +40 W, cooler, +1.3 pp
GK-5-60HG-540M 540 W 24.40% -0.260 23.3 kg +40 W, cooler, +1.3 pp
JKM545-54QL6-DV-F1-EU 545 W 24.27% -0.260 27.5 kg +45 W, heavier, +1.2 pp

Found 746 panels of the same or similar size to this one, within ±10 mm. See them here Found 755 panels of the same or similar size to this one, within ±25 mm. See them here Found 910 panels of the same or similar size to this one, within ±50 mm. See them here Found 1489 panels of the same or similar size to this one, within ±100 mm. See them here
