Sun Earth Brand review

DXM10-54H-520W

520 Wp TOPCon
ComparePV verdict

Light for its output, no clear weak spot

Rank 5,279 of 14,005
Compare panels Datasheet PDF
Power (Wp)
520
Typical for its class
Efficiency (%)
23.40
Strong · top 9%
Density (Wp/m²)
233.8
Strong · top 9%
Temp (%/°C)
-0.290
Typical · median -0.290
Weight (kg)
23.0
Strong · 4.0 kg below median
Warranty (yrs)
30
Typical · median 30 yrs

Ranking

432 panels in the segment TOPCon 500-550 W
Metric This panel Median Position in segment Overall rank
Module efficiency 23.40% 22.73% Strong · top 9% 882
Power density 233.8 227.4 Strong · top 9% 909
Temperature coefficient -0.290 -0.290 Typical 2,165
Weight per kWp 44.2 52.4 Strong · top 2% 406
Performance warranty 30 yrs 30 yrs Typical 21
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

3 positive · 0 caution
Best for

Weight-limited structures, small roofs that need every watt and roofs where every square metre counts.

Strengths
44.2 kg per kWp

Top 2% of the TOPCon 500-550 W segment, against a median of 52.4. Ranked 406th in the whole database.

23.40% module efficiency

Top 9% of the TOPCon 500-550 W segment, against a median of 22.73%. Ranked 882nd in the whole database.

233.8 watts per square metre

Top 9% of the TOPCon 500-550 W segment, against a median of 227.4. Ranked 909th in the whole database.

Notes from the database
  • 23.4% module efficiency - 0.7pp better than the TOPCon 500-550W median of 22.7%
  • Power density of 233.8 W/m² packs 6.4 W/m² more into the same footprint vs TOPCon 500-550W median (227.4 W/m²)
  • At -0.29%/°C, hot weather performance is typical for TOPCon 500-550W panels
  • At 23.0 kg, this panel is 4.0 kg lighter than TOPCon 500-550W median (27.0 kg) - easier handling during installation
  • In the top 6% for efficiency among all TOPCon panels

Specifications

Open datasheet PDF
Nominal power (Pmax) 520 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 23.40 % Strong Segment median 22.73%
Vmpp · Impp 34.80 V · 14.95 A Operating point at max power
Voc · Isc 40.99 V · 15.80 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 1961×1134×30 mm · 2.22 m² of roof
Weight 23.0 kg Strong Strong · 4.0 kg below median
Cells 108 · TOPCon Monocrystalline
Coefficient Pmax -0.290 %/°C Typical median -0.290 of its segment
Coefficient Voc · Isc -0.230 · 0.040 %/°C
NOCT 43 °C At 800 W/m², 20 °C ambient
Product warranty 12 years Hardware defects only
Performance warranty 30 years Typical median 30 yrs · median 30 yrs

Datasheet charts

Open datasheet PDF

Measured curves published by Sun Earth in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 520 Wp appear here. The rest cover the whole series.

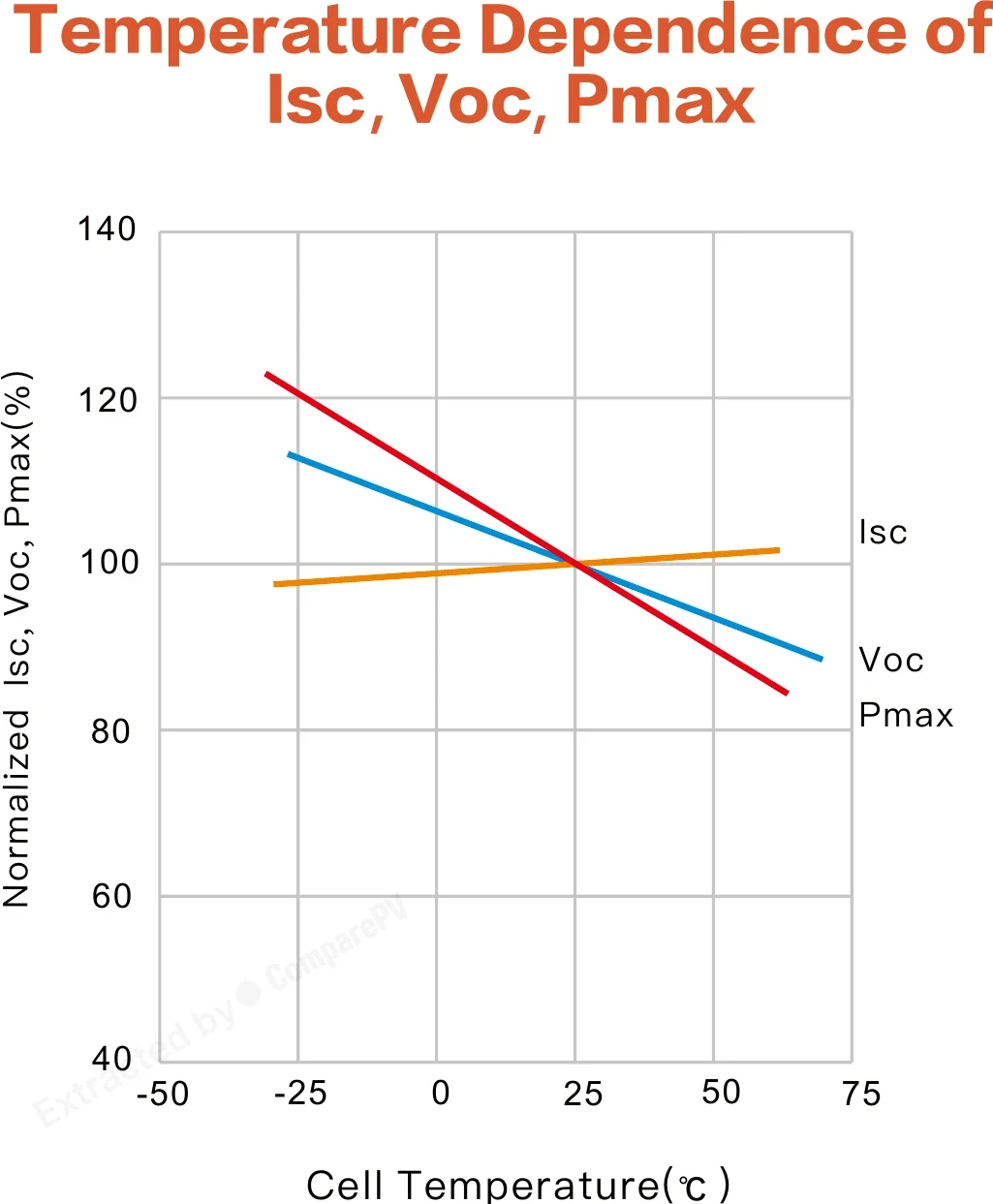

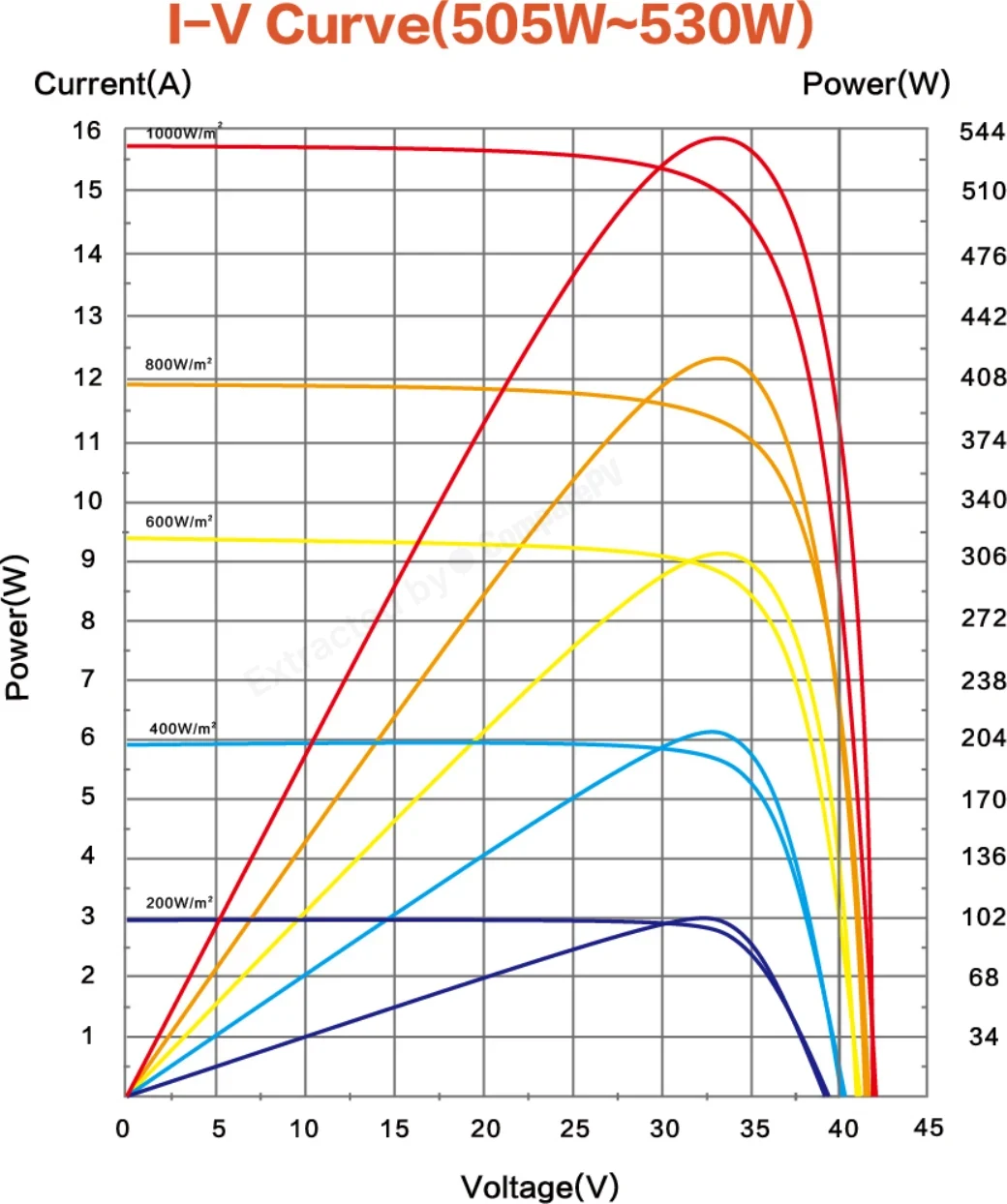

I-V Curve(505W~530W) I-V Curve(505W~530W) Whole series Temperature Dependence of Isc, Voc, Pmax Temperature Dependence of Isc, Voc, Pmax Whole series

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.290 %/°C against a segment median of -0.290
-
Filter these
Size
Panel Power Eff. Temp. Weight Difference
Sun Earth DXM10-54H-520W 520 W 23.40% -0.290 23.0 kg You are here
LR7-54HJD-510M 510 W 25.00% -0.240 23.5 kg -10 W, cooler, +1.6 pp
AIKO-A495-MCE54Mw 495 W 24.80% -0.260 21.0 kg -25 W, cooler, +1.4 pp
LR7-60HVH-560M 560 W 24.80% -0.260 25.0 kg +40 W, cooler, +1.4 pp
LR7-54HJD-505M 505 W 24.70% -0.240 23.5 kg -15 W, cooler, +1.3 pp
LR7-60HVH-555M 555 W 24.60% -0.260 25.0 kg +35 W, cooler, +1.2 pp
AIKO-A490-MCE54Mw 490 W 24.50% -0.260 21.0 kg -30 W, cooler, +1.1 pp
LR7-54HJD-500M 500 W 24.50% -0.240 23.5 kg -20 W, cooler, +1.1 pp
DXM10-54H-505W 505 W 22.70% -0.290 23.0 kg -15 W, -0.7 pp
DXM10-54H-510W 510 W 22.90% -0.290 23.0 kg -10 W, -0.5 pp
DXM10-54H-515W 515 W 23.20% -0.290 23.0 kg Very close match
DXM10-54H-525W 525 W 23.60% -0.290 23.0 kg +0.2 pp
DXM10-54H-530W 530 W 23.80% -0.290 23.0 kg +10 W, +0.4 pp
LR7-60HVHL-550M 550 W 24.40% -0.260 16.3 kg +30 W, lighter, +1.0 pp
JAT60S40-540/LR 540 W 24.40% -0.260 23.5 kg +20 W, cooler, +1.0 pp
GK-5-60HG-540M 540 W 24.40% -0.260 23.3 kg +20 W, cooler, +1.0 pp
JKM545-54QL6-DV-F1-EU 545 W 24.27% -0.260 27.5 kg Cooler, heavier, +0.9 pp

Found 471 panels of the same or similar size to this one, within ±10 mm. See them here Found 508 panels of the same or similar size to this one, within ±25 mm. See them here Found 662 panels of the same or similar size to this one, within ±50 mm. See them here Found 1471 panels of the same or similar size to this one, within ±100 mm. See them here
