SpolarPV SPV490-TM10-120
SpolarPV Brand review

SPV490-TM10-120

490 Wp TOPCon
ComparePV verdict

Middle of its segment, weak in heat

Rank 7,261 of 14,005
Compare panels Datasheet PDF
Power (Wp)
490
Strong · top 12%
Efficiency (%)
22.74
Typical · median 22.52%
Density (Wp/m²)
227.4
Typical · median 225.2
Temp (%/°C)
-0.300
Weak · bottom 20%
Weight (kg)
23.5
Typical · median 24.0 kg
Warranty (yrs)
30
Typical · median 30 yrs

The SpolarPV SPV495-TM10-120 panel series is an advanced solution utilizing N-type TOPCon cell technology, which allows for exceptional efficiency exceeding 22.8%. Thanks to the use of M10 size silicon wafers and a Half-Cut construction, these modules offer higher power output while maintaining optimal dimensions, making them an ideal choice for the roofs of single-family homes as well as commercial installations. A key benefit for the investor is the low temperature coefficient of power, which guarantees stable operation and high energy yields even on hot, summer days. These panels effectively solve the problem of performance drops in low-sunlight conditions, offering excellent sensitivity to diffused light, which in the Polish climate translates to a real increase in annual energy production. What sets them apart from the competition is their high resistance to the PID effect and a reinforced mechanical design, certified to withstand extreme snow and wind loads. By choosing this series, the user receives a product with an extended power warranty, minimal linear degradation, and a modern design that combines aesthetics with the highest technical parameters currently available on the market. It is a reliable link in the energy system that maximizes the profitability of every green energy investment.

Ranking

1,089 panels in the segment TOPCon 450-500 W
Metric This panel Median Position in segment Overall rank
Module efficiency 22.74% 22.52% Typical 3,210
Power density 227.4 225.2 Typical 3,215
Temperature coefficient -0.300 -0.290 Weak · bottom 20% 6,093
Weight per kWp 48.0 52.2 Typical 1,984
Performance warranty 30 yrs 30 yrs Typical 21
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

0 positive · 1 caution
Best for

Residential, commercial, shaded-installations and hot-climate.

Not ideal for

Hot climates.

Watch-outs
-0.300 %/°C temperature coefficient

Bottom 20% of the TOPCon 450-500 W segment, against a median of -0.290.

Notes from the database
  • At 22.7% efficiency, this panel is on par with typical TOPCon 450-500W modules
  • At 227.4 W/m² power density, roof space requirements are typical for TOPCon 450-500W panels
  • Temperature coefficient of -0.30%/°C matches the TOPCon 450-500W median
  • Ranked #3210 out of 14005 panels for efficiency in the database

Specifications

Open datasheet PDF
Nominal power (Pmax) 490 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 22.74 % Typical Segment median 22.52%
Vmpp · Impp 35.73 V · 13.71 A Operating point at max power
Voc · Isc 43.03 V · 14.45 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 1902×1133×30 mm · 2.15 m² of roof
Weight 23.5 kg Typical Typical · median 24.0 kg
Cells 120 · TOPCon Monocrystalline
Coefficient Pmax -0.300 %/°C Weak bottom 20% of its segment
Coefficient Voc · Isc -0.275 · 0.045 %/°C
NOCT 45 °C At 800 W/m², 20 °C ambient
Product warranty 12 years Hardware defects only
Performance warranty 30 years Typical median 30 yrs · median 30 yrs
End-of-warranty output 84.8 % Equals 416 W guaranteed
Degradation 2.00 → 0.46 % First year, then annual

Datasheet charts

Open datasheet PDF

Measured curves published by SpolarPV in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 490 Wp appear here. The rest cover the whole series.

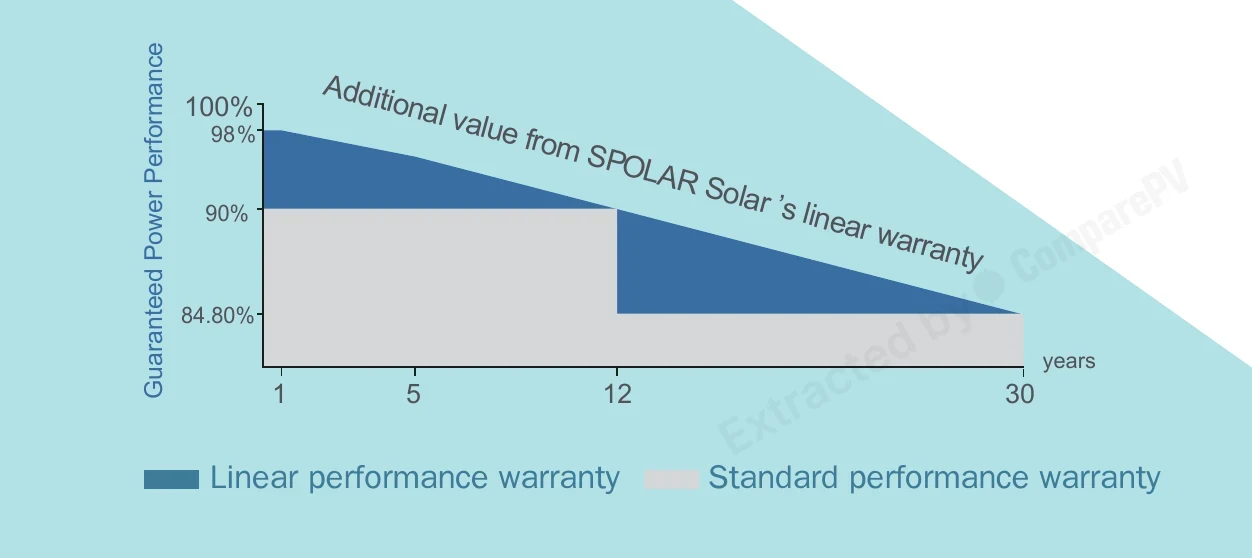

Additional value from SPOLAR Solar's linear warranty Additional value from SPOLAR Solar's linear warranty Whole series

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.300 %/°C against a segment median of -0.290
-

Alternatives

All SpolarPV panels
Filter these
Size
Panel Power Eff. Temp. Weight Difference
SpolarPV SPV490-TM10-120 490 W 22.74% -0.300 23.5 kg You are here
LR7-54HJD-510M 510 W 25.00% -0.240 23.5 kg +20 W, cooler, +2.3 pp
AIKO-A495-MCE54Mw 495 W 24.80% -0.260 21.0 kg Cooler, lighter, +2.1 pp
LR7-54HJD-505M 505 W 24.70% -0.240 23.5 kg +15 W, cooler, +2.0 pp
AIKO-A490-MCE54Mw 490 W 24.50% -0.260 21.0 kg Cooler, lighter, +1.8 pp
LR7-54HJD-500M 500 W 24.50% -0.240 23.5 kg +10 W, cooler, +1.8 pp
CIPRO-TN9C54M-500W 500 W 24.50% -0.260 21.4 kg Cooler, lighter, +1.8 pp
SPV475-TM10-120 475 W 22.04% -0.300 23.5 kg -15 W, -0.7 pp
SPV480-TM10-120 480 W 22.27% -0.300 23.5 kg -10 W, -0.5 pp
SPV485-TM10-120 485 W 22.51% -0.300 23.5 kg -0.2 pp
SPV495-TM10-120 495 W 22.86% -0.300 23.5 kg Very close match
LR7-60HVH-560M 560 W 24.80% -0.260 25.0 kg +70 W, cooler, +2.1 pp
LR7-60HVH-555M 555 W 24.60% -0.260 25.0 kg +65 W, cooler, +1.9 pp
LR7-60HVHL-550M 550 W 24.40% -0.260 16.3 kg +60 W, lighter, +1.7 pp
JAT60S40-540/LR 540 W 24.40% -0.260 23.5 kg +50 W, cooler, +1.7 pp
GK-5-60HG-540M 540 W 24.40% -0.260 23.3 kg +50 W, cooler, +1.7 pp
JKM545-54QL6-DV-F1-EU 545 W 24.27% -0.260 27.5 kg +55 W, heavier, +1.5 pp

Found 693 panels of the same or similar size to this one, within ±10 mm. See them here Found 751 panels of the same or similar size to this one, within ±25 mm. See them here Found 839 panels of the same or similar size to this one, within ±50 mm. See them here Found 1499 panels of the same or similar size to this one, within ±100 mm. See them here

Common questions

6 answered
What warranty does the SpolarPV SPV495-TM10-120 come with and what does it cover?
The SPV495-TM10-120 series comes with a 12-year product warranty covering material and workmanship defects, plus a 30-year linear power output warranty. This means the manufacturer guarantees minimum performance according to a defined degradation schedule for three decades. It is one of the longer warranty packages available in this price class and has a direct positive impact on the overall return on investment.
What is TOPCon technology and why is the SPV495-TM10-120 better than older PERC panels?
TOPCon (Tunnel Oxide Passivated Contact) is an N-type cell architecture with an additional passivation layer that reduces carrier recombination. In practice this means efficiency exceeding 22.8% versus the typical 20-21% for PERC, a lower temperature coefficient, and slower long-term degradation. The SPV495-TM10-120 series leverages these advantages to generate more energy from the same roof area over the entire system lifetime.
Do the SpolarPV SPV495-TM10-120 panels perform well on overcast days common in Central European climates?
Yes. N-type TOPCon cells exhibit excellent sensitivity to diffuse and low-irradiance light, which is especially important in climates with a high proportion of cloudy days. The SPV495-TM10-120 continues to generate power efficiently on overcast mornings and during autumn months, delivering measurably higher annual energy yield compared to older-generation panels in real-world conditions.
Is the SPV495-TM10-120 at 495 Wp suitable for a residential rooftop, or is it too large a module?
The SPV495-TM10-120 series is designed for both residential rooftop installations and commercial projects. Using M10 silicon wafers combined with a half-cut cell layout allows the module to reach 495 Wp while maintaining practical dimensions. Before purchasing, it is recommended to verify roof load capacity and available roof area with your installer, particularly on smaller roof sections.
How do the SPV495-TM10-120 panels perform in summer heat at high temperatures?
N-type TOPCon cells have a lower power temperature coefficient than standard PERC modules. This means the SPV495-TM10-120 loses a smaller percentage of rated power as temperatures rise. On hot summer days when other modules can drop by more than 10% in output, this series maintains more stable production, resulting in higher energy yields precisely during the peak solar season.
Is the SpolarPV SPV495-TM10-120 resistant to PID, high wind loads, and heavy snow loads?
Yes. The SPV495-TM10-120 series features high resistance to PID (Potential Induced Degradation), which can reduce module efficiency in high-voltage string systems. The modules also have a reinforced mechanical structure certified to withstand extreme snow and wind loads, which is important in regions prone to heavy snowfall or strong gusts, ensuring reliable long-term operation under demanding environmental conditions.
