Solaria Solaria PowerXT-370R-PD
Solaria Brand review

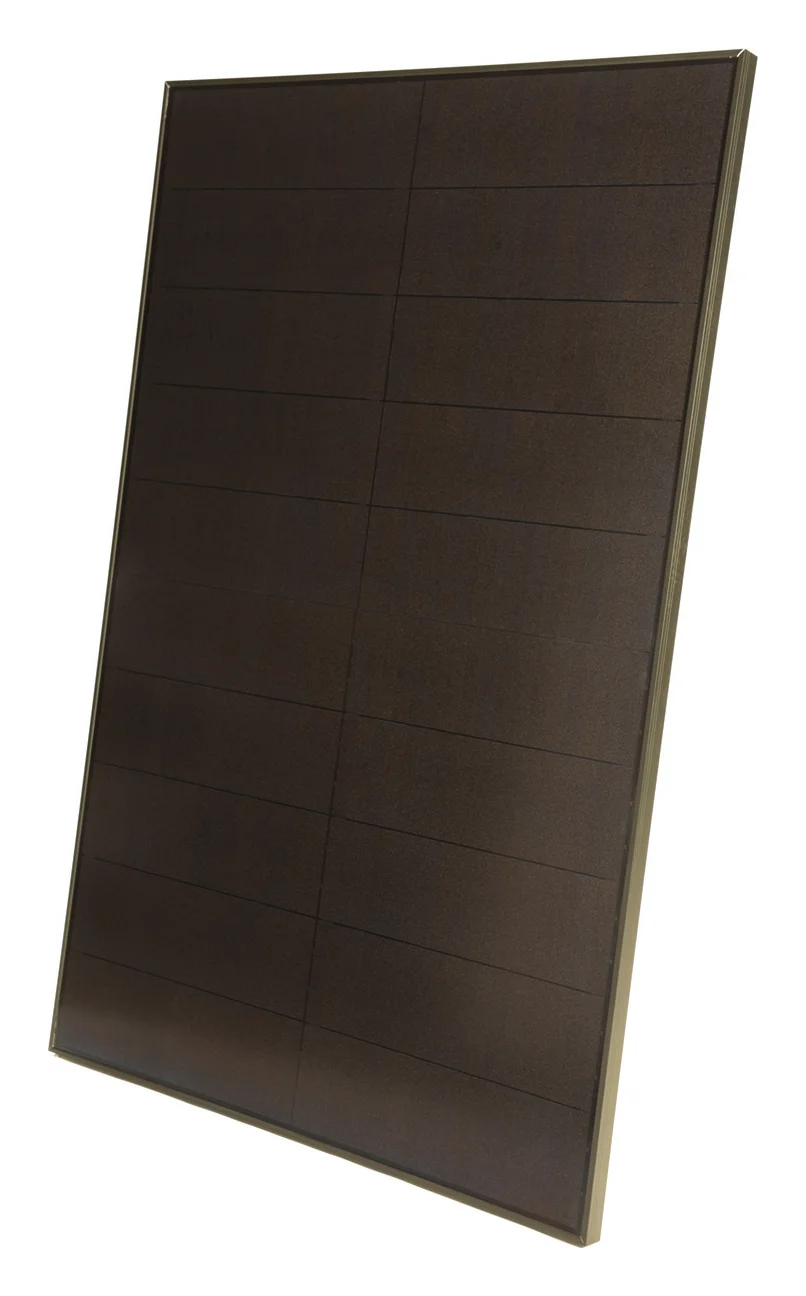

Solaria PowerXT-370R-PD

370 Wp Monocrystalline
ComparePV verdict

Middle of its segment, weak in heat

Rank 11,276 of 14,005
Compare panels Datasheet PDF
Power (Wp)
370
Weak · bottom 17%
Efficiency (%)
20.50
Typical · median 21.06%
Density (Wp/m²)
204.5
Typical · median 210.3
Temp (%/°C)
-0.390
Weak · bottom 4%
Weight (kg)
21.0
Typical · median 22.0 kg
Warranty (yrs)
25
Weak · bottom 21%

Solaria PowerXT-PD panels redefine standards of aesthetics and efficiency through the use of innovative shingled cell technology. Unlike traditional modules, this series completely eliminates visible busbars and soldered connections, which drastically minimizes the risk of micro-cracks and increases the overall mechanical reliability of the entire system. A key technological advantage is the unique way of connecting cells, which makes these panels exhibit exceptional shade resistance. Specific, parallel sub-string connections allow for efficient energy production even in situations where part of the module is in transient shade, effectively solving common problems for owners of buildings with chimneys or dormers. This series was designed with the most demanding private investors in mind, for whom the elegant Pure Black design is key while maintaining the highest electrical parameters. Thanks to the maximum packing of the active surface, Solaria PowerXT-PD offers higher power density than competing products, allowing for optimal use of limited roof space. What distinguishes it from other solutions on the market is the almost complete elimination of dead zones on the module surface, which translates into a perfectly uniform appearance and maximization of photovoltaic yields over decades of operation. This is a premium-class solution, combining durability with uncompromising performance in difficult installation conditions.

Ranking

5,700 panels in the 270-470 W band, all technologies
Metric This panel Median Position in segment Overall rank
Module efficiency 20.50% 21.06% Typical 11,308
Power density 204.5 210.3 Typical 11,516
Temperature coefficient -0.390 -0.320 Weak · bottom 4% 13,579
Weight per kWp 56.8 53.7 Typical 10,847
Performance warranty 25 yrs 30 yrs Weak · bottom 21% 9,798
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Price offers

1 from shops we track
Shop Country Price Per kWp Stock Offer updated Link to shop
store.solarcellzusa.com United States 350 $ net 945.95 $/kWp In stock 16h ago Visit shop

Signals from the data

0 positive · 2 caution
Best for

Residential and shaded-installations.

Not ideal for

Hot climates and owners who want a long output guarantee.

Watch-outs
-0.390 %/°C temperature coefficient

Bottom 4% of the 270-470 W band, against a median of -0.320. Ranked 13,579th in the whole database.

25 year performance warranty

Bottom 21% of the 270-470 W band, against a median of 30 yrs.

Notes from the database
  • Efficiency of 20.5% is 1.3pp below the database median (21.8%)
  • 204.5 W/m² power density is 13.6 W/m² below database median (218.1 W/m²) - requires larger installation area
  • Temperature coefficient of -0.39%/°C is 0.09pp worse than database median (-0.30%/°C) - higher losses in summer heat
  • At 21.0 kg, this panel is 5.5 kg lighter than database median (26.5 kg) - easier handling during installation
  • Ranked #11308 out of 14005 panels for efficiency in the database

Specifications

Open datasheet PDF
Nominal power (Pmax) 370 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 20.50 % Typical Segment median 21.06%
Vmpp · Impp 40.20 V · 9.20 A Operating point at max power
Voc · Isc 48.30 V · 9.60 A Sizes the string length
Max system voltage 1000 V Longer strings than 1000 V modules
Dimensions 1621×1116×40 mm · 1.81 m² of roof
Weight 21.0 kg Typical Typical · median 22.0 kg
Coefficient Pmax -0.390 %/°C Weak bottom 4% of its segment
Coefficient Voc · Isc -0.290 · 0.040 %/°C
NOCT 45 °C At 800 W/m², 20 °C ambient
Product warranty 25 years Hardware defects only
Performance warranty 25 years Weak bottom 21% · median 30 yrs
End-of-warranty output 86.0 % Equals 309 W guaranteed
Degradation 2.00 → 0.50 % First year, then annual

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.390 %/°C against a segment median of -0.320
-
Filter these
Size
Panel Power Eff. Temp. Weight Difference
Solaria Solaria PowerXT-370R-PD 370 W 20.50% -0.390 21.0 kg You are here
NS-330MH-80 330 W 23.15% -0.290 15.0 kg Cooler, lighter, +2.6 pp
NS-330MH-80 330 W 23.15% -0.290 15.0 kg Cooler, lighter, +2.6 pp
GKA210M320W 320 W 23.00% - 16.2 kg -50 W, +2.5 pp, +5 yr warranty
GKA210M340W 340 W 23.00% - 16.2 kg Lighter, +2.5 pp, +5 yr warranty
GKA210M360W 360 W 23.00% - 16.2 kg Lighter, +2.5 pp, +5 yr warranty
GKA210M380W (1/4*4*38) 380 W 23.00% - 17.1 kg Lighter, +2.5 pp, +5 yr warranty
GKA210M400W (1/2*4*20) 400 W 23.00% - 18.0 kg +30 W, +2.5 pp, +5 yr warranty
GKA210M400W (1/4*4*40) 400 W 23.00% - 18.0 kg +30 W, +2.5 pp, +5 yr warranty
GKA210M380W (1/2*4*19) 380 W 23.00% - 17.1 kg Lighter, +2.5 pp, +5 yr warranty
SPR-MAX3-400-COM 400 W 22.60% -0.270 19.0 kg Cooler, +2.1 pp, +15 yr warranty
PowerXT-355R-AC 355 W 19.60% - 22.0 kg -15 W, heavier, -0.9 pp
Solaria PowerXT®-360R-PD 360 W 19.90% -0.390 21.0 kg -10 W, -0.6 pp
Solaria PowerXT-365R-PD 365 W 20.20% -0.390 21.0 kg -0.3 pp
LX-440M/182-108+GG 440 W 23.07% -0.240 23.6 kg +70 W, cooler, +2.6 pp
SPV445-TM10-108 445 W 22.83% -0.300 21.5 kg +75 W, cooler, +2.3 pp
LX-435M/182-108+ GG 435 W 22.81% -0.240 23.6 kg +65 W, cooler, +2.3 pp

Found 8 panels of the same or similar size to this one, within ±10 mm. See them here Found 13 panels of the same or similar size to this one, within ±25 mm. See them here Found 20 panels of the same or similar size to this one, within ±50 mm. See them here Found 318 panels of the same or similar size to this one, within ±100 mm. See them here

Common questions

6 answered
Are Solaria PowerXT-PD panels still available for purchase?
The Solaria PowerXT-PD series has been discontinued and is no longer offered as a new product through official distribution channels. It may still be found in clearance stock at select distributors or on the secondary market. For new installations, we recommend checking Solaria's current PowerXT lineup or consulting an authorized installer to find a comparable available alternative.
How does the shingled cell technology in Solaria PowerXT-PD differ from conventional solar panels?
In the PowerXT-PD, cells are laser-cut and overlapped like roof shingles, with no busbars and no soldered interconnects. This eliminates mechanical stress that causes microcracks in standard modules. The result is higher mechanical reliability, virtually no inactive area on the module surface, a Pure Black aesthetic, and improved shade tolerance through parallel sub-string interconnection.
Is the Solaria PowerXT-PD a good choice for a roof with a chimney or dormers?
Yes, this is one of the series' key advantages. The parallel sub-string interconnection means that a shaded portion of the module does not shut down the remaining cells. In practice, the panel continues producing power even when a chimney or dormer casts a shadow across part of the module – a common challenge for residential rooftop installations.
What warranty does the Solaria PowerXT-PD carry and what does it cover?
Solaria provided a 25-year product warranty covering material defects and workmanship, along with a 25-year linear power output warranty guaranteeing the module retains a defined minimum percentage of its rated wattage throughout that period. For discontinued modules, warranty terms remain contractually binding, but we recommend confirming service procedures with your distributor or directly with Solaria.
What is the peak power of the Solaria PowerXT-PD and how does it affect roof space utilization?
The top variant in the PowerXT-PD series is rated at 370 Wp. Thanks to the shingled cell design and near-zero inactive surface area, the module delivers higher power density than conventional panels of similar dimensions. This translates to greater total system capacity from the same roof footprint, which is especially valuable when available installation space is limited.
Is the Solaria PowerXT-PD a bifacial panel, and does it benefit from light-colored roofing surfaces?
No, the PowerXT-PD is a monofacial module – it does not use bifacial technology. Energy is generated exclusively by the front surface, and the panel does not harvest albedo light reflected from the roof substrate. Roofing material color therefore has no effect on its output. If bifacial performance is a priority, a different series should be considered.
