Solar N Plus Brand review

SP-N16/108H-440W

440 Wp TOPCon
ComparePV verdict

Light for its output, weak in heat

Rank 7,556 of 14,005
Compare panels Datasheet PDF
Power (Wp)
440
Typical for its class
Efficiency (%)
22.50
Strong · top 9%
Density (Wp/m²)
226.0
Strong · top 4%
Temp (%/°C)
-0.350
Weak · bottom 3%
Weight (kg)
10.8
Strong · 11.2 kg below median
Warranty (yrs)
30
Typical · median 30 yrs

The Solar N Plus SP-N16/108H lightweight module has been designed for installations where both power output and ease of transport and assembly are important. These modules are based on N-type monocrystalline cells with TOPCon technology, which maintain their parameters over time and are less susceptible to typical degradation phenomena seen in older designs. In practice, this means more stable energy production over many years, as well as a better return on investment.

A key feature of this series is its lightweight design, which makes it easier to work on roofs with limited load-bearing capacity, in retrofit projects, and where minimizing on-site loads and logistics is important. The use of an anti-reflective coating helps to more effectively utilize light in varying solar conditions, and the high IP rating of the junction box increases resistance to moisture and dust.

This is a good choice for homes, small businesses, and premium projects where technology, durability, and practical installation are all important considerations.

Ranking

1,218 panels in the segment TOPCon 400-450 W
Metric This panel Median Position in segment Overall rank
Module efficiency 22.50% 22.00% Strong · top 9% 4,222
Power density 226.0 220.2 Strong · top 4% 3,710
Temperature coefficient -0.350 -0.290 Weak · bottom 3% 10,419
Weight per kWp 24.5 51.4 Strong · top 1% 98
Performance warranty 30 yrs 30 yrs Typical 21
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

3 positive · 1 caution
Best for

Residential and commercial.

Not ideal for

Hot climates.

Strengths
24.5 kg per kWp

Top 1% of the TOPCon 400-450 W segment, against a median of 51.4. Ranked 98th in the whole database.

226.0 watts per square metre

Top 4% of the TOPCon 400-450 W segment, against a median of 220.2. Ranked 3,710th in the whole database.

22.50% module efficiency

Top 9% of the TOPCon 400-450 W segment, against a median of 22.00%. Ranked 4,222nd in the whole database.

Watch-outs
-0.350 %/°C temperature coefficient

Bottom 3% of the TOPCon 400-450 W segment, against a median of -0.290. Ranked 10,419th in the whole database.

Notes from the database
  • Efficiency of 22.5% matches the TOPCon 400-450W median
  • Power density of 226.0 W/m² packs 5.8 W/m² more into the same footprint vs TOPCon 400-450W median (220.2 W/m²)
  • -0.35%/°C temperature coefficient - 0.06pp worse than TOPCon 400-450W median (-0.29%/°C), expect higher hot weather losses
  • 10.8 kg weight - 11.2 kg lighter than TOPCon 400-450W median (22.0 kg), reducing installation effort
  • #4222 for efficiency, #10419 for temperature performance out of 14005 panels

Specifications

Open datasheet PDF
Nominal power (Pmax) 440 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 22.50 % Strong Segment median 22.00%
Vmpp · Impp 32.69 V · 13.46 A Operating point at max power
Voc · Isc 38.98 V · 14.41 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 1720×1132×30 mm · 1.95 m² of roof
Weight 10.8 kg Strong Strong · 11.2 kg below median
Cells 108 · TOPCon Monocrystalline
Coefficient Pmax -0.350 %/°C Weak bottom 3% of its segment
Coefficient Voc · Isc -0.260 · 0.048 %/°C
NOCT 43 °C At 800 W/m², 20 °C ambient
Product warranty 15 years Hardware defects only
Performance warranty 30 years Typical median 30 yrs · median 30 yrs
End-of-warranty output 87.4 % Equals 385 W guaranteed
Degradation 1.00 % First year

Datasheet charts

Open datasheet PDF

Measured curves published by Solar N Plus in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 440 Wp appear here. The rest cover the whole series.

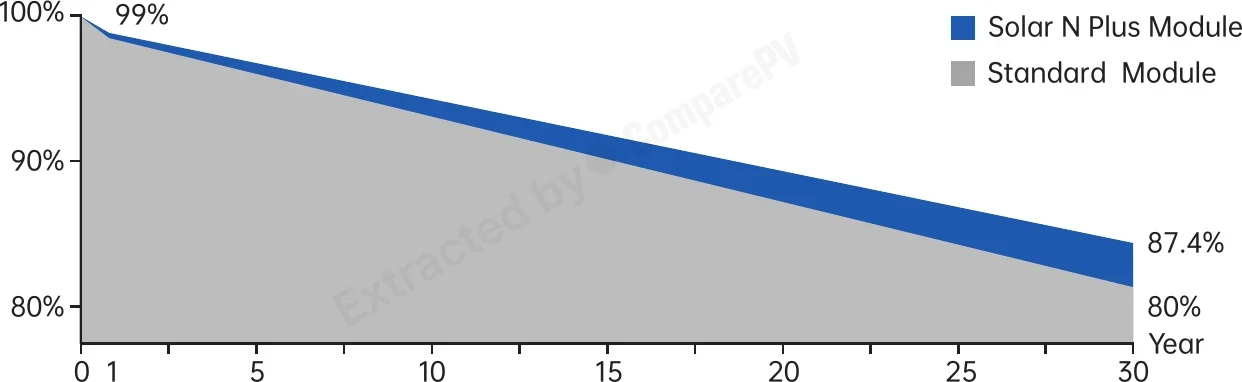

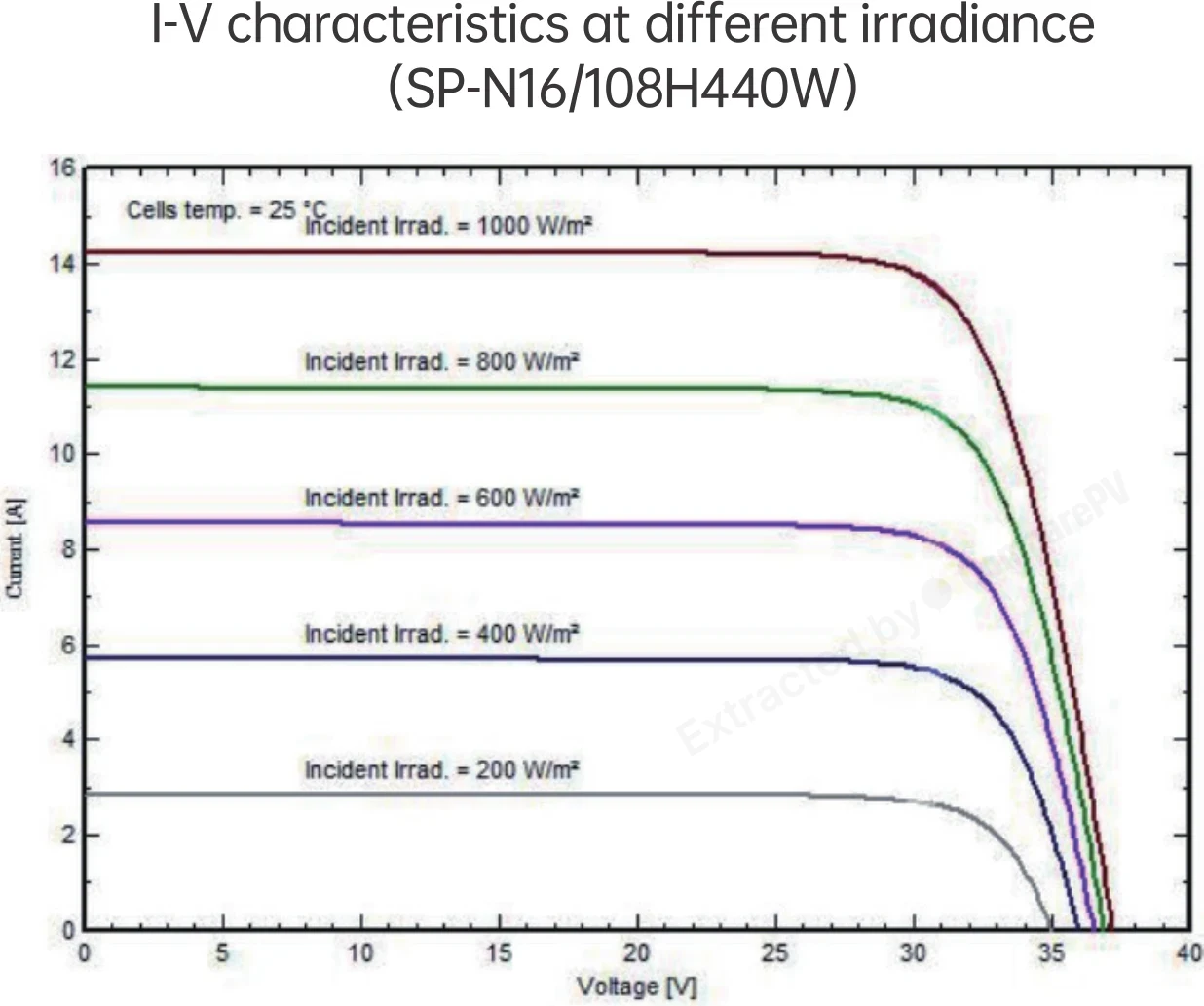

30-Year Linear Power Output Warranty 30-Year Linear Power Output Warranty Whole series I-V characteristics at different irradiance (SP-N16/108H440W) I-V characteristics at different irradiance (SP-N16/108H440W) 440 W

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.350 %/°C against a segment median of -0.290
-
Filter these
Size
Panel Power Eff. Temp. Weight Difference
Solar N Plus SP-N16/108H-440W 440 W 22.50% -0.350 10.8 kg You are here
AIKO-A490-MCE54Mw 490 W 24.50% -0.260 21.0 kg Cooler, heavier, +2.0 pp
STP-NT11/48QGSF-490 490 W 24.50% -0.260 21.5 kg Cooler, heavier, +2.0 pp
JAT54S40-485/LR 485 W 24.30% -0.260 19.3 kg Cooler, heavier, +1.8 pp
AIKO-A485-MCE54Mw 485 W 24.30% -0.260 21.0 kg Cooler, heavier, +1.8 pp
AIKO-A485-MAH54Mw 485 W 24.30% -0.260 21.5 kg Cooler, heavier, +1.8 pp
GK-5-54HG-485M 485 W 24.30% -0.260 21.0 kg Cooler, heavier, +1.8 pp
ZEUS 3.0+ 108 485WP 485 W 24.30% -0.260 24.2 kg Cooler, heavier, +1.8 pp
SP-M10/108HG-395 395 W 20.20% -0.350 24.1 kg -45 W, heavier, -2.3 pp
SP-M10/108HG-400 400 W 20.50% -0.350 24.1 kg -40 W, heavier, -2.0 pp
LR7-54HJD-510M 510 W 25.00% -0.240 23.5 kg Cooler, heavier, +2.5 pp
AIKO-A495-MCE54Mw 495 W 24.80% -0.260 21.0 kg Cooler, heavier, +2.3 pp
LR7-54HJD-505M 505 W 24.70% -0.240 23.5 kg Cooler, heavier, +2.2 pp
LR7-54HJD-500M 500 W 24.50% -0.240 23.5 kg Cooler, heavier, +2.0 pp
CIPRO-TN9C54M-500W 500 W 24.50% -0.260 21.4 kg Cooler, heavier, +2.0 pp

Found 1785 panels of the same or similar size to this one, within ±10 mm. See them here Found 1914 panels of the same or similar size to this one, within ±25 mm. See them here Found 3392 panels of the same or similar size to this one, within ±50 mm. See them here Found 3978 panels of the same or similar size to this one, within ±100 mm. See them here

Common questions

6 answered
What is TOPCon cell technology in the Solar N Plus SP-N16/108H series and why does it matter?
TOPCon (Tunnel Oxide Passivated Contact) is an N-type technology that reduces recombination losses at cell contacts through a thin passivation layer. In real-world terms, the SP-N16/108H delivers higher output per unit of irradiance and a low temperature coefficient of approximately -0.29%/°C. Compared to older PERC modules, TOPCon degrades more slowly over time, which means more stable long-term energy production and a better return on investment.
How lightweight is the SP-N16/108H series and can it be installed on a roof with limited load capacity?
The SP-N16/108H is marketed as a Lightweight Module. At dimensions of 1722×1134×30 mm, it weighs approximately 24 kg — competitive for a 108-cell, 440 W class module. This makes it a practical choice for retrofit projects on older buildings or roofs with limited structural load capacity. The reduced weight also simplifies transport across the roof surface and installation without heavy lifting equipment.
What warranty does the Solar N Plus SP-N16/108H come with?
Solar N Plus offers a 15-year product warranty covering material and workmanship defects, and a 30-year power output warranty with a guaranteed minimum of 87.4% of rated power at end of life. Before purchasing, verify that the local distributor provides in-country warranty support, as Solar N Plus is not currently listed among BNEF Tier 1 manufacturers.
Do Solar N Plus SP-N16/108H panels perform well in winter and on cloudy days?
Yes. The N-type TOPCon technology provides a low temperature coefficient of approximately -0.29%/°C, meaning the module actually gains power output when cell temperature drops below 25°C (STC) during cold winter conditions. The anti-reflective coating also helps capture diffuse and low-angle irradiance typical of northern European winters and overcast days, making it a reliable year-round performer.
Is the SP-N16/108H series a bifacial panel?
No, the standard SP-N16/108H series is a monofacial panel — energy is harvested from the front surface only. If you need additional energy gain from ground-reflected irradiance (albedo effect), typically relevant for ground-mounted systems with a light-colored substrate, you should consider a bifacial module variant instead.
Who is the Solar N Plus SP-N16/108H best suited for — is it a good choice for a residential installation?
The SP-N16/108H series targets residential homes, small businesses, and premium installations where a combination of high efficiency, durability, and installation convenience matters. With up to 440 W peak power, a lightweight frame, and a 30-year power warranty, it is a solid N-type TOPCon option for buyers who want advanced cell technology without the premium price of Tier 1 brands.
