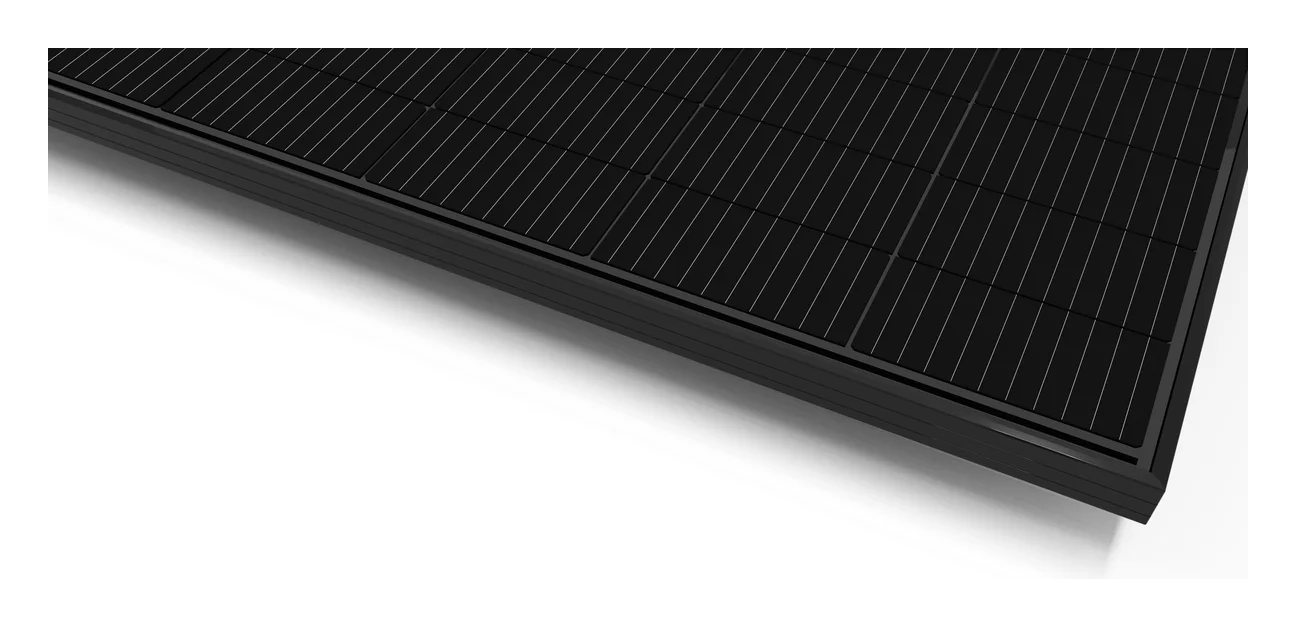

Solar N Plus SP-M10/108HG-395W
Solar N Plus Brand review

SP-M10/108HG-395W

395 Wp PERC Bifacial 70%
ComparePV verdict

Warranty pick, heavy for its output

Rank 11,615 of 14,005
Compare panels Datasheet PDF
Power (Wp)
395
Strong · top 12%
Efficiency (%)
20.20
Typical · median 19.90%
Density (Wp/m²)
202.3
Typical · median 199.0
Temp (%/°C)
-0.350
Typical · median -0.350
Weight (kg)
24.1
Weak · 2.8 kg above median
Warranty (yrs)
30
Strong · top 13%

The Solar N Plus CYGNUS All-black Bifacial (SP-M10/108HG) series is designed for investors who want to combine aesthetics with real energy gains. Its key feature is the bifacial design - the panel can also generate power from reflected light from the ground, which helps to increase output in areas with reflective surfaces or on roofs with appropriate reflection. The use of PERC technology ensures stable performance under varying solar conditions, while the 108-cell layout makes it easy to design compact installations on typical roof structures.

It is a good choice where appearance is important - the all-black finish is ideal for modern roofs and facades, minimizing the contrast between the frame and the cells. The CYGNUS series is particularly recommended for residential installations, smaller commercial systems, and projects where reliability and long-term energy production predictability are essential. Its bifacial design and refined black finish differentiate it from many standard modules, which focus solely on parameters at the expense of aesthetics.

Ranking

579 panels in the segment PERC 350-400 W
Metric This panel Median Position in segment Overall rank
Module efficiency 20.20% 19.90% Typical 11,956
Power density 202.3 199.0 Typical 11,887
Temperature coefficient -0.350 -0.350 Typical 10,419
Weight per kWp 61.0 55.8 Weak · bottom 23% 12,573
Performance warranty 30 yrs 25 yrs Strong · top 13% 21
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

1 positive · 1 caution
Best for

Residential, commercial and BIPV.

Not ideal for

Weight-limited structures.

Strengths
30 year performance warranty

Top 13% of the PERC 350-400 W segment, against a median of 25 yrs.

Watch-outs
61.0 kg per kWp

Bottom 23% of the PERC 350-400 W segment, against a median of 55.8.

Notes from the database
  • At 20.2% efficiency, this panel is 0.8pp above typical PERC 0-400W modules (median: 19.4%)
  • Power density of 202.3 W/m² packs 7.9 W/m² more into the same footprint vs PERC 0-400W median (194.4 W/m²)
  • At -0.35%/°C, hot weather performance is typical for PERC 0-400W panels
  • At 24.1 kg, this panel is 3.6 kg heavier than the PERC 0-400W median (20.5 kg) - more demanding for installation crews
  • Bifacial design (70% factor) captures reflected light - adds 4-10% yield on ground-mount or white roof

Specifications

Open datasheet PDF
Nominal power (Pmax) 395 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 20.20 % Typical Segment median 19.90%
Vmpp · Impp 30.60 V · 12.91 A Operating point at max power
Voc · Isc 36.60 V · 13.77 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 1722×1134×30 mm · 1.95 m² of roof
Weight 24.1 kg Weak Weak · 2.8 kg above median
Cells 108 · PERC Monocrystalline
Bifaciality 70 % Rear output as a share of front
Coefficient Pmax -0.350 %/°C Typical median -0.350 of its segment
Coefficient Voc · Isc -0.280 · 0.050 %/°C
NOCT 45 °C At 800 W/m², 20 °C ambient
Product warranty 15 years Hardware defects only
Performance warranty 30 years Strong top 13% · median 25 yrs
End-of-warranty output 85.0 % Equals 336 W guaranteed

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-
With bifacial gain
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.350 %/°C against a segment median of -0.350
-
Bifacial gain
Rear gain over light concrete: -
-

Model: bifaciality × albedo × 0.6 view factor. A first-order estimate, not a yield simulation.

Filter these
Size
Panel Power Eff. Temp. Weight Difference
Solar N Plus SP-M10/108HG-395W 395 W 20.20% -0.350 24.1 kg You are here
LX-440M/182-108+GG 440 W 23.07% -0.240 23.6 kg +45 W, cooler, +2.9 pp
GKA210M360W 360 W 23.00% - 16.2 kg -35 W, lighter, +2.8 pp
GKA210M380W (1/4*4*38) 380 W 23.00% - 17.1 kg -15 W, lighter, +2.8 pp
GKA210M400W (1/2*4*20) 400 W 23.00% - 18.0 kg Lighter, +2.8 pp
GKA210M400W (1/4*4*40) 400 W 23.00% - 18.0 kg Lighter, +2.8 pp
GKA210M380W (1/2*4*19) 380 W 23.00% - 17.1 kg -15 W, lighter, +2.8 pp
JT440SYK(B) 440 W 22.90% -0.240 23.0 kg +45 W, cooler, +2.7 pp
LX-440M/182-108+ 440 W 22.86% -0.300 21.5 kg Cooler, +2.7 pp, -5 yr warranty
SP-M10/108HG-400 400 W 20.50% -0.350 24.1 kg +0.3 pp
LR7-54HJD-510M 510 W 25.00% -0.240 23.5 kg +115 W, cooler, +4.8 pp
AIKO-A495-MCE54Mw 495 W 24.80% -0.260 21.0 kg +100 W, cooler, +4.6 pp
LR7-54HJD-505M 505 W 24.70% -0.240 23.5 kg +110 W, cooler, +4.5 pp
AIKO-A490-MCE54Mw 490 W 24.50% -0.260 21.0 kg +95 W, cooler, +4.3 pp
LR7-54HJD-500M 500 W 24.50% -0.240 23.5 kg +105 W, cooler, +4.3 pp
CIPRO-TN9C54M-500W 500 W 24.50% -0.260 21.4 kg +105 W, cooler, +4.3 pp

Found 1783 panels of the same or similar size to this one, within ±10 mm. See them here Found 1914 panels of the same or similar size to this one, within ±25 mm. See them here Found 3392 panels of the same or similar size to this one, within ±50 mm. See them here Found 3970 panels of the same or similar size to this one, within ±100 mm. See them here

Common questions

6 answered
Is the Solar N Plus CYGNUS All-black Bifacial SP-M10/108HG suitable for a sloped roof?
Yes, the CYGNUS SP-M10/108HG series works well on sloped roofs. The 108-cell layout fits standard roof sections comfortably, and the compact form factor simplifies transport and installation. Keep in mind that bifacial gain on sloped roofs is lower than in ground-mounted systems — rear-side energy production depends on ground albedo. Best results come from light-colored surfaces or white roofing membranes beneath the array.
What is the warranty on the Solar N Plus CYGNUS All-black Bifacial panels?
The manufacturer provides a 15-year product warranty covering physical defects and a 30-year power output warranty. Over 30 years, the panel must maintain the minimum performance level defined by the degradation curve in the datasheet. This is a solid warranty range for the mid-range segment. Before purchasing, ask your distributor for written warranty terms and confirm that after-sales support is available in your region.
What does bifacial mean in the CYGNUS series and how much extra energy can I realistically expect?
A bifacial panel has an active rear side that absorbs light reflected from the ground. In the CYGNUS SP-M10/108HG series, PERC technology supports this effect. With adequate albedo — light gravel, concrete, or white TPO/PVC membrane — the rear side can contribute 5–10% additional energy above the nominal 415 Wp rating. On a standard dark roof the gain will be lower, but still measurable.
Does the all-black version of the CYGNUS series produce less energy than a standard silver-framed panel?
The black frame and black backsheet absorb slightly more heat than lighter-colored components, which at extreme temperatures can marginally reduce instantaneous efficiency. In practice the difference is around 1–2% and is negligible in the annual energy balance under typical Central European conditions. For most homeowners, the aesthetic advantage — a uniform look with no contrast between frame and cells — fully offsets this minor trade-off.
How many CYGNUS 415 Wp panels do I need to build a 10 kW system?
At 415 Wp per module you need 25 panels, yielding approximately 10.4 kWp total. This is an approximate figure — the final design depends on roof orientation, tilt angle, inverter selection, and any shading present. Have your installer calculate the optimal string configuration and verify that the chosen inverter's MPPT voltage range matches the string voltage of 25 series-connected modules.
Is Solar N Plus a reliable manufacturer and do the CYGNUS panels carry the required certifications?
Solar N Plus is not listed among Tier 1 manufacturers according to Bloomberg NEF, indicating a smaller production scale than market leaders. CYGNUS series panels should carry IEC 61215 and IEC 61730 certifications required for EU installations. Before purchasing, request up-to-date certificates in PDF format from your distributor and confirm that warranty service is available in your country.
