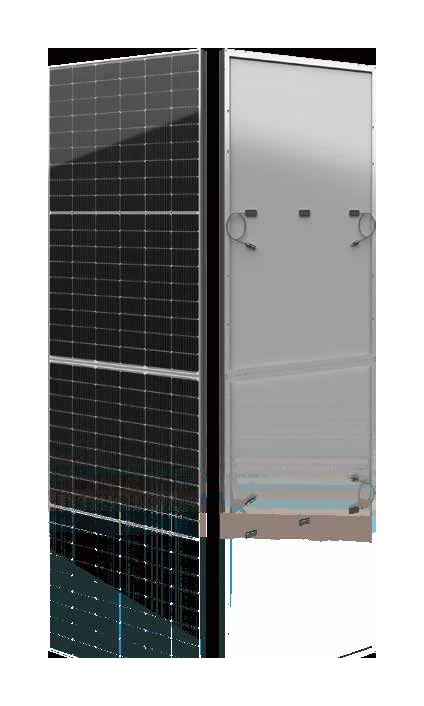

Seraphim SRP-445-BMB-BG
Seraphim Brand review

SRP-445-BMB-BG

445 Wp PERC Bifacial 70%
ComparePV verdict

Warranty pick, heavy for its output

Rank 10,460 of 14,005
Compare panels Datasheet PDF
Power (Wp)
445
Strong · top 5%
Efficiency (%)
20.56
Typical · median 20.60%
Density (Wp/m²)
205.6
Typical · median 206.2
Temp (%/°C)
-0.340
Strong · top 24%
Weight (kg)
27.3
Weak · 5.3 kg above median
Warranty (yrs)
30
Strong · top 17%

The Seraphim Seco solar panel series introduces a new level of quality in the field of energy efficiency, basing its construction on advanced N-type cell technology. This solution effectively eliminates the problem of rapid power degradation in the first years of use, which directly translates into a higher return on investment for homeowners and businesses. A key differentiator of the Seco series is the optimized bifacial design, which allows for the absorption of reflected light from both sides of the module, significantly increasing the total energy yield by more than ten percent compared to standard single-sided solutions. These models are characterized by exceptional resistance to extreme mechanical loads, while maintaining reduced module weight, making them an ideal choice for roofs with limited load-bearing capacity. Thanks to the use of Half-Cut cell technology, these panels perform excellently in partial shading conditions, minimizing power losses. Choosing the Seco series is a guarantee of stable system operation for decades, offering a low temperature coefficient that protects installation performance during hot days. This product is dedicated to investors seeking uncompromising quality, combining modern design with the highest resistance to LID and LeTID degradation phenomena, which puts Seraphim Seco a step ahead of traditional market competition.

Ranking

954 panels in the segment PERC 400-450 W
Metric This panel Median Position in segment Overall rank
Module efficiency 20.56% 20.60% Typical 11,194
Power density 205.6 206.2 Typical 11,166
Temperature coefficient -0.340 -0.350 Strong · top 24% 8,778
Weight per kWp 61.3 53.0 Weak · bottom 8% 12,637
Performance warranty 30 yrs 25 yrs Strong · top 17% 21
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

2 positive · 1 caution
Best for

Commercial, utility-scale, shaded-installations and hot-climate.

Not ideal for

Weight-limited structures.

Strengths
30 year performance warranty

Top 17% of the PERC 400-450 W segment, against a median of 25 yrs.

-0.340 %/°C temperature coefficient

Top 24% of the PERC 400-450 W segment, against a median of -0.350.

Watch-outs
61.3 kg per kWp

Bottom 8% of the PERC 400-450 W segment, against a median of 53.0. Ranked 12,637th in the whole database.

Notes from the database
  • At 20.6% efficiency, this panel is on par with typical PERC 400-450W modules
  • At 205.6 W/m² power density, roof space requirements are typical for PERC 400-450W panels
  • Temperature coefficient of -0.34%/°C matches the PERC 400-450W median
  • Weight of 27.3 kg is 5.3 kg above PERC 400-450W median (22.0 kg) - verify structural support
  • 70% bifaciality enables rear-side power generation, boosting yield by 4-10% on reflective surfaces

Specifications

Open datasheet PDF
Nominal power (Pmax) 445 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 20.56 % Typical Segment median 20.60%
Vmpp · Impp 34.18 V · 13.03 A Operating point at max power
Voc · Isc 41.22 V · 13.66 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 1909×1134×30 mm · 2.16 m² of roof
Weight 27.3 kg Weak Weak · 5.3 kg above median
Cells 120 · PERC Monocrystalline
Bifaciality 70 % Rear output as a share of front
Coefficient Pmax -0.340 %/°C Strong top 24% of its segment
Coefficient Voc · Isc -0.260 · 0.050 %/°C
NOCT 45 °C At 800 W/m², 20 °C ambient
Product warranty 15 years Hardware defects only
Performance warranty 30 years Strong top 17% · median 25 yrs
End-of-warranty output 85.0 % Equals 378 W guaranteed
Degradation 2.00 → 0.45 % First year, then annual

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-
With bifacial gain
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.340 %/°C against a segment median of -0.350
-
Bifacial gain
Rear gain over light concrete: -
-

Model: bifaciality × albedo × 0.6 view factor. A first-order estimate, not a yield simulation.

Filter these
Size
Panel Power Eff. Temp. Weight Difference
Seraphim SRP-445-BMB-BG 445 W 20.56% -0.340 27.3 kg You are here
AIKO-A495-MCE54Mw 495 W 24.80% -0.260 21.0 kg Cooler, lighter, +4.2 pp
AIKO-A490-MCE54Mw 490 W 24.50% -0.260 21.0 kg Cooler, lighter, +3.9 pp
STP-NT11/48QGSF-490 490 W 24.50% -0.260 21.5 kg Cooler, lighter, +3.9 pp
JAT54S40-485/LR 485 W 24.30% -0.260 19.3 kg Cooler, lighter, +3.7 pp
AIKO-A485-MCE54Mw 485 W 24.30% -0.260 21.0 kg Cooler, lighter, +3.7 pp
LR7-54HJD-495M 495 W 24.30% -0.240 23.5 kg +50 W, cooler, +3.7 pp
AIKO-A485-MAH54Mw 485 W 24.30% -0.260 21.5 kg Cooler, lighter, +3.7 pp
SRP-440-BMB-HV 440 W 20.33% -0.340 22.3 kg Lighter, -0.2 pp, -5 yr warranty
SRP-450-BMB-BG 450 W 20.79% -0.340 27.3 kg +0.2 pp
SRP-455-BMB-BG 455 W 21.02% -0.340 27.3 kg +10 W, +0.5 pp
SRP-460-BMB-HV 460 W 21.25% -0.340 22.3 kg Lighter, +0.7 pp, -5 yr warranty
LR7-60HVH-560M 560 W 24.80% -0.260 25.0 kg +115 W, cooler, +4.2 pp
LR7-60HVH-555M 555 W 24.60% -0.260 25.0 kg +110 W, cooler, +4.0 pp
LR7-60HVHL-550M 550 W 24.40% -0.260 16.3 kg +105 W, lighter, +3.8 pp
JAT60S40-540/LR 540 W 24.40% -0.260 23.5 kg +95 W, cooler, +3.8 pp
GK-5-60HG-540M 540 W 24.40% -0.260 23.3 kg +95 W, cooler, +3.8 pp

Found 746 panels of the same or similar size to this one, within ±10 mm. See them here Found 755 panels of the same or similar size to this one, within ±25 mm. See them here Found 916 panels of the same or similar size to this one, within ±50 mm. See them here Found 1503 panels of the same or similar size to this one, within ±100 mm. See them here

Common questions

6 answered
What are the product and power output warranties for the Seraphim Seco series?
Seraphim Seco panels come with a 15-year product warranty covering materials and workmanship, plus a 25-year linear power output warranty. First-year degradation is capped at 2%, followed by approximately 0.55% per year thereafter, ensuring over 80% of rated power after 25 years. These terms are in line with other Tier 1 manufacturers and make the Seco series a solid long-term investment.
What is PERC cell technology used in Seraphim Seco panels, and is it a modern solution?
PERC (Passivated Emitter and Rear Cell) is an advanced monocrystalline silicon cell design that adds a rear passivation layer to reflect photons that would otherwise be lost, pushing module efficiency above 21%. The Seco 555W pairs PERC with multi-busbar wiring and 144 half-cut cells, delivering higher real-world energy yield compared to older full-cell PERC designs.
How do Seraphim Seco 555W panels perform under partial shading from a chimney or antenna?
The 144 half-cut cell layout splits each cell into two independent halves, so shade falling on one half of the module does not suppress output from the other. This significantly reduces mismatch losses compared to full-cell panels. Seraphim Seco is therefore a practical choice for rooftops with chimneys, dormers, or neighboring obstructions that cause intermittent shading.
How much does a Seraphim Seco 555W panel weigh, and is it suitable for a roof with limited load capacity?
The SRP-555 model weighs approximately 32 kg with dimensions of 2278 × 1134 × 30 mm. Before installation on an older or structurally limited roof, a structural assessment is strongly recommended, as the combined load of multiple panels plus racking hardware can be substantial. For roofs with very low load ratings, lighter modules in a lower wattage class may be a safer choice.
Is Seraphim a trustworthy manufacturer, and what does Tier 1 status actually mean in practice?
Seraphim Solar System is a Chinese manufacturer headquartered in Changzhou and classified as Tier 1 by Bloomberg NEF. In practice, Tier 1 means fully automated in-house production lines, a proven track record of project financing from major banks, and consistent product quality. Their 15-year product warranty and established after-sales support make Seraphim Seco a reliable option for residential and commercial installations with a 25-year investment horizon.
Do Seraphim Seco panels lose significant power on hot summer days?
Like all silicon-based PV modules, Seco panels lose some output as cell temperature rises above 25°C STC. The combination of PERC technology, multi-busbar design, and half-cut cells results in a competitive temperature coefficient of approximately -0.34% per degree Celsius. In a central European climate, the thermal impact on annual energy yield is moderate, and the panels maintain stable long-term performance across seasonal temperature swings.
