Selfa SV120M.2.4-500
Selfa Brand review

SV120M.2.4-500

500 Wp N-type Bifacial 2500%
ComparePV verdict

Middle of its segment, weak in heat

Rank 5,418 of 14,005
Compare panels Datasheet PDF
Power (Wp)
500
Weak · bottom 8%
Efficiency (%)
22.60
Typical · median 22.54%
Density (Wp/m²)
225.5
Typical · median 225.3
Temp (%/°C)
-0.300
Weak · bottom 11%
Weight (kg)
27.0
Weak · bottom 23%
Warranty (yrs)
30
Typical · median 30 yrs

The SV120M.2.4 series consists of bifacial Selfa photovoltaic modules built on N-Type cells and half-cut technology, which reduces energy losses and keeps performance stable even under partial shading. The panels feature a bifacial full black construction with tempered glass on both sides, capturing light reflected from the ground and delivering a real yield increase compared to standard monofacial modules. The multi-busbar layout improves connection reliability and lowers the risk of microcracks, while PID resistance ensures stable operation of the installation over many years. An additional advantage is the self-cleaning SELF-C coating, which helps maintain high panel efficiency even with limited access for maintenance, for example on hard-to-reach rooftops. The uniform black frame gives the series a clean look, making it a good fit for installations where roof or facade aesthetics matter. The SV120M.2.4 is aimed at investors looking for a more efficient alternative to standard monofacial panels, suitable for both residential and commercial installations where a lower cost per watt and a long-term manufacturer warranty backed by over eighty years on the market are key considerations.

Ranking

140 panels in the segment N-type 500-550 W
Metric This panel Median Position in segment Overall rank
Module efficiency 22.60% 22.54% Typical 3,658
Power density 225.5 225.3 Typical 3,882
Temperature coefficient -0.300 -0.290 Weak · bottom 11% 6,093
Weight per kWp 54.0 50.0 Weak · bottom 23% 8,183
Performance warranty 30 yrs 30 yrs Typical 21
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Price offers

1 from shops we track
Shop Country Price Per kWp Stock Offer updated Link to shop
PV-Sklep Poland 429.99 zł incl. VAT 859.98 zł/kWp In stock 7h ago Visit shop

Signals from the data

0 positive · 2 caution
Best for

Commercial.

Not ideal for

Hot climates and weight-limited structures.

Watch-outs
-0.300 %/°C temperature coefficient

Bottom 11% of the N-type 500-550 W segment, against a median of -0.290.

54.0 kg per kWp

Bottom 23% of the N-type 500-550 W segment, against a median of 50.0.

Notes from the database
  • Efficiency of 22.6% matches the N-type 500-550W median
  • Power density of 225.5 W/m² matches the N-type 500-550W median
  • Temperature coefficient of -0.30%/°C matches the N-type 500-550W median
  • In the top 26% for efficiency among all N-type panels

Specifications

Open datasheet PDF
Nominal power (Pmax) 500 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 22.60 % Typical Segment median 22.54%
Vmpp · Impp 36.50 V · 13.70 A Operating point at max power
Voc · Isc 43.97 V · 14.18 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 1955×1134×30 mm · 2.22 m² of roof
Weight 27.0 kg Weak Weak · bottom 23%
Bifaciality 2500 % Rear output as a share of front
Coefficient Pmax -0.300 %/°C Weak bottom 11% of its segment
Coefficient Voc · Isc -0.250 · 0.050 %/°C
NOCT 41 °C At 800 W/m², 20 °C ambient
Product warranty 20 years Hardware defects only
Performance warranty 30 years Typical median 30 yrs · median 30 yrs
End-of-warranty output 87.0 % Equals 435 W guaranteed
Degradation 1.00 % First year

Datasheet charts

Open datasheet PDF

Measured curves published by Selfa in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 500 Wp appear here. The rest cover the whole series.

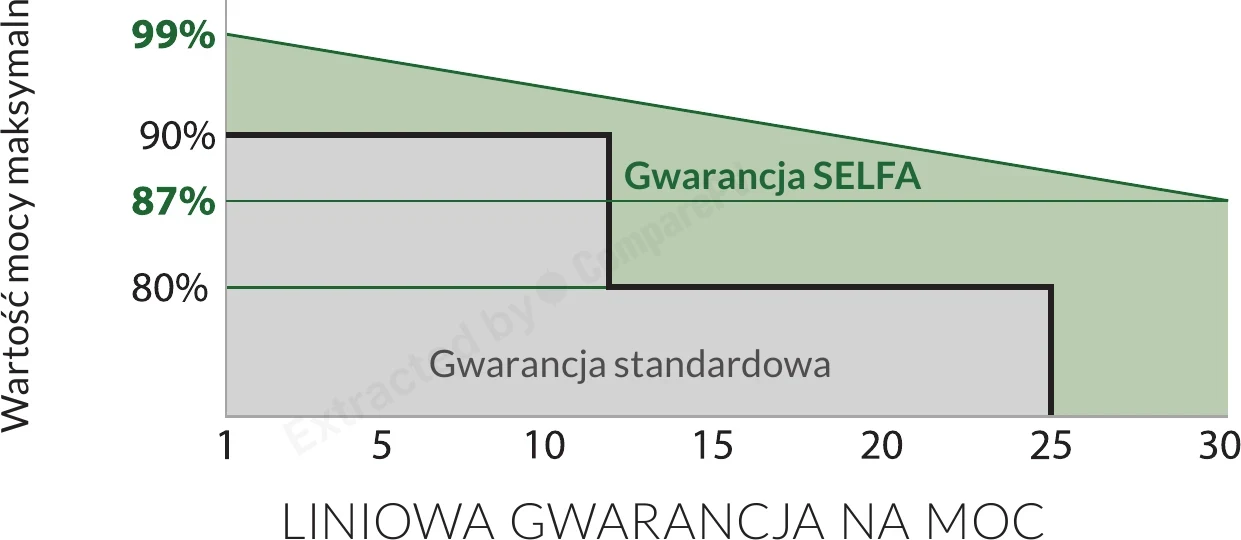

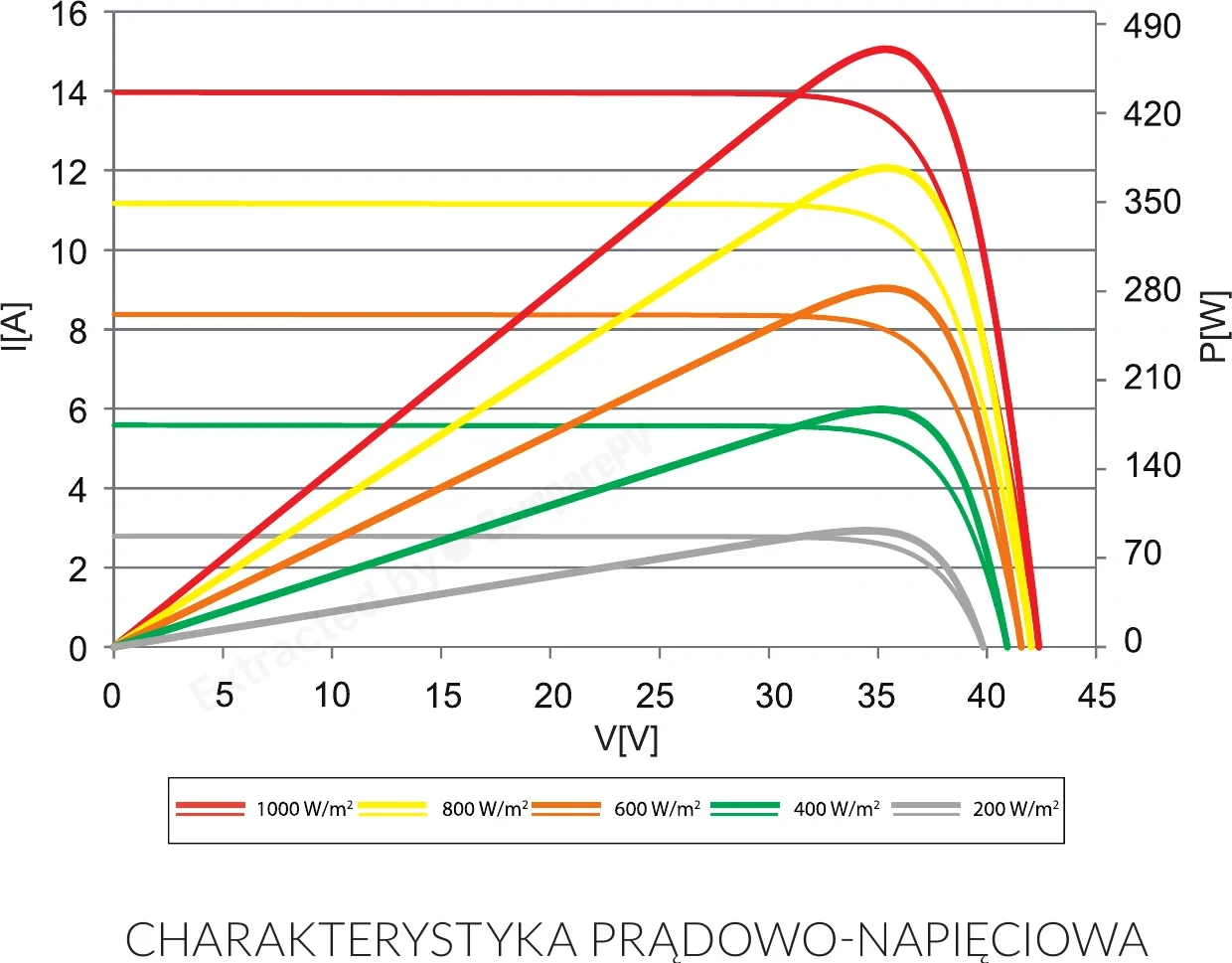

Linear Power Warranty Linear Power Warranty Whole series Current-Voltage Characteristic Current-Voltage Characteristic Whole series

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-
With bifacial gain
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.300 %/°C against a segment median of -0.290
-
Bifacial gain
Rear gain over light concrete: -
-

Model: bifaciality × albedo × 0.6 view factor. A first-order estimate, not a yield simulation.

Filter these
Size
Panel Power Eff. Temp. Weight Difference
Selfa SV120M.2.4-500 500 W 22.60% -0.300 27.0 kg You are here
LR7-54HJD-510M 510 W 25.00% -0.240 23.5 kg Cooler, lighter, +2.4 pp
AIKO-A495-MCE54Mw 495 W 24.80% -0.260 21.0 kg Cooler, lighter, +2.2 pp
LR7-54HJD-505M 505 W 24.70% -0.240 23.5 kg Cooler, lighter, +2.1 pp
AIKO-A490-MCE54Mw 490 W 24.50% -0.260 21.0 kg Cooler, lighter, +1.9 pp
LR7-54HJD-500M 500 W 24.50% -0.240 23.5 kg Cooler, lighter, +1.9 pp
CIPRO-TN9C54M-500W 500 W 24.50% -0.260 21.4 kg Cooler, lighter, +1.9 pp
SV120M.3.4-480 480 W 21.70% -0.300 23.5 kg -20 W, lighter, -0.9 pp
LR7-60HVH-560M 560 W 24.80% -0.260 25.0 kg +60 W, cooler, +2.2 pp
LR7-60HVH-555M 555 W 24.60% -0.260 25.0 kg +55 W, cooler, +2.0 pp
LR7-60HVHL-550M 550 W 24.40% -0.260 16.3 kg +50 W, lighter, +1.8 pp
JAT60S40-540/LR 540 W 24.40% -0.260 23.5 kg +40 W, cooler, +1.8 pp
GK-5-60HG-540M 540 W 24.40% -0.260 23.3 kg +40 W, cooler, +1.8 pp
JKM545-54QL6-DV-F1-EU 545 W 24.27% -0.260 27.5 kg +45 W, cooler, +1.7 pp
LR7-60HVH-545M 545 W 24.20% -0.260 25.0 kg +45 W, cooler, +1.6 pp

Found 488 panels of the same or similar size to this one, within ±10 mm. See them here Found 512 panels of the same or similar size to this one, within ±25 mm. See them here Found 1080 panels of the same or similar size to this one, within ±50 mm. See them here Found 1471 panels of the same or similar size to this one, within ±100 mm. See them here

Common questions

6 answered
Are Selfa SV120M.2.4 solar panels still available for purchase?
The SV120M.2.4 series has been discontinued and is no longer part of Selfa's current product catalog. Panels may still be available through distributors as remaining stock, but once inventory runs out, no further units will be manufactured. Anyone planning to extend an existing array with matching modules should act quickly or consider a newer equivalent from the current lineup, such as the SV120M.3.4 series.
How much extra energy can bifacial SV120M.2.4 panels generate compared to standard modules?
Thanks to the bifacial full black construction with tempered glass on both sides, SV120M.2.4 panels also capture light reflected off the ground surface. Under favorable albedo conditions, such as a light-colored surface or a white roof membrane, energy yield can increase by up to 25% compared to a classic monofacial module of the same 500 Wp rated power.
What warranty comes with Selfa SV120M.2.4 solar panels?
The manufacturer offers a 20-year product warranty along with a 30-year power output warranty. This means the module is expected to maintain a guaranteed efficiency level over three decades according to its power degradation curve, while for the first 20 years the manufacturer covers material and workmanship defects in the module itself.
How do the N-type cells in SV120M.2.4 differ from standard PERC cells?
N-type cells, unlike widely used PERC (P-type) cells, offer higher efficiency (up to 22.60% in this model), a lower annual degradation rate, and reduced sensitivity to LID and PID. Combined with half-cut technology and multiple busbars, this results in more stable module performance and lower energy losses throughout the system's operating life.
Are SV120M.2.4 panels suitable for roofs that are hard to clean?
Yes, the modules feature the SELF-C self-cleaning coating, which reduces dust and dirt buildup on the glass surface and allows rain to rinse it off more effectively. This is especially useful on low-pitch roofs or in locations where regular maintenance is difficult, as it helps maintain high panel efficiency without frequent service intervention.
Who manufactures Selfa panels, and is it a Tier 1 manufacturer?
Selfa is a Polish manufacturer with over eighty years of history in the market, though it is not formally listed as a Tier 1 manufacturer under the BloombergNEF classification, which primarily rates the scale of bank financing behind module production rather than module quality itself. For many buyers, the domestic origin of the product and local warranty support are significant advantages when choosing panels for a residential or commercial installation.
