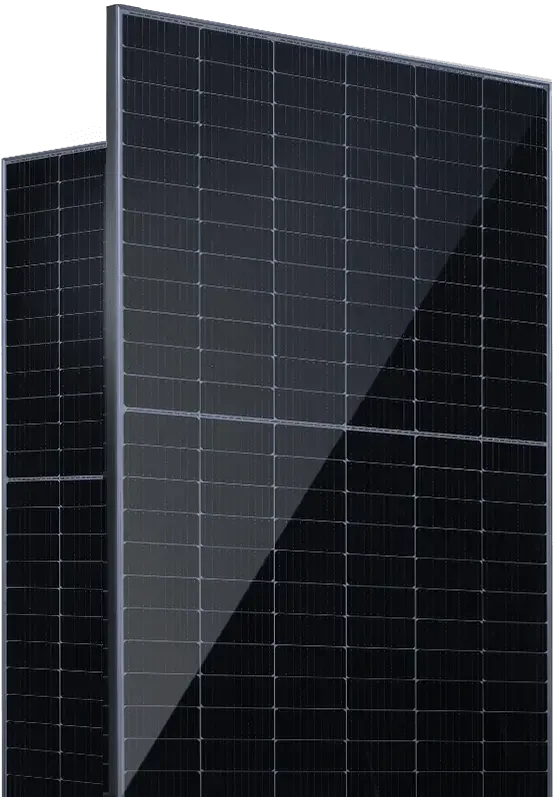

Runergy HY-DH108N8-425

Runergy HY-DH108N8-425

425 Wp N-type Bifacial 80%
ComparePV verdict

Middle of its segment, heavy for its output

Rank 8,296 of 14,354
Compare panels Datasheet PDF
Power (Wp)
425
Typical for its class
Efficiency (%)
21.80
Typical · median 21.99%
Density (Wp/m²)
217.6
Typical · median 218.8
Temp (%/°C)
-0.290
Typical · median -0.290
Weight (kg)
24.2
Weak · 2.2 kg above median
Warranty (yrs)
30
Typical · median 30 yrs

The Runergy HY-DH108N8 (Transparent) series are modules designed where it’s not just about yield, but also aesthetics and architectural integration that matter. The transparent version allows light to pass under the module, facilitating solutions like carports, terrace canopies, awnings, or skylights in commercial properties - without the feeling of a heavy, dark canopy. The use of N-type cells combined with bifacial technology helps better utilize both diffuse and reflected light, translating into more stable energy production under Poland’s typical variable weather conditions. The double glass construction increases resistance to moisture, micro-cracks, and loads, which investors seeking reliable performance over years will appreciate. Furthermore, the low susceptibility to degradation typical of N-type limits power decay over time, while the high power output in low-light conditions supports self-consumption in residential and commercial buildings. This is the choice for projects where competitors often offer either the look or the performance - here, you get both.

Ranking

348 panels in the segment N-type 400-450 W
Metric This panel Median Position in segment Overall rank
Module efficiency 21.80% 21.99% Typical 7,225
Power density 217.6 218.8 Typical 7,375
Temperature coefficient -0.290 -0.290 Typical 2,288
Weight per kWp 56.9 51.8 Weak · bottom 17% 11,190
Performance warranty 30 yrs 30 yrs Typical 31
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

5 positive · 3 caution
Best for

Residential, commercial and BIPV.

Not ideal for

Weight-limited structures.

Watch-outs
56.9 kg per kWp

Bottom 17% of the N-type 400-450 W segment, against a median of 51.8.

What owners get
Top-tier efficiency in the segment

21.8% conversion efficiency puts the module on par with DualSun SPRING4 TOPCon F (21.8%) and clearly ahead of Hyundai's DG G12 PERC Shingled and Tongwei TERRA 5K (both 21.4%) at the same 425 Wp power rating.

N-type TOPCon cells + bifacial design

The combination of N-type cells with bifacial light capture reduces LID/LeTID degradation and better utilizes diffuse and reflected light, resulting in more stable energy yield under the variable weather conditions typical of Poland.

30-year power warranty

The manufacturer declares a 30-year power warranty and a 25-year product warranty - above the standard 25/25-year terms common among many competitors in the rooftop and BIPV module segment.

Unique aesthetics and architectural integration

The transparent double-glass construction enables applications such as carports, terrace canopies, pergolas, and skylights, letting light pass through beneath the module - an option unavailable in the standard opaque panels in this peer comparison.

Tier-1 manufacturer status per BloombergNEF

Runergy has been listed as a BloombergNEF Tier 1 PV Module Manufacturer (confirmed in Q4 2023 and retained through 2024), which improves bankability for projects financed by banks and institutional investors.

Trade-offs
Niche application and limited public data

The transparent variant is a niche product (carports, pergolas, skylights) - a dedicated datasheet for this specific 425 Wp transparent configuration is harder to find publicly compared to the main opaque HY-DH108N8B series, which can make pre-purchase spec verification more difficult.

Likely price premium over standard modules

Transparent construction combined with bifacial functionality in the BIPV segment typically carries a higher production cost per Wp than standard opaque dual-glass modules of comparable power, limiting price competitiveness for typical rooftop installations.

Notes from the database
  • Efficiency of 21.8% matches the N-type 400-450W median
  • Power density of 217.6 W/m² matches the N-type 400-450W median
  • At -0.29%/°C, hot weather performance is typical for N-type 400-450W panels
  • At 24.2 kg (2.2 kg above N-type 400-450W median of 22.0 kg), requires checking roof load capacity
  • 80% bifaciality enables rear-side power generation, boosting yield by 4-12% on reflective surfaces

Specifications

Open datasheet PDF
Nominal power (Pmax) 425 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 21.80 % Typical Segment median 21.99%
Vmpp · Impp 32.67 V · 13.01 A Operating point at max power
Voc · Isc 38.59 V · 13.64 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 1722×1134×30 mm · 1.95 m² of roof
Weight 24.2 kg Weak Weak · 2.2 kg above median
Cells 108 · N-type Monocrystalline
Bifaciality 80 % Rear output as a share of front
Coefficient Pmax -0.290 %/°C Typical median -0.290 of its segment
Coefficient Voc · Isc -0.250 · 0.045 %/°C
NOCT 42 °C At 800 W/m², 20 °C ambient
Product warranty 25 years Hardware defects only
Performance warranty 30 years Typical median 30 yrs · median 30 yrs
End-of-warranty output 87.4 % Equals 371 W guaranteed
Degradation 1.00 → 0.40 % First year, then annual

Datasheet charts

Open datasheet PDF

Measured curves published by Runergy in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 425 Wp appear here. The rest cover the whole series.

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-
With bifacial gain
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.290 %/°C against a segment median of -0.290
-
Bifacial gain
Rear gain over light concrete: -
-

Model: bifaciality × albedo × 0.6 view factor. A first-order estimate, not a yield simulation.

Filter these
Size
Panel Power Eff. Temp. Weight Difference
Runergy HY-DH108N8-425 425 W 21.80% -0.290 24.2 kg You are here
SPR-MAX7-475 475 W 24.00% -0.270 21.1 kg +50 W, +2.2 pp, +10 yr warranty
JST-EDMH-(445-465)W-TD (465W class) 465 W 23.81% -0.300 20.5 kg +40 W, lighter, +2.0 pp
JAT54S40-475/LR 475 W 23.80% -0.260 19.3 kg +50 W, lighter, +2.0 pp
TWMNH-48HW475 475 W 23.80% -0.280 23.7 kg +50 W, +2.0 pp
CHSM48RN(DG)/F-BH-475 475 W 23.80% -0.290 24.5 kg +50 W, +2.0 pp
AIKO-A475-MCE54Mw 475 W 23.80% -0.260 21.0 kg +50 W, lighter, +2.0 pp
AIKO-A475-MAH54Mw 475 W 23.80% -0.260 21.5 kg +50 W, cooler, +2.0 pp
HY-DH108N8B-430 430 W 22.00% -0.290 24.2 kg Very close match
HY-DH108N8B-435 435 W 22.30% -0.290 24.2 kg +10 W, +0.5 pp
HY-DH108N8B-440 440 W 22.50% -0.290 24.2 kg +15 W, +0.7 pp
HY-DH108N8B-445 445 W 22.80% -0.290 24.2 kg +20 W, +1.0 pp
JKM510T-48HL6M-DB 510 W 25.52% -0.240 22.0 kg +85 W, cooler, +3.7 pp
JKM505T-48HL6M-DB 505 W 25.27% -0.240 22.0 kg +80 W, cooler, +3.5 pp
JKM500T-48HL6M-DB 500 W 25.02% -0.240 22.0 kg +75 W, cooler, +3.2 pp
LR7-54HJD-510M 510 W 25.00% -0.240 23.5 kg +85 W, cooler, +3.2 pp
AIKO-A495-MCE54Mw 495 W 24.80% -0.260 21.0 kg +70 W, lighter, +3.0 pp

Found 1839 panels of the same or similar size to this one, within ±10 mm. See them here Found 1970 panels of the same or similar size to this one, within ±25 mm. See them here Found 3497 panels of the same or similar size to this one, within ±50 mm. See them here Found 4125 panels of the same or similar size to this one, within ±100 mm. See them here

About the HY-DH108N8 (Transparent) series

6 answered

These answers cover the whole series. Where a figure differs, the specification above is this module's own.

Are Runergy HY-DH108N8 Transparent panels suitable for carport or pergola installations?
Yes, the HY-DH108N8 Transparent series is specifically designed for these applications. The transparent variant allows light to pass through, so the canopy avoids the heavy, opaque look of standard modules - carports, pergolas, and terrace overhangs retain a natural, open feel. The double glass construction (2.0 mm tempered glass front and back) provides rigidity and moisture resistance without requiring a full aluminum perimeter frame.
What warranty does the Runergy HY-DH108N8 Transparent come with?

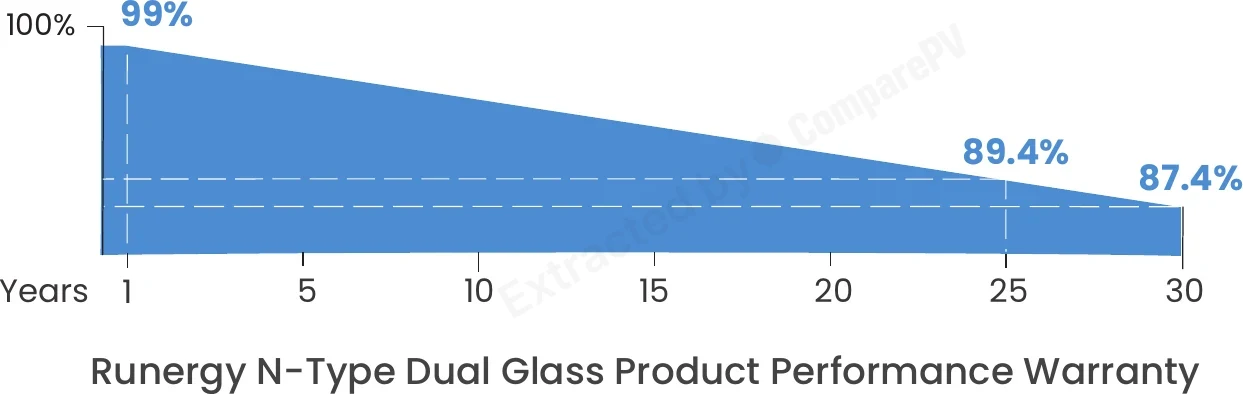

Runergy provides a 25-year product warranty and a 30-year linear power output warranty. Degradation is specified at less than 1% in year one and less than 0.4% per year thereafter, meaning the module should retain at least 87.4% of its rated output after 30 years - one of the stronger linear power guarantees in this product class.
What is N-type TOPCon technology and why does it matter for this series?
N-type TOPCon cells exhibit significantly lower light-induced degradation (LID) than conventional PERC cells, resulting in more stable power output throughout the panel's service life. The temperature coefficient of Pmax is just -0.29%/°C, which means less power loss on hot summer days when module temperatures can exceed 60°C. Over a multi-decade installation, this technology advantage translates into a measurably higher real-world energy yield.
Does bifacial functionality work on the transparent version and how does it affect energy yield?
Yes, the HY-DH108N8 Transparent retains full bifacial capability - the rear face still captures light reflected from the ground or surrounding surfaces. In carport installations over light-colored surfaces such as concrete or light gravel, or in pergolas with reflective environments, the bifacial gain can add several percentage points to actual energy production, depending on the albedo of the surface below the array.
How do Runergy HY-DH108N8 Transparent panels perform under typical overcast conditions in Central Europe?
The 108 half-cut N-type cell layout handles diffuse irradiance well. Smaller cell segments reduce the impact of partial shading, and the low temperature coefficient (-0.29%/°C) limits power loss on cool, overcast days compared to older PERC technology. In climates like Poland's, where a significant share of annual generation comes from low or diffuse irradiance, this translates into a noticeably better capacity factor over the system's lifetime.
How much does the Runergy HY-DH108N8 Transparent weigh and what are the structural requirements?
The module weighs approximately 24.2 kg with dimensions of 1722 × 1134 × 30 mm. The double glass construction is heavier than backsheet modules, so carport, pergola, or skylight structures must account for the higher dead load. For larger canopy areas, a structural engineer should verify the load-bearing capacity of the steel or aluminum substructure before installation.
