Risen RSM96-11-445BNDG
Risen Brand review

RSM96-11-445BNDG

445 Wp TOPCon Bifacial 80%
ComparePV verdict

Efficiency leader, no clear weak spot

Rank 8,766 of 14,005
Compare panels Datasheet PDF
Power (Wp)
445
Strong · top 8%
Efficiency (%)
22.30
Strong · top 17%
Density (Wp/m²)
222.7
Typical · median 220.2
Temp (%/°C)
-0.290
Typical · median -0.290
Weight (kg)
21.5
Strong · top 24%
Warranty (yrs)
30
Typical · median 30 yrs

The Risen RSM96-11-440-460BNDG series was designed for maximum yield in real-world operating conditions - beyond the laboratory. These modules feature N-type wafers in TOPCon technology, delivering high parameter stability and lower power losses over time. In practice, this translates to more reliable energy production for installations intended to operate without surprises for many years.

A key advantage is the bifacial dual-glass construction - the panel can also utilize reflected light from the ground, making it easier to achieve yield on flat roofs, pergolas, carports, or ground-mounted installations. This design also improves resistance to environmental factors, and better performance at high temperatures helps maintain production during summer months when many competing modules visibly lose efficiency.

This is an excellent choice for companies and smart consumers who seek long-term predictability, high performance even in low-light conditions, and technology that truly lowers the energy cost from their installations.

Ranking

1,218 panels in the segment TOPCon 400-450 W
Metric This panel Median Position in segment Overall rank
Module efficiency 22.30% 22.00% Strong · top 17% 5,100
Power density 222.7 220.2 Typical 5,302
Temperature coefficient -0.290 -0.290 Typical 2,165
Weight per kWp 48.3 51.4 Strong · top 24% 2,192
Performance warranty 30 yrs 30 yrs Typical 21
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

2 positive · 0 caution
Best for

Residential, commercial and hot-climate.

Strengths
22.30% module efficiency

Top 17% of the TOPCon 400-450 W segment, against a median of 22.00%.

48.3 kg per kWp

Top 24% of the TOPCon 400-450 W segment, against a median of 51.4.

Notes from the database
  • At 22.3% efficiency, this panel is on par with typical TOPCon 400-450W modules
  • At 222.7 W/m² power density, roof space requirements are typical for TOPCon 400-450W panels
  • Temperature coefficient of -0.29%/°C matches the TOPCon 400-450W median
  • Bifaciality factor of 80% can add 4-12% extra yield with reflective mounting surface
  • #5100 for efficiency, #2165 for temperature performance out of 14005 panels

Specifications

Open datasheet PDF
Nominal power (Pmax) 445 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 22.30 % Strong Segment median 22.00%
Vmpp · Impp 29.70 V · 14.99 A Operating point at max power
Voc · Isc 35.19 V · 16.06 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 1762×1134×30 mm · 2.00 m² of roof
Weight 21.5 kg Strong Strong · top 24%
Cells 96 · TOPCon Monocrystalline
Bifaciality 80 % Rear output as a share of front
Coefficient Pmax -0.290 %/°C Typical median -0.290 of its segment
Coefficient Voc · Isc -0.250 · 0.046 %/°C
NOCT 44 °C At 800 W/m², 20 °C ambient
Product warranty 15 years Hardware defects only
Performance warranty 30 years Typical median 30 yrs · median 30 yrs
End-of-warranty output 87.4 % Equals 389 W guaranteed
Degradation 1.00 → 0.40 % First year, then annual

Datasheet charts

Open datasheet PDF

Measured curves published by Risen in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 445 Wp appear here. The rest cover the whole series.

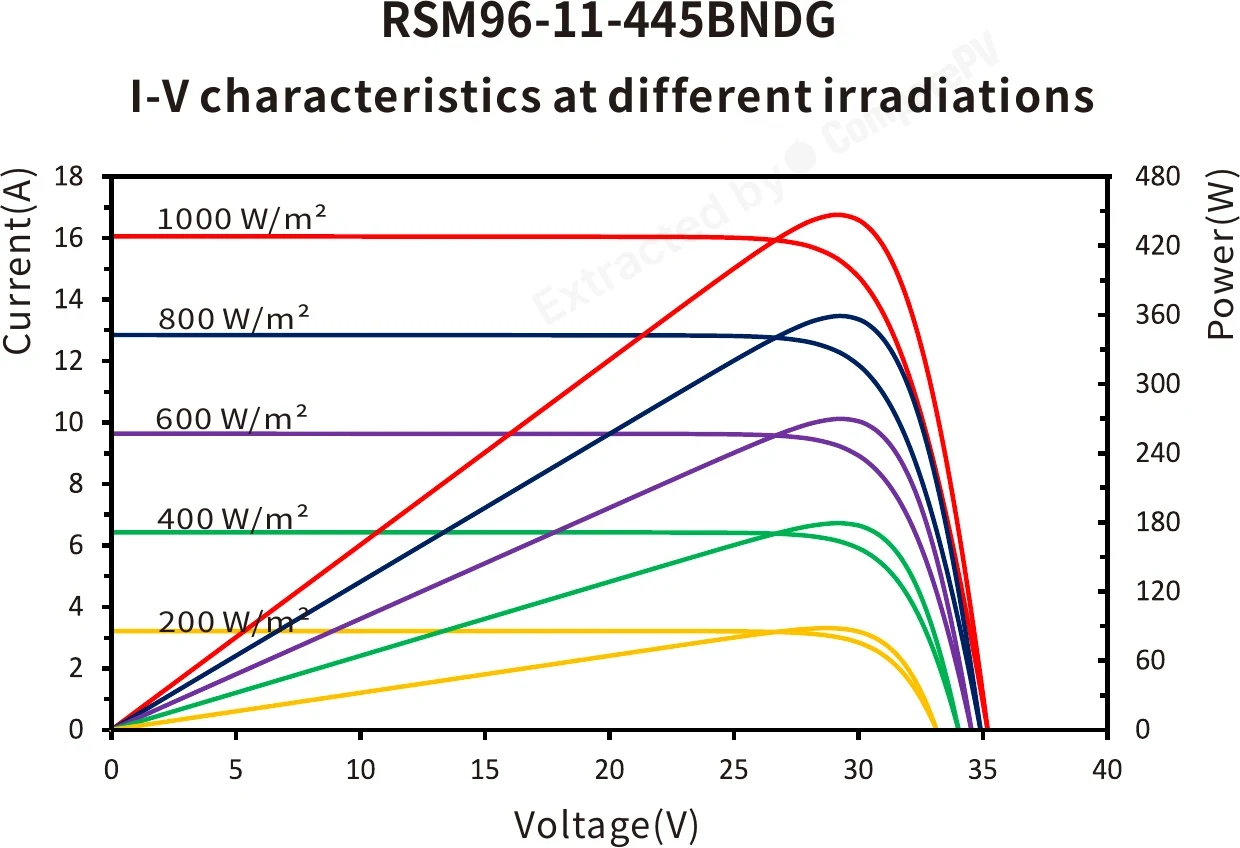

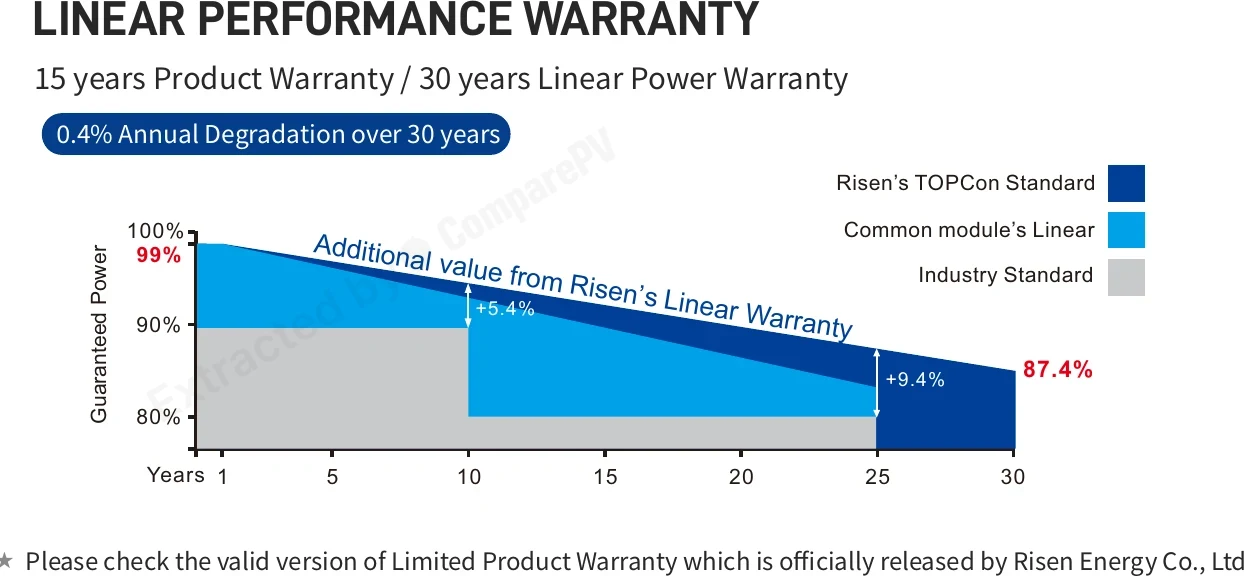

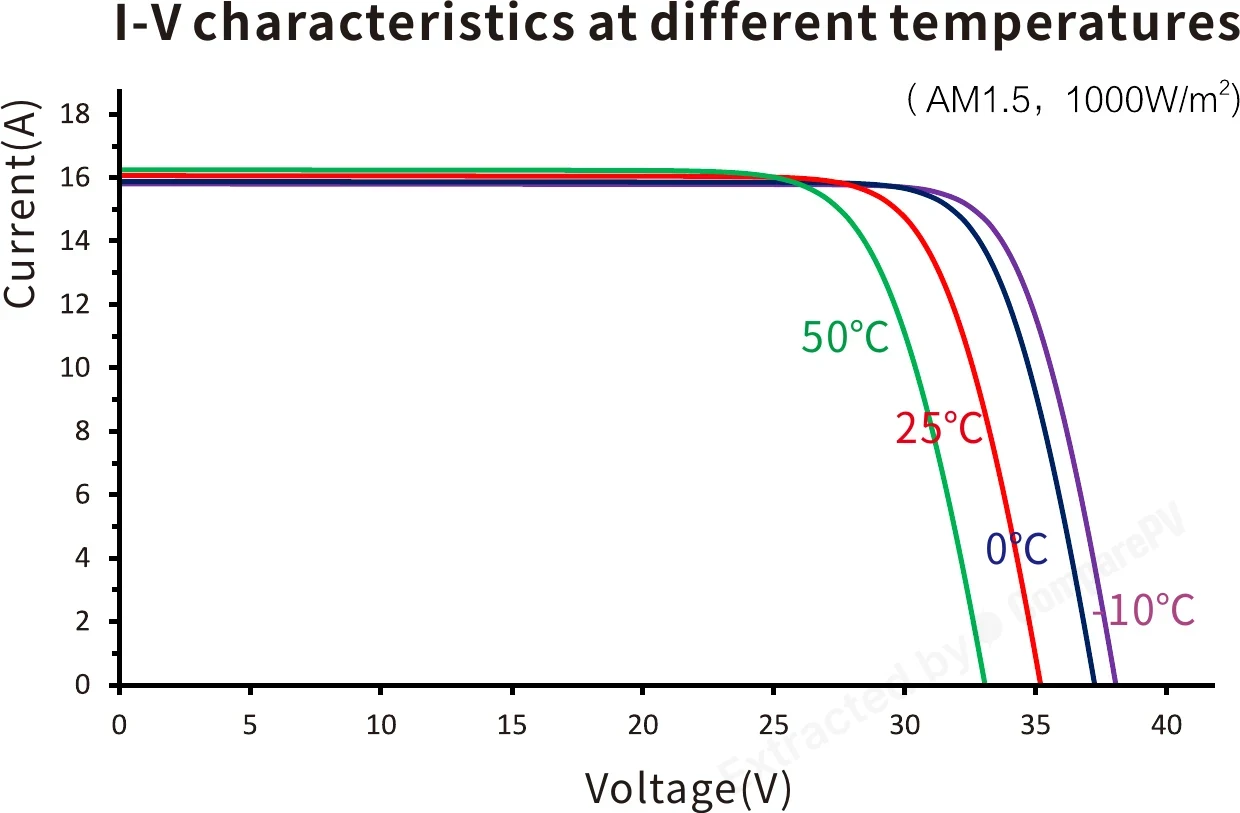

Linear Performance Warranty (15 years Product Warranty / 30 years Linear Power Warranty) Linear Performance Warranty (15 years Product Warranty / 30 years Linear Power Warranty) Whole series RSM96-11-445BNDG I-V characteristics at different irradiations RSM96-11-445BNDG I-V characteristics at different irradiations 445 W I-V characteristics at different temperatures (AM1.5, 1000W/m²) I-V characteristics at different temperatures (AM1.5, 1000W/m²) Whole series

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-
With bifacial gain
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.290 %/°C against a segment median of -0.290
-
Bifacial gain
Rear gain over light concrete: -
-

Model: bifaciality × albedo × 0.6 view factor. A first-order estimate, not a yield simulation.

Filter these
Size
Panel Power Eff. Temp. Weight Difference
Risen RSM96-11-445BNDG 445 W 22.30% -0.290 21.5 kg You are here
AIKO-A495-MCE54Mw 495 W 24.80% -0.260 21.0 kg +50 W, cooler, +2.5 pp
AIKO-A490-MCE54Mw 490 W 24.50% -0.260 21.0 kg +45 W, cooler, +2.2 pp
STP-NT11/48QGSF-490 490 W 24.50% -0.260 21.5 kg +45 W, cooler, +2.2 pp
JAT54S40-485/LR 485 W 24.30% -0.260 19.3 kg +40 W, cooler, +2.0 pp
AIKO-A485-MCE54Mw 485 W 24.30% -0.260 21.0 kg +40 W, cooler, +2.0 pp
LR7-54HJD-495M 495 W 24.30% -0.240 23.5 kg +50 W, cooler, +2.0 pp
AIKO-A485-MAH54Mw 485 W 24.30% -0.260 21.5 kg +40 W, cooler, +2.0 pp
RSM96-11-440BNDG 440 W 22.00% -0.290 21.5 kg -0.3 pp
RSM96-11-450BNDG 450 W 22.50% -0.290 21.5 kg Very close match
RSM96-11-455BNDG 455 W 22.80% -0.290 21.5 kg +10 W, +0.5 pp
RSM96-11-460BNDG 460 W 23.00% -0.290 21.5 kg +15 W, +0.7 pp
LR7-54HJD-510M 510 W 25.00% -0.240 23.5 kg +65 W, cooler, +2.7 pp
LR7-54HJD-505M 505 W 24.70% -0.240 23.5 kg +60 W, cooler, +2.4 pp
LR7-54HJD-500M 500 W 24.50% -0.240 23.5 kg +55 W, cooler, +2.2 pp
CIPRO-TN9C54M-500W 500 W 24.50% -0.260 21.4 kg +55 W, cooler, +2.2 pp

Found 1395 panels of the same or similar size to this one, within ±10 mm. See them here Found 1425 panels of the same or similar size to this one, within ±25 mm. See them here Found 3614 panels of the same or similar size to this one, within ±50 mm. See them here Found 3962 panels of the same or similar size to this one, within ±100 mm. See them here

Common questions

6 answered
What warranty does the Risen RSM96-11-440-460BNDG series come with?
The RSM96-11-440-460BNDG series is backed by a 15-year product warranty covering manufacturing defects and a 30-year linear power warranty guaranteeing at least 87.4% of rated output at the end of that period. This is among the longer warranty standards in the industry and reflects the manufacturer's confidence in the dual-glass, N-type TOPCon construction.
Is the Risen RSM96-11-440-460BNDG suitable for flat roofs and ground-mounted systems?
Yes, this is one of the series' key strengths. The bifacial dual-glass design allows the panels to harvest light reflected from the ground or roofing membrane, which is especially beneficial on flat roofs and ground-mounted arrays with light-colored surfaces. With a bifacial factor of approximately 80%, the real-world energy yield gain is meaningful at no additional hardware cost.
How does the Risen RSM96-11-440-460BNDG perform in high summer temperatures?
The series features a temperature coefficient of Pmax of -0.29%/°C, which is better than typical PERC modules (-0.34 to -0.37%/°C). In practice, this means lower power losses on hot days when module temperature can exceed 60-70°C. N-type TOPCon cells also show lower LID (light-induced degradation), helping maintain stable output throughout the summer season.
What makes the TOPCon technology in the Risen RSM96-11-440-460BNDG stand out?
TOPCon (Tunnel Oxide Passivated Contact) uses an N-type silicon base with a thin tunnel oxide passivation layer that reduces carrier recombination. As a result, the RSM96-11-440-460BNDG achieves module efficiency of around 22-23% and exhibits lower LID/LeTID degradation in the first years of operation compared to PERC technology. For end users, this translates to more predictable and stable energy production over the system's lifetime.
What are the dimensions and weight of the Risen RSM96-11-440-460BNDG - will it fit my roof?
The module measures 1762×1134×30 mm and weighs approximately 21.5 kg. This is a standard footprint for 96-cell modules, compatible with most racking and mounting systems available on the market. The dual-glass construction adds a small amount of weight compared to glass-backsheet modules, but significantly improves mechanical strength and long-term weatherproofing.
Who is the Risen RSM96-11-440-460BNDG series designed for - residential or commercial use?
The series is well suited for both larger residential prosumer installations and commercial or industrial rooftop projects. Up to 460 Wp per module and high efficiency allow more energy to be generated from a limited roof area. The 30-year power warranty, durable dual-glass encapsulation, and Risen's Tier 1 manufacturer status make it particularly attractive for businesses seeking a reliable long-term return on investment.
