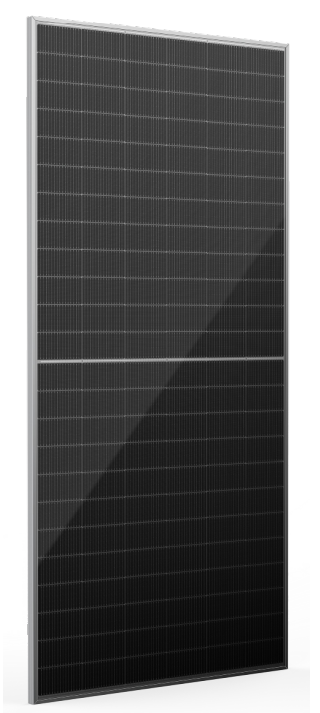

Risen RSM144-9-565BNDG
Risen Brand review

RSM144-9-565BNDG

565 Wp TOPCon Bifacial 80%
ComparePV verdict

Middle of its segment, needs the roof space

Rank 7,269 of 14,129
Compare panels Datasheet PDF
Power (Wp)
565
Weak · bottom 18%
Efficiency (%)
21.90
Weak · bottom 22%
Density (Wp/m²)
218.7
Weak · bottom 20%
Temp (%/°C)
-0.290
Typical · median -0.290
Weight (kg)
31.0
Typical · median 31.2 kg
Warranty (yrs)
30
Typical · median 30 yrs

The Risen RSM144-9-560-585BNDG series was designed as bifacial modules in a dual glass construction, to genuinely increase energy yield where every percent of production counts - on commercial rooftops and large ground installations. The use of n-type TOPCon cells translates to more stable performance over time, lower susceptibility to typical degradation mechanisms, and high efficiency even in challenging conditions, when the installation operates beyond ideal irradiance.

Dual glass is not just about durability - it also means better resistance to moisture, temperature changes, and loads, facilitating module selection for projects facing demanding environments. Bifaciality helps utilize reflected light (e.g., from light backgrounds, gravel, roof membranes), contributing to additional energy production without increasing the surface area.

This series stands out by combining high power density with an approach focused on long-term reliability - for investors, EPCs, and companies seeking predictable LCOE and faster returns from their installations.

Ranking

1,022 panels in the segment TOPCon 550-600 W
Metric This panel Median Position in segment Overall rank
Module efficiency 21.90% 22.44% Weak · bottom 22% 6,847
Power density 218.7 224.4 Weak · bottom 20% 6,904
Temperature coefficient -0.290 -0.290 Typical 2,220
Weight per kWp 54.9 53.8 Typical 9,338
Performance warranty 30 yrs 30 yrs Typical 21
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

5 positive · 5 caution
Best for

Commercial, utility-scale and hot-climate.

Not ideal for

Roofs where every square metre has to count and tight roof space.

Watch-outs
218.7 watts per square metre

Bottom 20% of the TOPCon 550-600 W segment, against a median of 224.4.

21.90% module efficiency

Bottom 22% of the TOPCon 550-600 W segment, against a median of 22.44%.

What owners get
N-type TOPCon cells

Efficiency of 21.7-22.6% and lower LID degradation compared to older PERC cells translate into more stable energy yield over the module's lifetime, especially at higher operating temperatures.

Bifacial dual-glass design

The bifacial, dual-glass construction captures reflected light from the ground (gravel, membranes, light surfaces), adding extra energy production without increasing array footprint, plus improved resistance to moisture and mechanical loads.

30-year linear power warranty

The 30-year linear warranty guaranteeing at least 87% of nominal power meets premium-segment standards and matches comparable n-type series such as Hanersun Hitouch 5N and Q-SUN Qrystal N8/QNN182-HS-72.

Tier-1 manufacturer with long track record

Risen Energy, founded in 1986, is recognized as a bankable Tier-1 manufacturer with decades of production experience, strengthening the series' credibility with investors and EPC firms.

High power density up to 585 Wp

Unit power of up to 585 Wp in a 144-cell format places the series among the top of the segment, matching the highest-power variants of comparable n-type series (Hanersun, Q-SUN) also topping out at 585 Wp.

Trade-offs
Production discontinued in 2023

The series was discontinued the same year it was released (2023), meaning limited availability on the secondary market and potential difficulties with service and sourcing matching replacement units for installation expansion.

Short product warranty (5 years)

The 5-year product warranty is notably shorter than the current standard offered by Tier-1 manufacturers for n-type TOPCon modules, where typical terms run 10-15 years, which may affect the series' perceived investment value.

Slightly lower efficiency than segment leaders

Maximum efficiency of 22.6% is marginally below comparable n-type series such as Hanersun Hitouch 5N (22.65%) and Q-SUN Qrystal N8 (22.65%), though the gap is small and has minimal impact on actual energy yield.

Notes from the database
  • Efficiency of 21.9% is 0.5pp below the TOPCon 550-600W median (22.4%)
  • 218.7 W/m² power density is 5.7 W/m² below TOPCon 550-600W median (224.4 W/m²) - requires larger installation area
  • At -0.29%/°C, hot weather performance is typical for TOPCon 550-600W panels
  • Bifacial design (80% factor) captures reflected light - adds 4-12% yield on ground-mount or white roof
  • Ranked #6847 out of 14129 panels for efficiency in the database

Specifications

Open datasheet PDF
Nominal power (Pmax) 565 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 21.90 % Weak Segment median 22.44%
Vmpp · Impp 43.20 V · 13.10 A Operating point at max power
Voc · Isc 51.57 V · 13.95 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 2278×1134×30 mm · 2.58 m² of roof
Weight 31.0 kg Typical Typical · median 31.2 kg
Cells 144 · TOPCon Monocrystalline
Bifaciality 80 % Rear output as a share of front
Coefficient Pmax -0.290 %/°C Typical median -0.290 of its segment
Coefficient Voc · Isc -0.250 · 0.046 %/°C
NOCT 44 °C At 800 W/m², 20 °C ambient
Product warranty 5 years Hardware defects only
Performance warranty 30 years Typical median 30 yrs · median 30 yrs
End-of-warranty output 87.4 % Equals 494 W guaranteed
Degradation 1.00 → 0.40 % First year, then annual

Datasheet charts

Open datasheet PDF

Measured curves published by Risen in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 565 Wp appear here. The rest cover the whole series.

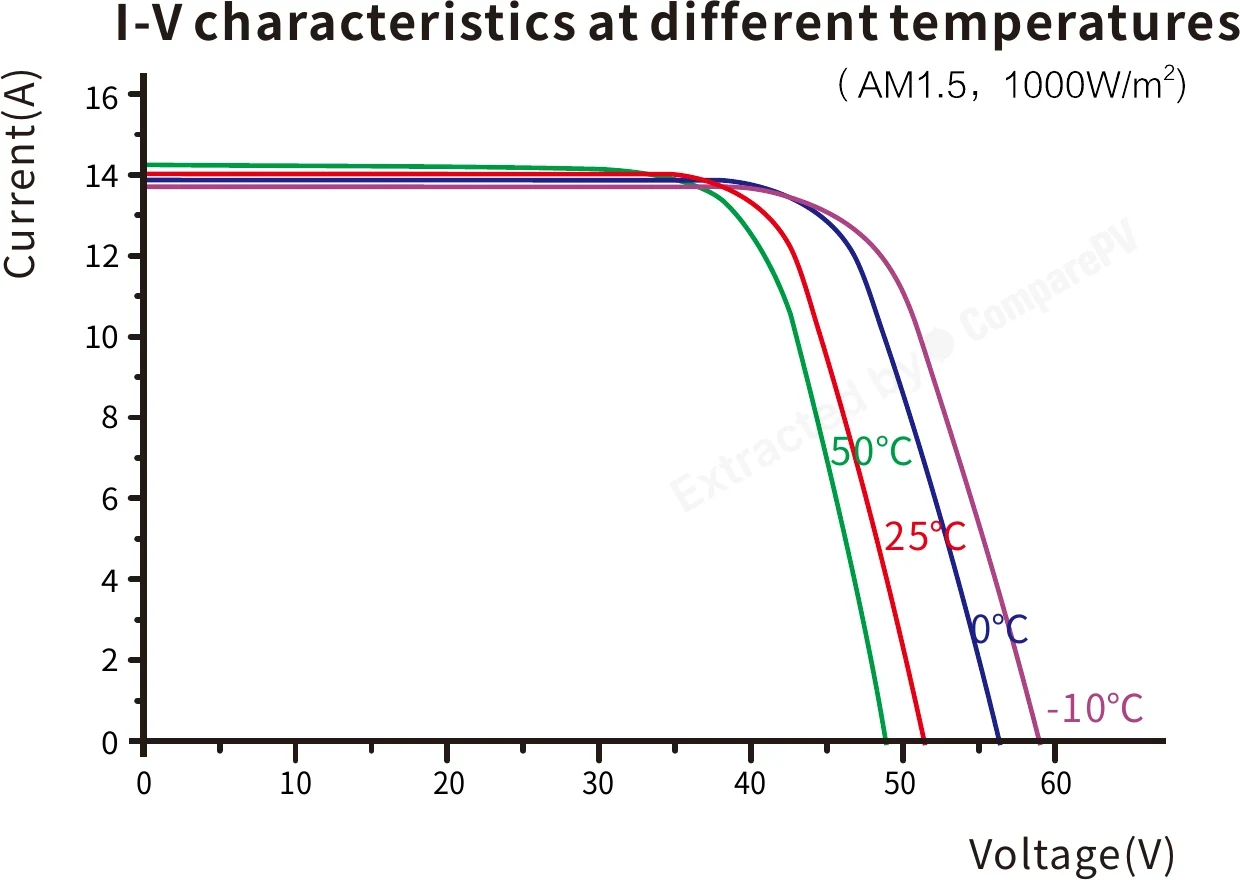

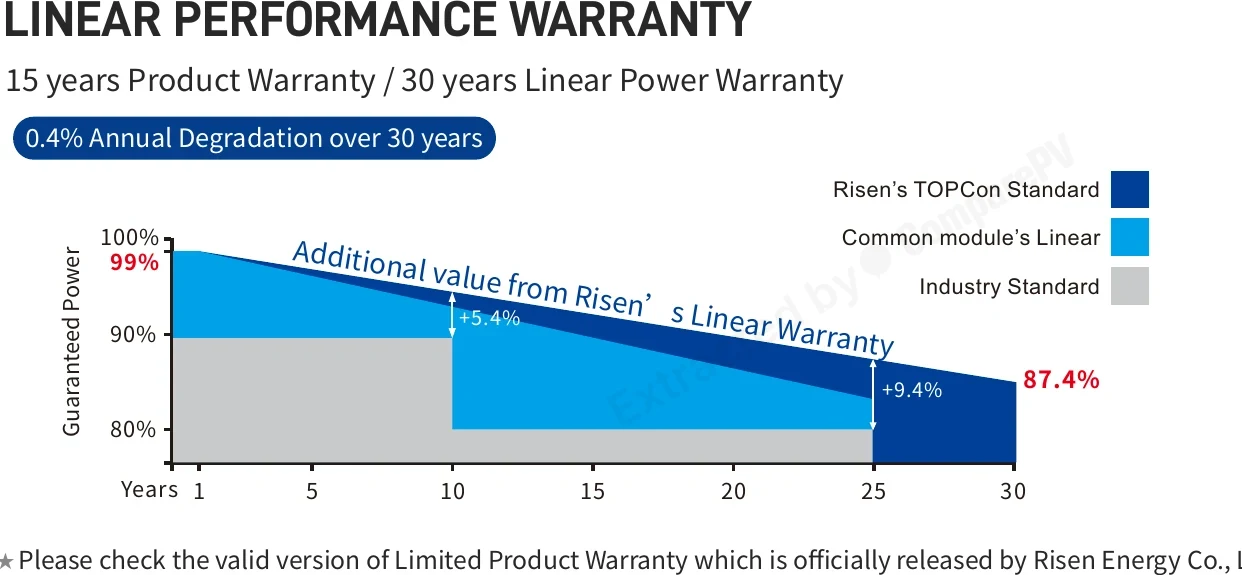

Linear Performance Warranty Linear Performance Warranty Whole series I-V characteristics at different temperatures I-V characteristics at different temperatures Whole series

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-
With bifacial gain
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.290 %/°C against a segment median of -0.290
-
Bifacial gain
Rear gain over light concrete: -
-

Model: bifaciality × albedo × 0.6 view factor. A first-order estimate, not a yield simulation.

Filter these
Size
Panel Power Eff. Temp. Weight Difference
Risen RSM144-9-565BNDG 565 W 21.90% -0.290 31.0 kg You are here
LR7-60HVH-560M 560 W 24.80% -0.260 25.0 kg Cooler, lighter, +2.9 pp
LR7-60HVH-555M 555 W 24.60% -0.260 25.0 kg Cooler, lighter, +2.7 pp
LR7-60HVHL-550M 550 W 24.40% -0.260 16.3 kg Cooler, lighter, +2.5 pp
JAT60S40-540/LR 540 W 24.40% -0.260 23.5 kg Cooler, lighter, +2.5 pp
GK-5-60HG-540M 540 W 24.40% -0.260 23.3 kg Cooler, lighter, +2.5 pp
JKM545-54QL6-DV-F1-EU 545 W 24.27% -0.260 27.5 kg Cooler, lighter, +2.4 pp
LR7-60HVH-545M 545 W 24.20% -0.260 25.0 kg Cooler, lighter, +2.3 pp
RSM144-9-545BMDG 545 W 21.10% -0.340 32.5 kg -20 W, hotter, -0.8 pp
RSM144-9-550BMDG 550 W 21.30% -0.340 32.5 kg -15 W, hotter, -0.6 pp
RSM144-9-560BNDG 560 W 21.70% -0.290 31.0 kg Very close match
RSM144-9-570BNDG 570 W 22.10% -0.290 31.0 kg +0.2 pp
RSM144-9-575BNDG 575 W 22.30% -0.290 31.0 kg +10 W, +0.4 pp
RSM144-9-580BNDG 580 W 22.50% -0.290 31.0 kg +15 W, +0.6 pp
RSM144-9-585BNDG 585 W 22.60% -0.290 31.0 kg +20 W, +0.7 pp
AIKO-A650-MAE72Mw 650 W 25.20% -0.260 27.0 kg +85 W, lighter, +3.3 pp
AIKO-A645-MAE72Mw 645 W 25.00% -0.260 27.0 kg +80 W, lighter, +3.1 pp

Found 2327 panels of the same or similar size to this one, within ±10 mm. See them here Found 2369 panels of the same or similar size to this one, within ±25 mm. See them here Found 2383 panels of the same or similar size to this one, within ±50 mm. See them here Found 2548 panels of the same or similar size to this one, within ±100 mm. See them here

About the RSM144-9-560-585BNDG series

6 answered

These answers cover the whole series. Where a figure differs, the specification above is this module's own.

Is the Risen RSM144-9-560-585BNDG series still available for purchase?
The RSM144-9-560-585BNDG series has been discontinued and is no longer available as new stock from most distributors. Occasional warehouse inventory may still be found, but for new projects it is advisable to look at current Risen n-type TOPCon modules with comparable specs to ensure supply continuity and full manufacturer support.
What warranties come with the Risen RSM144-9-560-585BNDG modules?
Risen provides a 5-year product warranty covering defects and workmanship, plus a 30-year linear power warranty. Annual degradation is just 0.4%, meaning the module should retain at least 87.4% of rated power after 30 years. This is one of the strongest long-term performance guarantees available in the dual glass n-type segment.
What real-world benefit does the bifacial design of the RSM144-9-560-585BNDG offer, and when does it pay off?
The rear side of the module can generate up to approximately 10% additional power by capturing reflected light from the ground surface. The gain is highest where albedo is high: light-colored gravel, white roofing membrane, concrete, or snow. On a standard dark rooftop the benefit is minimal. Bifacial performance pays off most in ground-mounted systems with elevated racking and a reflective surface beneath.
How does the Risen RSM144-9-560-585BNDG perform in high summer temperatures?
The temperature coefficient of Pmax is -0.29%/°C, which is an excellent figure for n-type TOPCon technology. At a panel surface temperature of 70°C, power loss is roughly 11.6% relative to STC, compared to 13-15% for typical p-type PERC modules. This means better real-world yields during hot summer months when irradiance is at its highest.
Are the Risen RSM144-9-560-585BNDG panels suitable for large commercial and utility-scale PV installations?
Yes, this series was specifically engineered for commercial rooftops and utility-scale ground-mounted systems. The 2278×1134×30 mm format and up to 585 Wp per module deliver high power density per unit area. A maximum system voltage of 1500 V DC simplifies integration with commercial string and central inverters, reducing overall BoS costs.
How does n-type TOPCon technology in this Risen series compare to older PERC cells?
TOPCon cells feature a thin tunnel oxide passivation layer on the rear side, which reduces carrier recombination more effectively than PERC. In practice this means higher module efficiency (up to approx. 22.5%), no light-induced degradation (LID) typical of p-type PERC, and a lower temperature coefficient. For investors, the result is higher annual energy yield and a more predictable LCOE over the full system lifetime.
