PVN345-M10TCBB

345 Wp TOPCon
ComparePV verdict

Light for its output, short guarantee

Rank 13,184 of 14,013
Compare panels Datasheet PDF
Power (Wp)
345
Strong · top 6%
Efficiency (%)
17.70
Strong · top 16%
Density (Wp/m²)
176.7
Strong · top 14%
Temp (%/°C)
-0.290
Strong · top 22%
Weight (kg)
20.5
Strong · 6.5 kg below median
Warranty (yrs)
25
Weak · bottom 3%

The UNICA series from PVolution consists of bifacial double-sided modules built on TOPCon technology, engineered for ground-mount, utility-scale, and agrivoltaic installations where maximizing output per square meter of land truly matters. With 45% rear-side transparency, the panel lets a portion of sunlight pass through to the ground below, enabling energy generation to coexist with crop farming or grazing beneath the array - a true case of dual land use that is especially valuable to agri-energy investors. High-efficiency TOPCon cells deliver stable performance even under diffuse light and elevated temperatures, while the module's build offers high mechanical load resistance against snow and wind, an important advantage on more demanding terrain. Designed in Germany and manufactured at a facility listed on the Bloomberg NEF Tier 1 list, UNICA is well suited to bank-financed commercial and industrial-scale projects. A linear power warranty spanning three decades, backed by a German manufacturer warranty reinsured through a third-party insurer, gives investors an added layer of security. UNICA is the right fit wherever increased land productivity needs to be balanced with the site's existing functional use.

Ranking

47 panels in the segment TOPCon 300-350 W
Metric This panel Median Position in segment Overall rank
Module efficiency 17.70% 15.03% Strong · top 16% 13,283
Power density 176.7 150.1 Strong · top 14% 13,277
Temperature coefficient -0.290 -0.300 Strong · top 22% 2,165
Weight per kWp 59.4 81.0 Strong · top 5% 12,113
Performance warranty 25 yrs 30 yrs Weak · bottom 3% 9,777
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

8 positive · 4 caution
Best for

Agrivoltaic, utility-scale and commercial.

Not ideal for

Owners who want a long output guarantee.

Strengths
59.4 kg per kWp

Top 5% of the TOPCon 300-350 W segment, against a median of 81.0. Ranked 12,113th in the whole database.

176.7 watts per square metre

Top 14% of the TOPCon 300-350 W segment, against a median of 150.1.

17.70% module efficiency

Top 16% of the TOPCon 300-350 W segment, against a median of 15.03%.

Watch-outs
25 year performance warranty

Bottom 3% of the TOPCon 300-350 W segment, against a median of 30 yrs. Ranked 9,777th in the whole database.

What owners get
N-type TOPCon cells

TOPCon technology delivers lower LID/LeTID degradation and better high-temperature performance under diffuse light than older PERC cells, translating into higher real-world annual yield, particularly for ground-mount installations.

Up to 30-year power warranty

The linear power warranty extends to 30 years, beyond the standard 25 years offered by most peer comparables (Solitek, Solarwatt), reducing investment risk for long-horizon agri-PV and commercial projects.

Tier-1 BNEF manufacturing

Production from a factory listed on the Bloomberg NEF Tier-1 list, combined with German design, facilitates bank financing for large commercial and industrial projects — a key criterion for institutional investors.

Dual land use

45% rear-side transparency allows energy production to be combined with crop cultivation or animal grazing beneath the array, increasing land productivity compared to standard opaque ground-mount panels.

High mechanical strength

The module is engineered for snow and wind load resistance, making the series suitable for harsher terrain conditions typical of ground-mount and agri-PV installations.

Trade-offs
Efficiency below segment median

Maximum efficiency of 18.7% is notably lower than peer comparables: Solitek SOLID Bifacial 19.57%, Solarwatt Panel vision GM 3.0 19.9%, and Selfa SV120M.3.2 20.3% (at the same 370 Wp power class). This means a larger mounting area is needed to reach the same system power.

Inconsistency in bifacial data

The series description emphasizes double-sided output and 45% rear transparency, while the technical data flags is_bifacial as false. This discrepancy could complicate yield modeling (e.g., in PVsyst) and should be verified with the manufacturer before quoting the product.

Wide spread in product warranty

Product warranty ranges from 12 to 25 years across the 11 available variants, meaning some models in the series offer only a basic 12-year coverage period — significantly below the 25-year premium standard common in this segment.

Specifications

Open datasheet PDF
Nominal power (Pmax) 345 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 17.70 % Strong Segment median 15.03%
Vmpp · Impp 32.96 V · 10.47 A Operating point at max power
Voc · Isc 38.22 V · 11.31 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 1722×1134×30 mm · 1.95 m² of roof
Weight 20.5 kg Strong Strong · 6.5 kg below median
Cells 108 · TOPCon Monocrystalline
Coefficient Pmax -0.290 %/°C Strong top 22% of its segment
Coefficient Voc · Isc -0.250 · 0.045 %/°C
NOCT 45 °C At 800 W/m², 20 °C ambient
Product warranty 12 years Hardware defects only
Performance warranty 25 years Weak bottom 3% · median 30 yrs

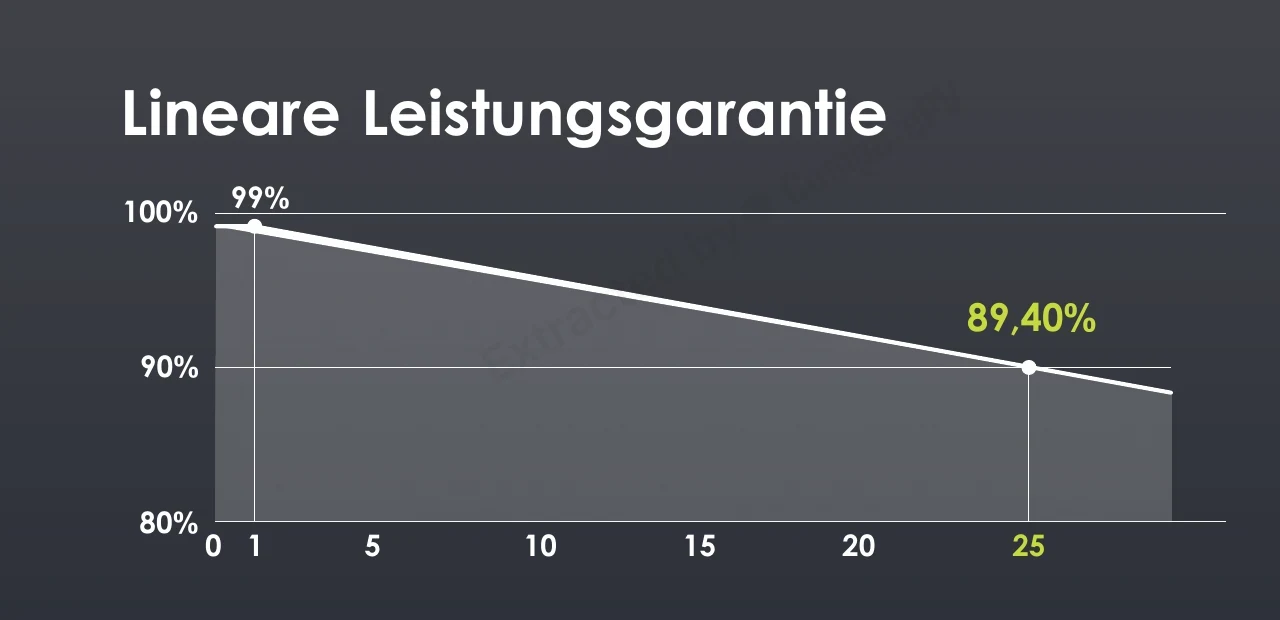

End-of-warranty output 89.4 % Equals 302 W guaranteed
Degradation 1.00 % First year

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.290 %/°C against a segment median of -0.300
-

Alternatives

All PVolution panels
Filter these
Size
Panel Power Eff. Temp. Weight Difference
PVolution PVN345-M10TCBB 345 W 17.70% -0.290 20.5 kg You are here
NS-300MH-72 300 W 23.32% -0.290 12.5 kg -45 W, lighter, +5.6 pp
NS-300MH-72 300 W 23.32% -0.290 12.5 kg -45 W, lighter, +5.6 pp
NS-330MH-80 330 W 23.15% -0.290 15.0 kg -15 W, lighter, +5.4 pp
NS-330MH-80 330 W 23.15% -0.290 15.0 kg -15 W, lighter, +5.4 pp
GKA182M300W 300 W 23.00% - 16.2 kg -45 W, +5.3 pp, +5 yr warranty
GKA210M320W 320 W 23.00% - 16.2 kg Lighter, +5.3 pp, +5 yr warranty
GKA210M340W 340 W 23.00% - 16.2 kg Lighter, +5.3 pp, +5 yr warranty
GKA210M360W 360 W 23.00% - 16.2 kg Lighter, +5.3 pp, +5 yr warranty
GKA210M380W (1/4*4*38) 380 W 23.00% - 17.1 kg +35 W, +5.3 pp, +5 yr warranty
GKA210M380W (1/2*4*19) 380 W 23.00% - 17.1 kg +35 W, +5.3 pp, +5 yr warranty
PVN350-M10TCBB (ORANGE) 350 W 17.90% -0.290 20.5 kg Very close match
PVN355-M10TCBB (ORANGE) 355 W 18.20% -0.290 20.5 kg +10 W, +0.5 pp
PVN360-M10TCBB (ORANGE) 360 W 18.40% -0.290 20.5 kg +15 W, +0.7 pp
PVN365-M10TCBB (ORANGE) 365 W 18.70% -0.290 20.5 kg +20 W, +1.0 pp
PVN435-M10TCBB 435 W 22.28% -0.260 24.8 kg +90 W, +4.6 pp, +5 yr warranty
PVN440-M10TCBB 440 W 22.53% -0.260 24.8 kg +95 W, +4.8 pp, +5 yr warranty
LR7-54HJD-510M 510 W 25.00% -0.240 23.5 kg +165 W, +7.3 pp, +5 yr warranty

Found 1776 panels of the same or similar size to this one, within ±10 mm. See them here Found 1907 panels of the same or similar size to this one, within ±25 mm. See them here Found 3380 panels of the same or similar size to this one, within ±50 mm. See them here Found 3958 panels of the same or similar size to this one, within ±100 mm. See them here

Common questions

6 answered
How does the UNICA series differ from standard monofacial panels?
UNICA is a bifacial module that, thanks to 45% rear-side transparency, lets part of the light pass through to the ground. A standard monofacial panel only generates power from one side, whereas UNICA also captures light reflected off the ground and allows crops to grow or livestock to graze beneath the array - true dual land use on the same plot.
Are UNICA panels suitable for agri-PV installations?
Yes, this is the series' primary use case. The partial transparency of the rear side lets light reach crops or grass under the panels, so the same plot can generate electricity and support farming simultaneously. The module also has strong mechanical resistance to snow and wind loads, important for open-field sites.
What warranty does UNICA come with, and is it financially backed?
The manufacturer offers a 25-year product warranty and a linear power warranty spread over 30 years. The German manufacturer's warranty is additionally reinsured by a third-party insurer, meaning payout doesn't depend solely on the manufacturer's financial health - an important safeguard for long-term projects.
What is TOPCon cell technology in UNICA, and does it deliver real-world performance gains?
TOPCon is a high-efficiency cell technology that handles losses from high temperature and diffuse light better than older PERC technology. The module reaches up to 370 Wp and maintains stable output even under less-than-ideal irradiance, translating into higher annual energy yield in practice.
Can UNICA panels be bank-financed for a large ground-mount installation?
Yes, the modules come from a factory listed on Bloomberg NEF's Tier 1 list, one of the criteria banks and lenders use when assessing risk for commercial and industrial projects. This makes it easier to secure bank financing for larger ground-mount and utility-scale installations built with this series.
Where is UNICA not the right choice?
UNICA was designed for ground-mount and agri-PV installations, where the bifacial gain and dual land use are key benefits. On pitched roofs or facades, where there is no reflected light from the ground below, the bifaciality advantage is largely lost, so a dedicated rooftop series would be a better fit there.
