480Wp

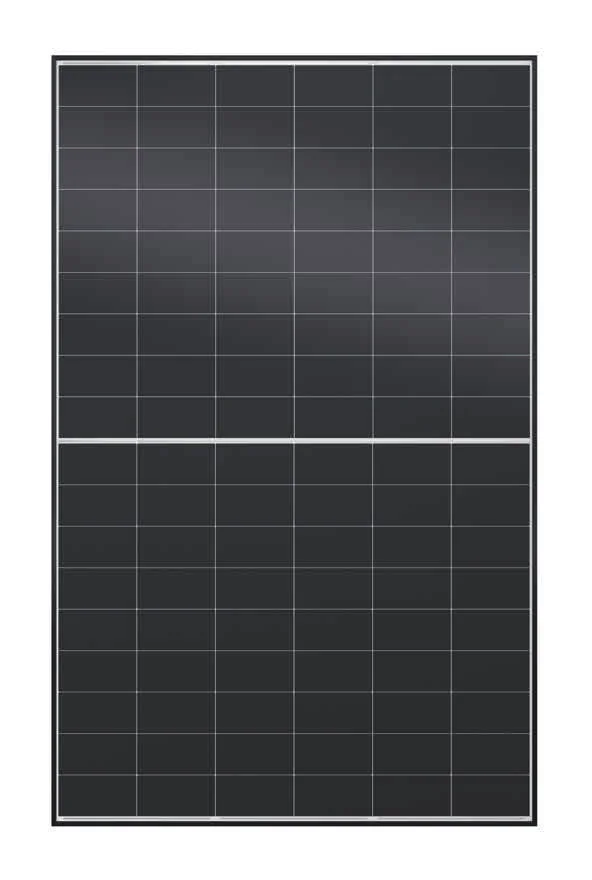

Longi Solar Review

LR7-54HVH-480M

Monocrystalline
23.50%
Efficiency
235.2 Wp/m²
Power Density
-0.260%/°C
Temp. Coeff. Pmax chart
426W from 480W
Power after 30 years
  • 23.5% module efficiency - 1.0pp better than the N-type 450-500W median of 22.5%
  • 235.2 W/m² power density - 10.0 W/m² more than N-type 450-500W median (225.2 W/m²), more power per roof area
  • -0.26%/°C temperature coefficient (median: -0.29%/°C) - retains ~1% more power at high temperatures
  • Weight of 21.6 kg (1.9 kg below N-type 450-500W median of 23.5 kg) allows easier transport and roof mounting
  • Ranked #501 out of 11672 panels for efficiency in the database
Performance Profile
Price Offers 0
Shop Country Price Price/kWp
Series Hi-MO X10 Guardian (Anti-Glare) / LR7-54HVH 480~500M 5 variants
Efficiency Range 23.5% - 24.5%
Avg. Efficiency 24.02%
Technology N-type
Dimensions 1800 × 1134 mm
Show series description

The Longi Solar Hi-MO X10 Guardian (Anti-Glare) LR7-54HVH 480~500M series is designed for locations where not only energy yield matters, but also the surrounding comfort and safety. The key difference is the Anti-Glare surface – a special textured glass structure that minimizes local glare spots, making the installation more suitable near roads, airports, residential neighborhoods, and public facilities.

In practice, this means less risk of complaints about reflections and greater design freedom, without compromising efficiency. The manufacturer emphasizes high transparency of the front layer, which helps maintain light power and absorption comparable to conventional modules. Additionally, the solution is non-coated and dust-resistant, supporting stable performance and minimizing uneven soiling issues over the long term.

This is an excellent choice for demanding rooftops and commercial installations where non-glare aesthetics, predictable energy yields, and long-term durability in real operating conditions are crucial.

Panels from the same series differ mainly in power output while having identical dimensions. Learn why →
Electrical Parameters (STC)
Nominal Power (Pmax)480 Wp
Module Efficiency23.50%
Voltage at Max Power (Vmpp)33.28 V
Current at Max Power (Impp)14.43 A
Open Circuit Voltage (Voc)40.29 V
Short Circuit Current (Isc)15.13 A
Max System Voltage1500 V
Temperature Coefficients
Temp. Coeff. Pmax-0.260%/°C
Temp. Coeff. Voc-0.200%/°C
Temp. Coeff. Isc0.050%/°C
NOCT45°C
Cell Technology
Cell TypeMonocrystalline
Cell Count108
BifacialNo
Bifaciality Factor-
Dimensions & Weight
Length1800 mm
Width1134 mm
Height30 mm
Weight21.6 kg
Area2.04 m²
Power Density235.2 Wp/m²
Warranty
Product Warranty15 years
Performance Warranty30 years
End-of-Warranty Output88.8%
First Year Degradation1.00%
Annual Degradation0.35%/year
Key Specifications
23.50%
Efficiency
480 Wp
Power
-0.26%/°C
Temp Coeff
30 yrs
Warranty
